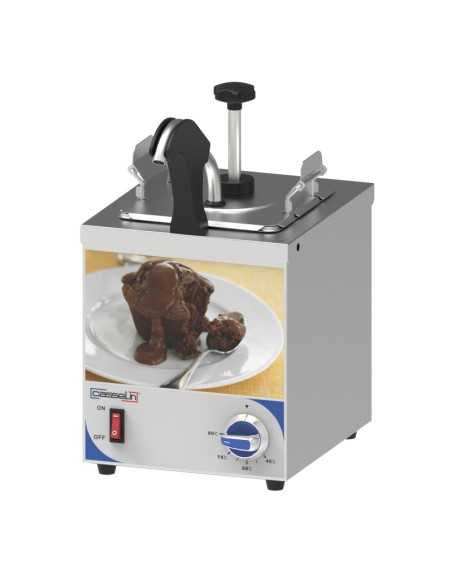

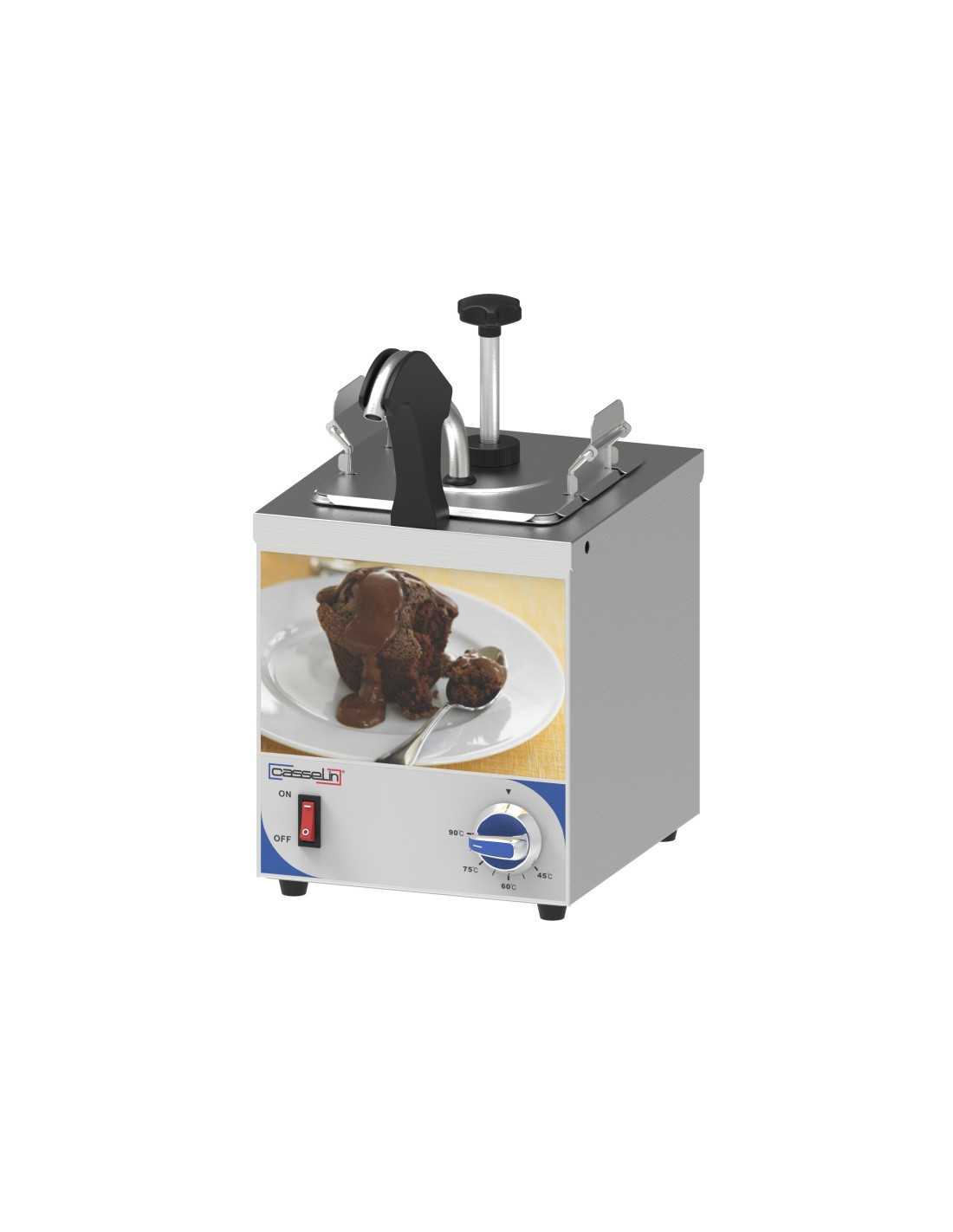

| Heated dispenser for sweet sauces, savoury sauces, chocolate and toppings with pump and heated spout |
CDSPBC1 |
| Ideal for |
Snack bars, fast food outlets, sandwich shops, food trucks, cinemas, amusement parks, cafés, ice cream shops, buffets, canteens, events and takeaway outlets. |
| EAN |
3611630088473 |
| Overall size |
Cm 20.6 x 32 x 31.2 h |
| Weight |
4.4 kg |
| Warranty |
12 months |
| Conformity |
CE |
| Origin |
France |
| TECHNICAL DATA |
| Housing |
Stainless steel. |
| Pump |
One stainless steel pump. |
| Heated spout |
Stainless steel spout combined with a polycarbonate heater. |
| Control |
ON/OFF switch. |
| Container |
One GN 1/6 container. |
| Container depth |
20 cm. |
| Capacity |
2.5 L. |
| Dispensing portion |
20 ml per pump stroke. |
| Heating system |
Dry heating, without a water bath. |
| Temperature control |
Adjustable thermostat from 45°C to 90°C. |
| Safety |
Safety thermostat. |
| Power |
210 W. |
| Power supply |
230 V. |
| Frequency |
50/60 Hz. |
| MAIN FEATURES |
| The Casselin CDSPBC1 heated dispenser keeps and dispenses sweet or savoury sauces that need to remain fluid and homogeneous during service. It is also suitable for chocolate, caramel and toppings compatible with the operating temperature. |
| The heated spout maintains heat close to the dispensing point, helping the sauce flow regularly through to the outlet. The stainless steel spout is combined with a polycarbonate heater. |
| The thermostat allows temperature adjustment from 45°C to 90°C according to the recipe and required consistency. Dry heating simplifies workstation setup, without a water bath or water-level checks. |
| Each pump stroke dispenses a fixed 20 ml portion, helping standardise servings, control sauce consumption and costs, and maintain consistent presentation between operators. |
| The 2.5 L GN 1/6 container is 20 cm deep and facilitates filling and daily handling. The stainless steel housing, removable components and clear controls make workstation organisation straightforward. |
| The safety thermostat complements the temperature control system. The single configuration keeps the main sauce in a dedicated station, ready for finishing during busy service periods. |
| PROFESSIONAL APPLICATIONS |
| Snack bars, fast food and takeaway outlets: dispensing sauces for burgers, hot dogs, chips, tacos and other preparations. |
| Cafés and ice cream shops: dispensing chocolate, caramel and toppings compatible with the operating temperature for desserts and speciality drinks. |
| Buffets and canteens: creating a clearly arranged dispensing point with consistent portions. |
| Food trucks, cinemas, amusement parks and events: quickly finishing preparations when orders arrive in a short period. |
| USE AND ORGANISATION |
| Place the appliance in a stable, accessible and adequately ventilated area, observing the electrical specifications on the rating plate. |
| Fill the GN 1/6 container without exceeding its 2.5 L capacity. Start using the ON/OFF switch and select a temperature between 45°C and 90°C according to the recipe. |
| Press the pump to apply a 20 ml portion directly onto the product or into a serving container. Check the sauce level regularly during use. |
| CLEANING |
| Switch off the appliance and allow it to cool before cleaning accessible food-contact parts. Clean stainless steel surfaces with a suitable product. |
| Do not use abrasives on the polycarbonate heater and keep the pump area clean to support daily service. |
