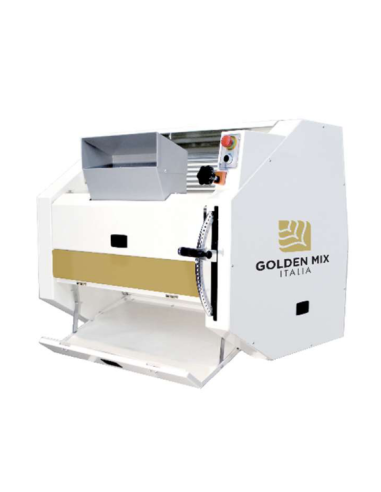

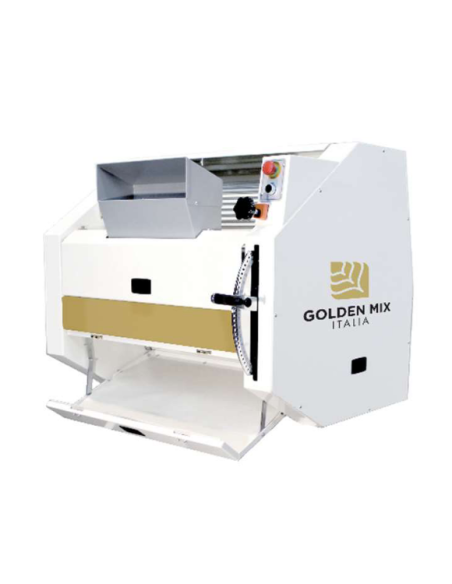

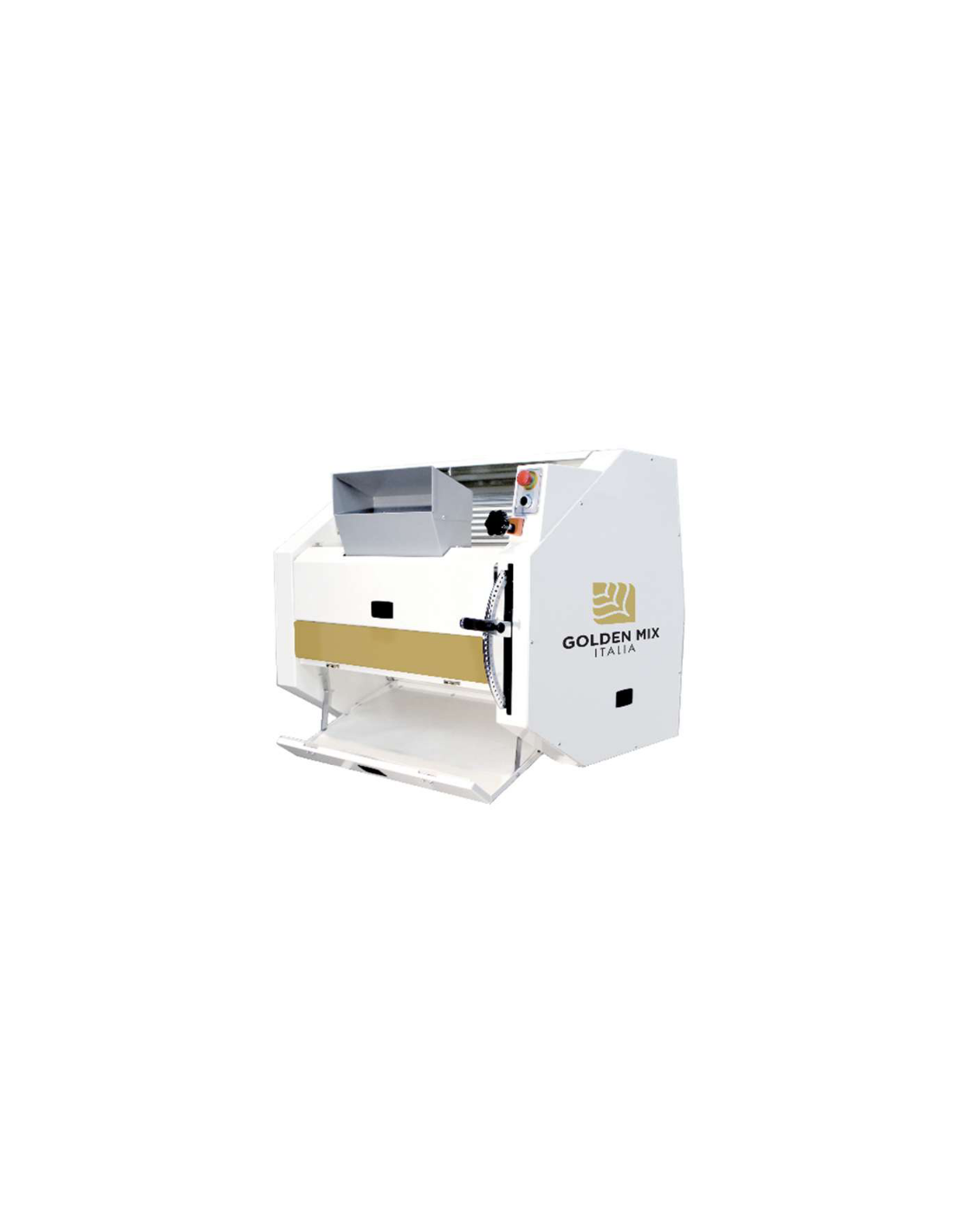

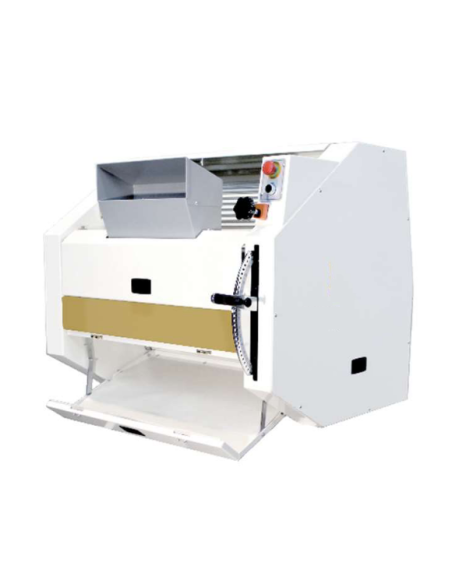

3-Cylinder Baguette Machine - Three-phase - Width of Carpets mm 750 - Dimensions cm 93 x 104.5 x 88 h
3-Cylinder Baguette Machine - Three-phase - Width of Carpets mm 750 - Dimensions cm 93 x 104.5 x 88 h


  • -10%
3-Cylinder Baguette Machine - Three-phase -...
3-Cylinder Baguette Machine - Three-phase -...

3-Cylinder Baguette Machine - Three-phase - Width of Carpets mm 750 - Dimensions cm 93 x 104.5 x 88 h

GMXX-B3C700
GMXX-B3C700
€4,131.00 €4,590.00 -10%
€4,131.00 Senza tasse €5,039.82 Con tasse €4,590.00 Senza tasse
Tax excluded

3-Cylinder Baguette Machine with 750 mm useful carpet width - Power kW 0.75 - Grammage Range 50-2500gr - Max Working Dough Hydration 80/85% - (Cart Optional) - Three-phase supply - Dimensions cm 93 x 104.5 x 88 h

Request information
Ask a Quote

Options

+ ACCESSORIES

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


icon_image_1679324863.png Shipments

icon_image_1734099125.png Information on electrical components



icon_image_1695971686.png Tytes of Payments

icon_image_1695971505.png Video
icon_image_1696600654.png Production Times

icon_image_1696602441.png How to contact us

icon_image_1788510258.png Chef Costantino

x
PRENOTA UNA VIDEOCHIAMATA

Professional Baguette Machine Model: B3C700
Ideal For bakeries with small, medium and large productions
Model Countertop
Dimensions 93 x 104.5 x 88 cm h
Net Weight 260 Kg
Origins Italy
Warranty 12 months
Standard CE
TECHNICAL DATA
Double pass paste cylinders N. 3 adjustable
Grammage range 50 - 2500 g
Useful belt width mm 750
Hourly Production Max 1500 - 2000 Pieces/h
Capacity Max Paste Hydration 80/85% Hydration
Power kW 0.75
Power supply Three-phase V400/3/50Hz
GENERAL INFORMATION
This machine laminates (and then rolls) dough through 3 food-grade Nylon cylinders that can be adjusted as needed to the optimum position by the action of a lever that slides over a graduated sector
Once the right position has been found, the cylinders work the dough by crushing it, reducing its thickness and then directing the product towards the rounding stage; subsequently, the dough is stretched by entering between 2 opposing mats refining them softly and progressively
I two "pressing mats" are regulated by a knob equipped with a " millimeter " indicator
The dough can be stretched up to 700 mm
The hopper is easily lifted making access for cleaning the cylinders and related scrapers quick
The mechanical design of this model has made it possible to obtain a sturdy machine suitable to withstand demanding workloads while also allowing it to be used in an automatic work line, for example combined with a prefermalievitation cellfor the production of baquettes
PREDISPOSITIONS
The B3C700 machine is prepared for the installation of a motorized exit conveyor (optional)
OPTIONAL:

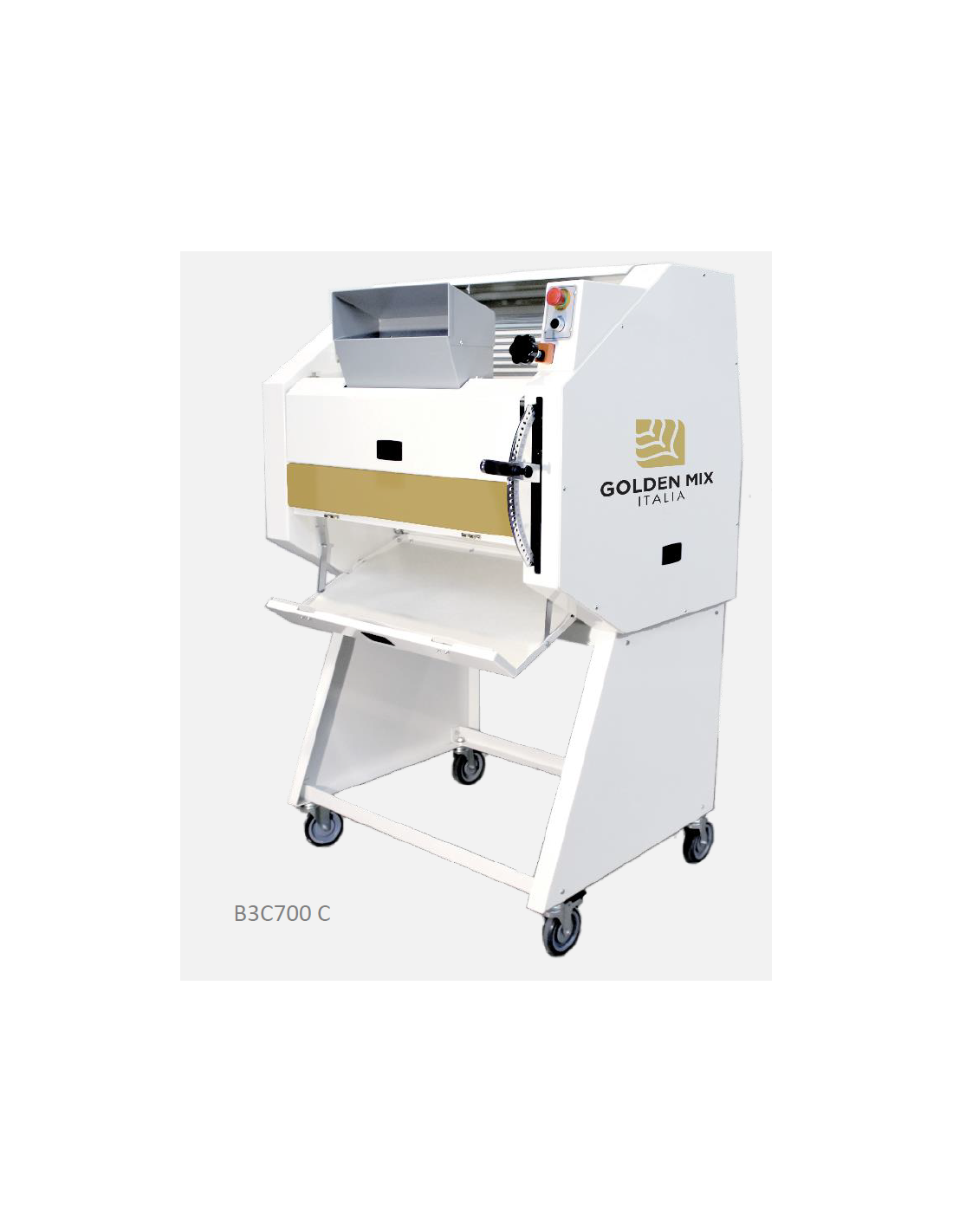

Trolley - Total machine height with trolley cm 168
