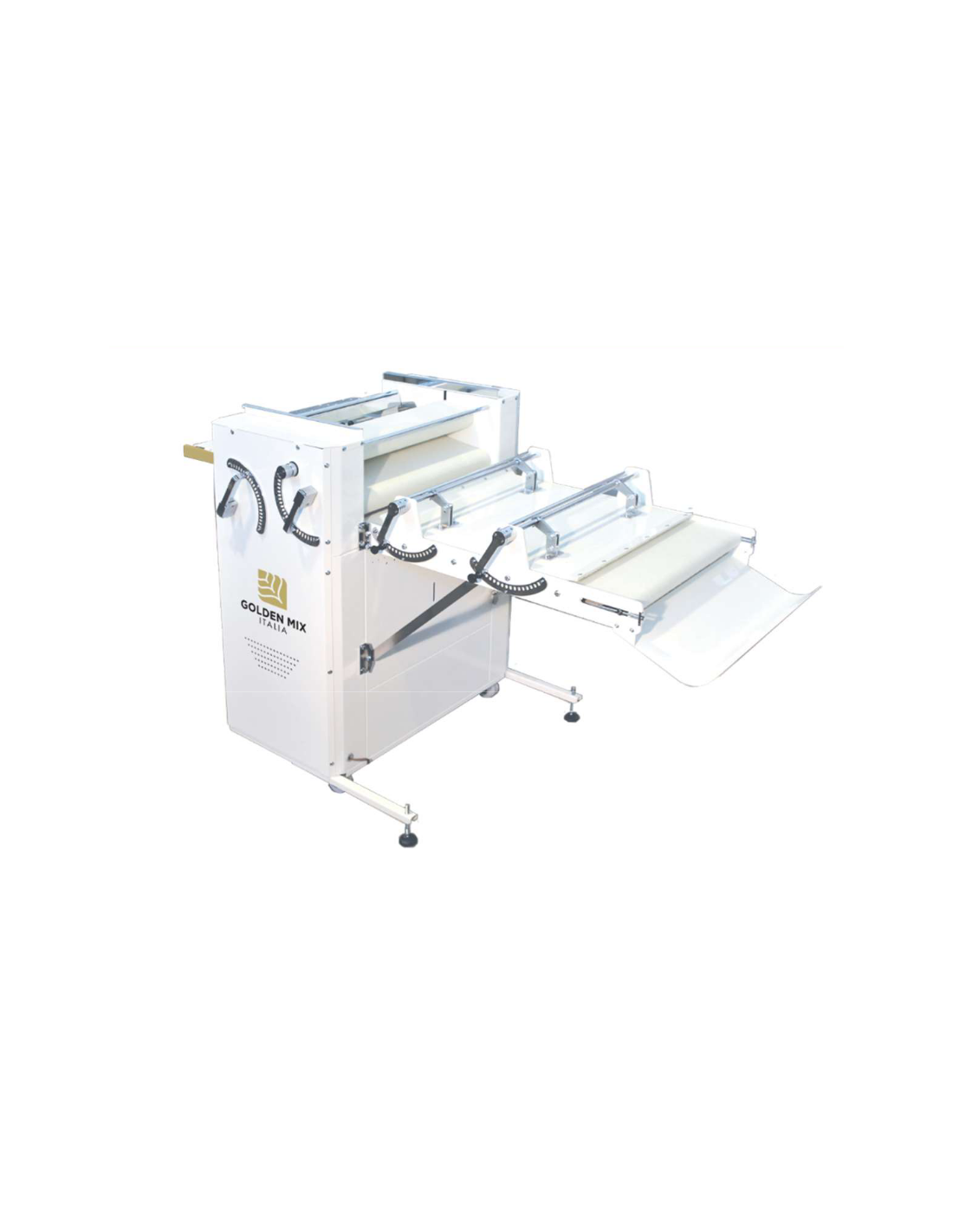

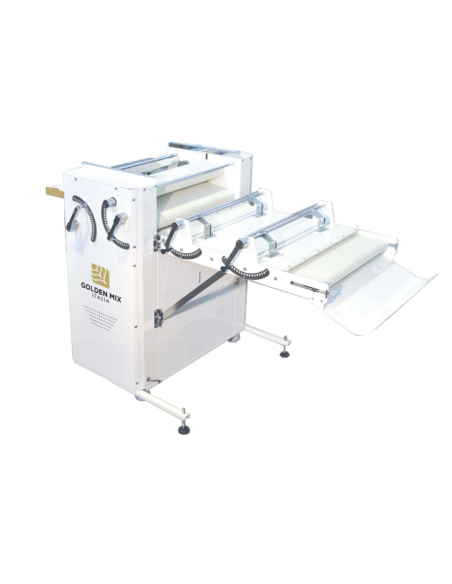

Forming Machine 4 cylinders mm 615 - Painted Sheet Metal Structure with Anti-Dumping Device - Dimensions cm 120 x 100 x 123 h
GMXX-F4C600
GMXX-F4C600
€4,864.96
€5,288.00
-8%
€4,864.96 Senza tasse
€5,935.25 Con tasse
€5,288.00 Senza tasse
Tax excluded
4-Cylinder Forming Machine - Model F4C600 - Powder Coated Sheet Metal Structure - Cylinders mm 615 - Dough Grams 20-2000 - Upper Carpet Block - With 4 Scrapers - with Stainless Steel Trays and Cylinder Protectors - with Anti-Discard Device - Power Kw 0.75 - Three-phase supply V400/3/50Hz - Dimensions cm 120 x 100 x 122 h
| 4-cylinder molding machine | Model: F4C600 |
| Ideal | For the production of a variety of shapes and sizes of filoni, filette and wrapped dough in general |
| Dimensions | Cm 120 x 100 x 122 h |
| Weight | Kg 270 |
| Origins | Italy |
| Warranty | 12 months |
| Standard | CE |
| TECHNICAL DATA | |
|---|---|
| Cylinders | N. 4 x mm 615 |
| Grammage Range | 20-2000 g |
| Upper Carpet Block | For Paste Cylinder |
| Upper Carpet Pretensioned | (without adjustment) |
| Wheels | n° 4 of mm 80 of which 2 Fixed and 2 Swiveling with Brake |
| Thick Chromed Cylinders Useful width | mm 615 |
| Anti-Discard Device | Adjustable for dough winding |
| Optional | Moulder up to 600 mm |
| Capacity working Max Dough Hydration | 70/75% Hydration |
| Standard | 4 Scrapers - Chute for Returning Pieces to the Operator - Trays and Cylinder Protectors in Stainless Steel |
| Power | kW 0.75 |
| Power supply | Three-phase V400/3/50Hz |
| GENERAL INFORMATION | |
|---|---|
| The forming machine F3C/F4C 600 LUX & a machine capable of forming multiple types of wrapped bread in various sizes and with the ability to cylinder the dough thanks to the upper belt locking mechanism | |
| E equipped with a chute for the return of the pieces to | the operator or to the tray located at the back of the machine | |
| The machine & constructed of sheet steel of considerable strength & all moving parts are mounted on watertight bearings, the protection of the cylinders & made of 304 stainless steel & when lifted, a device intervenes to block the machine | |
| I cylinders are ground & chrome plated to thickness, have a useful width of 600 mm & are protected by scrapers | |

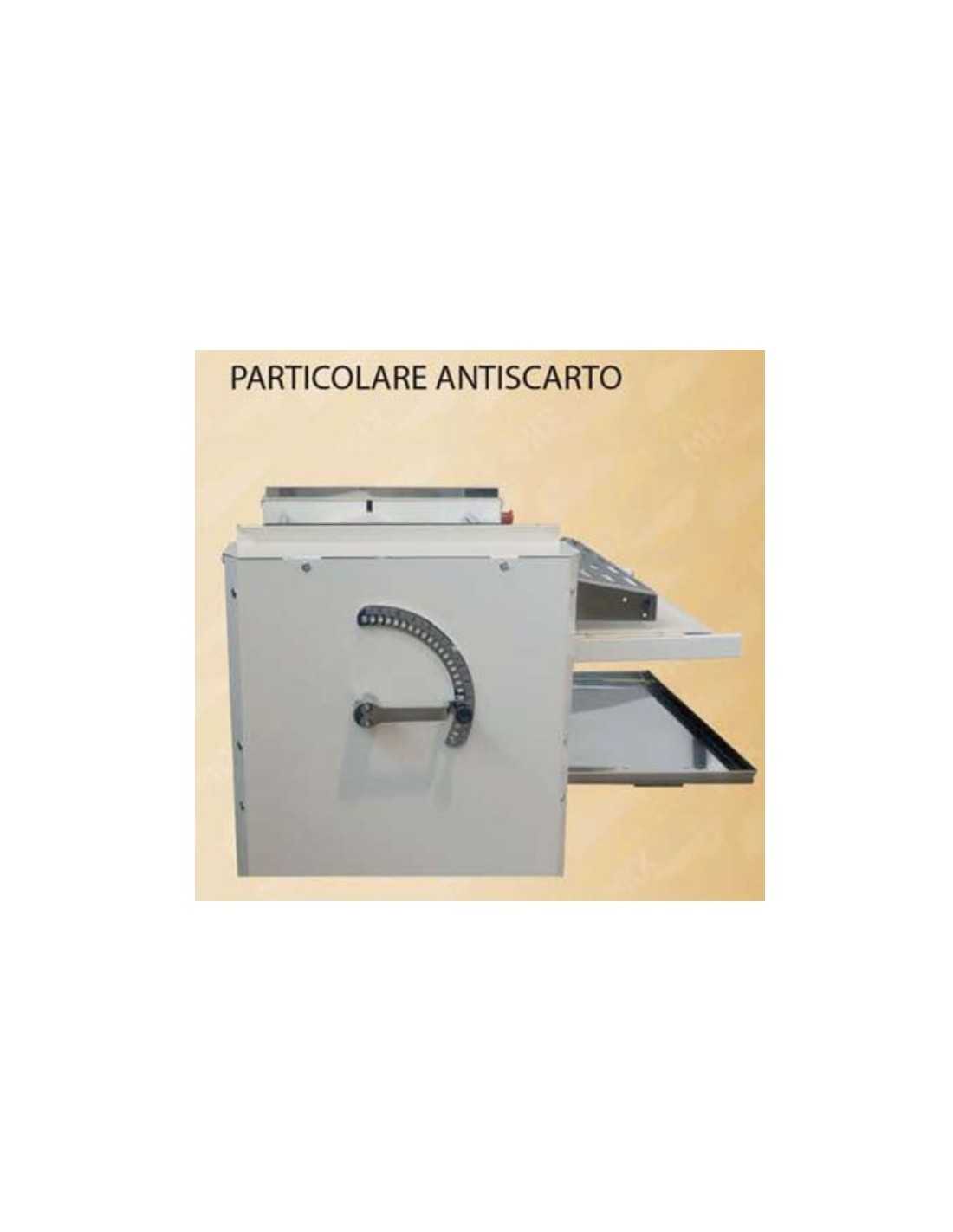

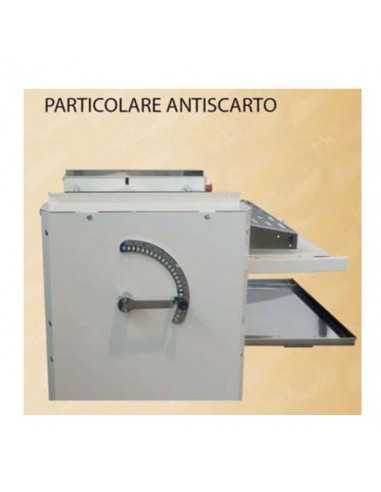

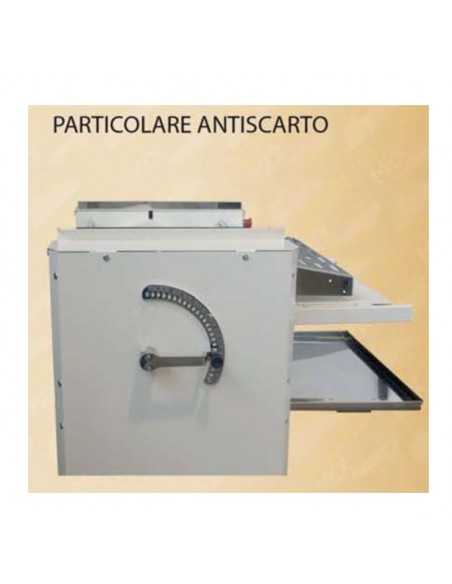

| The machine & also equipped with a quickly adjustable anti-scrap device for soft and increased dough rolling | |
| The molding machine is equipped with 2 fixed and 2 swivel wheels for easy movement and equipped with brakes to stop the machine during processing | |

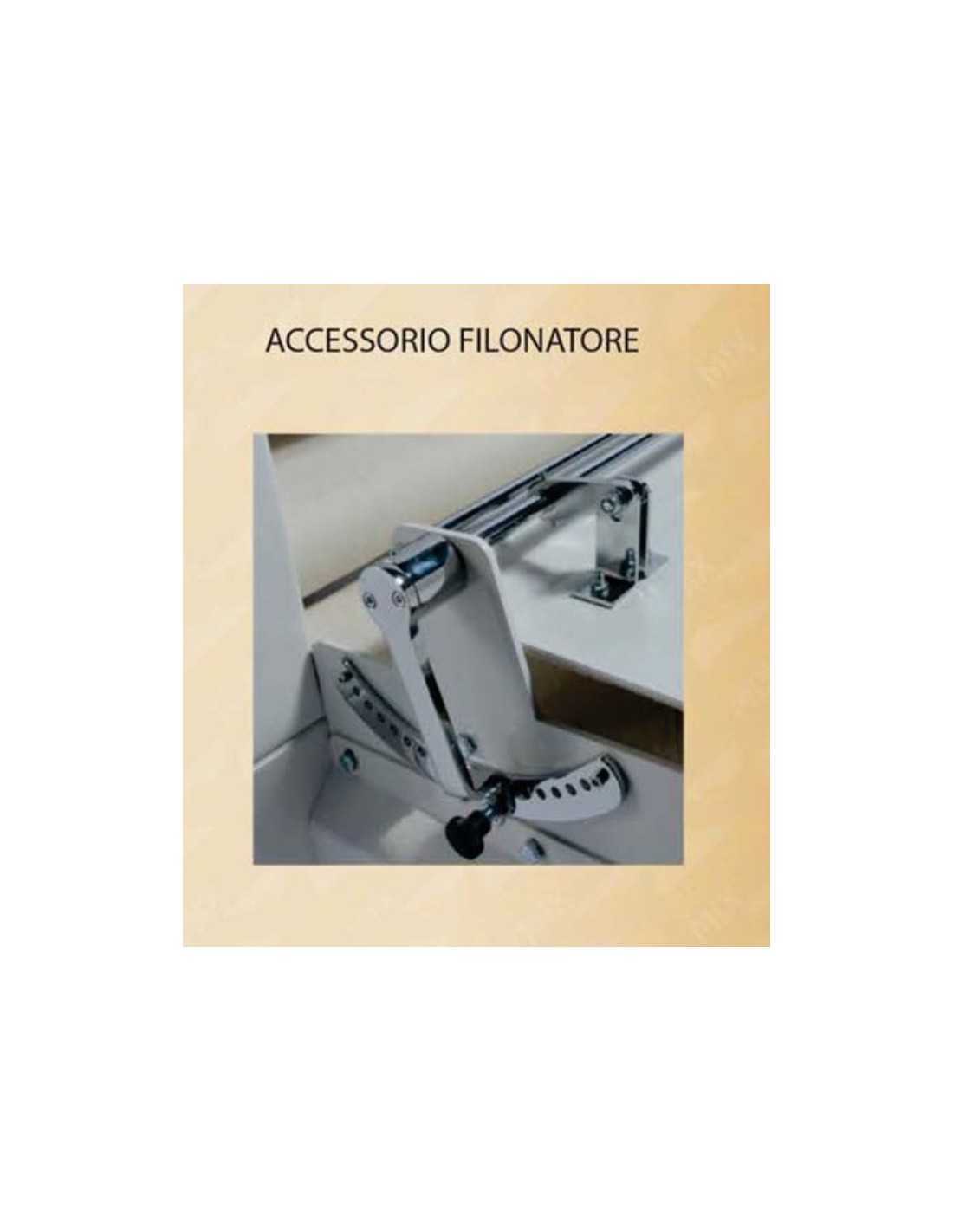

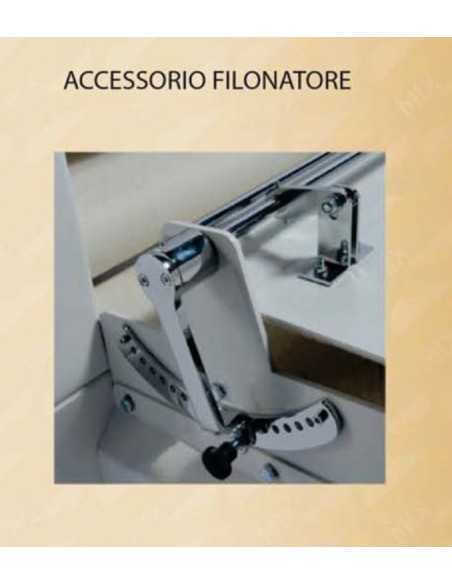

| The F3C/F4C 600 LUX & prearranged for | the installation of a filonatore (FIL optional), this allows to production of filoncini or to further stretch the dough, in this case there are no trays in the machine | |
| The machine meets current machine safety regulations, as well as compliance with hygienic standards on food contact materials |
