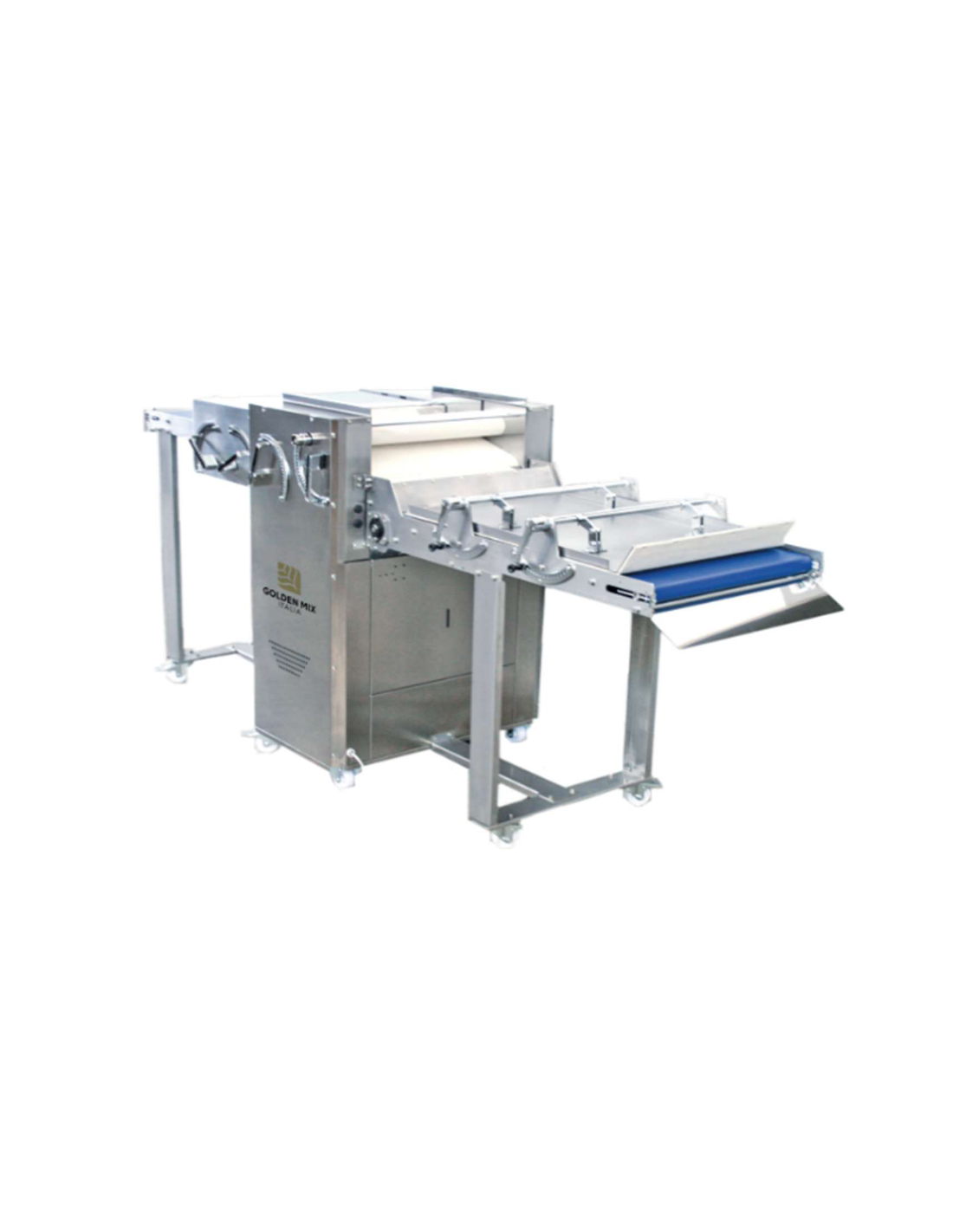

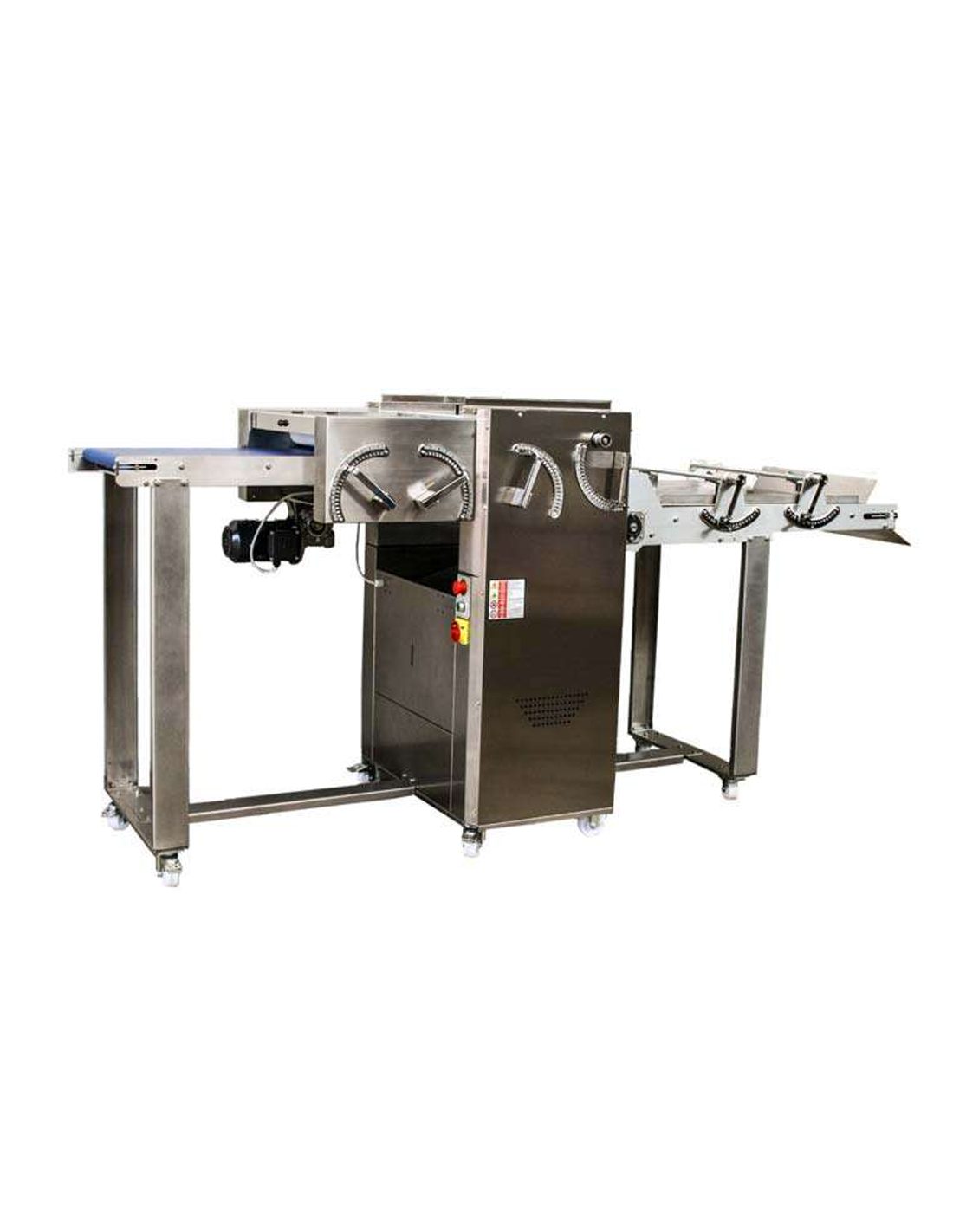

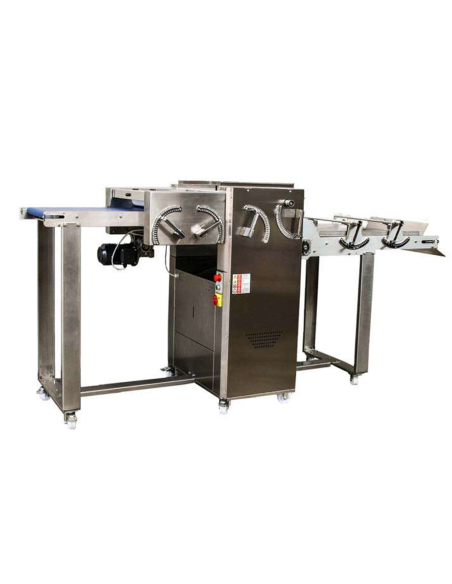

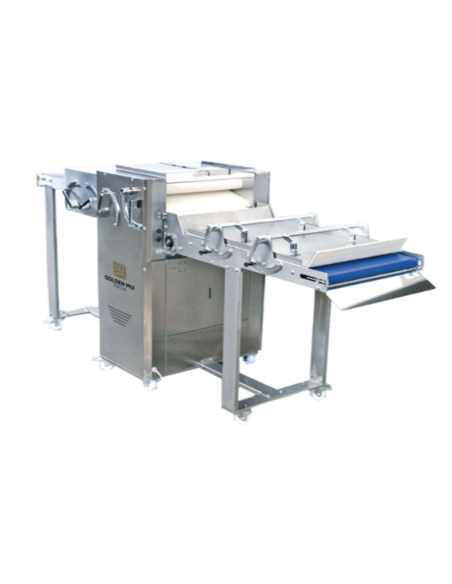

Forming Machine 6 cylinders mm 615 - Stainless Steel Frame with Anti-Dumping Device - Dimensions cm 227 x 100 x 136 h
Forming Machine 6 cylinders mm 615 - Stainless Steel Frame with Anti-Dumping Device - Dimensions cm 227 x 100 x 136 h
  • -8%
%product-name%
Forming Machine 6 cylinders mm 615 - Stainless...
Forming Machine 6 cylinders mm 615 - Stainless...

Forming Machine 6 cylinders mm 615 - Stainless Steel Frame with Anti-Dumping Device - Dimensions cm 227 x 100 x 136 h

GMXX-GOLDEN600INOX+FIL
GMXX-GOLDEN600INOX+FIL
€16,826.80 €18,290.00 -8%
€16,826.80 Senza tasse €20,528.70 Con tasse €18,290.00 Senza tasse
Tax excluded

6-Cylinder Forming Machine - Model GOLDEN600+FIL - Stainless Steel Structure - Cylinders mm 615 - With Strander Useful Width 630 mm - Dough Grams 15-2500 - n° 2 Motorized Pressing Cylinders - n°2 Rolling Carpets - with Anti-Discard Device - Three-phase supply - Dimensions cm 227 x 100 x 136 h


6-roll forming machine Model: GOLDEN600INOX+FIL
Ideal For the production of various shapes and sizes of loaves, and multiple types of Bread
Dimensions Cm 227 x 100 x 136 h
Weight Kg 700
Origins Italy
Warranty 12 months
Standard CE
TECHNICAL DATA
Cylinders N. 6 x mm 615
Grammage Range 15-2500 g
Cylinders 2+4 n°2 Motorized Pressors in Food Nylon - n°4 Motorized Pressors in Nylon, for Final Lamination
Rolling Carpet n° 2 equipped with Anti-Drop Device
Wheels n° 8 of mm 80 of which (6 Pivoting with Brake)
Thick Chromed Cylinders Useful Width mm 615
Anti-Displacement Device Adjustable for dough winding
Capacity working Dough Hydration Max 70/75% Hydration
Spinner Useful width 630 mm equipped with independent Gear Motor adjustable by 2 handles
Optional Inverter
Power kW 2.1
Power supply Three-phase V400/3/50Hz
GENERAL INFORMATION
The GOLDEN 6000 forming machine & a machine capable of forming multiple types of wrapped bread in various sizes and with an hourly output suitable for insertion into the line can reach over 6000 pieces per hour
E' equipped at the inlet with 2 food-grade nylon pressing cylinders, motorized and independently adjustable by means of 2 handles these provide pre-rolling of the dough, before proceeding to the 4-cylinder group that finishes the rolling in an optimal way
The dough is subsequently wound by 2 rolling belts equipped with an anti-scrap device. At the outlet, the wound dough, arrives at a stranding unit equipped with an independent gear motor, easily adjustable by 2 handles, the latter has a useful width of 630 mm
The Golden 6000 & constructed of steel of considerable strength and all moving parts are mounted on watertight bearings, the protection of the cylinders & made of stainless steel and when lifted, a device intervenes that blocks the machine
| electrical controls, as the safeties are in 24 volts
The machine is equipped with pivoting and braking wheels for convenient installation and on request can be equipped with an inverter (optional) for optimal matching where it is inserted in the production line
Suitable for doughs up to 70/75% hydration
The machine meets current machine safety regulations, as well as compliance with hygienic regulations on food contact materials
