Forming Machine 2 Cylinders mm 500 - cm 117 x 85 x 123 h

GMXX-F2C500
GMXX-F2C500
€2,842.80 €3,090.00 -8%
€2,842.80 Senza tasse €3,468.22 Con tasse €3,090.00 Senza tasse
Tax excluded

2-cylinder molding machine - Model: F2C500 - Cylinders mm 500 - Dough grams 20÷1500 - Shoulders with Inner Cylinder Block - With scraper - Power Kw 0.75 - Three-phase supply V400 / 3 / 50Hz - Dimensions cm 117 x 85 x 123 h

Options

+ ACCESSORIES

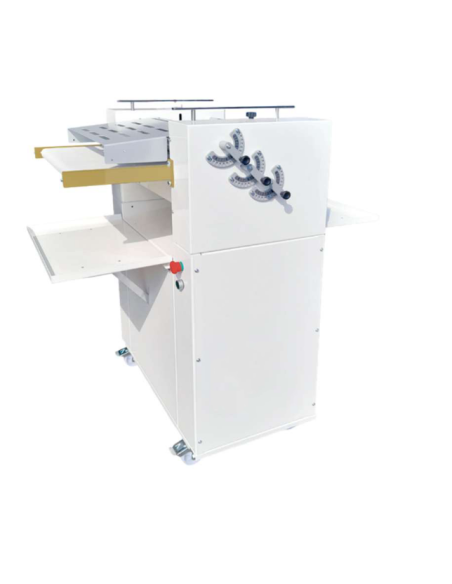

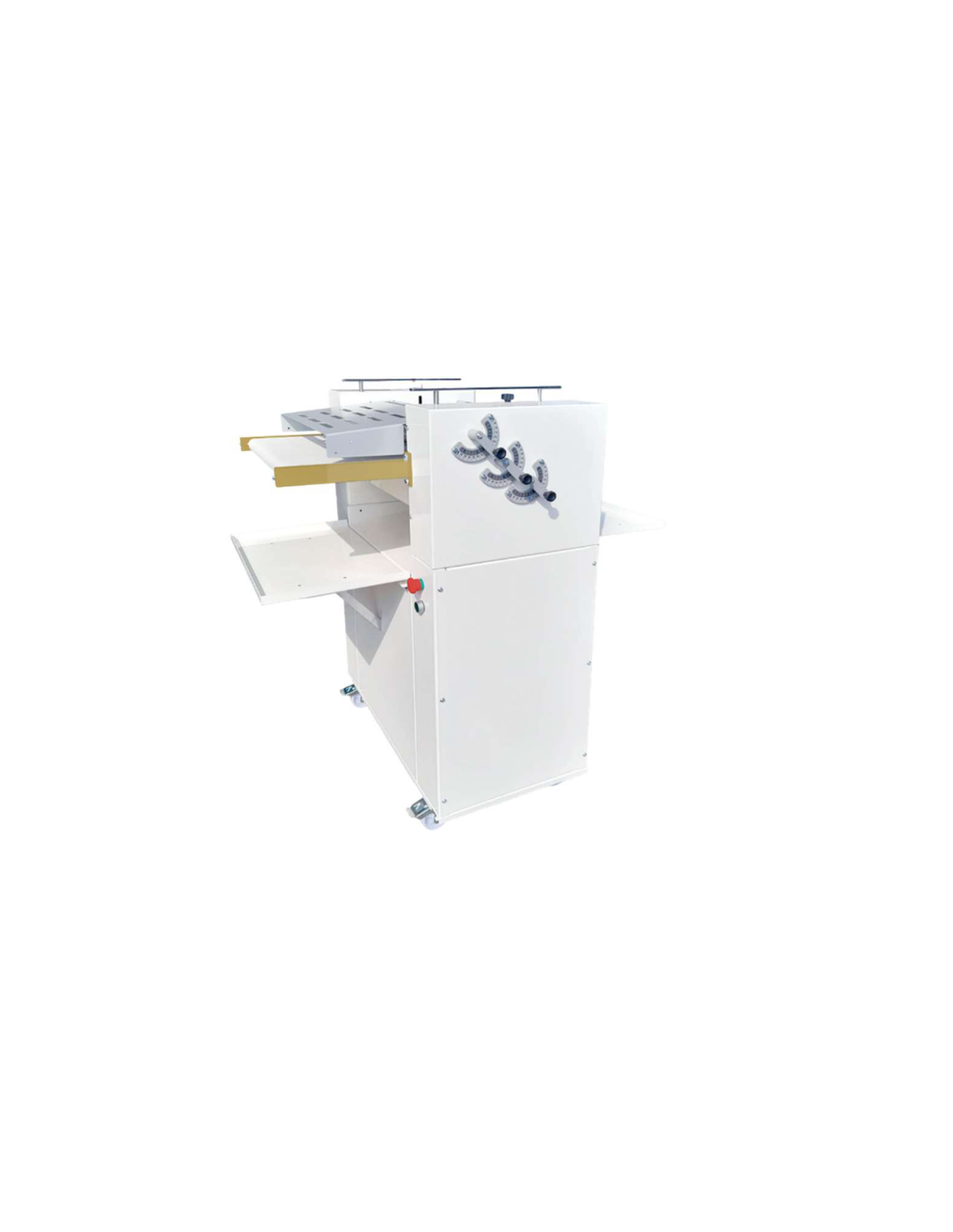

2-cylinder molding machine Model: F2C500
Ideal For the production of a variety of shapes and sizes of filoni, filette and wrapped dough in general
Dimensions Cm 117 x 85 x 123 h
Weight 150 Kg
Origins Italy
Warranty 12 months
Standard CE
TECHNICAL DATA
Shaft Chrome-plated cylinder 20 mm
Cylinder Length 2 x mm 500
Shoulders with Inner Cylinder Lock Aluminum 15 mm
Dough Grammage 20 ÷ 1500
Wheels 4 Wheels 80 mm ( 2 Swivel with Brake)
Capacity working Dough Hydration Max 70/75% Hydration
Standard Scrapers - Oversized Bearings - Chute for Returning Pieces to Operator
Power kW 0.75
Power supply Three-phase V400 / 3 / 50Hz
GENERAL INFORMATION

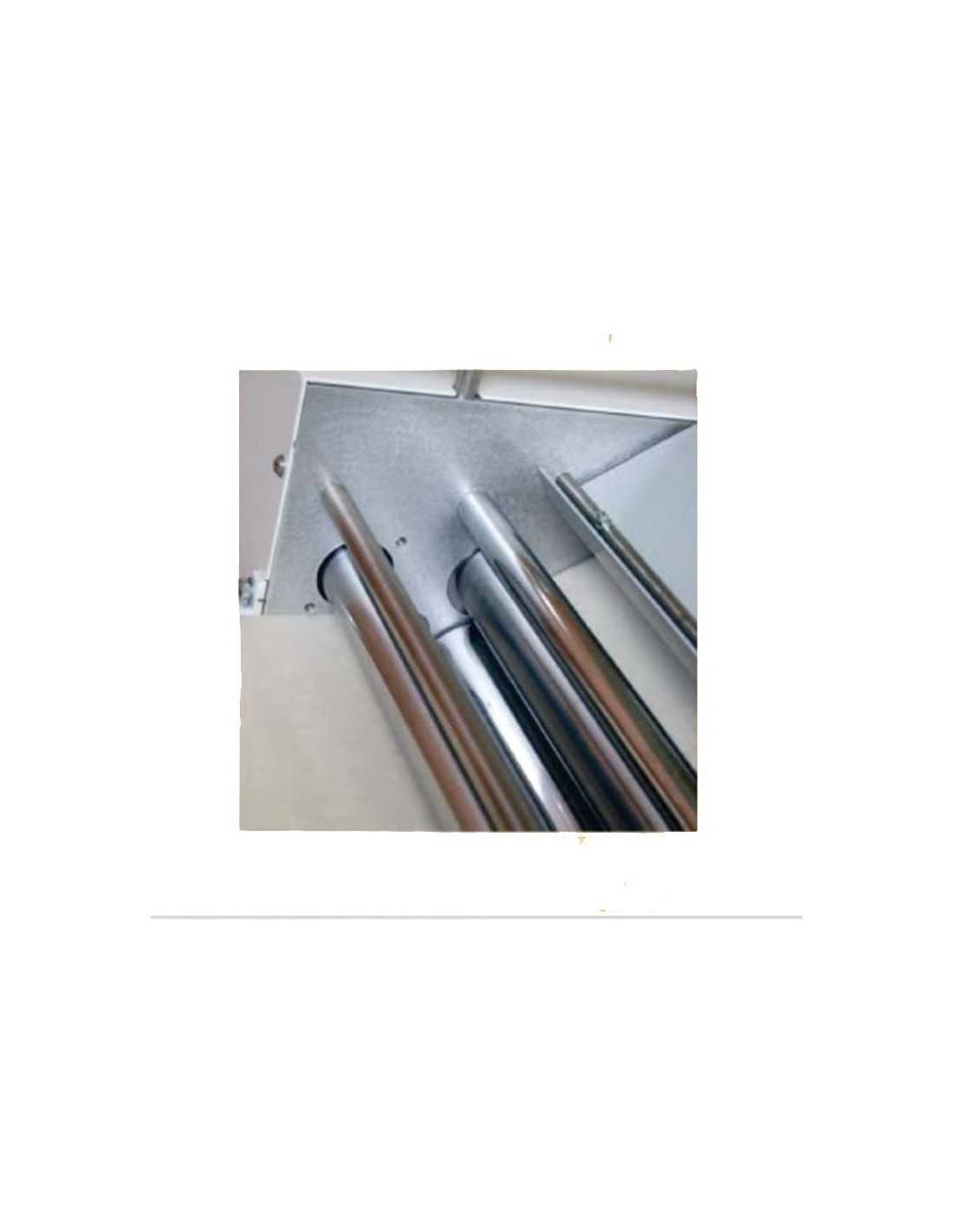

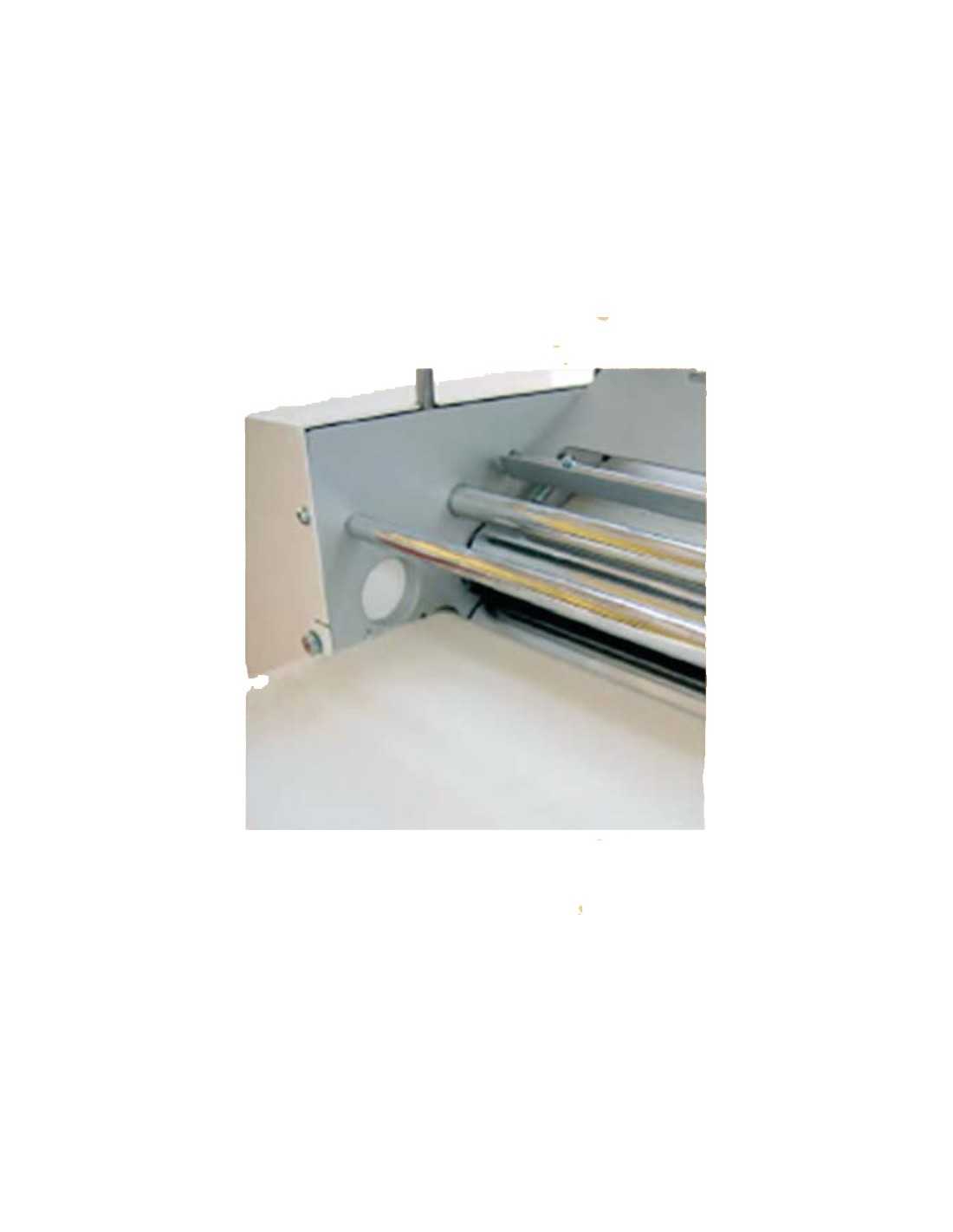

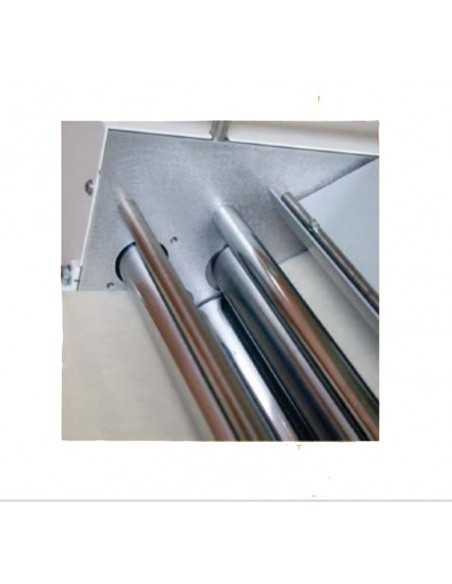

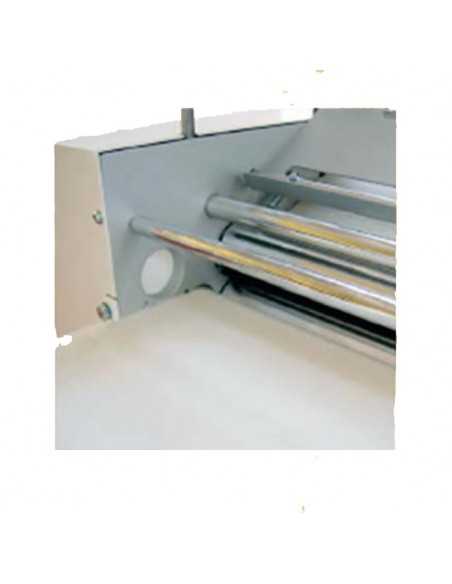

By means of the motorized introduction belt, the pulp is conveyed to the ground rolling cylinders, whose special polishing treatment promotes optimum pulp detachment from them
After rolling, the pulp is wound by the two wool felt mats, which, sliding with opposing motion, provide for the winding of the pulp into the various desired shapes, in consideration of the quantity and inclination with which it was inserted
The product thus obtained can be conveyed back to the operator or remain on the opposite tray for integliamento as required
The protective grid located on the infeed conveyor equipped with a safety device to stop operation can be raised to facilitate cleaning and maintenance
An upper belt stop device, also allows refining and/or cylindering small/medium quantities of dough
The molding machine is equipped with 2 fixed wheels and 2 swivel wheels for easy movement and equipped with brakes to stop the machine during processing
Heavy carpentry construction with moving parts, oversized supports and bearings, fire-catalyzed epoxy powder coating
The machine meets current machine safety regulations, as well as compliance with hygienic regulations on food contact materials
