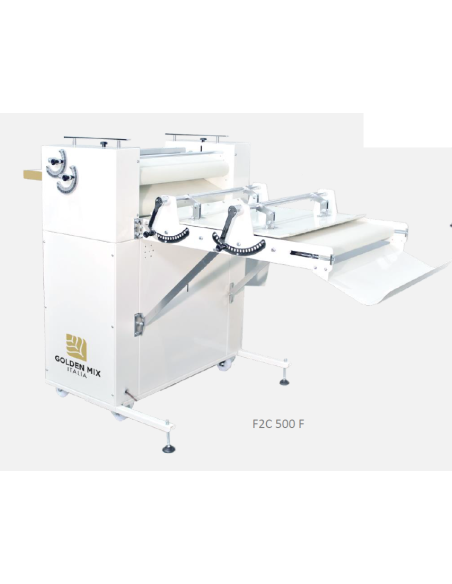

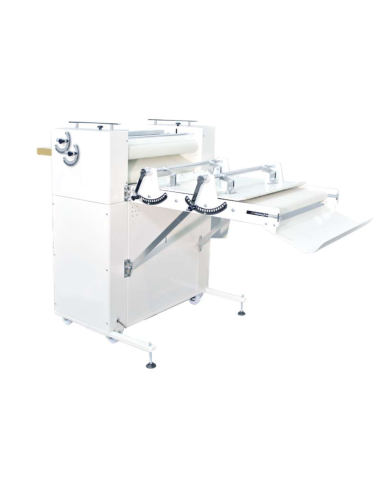

Forming machine 2 cylinders mm 500 - Spinning and scraping machine - cm 187 x 85 x 123 h
GMXX-F2C500+FIL
GMXX-F2C500+FIL
€3,615.60
€3,930.00
-8%
€3,615.60 Senza tasse
€4,411.03 Con tasse
€3,930.00 Senza tasse
Tax excluded
2-cylinder molding machine - Model F2C500+FIL - Cylinders mm 500 - Dough grams 20 - 1500 - With filler - With Shoulder with Inner Cylinder Lock - With scraper - Power Kw 0.75 - Three-phase supply V400 / 3 / 50Hz - Dimensions cm 187 x 85 x 123 h
Options
+ ACCESSORIES
| 2-roll forming machine | Model: F2C500+FIL |
| Ideal | For the production of a variety of shapes and sizes of filoni, filette and wrapped dough in general |
| Dimensions | Cm 187 x 85 x 123 h |
| Weight | Kg 180 |
| Origins | Italy |
| Warranty | 12 months |
| Standard | CE |
| TECHNICAL DATA | |
|---|---|
| Chrome Cylinder Shaft | 20 mm |
| Cylinders | N. 2 x mm 500 |
| Grammage Range | 20 - 1500 gr |
| Shoulders with Inner Cylinder Lock | 15 mm aluminum |
| With spinner | mm 500 |
| Wheels | n° 4 of 80 mm including 2 Fixed and 2 Swiveling with Brake |
| Capacity Work Hydration Paste Max | 70/75% Hydration |
| Standard | Scrapers - Chute for Workpiece Return to Operator - Oversized Bearings |
| Power | kW 0.75 |
| Power supply | Three-phase V400 / 3 / 50Hz |
| GENERAL INFORMATION | |
|---|---|
| By means of the motorized introduction belt, the pulp is conveyed to the ground rolling cylinders, whose special polishing treatment promotes optimum pulp detachment from them | |
| After rolling, the pulp is wound by the two wool felt mats, which, sliding with opposing motion, provide for the winding of the pulp into the various desired shapes, in consideration of the quantity and inclination with which it was inserted | |
| The product thus obtained can be conveyed back to the operator or remain on the opposite tray for integliamento as required | |
| The protective grid located on the infeed conveyor equipped with a safety device to stop operation can be raised to facilitate cleaning and maintenance | |
| An upper belt stop device, also allows refining and/or cylindering small/medium quantities of dough | |
| The molding machine is equipped with 2 fixed wheels and 2 swivel wheels for easy movement and equipped with brakes to stop the machine during processing | |
| Heavy carpentry construction with moving parts, oversized supports and bearings, fire-catalyzed epoxy powder coating | |
| The machine meets current machine safety regulations, as well as compliance with hygienic regulations on food contact materials |
