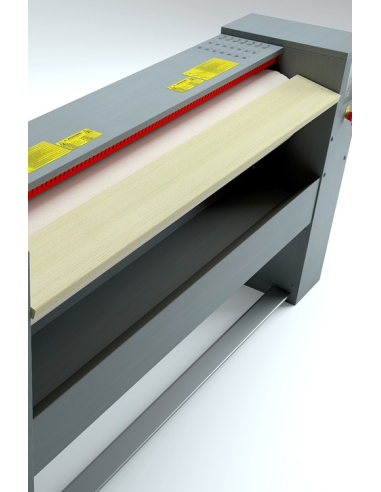

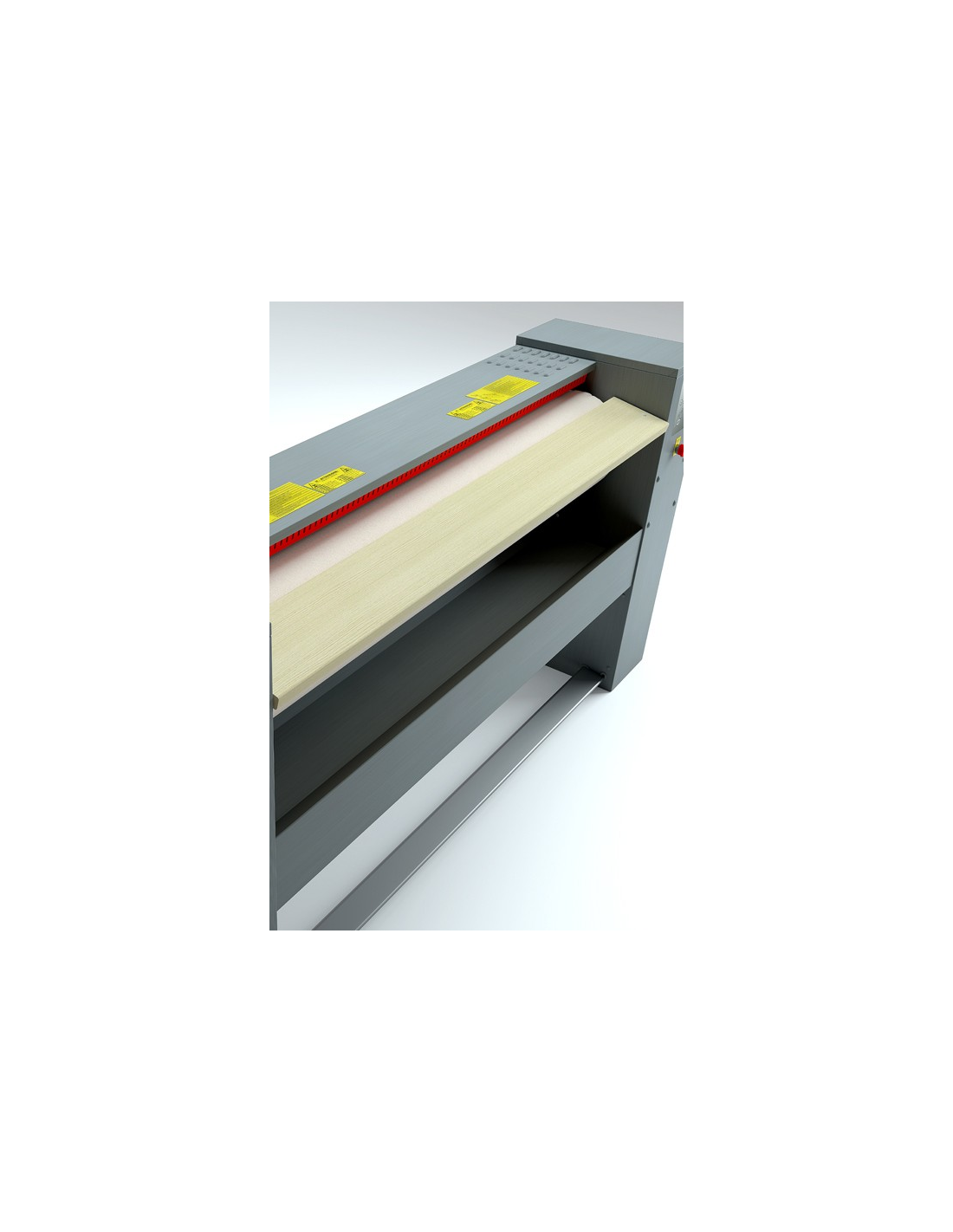

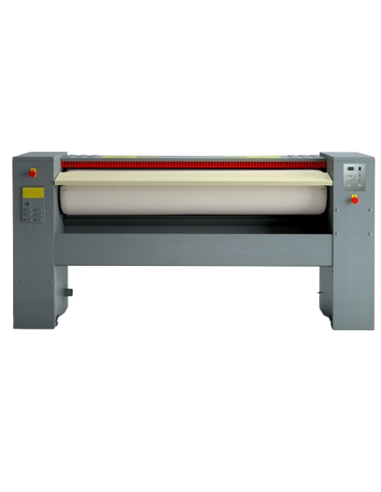

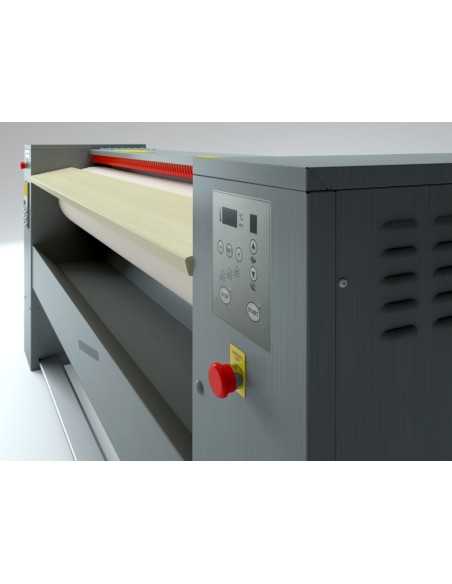

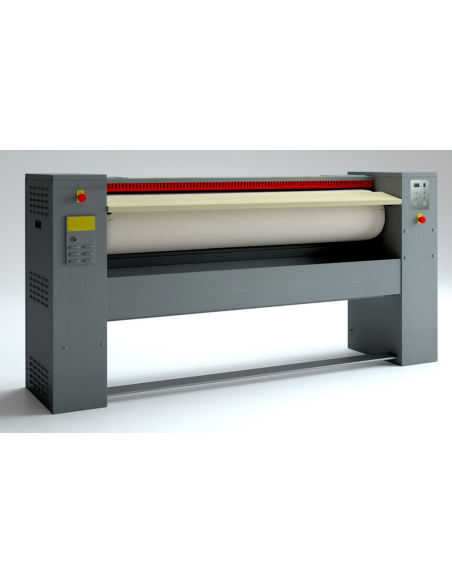

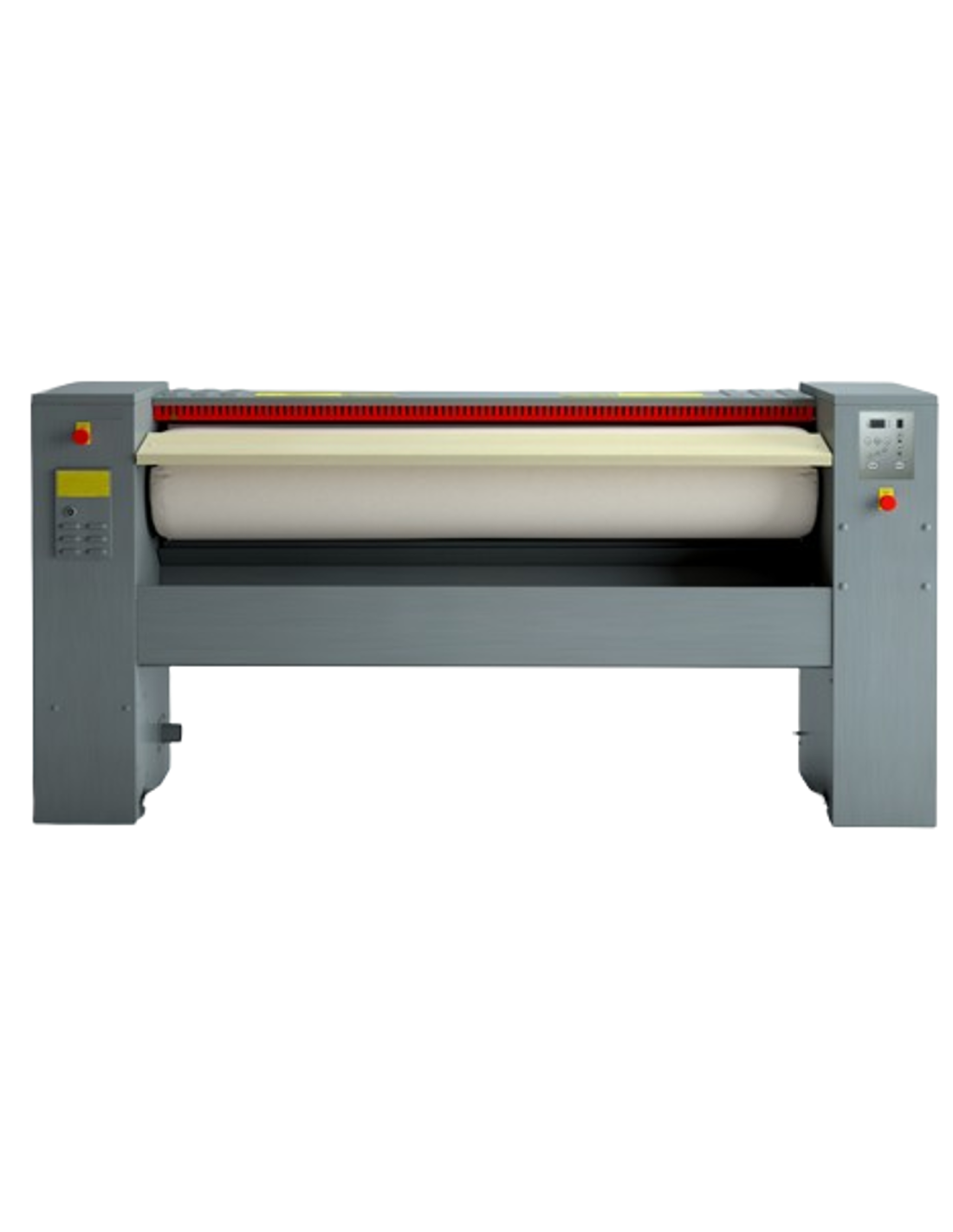

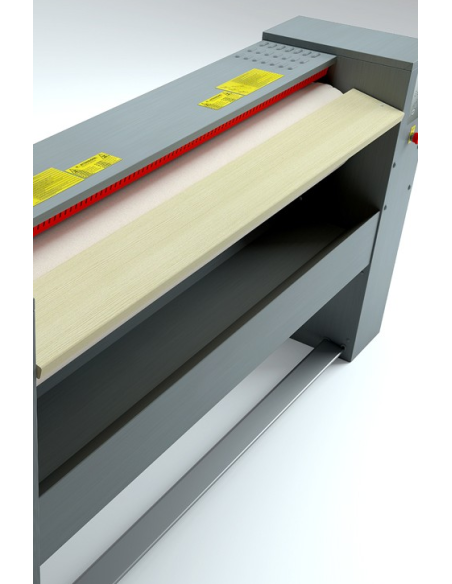

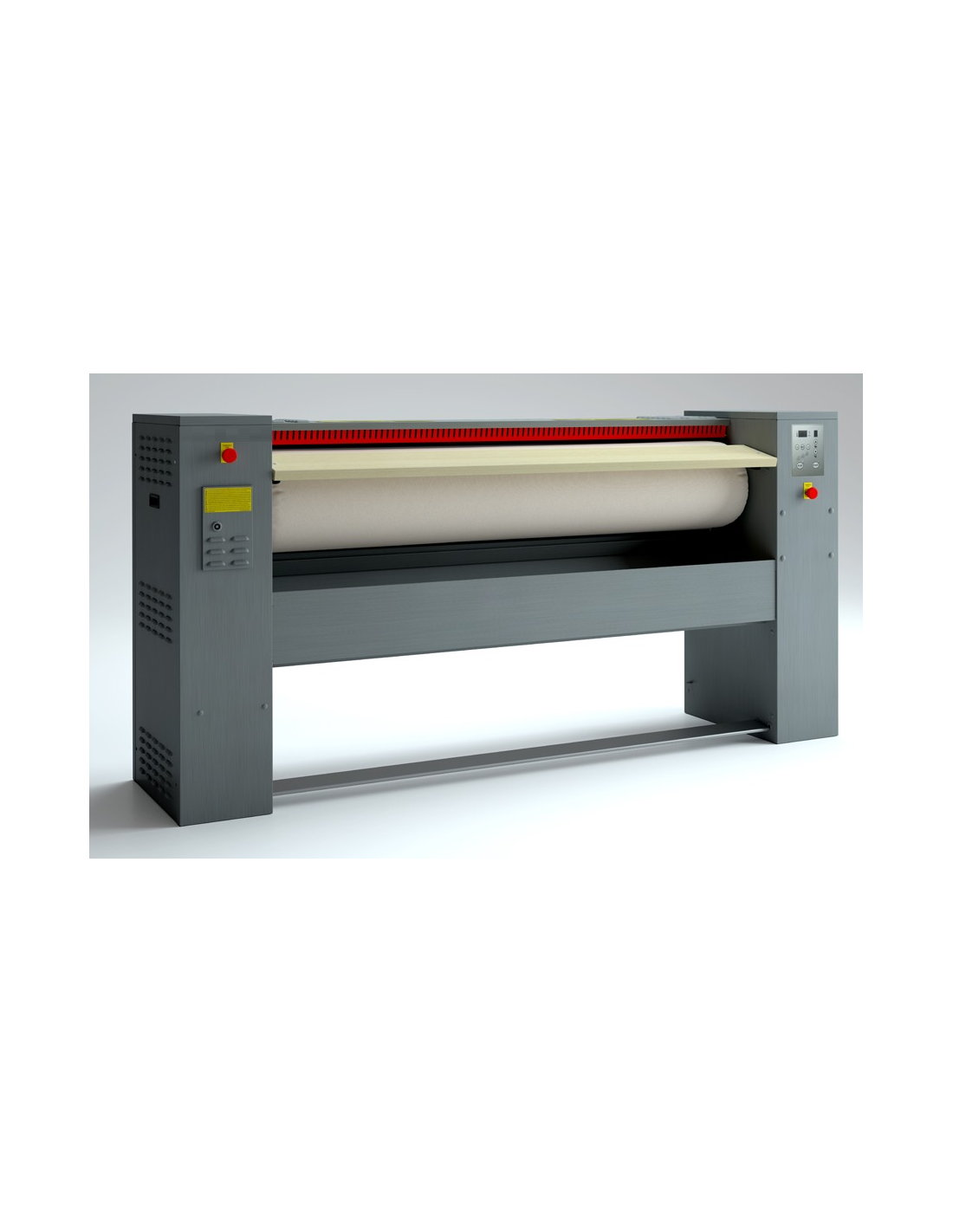

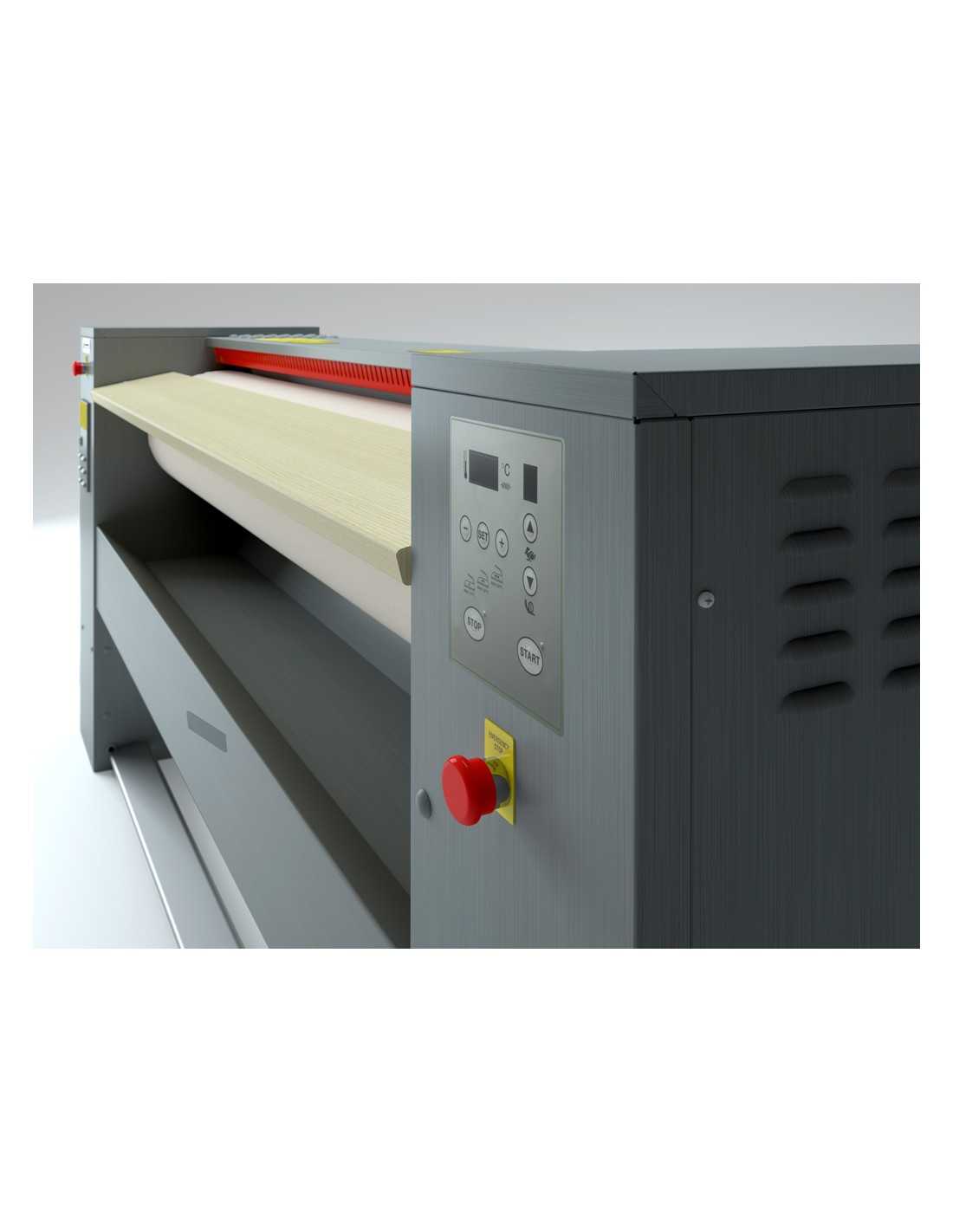

Ironing Machine with Roller cm 200 - Speed Regulator - Ø cm 30 - cm 260 x 50 x 110 h

DL-GR-ST200-30AV-E
DL-GR-ST200-30AV-E
€7,268.00 €7,900.00 -8%
€7,268.00 Senza tasse €8,866.96 Con tasse €7,900.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

Roller ironer - Automatic concave movement - Speed governor - Productivity kg 52-79 - Length cm 200 - Diameter cm 30 - Three-phase - Dimensions cm 260 x 50 x 110 h


Ironing machine with roller Model: ST200-30AV-E
Dimensions product cm 260 x 50 x 110 h
Dimensions packaging Cm 269 x 61 x 130 h
Net weight / Gross Kg 294/350
Warranty 12 months
Standard CE
Origin Italy
TECHNICAL DATA
Roller diameter mm 300
Roller length mm 2000
Productivity kg/h (UR% 10÷15%)52÷79 - (20÷25%) 38÷55
Rotation speed mt/min. 2÷4
Cloth Aramid
Linen introduction height mm 950
ELECTRICAL DATA
Power supply Three-phase V380-415/3/50-60H
Heating alternatives Electric standard kW 16.8 - Indirect steam (kPa) 1000÷1200
Cylinder Motor Variable speed standard - Power kW 0.55
Motor Suction Power kW 0.12
Programmers ST 23 Control
Power consumption kW/h 10
Noise level 50 dB
GENERAL CHARACTERISTICS
Structure made of gray plasticized sheet metal
Automatic conca movement
Treated aluminum conca to ensure long life and energy saving
Roller supported by bearings
Single-frontal use , with possibility of placing the ironer close to the wall
Loss-protection rod to protect the operator in case of incorrect operation
Electronic control unit that monitors all machine operating parameters ensuring optimal functionality and energy consumption
2 safety thermostats to prevent unwanted overheating
Wide conca movement control pedal board
Manual device for raising the conca in case of power failure
