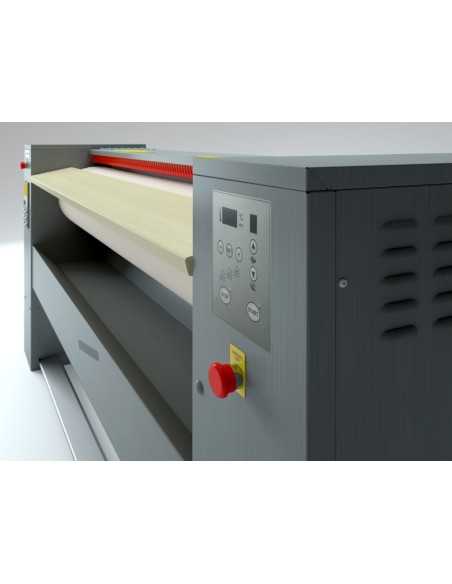

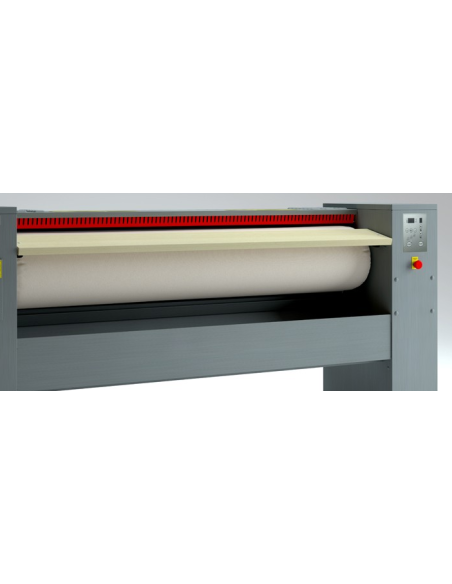

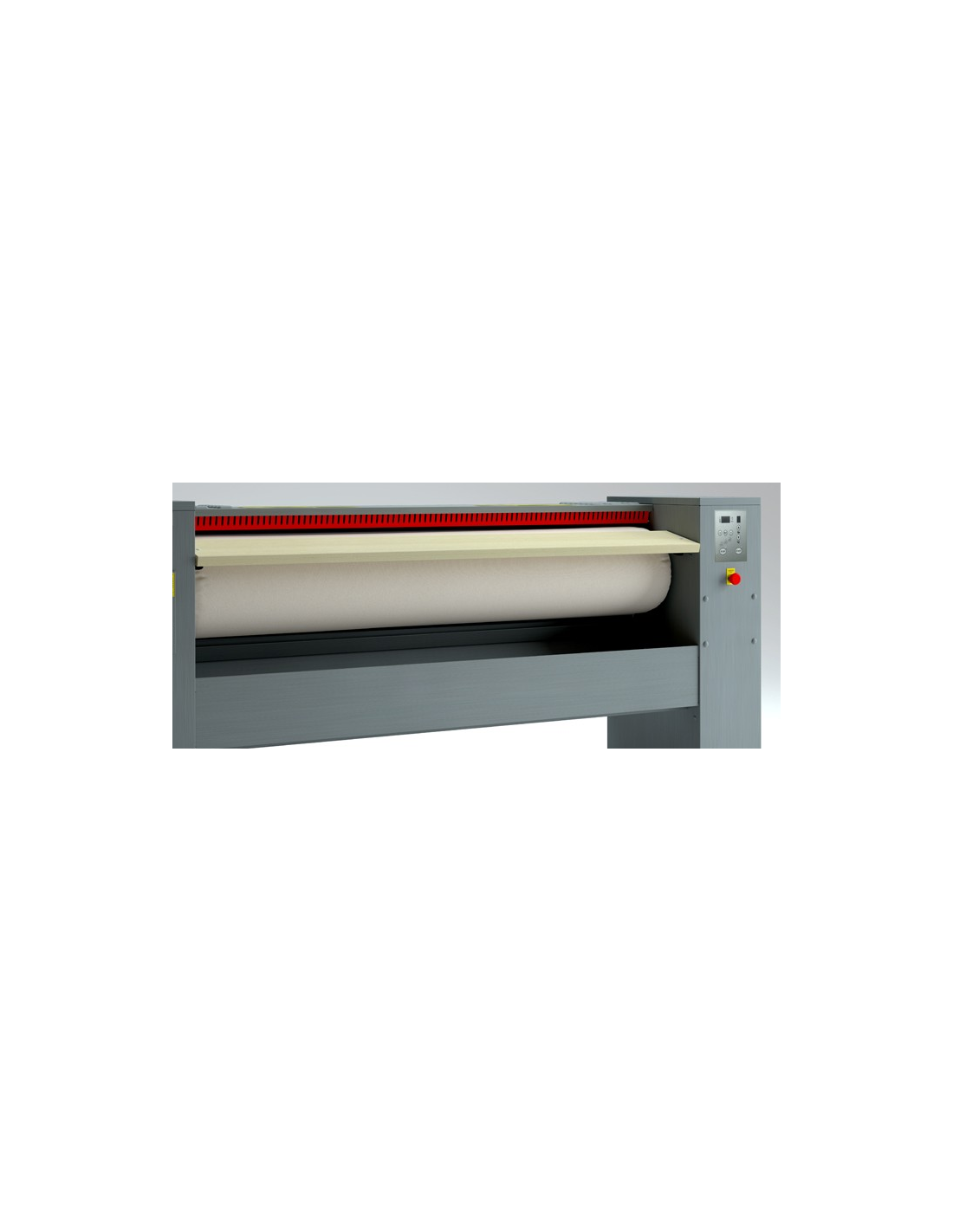

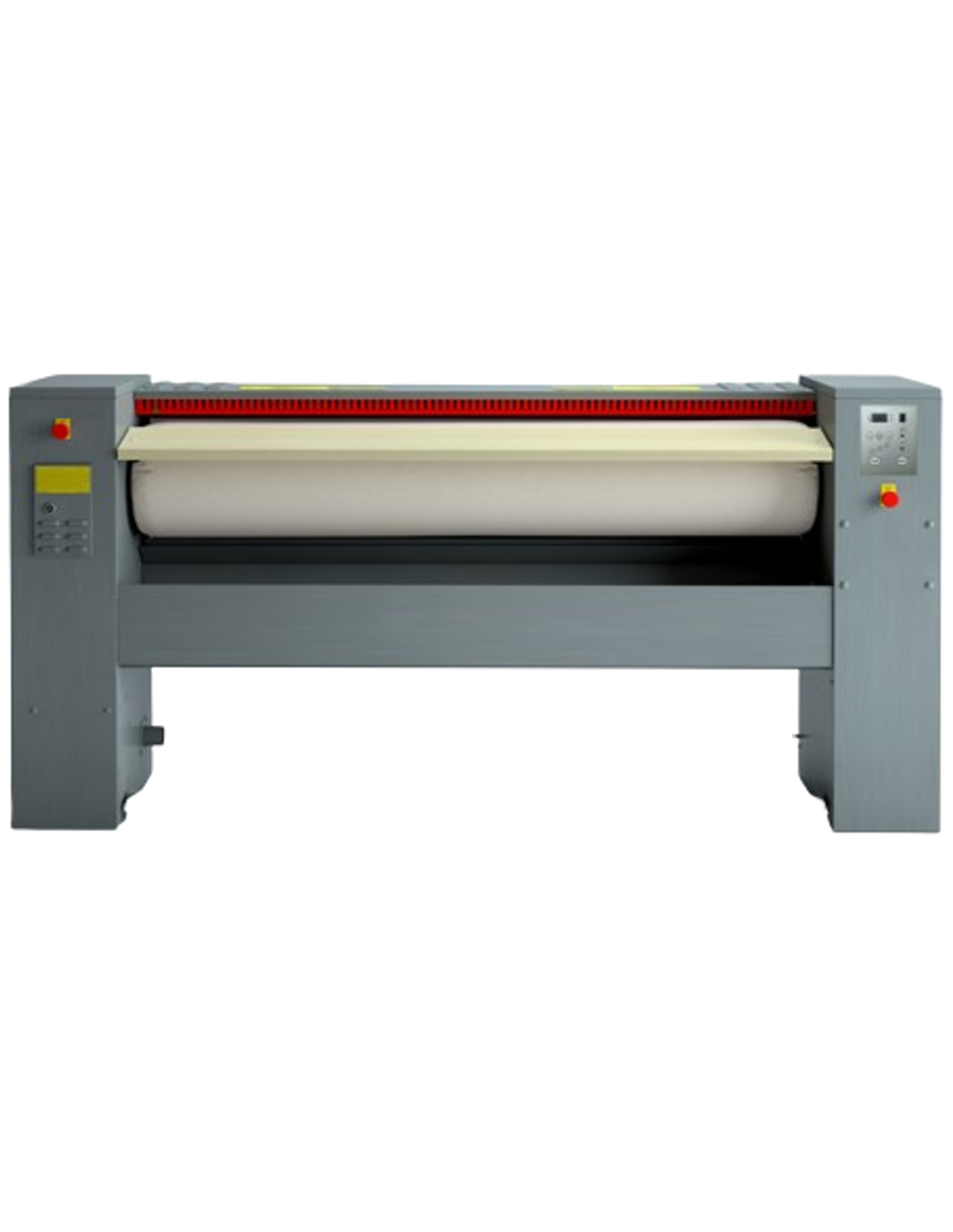

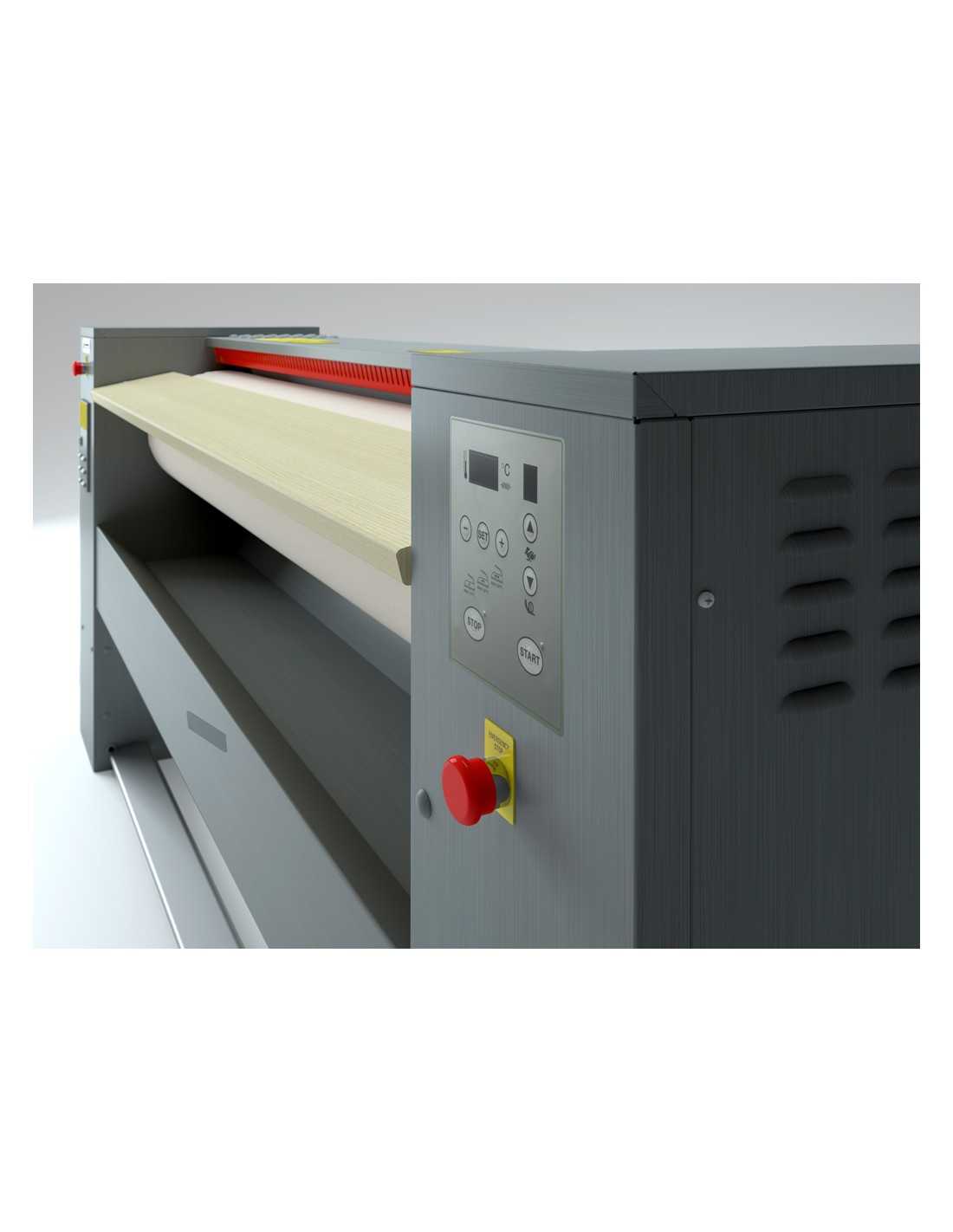

Ironing Machine with Roller cm 160 - Ø cm 30 - cm 220 x 50 x 110 h
DL-GR-ST160-30
DL-GR-ST160-30
€5,336.00
€5,800.00
-8%
€5,336.00 Senza tasse
€6,509.92 Con tasse
€5,800.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days
Ironing Machine with Roller cm 160 - Automatic concave movement - Productivity kg 50 - Length cm 160 - Diameter cm 30 - Three-phase - Dimensions - cm 220 x 50 x 110 h
| Ironing machine with roller | Model: STI160-30 |
| Dimensions product | cm 220 x 50 x 110 h |
| Dimensions packaging | Cm 228 x 61 x 130 h |
| Net weight / Gross | Kg 257/295 |
| Warranty | 12 months |
| Standard | CE |
| Origin | Italy |
| TECHNICAL DATA | |
|---|---|
| Roller diameter | mm 300 |
| Roller length | mm 1600 |
| Productivity kg/h with RH% 10÷15% | 50 |
| Max roller rotation speed | m/min 3.9 |
| Canvas | Aramadic |
| Ironing concave movement | Automatic |
| ELECTRICAL DATA | |
|---|---|
| Power supply | Three-phase V380-415/3/50-60H |
| Linen introduction height | mm 9850 |
| Alternative heating | standard electric Kw 13.2 - Indirect steam (kPa) 1000 ÷ 120 |
| Cylinder motor | Power Kw 0.36 |
| Electric consumption | kW/h 8 |
| Indirect steam | kg/h 35 |
| Programmers | ST 23 control |
| Noise | 50 dB |
| GENERAL FEATURES | |
|---|---|
| Structure made of gray plasticized sheet metal | |
| Automatic conca movement | |
| Treated aluminum conca to ensure long life and energy saving | |
| Roller supported by bearings | |
| Single-frontal use , with possibility of placing the ironer close to the wall | |
| Loss-protection rod to protect the operator in case of incorrect operation | |
| Electronic control unit that monitors all machine operating parameters ensuring optimal functionality and energy consumption | |
| 2 safety thermostats to prevent unwanted overheating | |
| Wide conca movement control pedal board | |
| Manual device for raising the conca in case of power failure |
