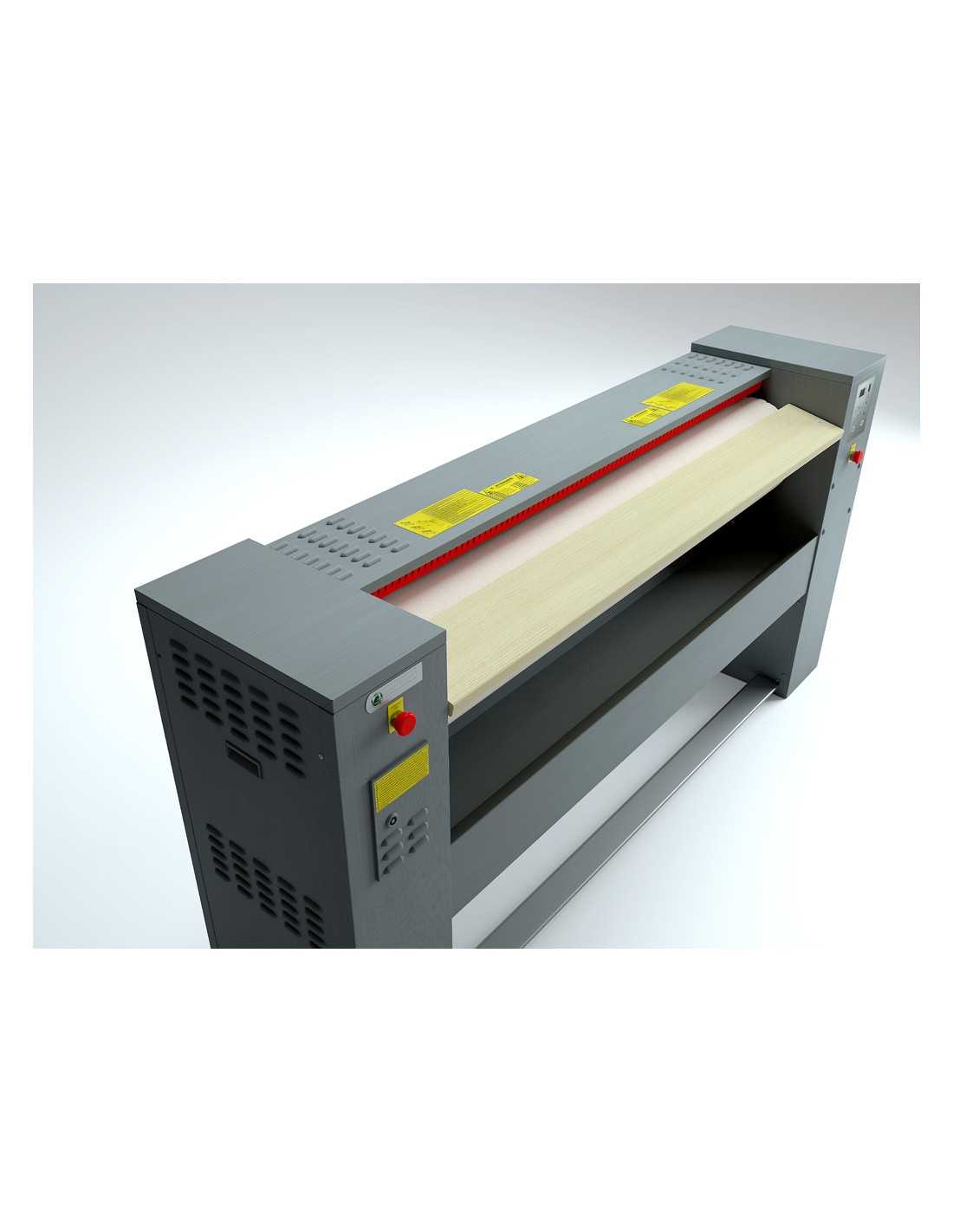

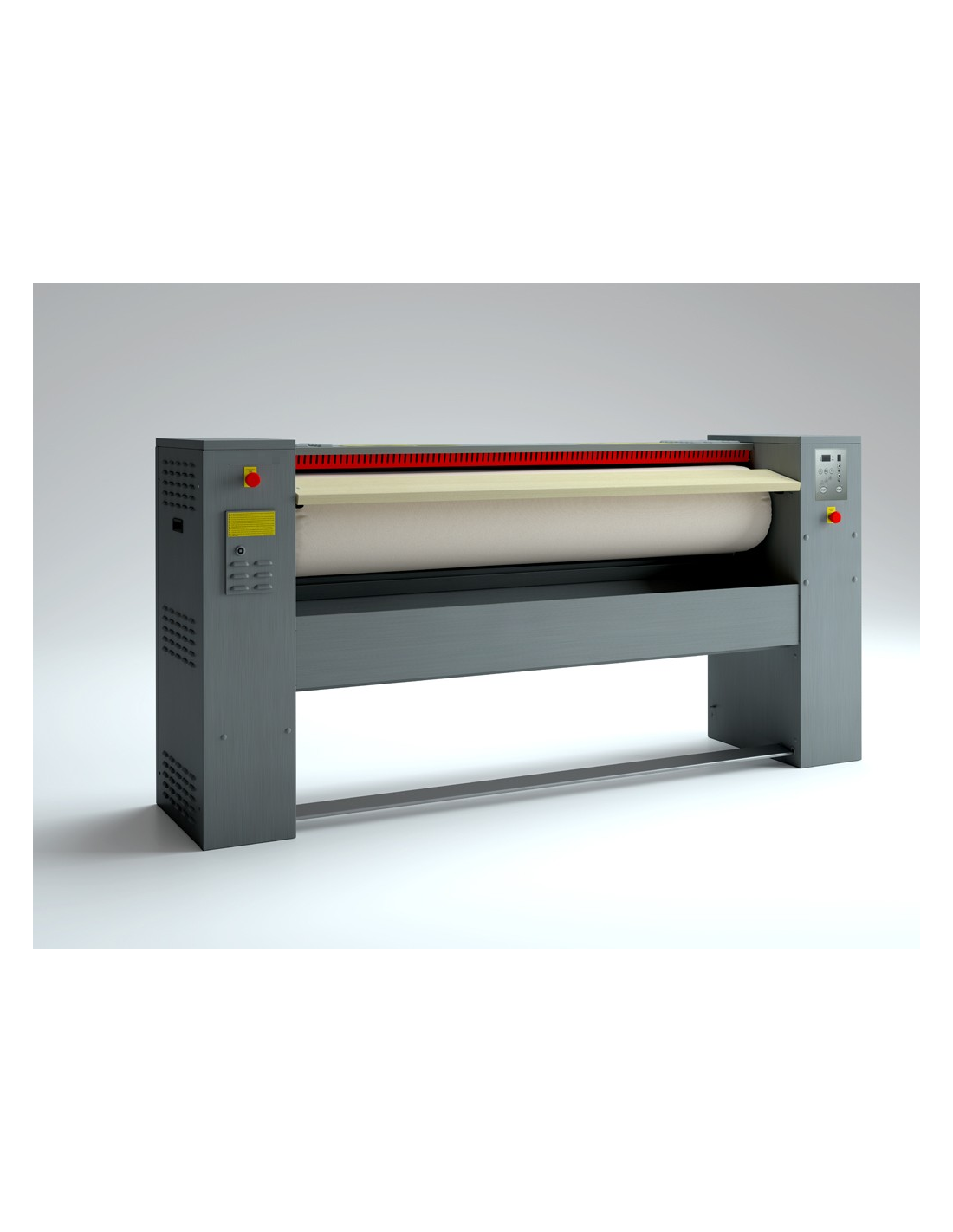

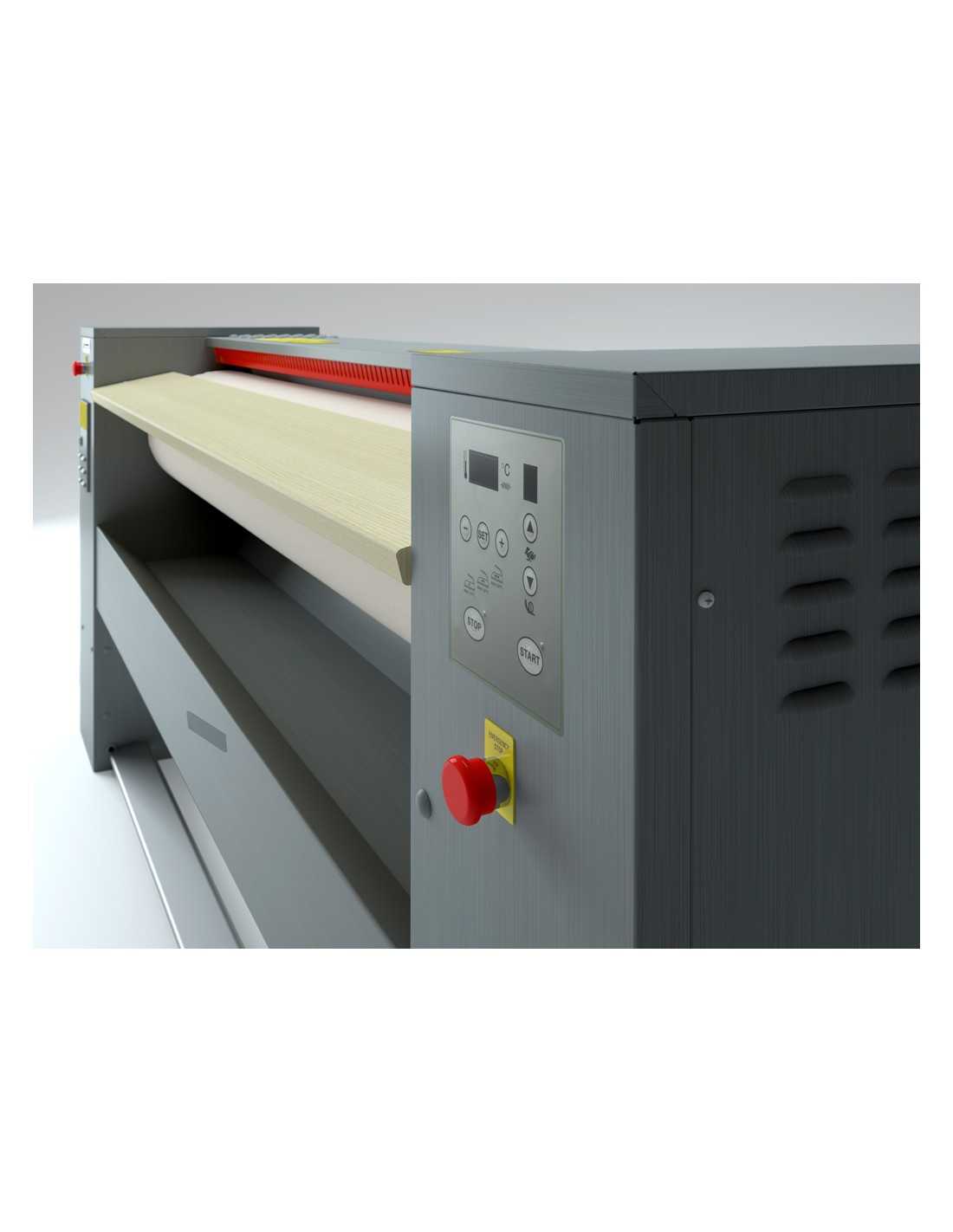

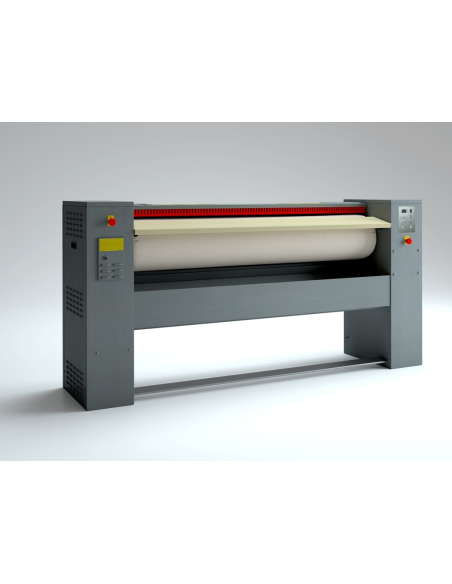

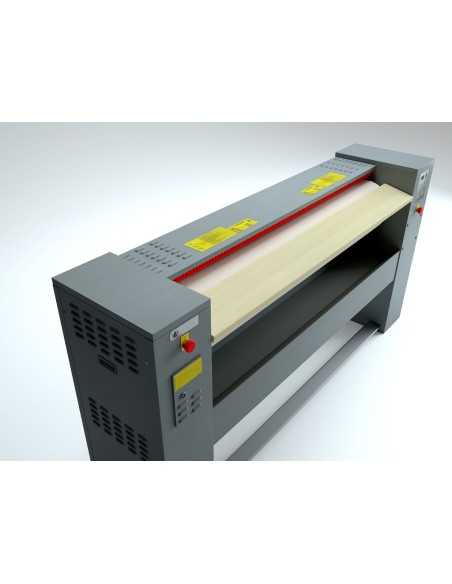

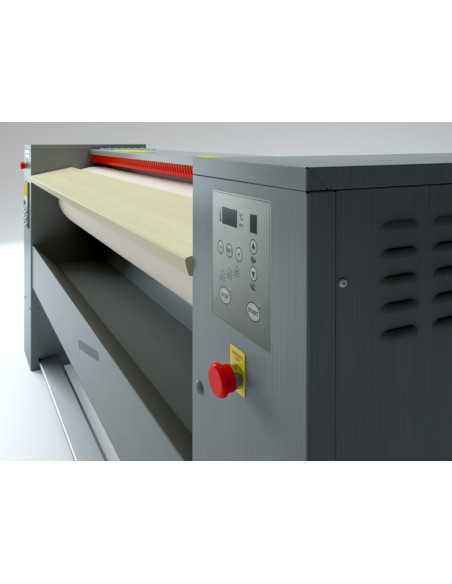

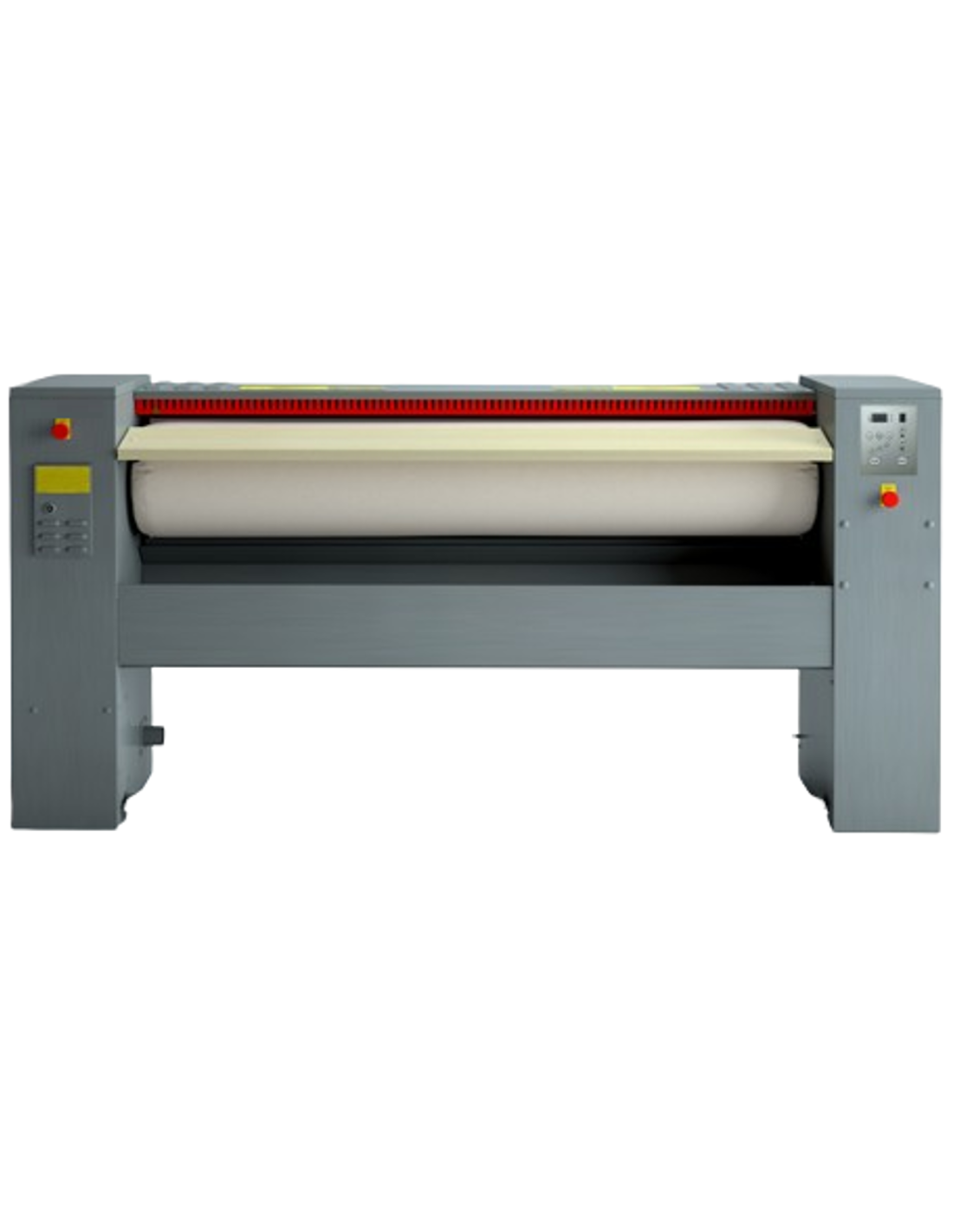

Ironing Machine with Roller cm 160 - Speed Controller Ø cm 30 - cm 220 x 50 x 110 h
DL-GR-ST160-30AV-E
DL-GR-ST160-30AV-E
€6,578.00
€7,150.00
-8%
€6,578.00 Senza tasse
€8,025.16 Con tasse
€7,150.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days
Roller ironer - Automatic concave movement - Speed regulator - Productivity kg 32 ÷ 50 - Length cm 160 - Diameter cm 30 - Three-phase - Dimensions cm 220 x 50 x 110 h
| Ironing machine with roller | Model: ST160-30AV-E |
| Dimensions product | cm 220 x 50 x 110 h |
| Dimensions packaging | Cm 228 x 61 x 130 h |
| Net weight / Gross | Kg 262 / 300 |
| Warranty | 12 months |
| Standard | CE |
| Origin | Italy |
| TECHNICAL DATA | |
|---|---|
| Roller diameter | mm 300 |
| Roller length | mm 1600 |
| Productivity kg/h | (UR% 10÷15%) 32÷50 - (20÷25%) 26÷37 |
| Rotation speed | mt/min. 2÷4 |
| Cloth | Aramid |
| Linen introduction height | mm 950 |
| ELECTRICAL DATA | |
|---|---|
| Power supply | Three-phase V380-415/3/50-60H |
| alternative heating | Standard electric Kw 13.2 - Indirect steam (kPa) 1000 ÷ 1200 |
| Cylinder Motor | Variable speed standard - Power kW 0.36 |
| Suction Motor | Power kW 0.12 |
| Programmers | ST 23 Control |
| Power consumption | kW/h 8 |
| Noise level | 50 dB |
| GENERAL CHARACTERISTICS | |
|---|---|
| Structure made of gray plasticized sheet metal | |
| Automatic conca movement | |
| Treated aluminum conca to ensure long life and energy saving | |
| Roller supported by bearings | |
| Single-frontal use , with possibility of placing the ironer close to the wall | |
| Loss-protection rod to protect the operator in case of incorrect operation | |
| Electronic control unit that monitors all machine operating parameters ensuring optimal functionality and energy consumption | |
| 2 safety thermostats to prevent unwanted overheating | |
| Wide conca movement control pedal board | |
| Manual device for raising the conca in case of power failure |
