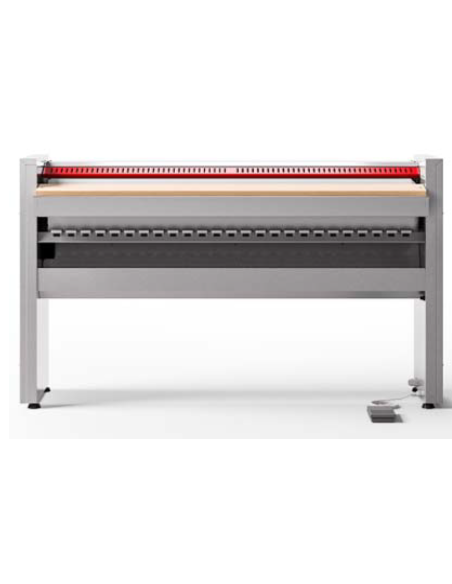

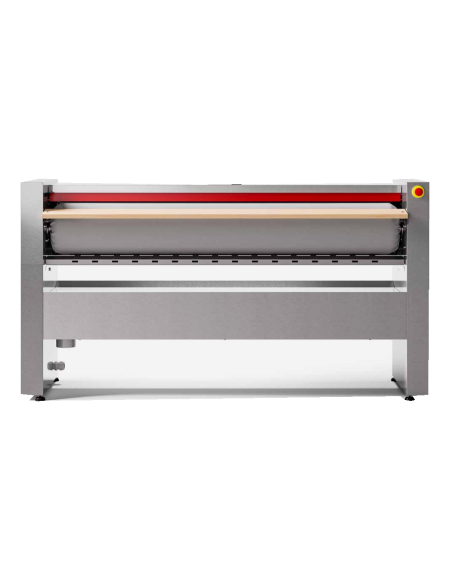

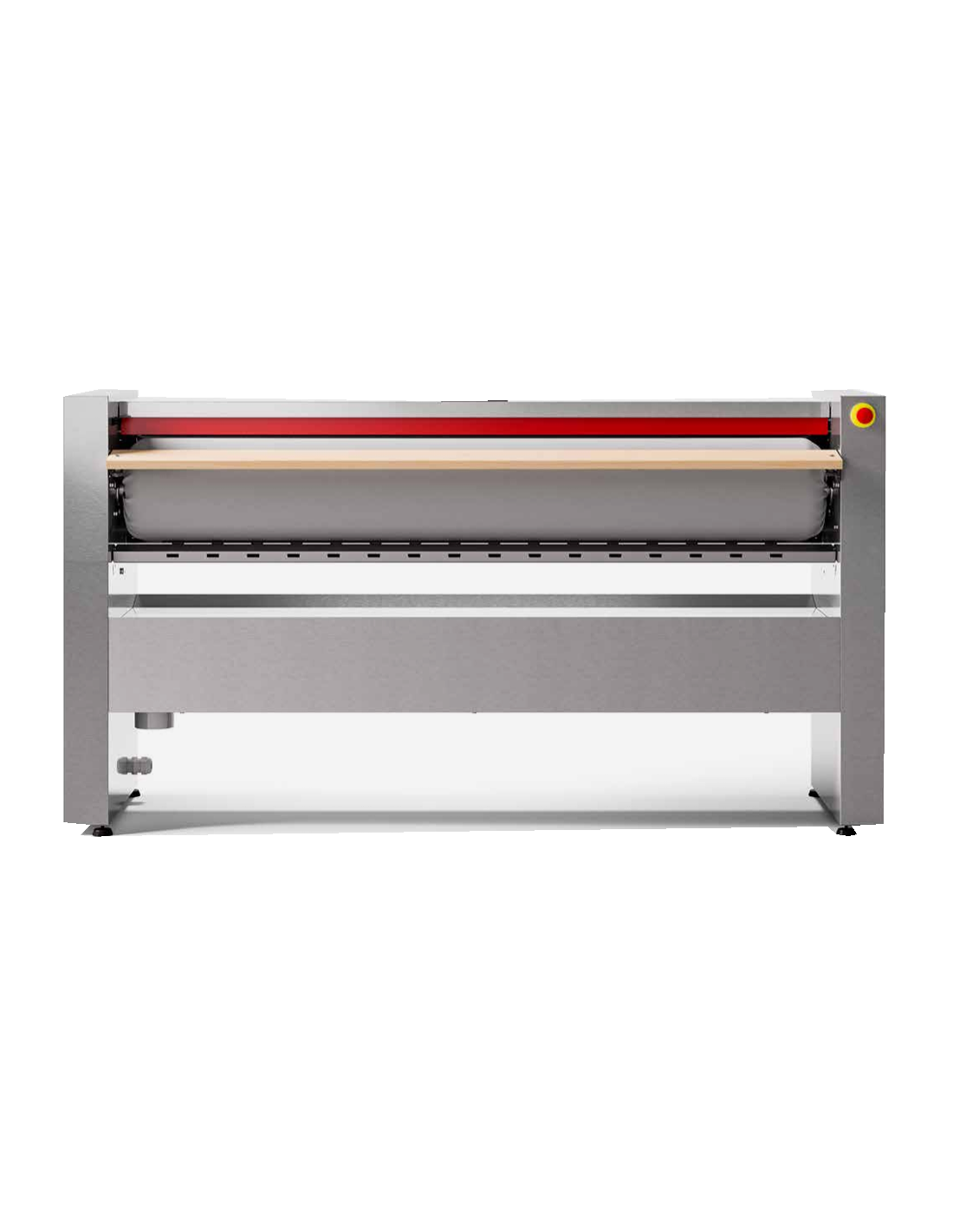

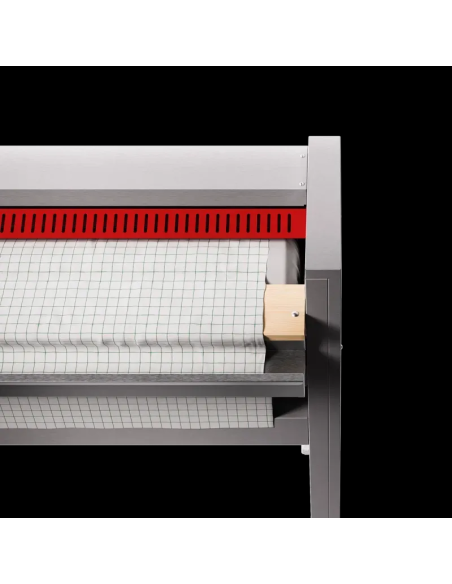

Roller ironing machine cm 120 - Ø cm 18 - cm 141 x 39.5 x 107 h
DL-GR-STI120
DL-GR-STI120
€2,668.00
€2,900.00
-8%
€2,668.00 Senza tasse
€3,254.96 Con tasse
€2,900.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days
Roller ironer cm 120 - Model STI120 - Automatic concave movement - Productivity kg 25 - Length cm 120 - Diameter cm 18 - Power kW 4.68 - Three-phase - Dimensions cm 141 x 39.5 x 107 h
Options
+ ACCESSORIES
| Ironing Machine with Roller | Model STI120 |
| Dimensions product | Cm 141 x 39.5 x 107 h |
| Dimensions packaging | Cm 152 x 53 x 131 h |
| Net weight / Gross | Kg 105/116 |
| Warranty | 12 months |
| Standard | CE |
| Origin | Italy |
| TECHNICAL DATA | |
|---|---|
| Roller diameter | mm 180 |
| Roller length | mm 1200 |
| Productivity kg/h with RH% 10÷15% | Kg/h 25 |
| Roller Speed | mt/min 3.0 |
| Roller outer coating | Cotton cloth |
| Ironing plate | 0.216 m2 |
| Conca movement | Automatic |
| ELECTRICAL DATA | |
|---|---|
| Power supply | Three-phase V380-415/3/50H |
| Power of Heating | kW 4.5 |
| Power roller motor | kW 0.03 |
| Power basin motor | Kw 0.05 |
| Power total | Kw 4.68 |
| Noise level | 60 dB |
| GENERAL FEATURES | |
|---|---|
| Self-supporting structure made of gray plasticized sheet metal with side shoulders of reduced size to benefit the width of the roller useful for ironing operations | |

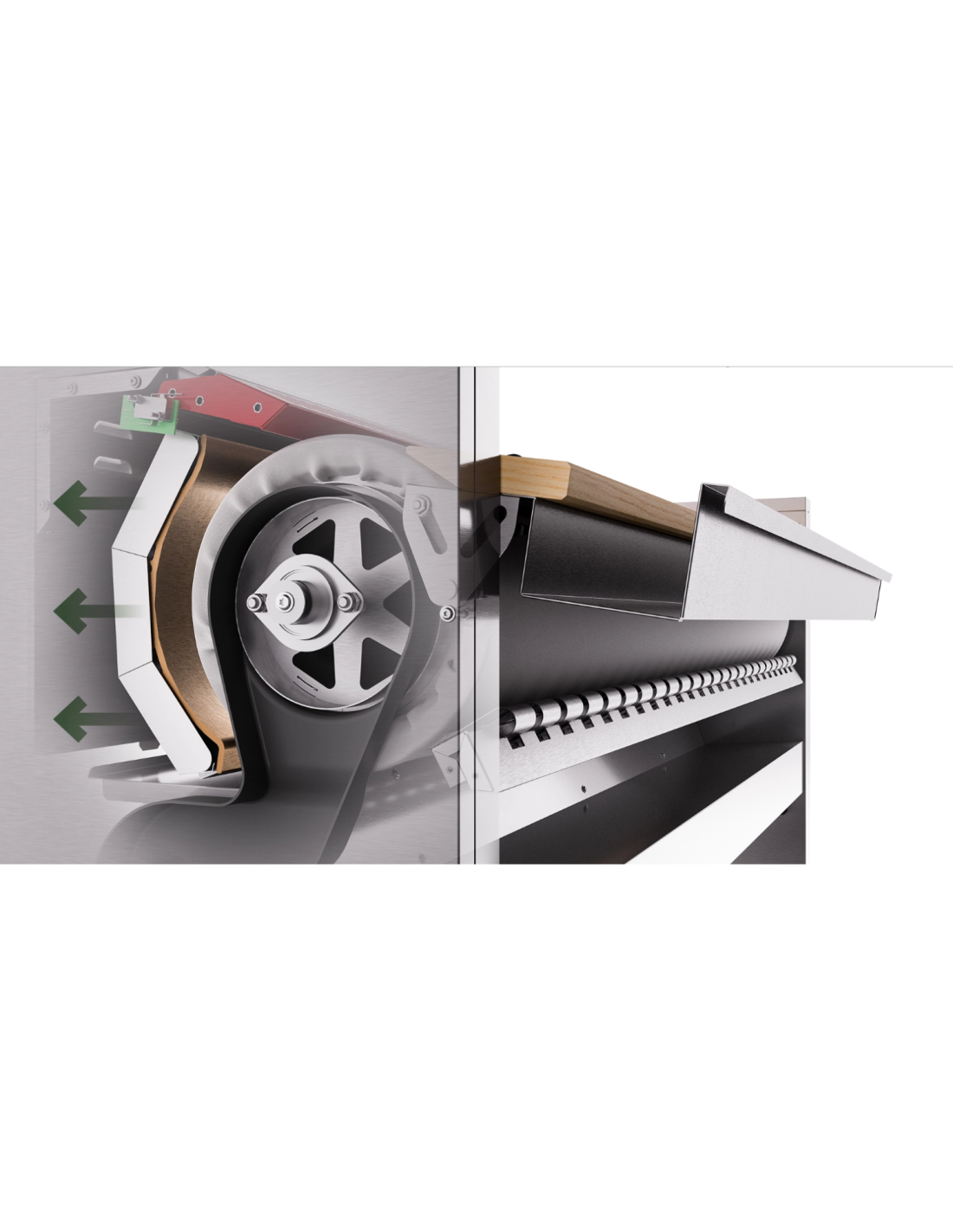

| Automatic conca movement through new patented maintenance-free and self-adjusting system | |

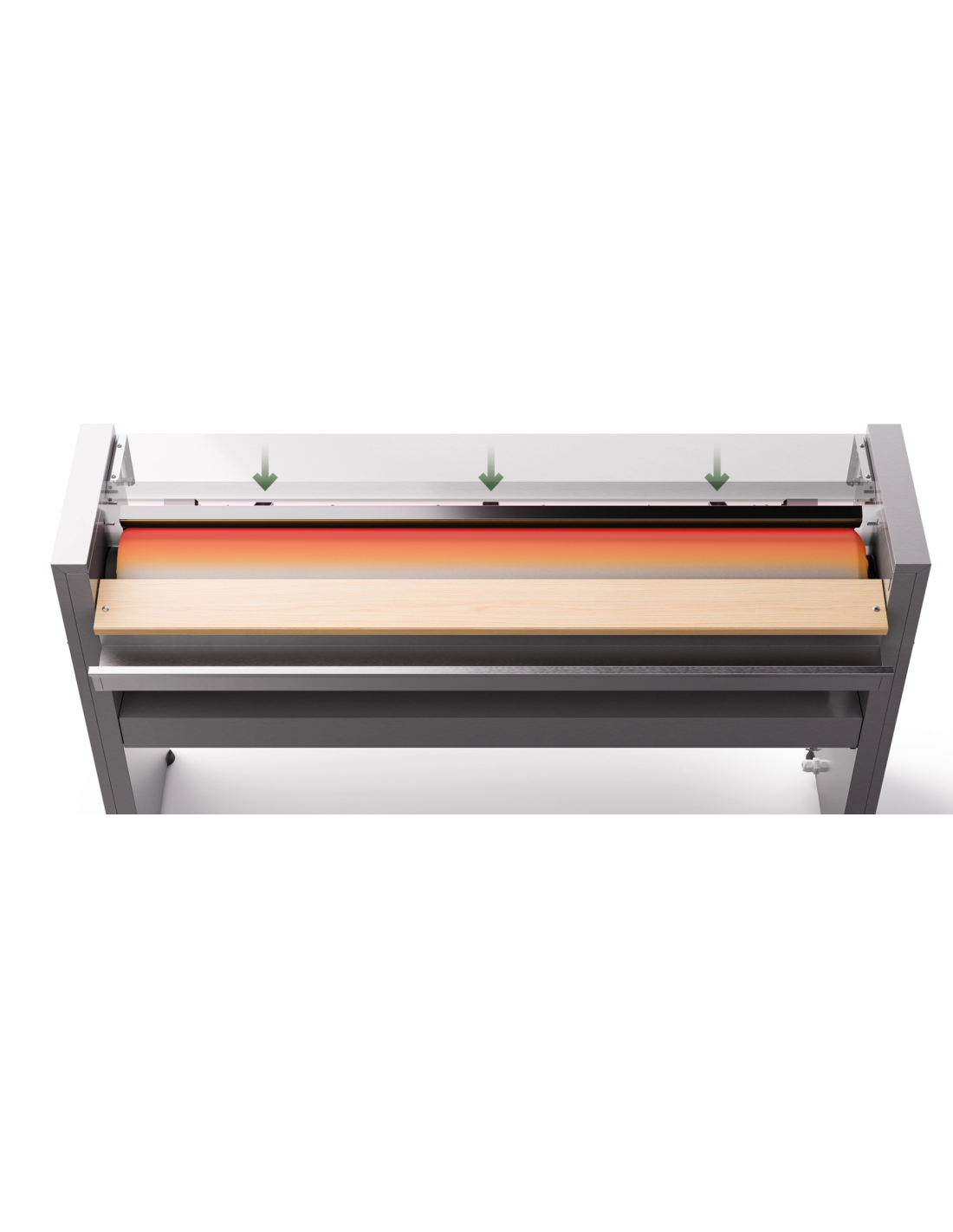

| Pushing elements positioned behind the conca for uniformity of ironing quality along the entire roller ( Aramid fabric outer cloth optional) | |
| Conca made of aluminum treated with deep anodizing for long life and energy savings | |
| Heating elements positioned inside the aluminum ironing basin for excellent heat transmission | |
| Thick ceramic wool thermal insulation | |
| Roller supported by bearings and padded with triple layer of steel wool, cotton molleton and cotton outer cloth | |
| Single-front use with the possibility of placing the ironer next to the wall | |
| Wooden axle for easy introduction of laundry with adjustable angle so as to adapt to the height of the operator | |
| Large upper portion of the roller available to the operator to achieve an introduction band effect particularly useful in the case of large garments | |
| Finger-saving device to protect the operator in case of wrong maneuvers with forced air cooling system | |
| Fox electronic control with temperature regulation with electronic thermostat | |
| Control panel placed in such a way that parameters can be managed easily with one finger and without moving from the workstation | |
| Safety thermostat to prevent unwanted overheating with manual reset | |
| Movable foot pedal for controlling the movement of the trough (opening/closing) if thicker-than-normal garments are to be introduced occasionally | |
| Automatic device for moving the basin away from the roller in the event of a power failure that secures the machine and immediately allows the garment that was being ironed to be removed |
