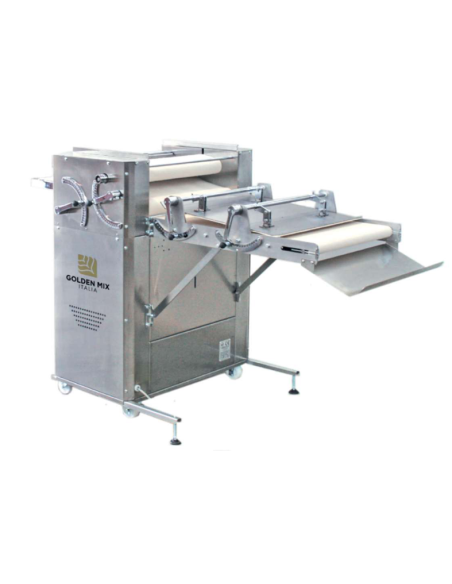

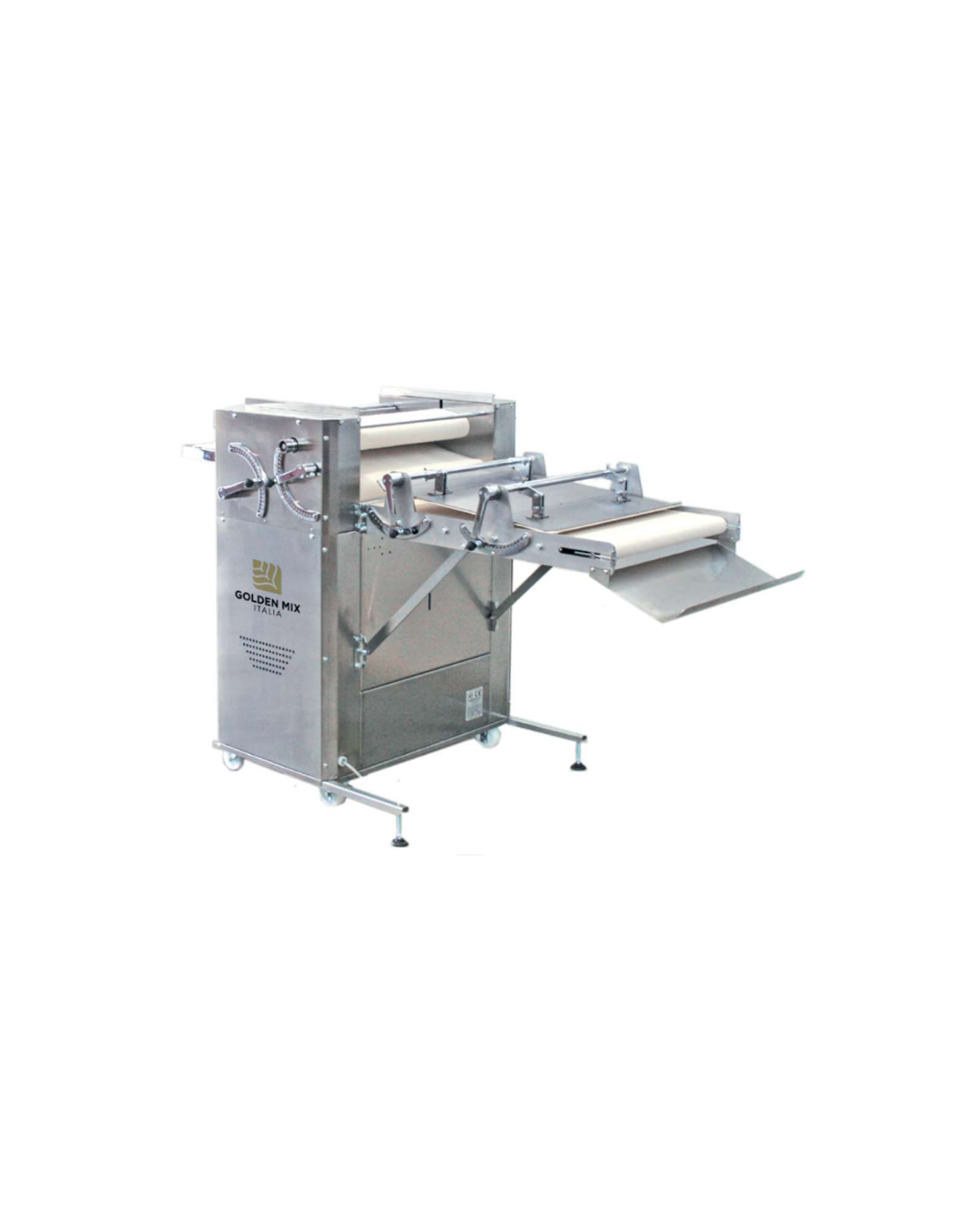

Forming Machine 4 cylinders mm 615 - Stainless Steel Frame with Anti-Dumping Device - Dimensions cm 172 x 100 x 123 h

Forming Machine 4 cylinders mm 615 - Stainless...

Forming Machine 4 cylinders mm 615 - Stainless Steel Frame with Anti-Dumping Device - Dimensions cm 172 x 100 x 123 h

Name: Forming Machine 4 cylinders mm 615 - Stainless Steel Frame with Anti-Dumping Device - Dimensions cm 172 x 100 x 123 h
Brand: D.L. SERVICE
SKU: GMXX-F4C600INOX+FIL
Price: 6807.08 EUR
Availability: InStock

GMXX-F4C600INOX+FIL

Reference GMXX-F4C600INOX+FIL

€6,807.08 €7,399.00 -8%

€6,807.08 Senza tasse €8,304.64 Con tasse €7,399.00 Senza tasse

Tax excluded

4-Cylinder Forming Machine - Model F4C600+FIL - Stainless Steel Structure - Cylinders mm 615 - With Strander - Dough Grams 20-2000 - Upper Carpet Block - With 4 Scrapers - With Trays and Stainless Steel Cylinder Protectors - With Anti-Dumping Device - Power Kw 0.75 - Three-phase supply V400/3/50Hz - Dimensions cm 172 x 100 x 122 h

Request information

Ask a Quote

Shipments

Information on electrical components

Tytes of Payments

Video


Production Times

How to contact us

Chef Costantino

Description
Product Details

4-cylinder forming machine	Model: F4C600+FIL
Ideal	For the production of a variety of shapes and sizes of filoni, filette and wrapped dough in general
Dimensions	Cm 172 x 100 x 122 h
Weight	310 kg
Origins	Italy
Warranty	12 months
Standard	CE

TECHNICAL DATA
Cylinders	N. 4 x mm 615
Grammage Range	20-2000 g
Upper Carpet Block	For Paste Cylinder
Upper Carpet Pretensioned	(without adjustment)
Wheels	n° 4 of mm 80 of which 2 Fixed and 2 Swiveling with Brake
Thick Chromed Cylinders Useful width	mm 615
Anti-Discard Device	Adjustable for dough winding
Capacity working Max Dough Hydration	70/75% Hydration
Standard	4 Scrapers - Chute for Returning Pieces to Operator - Stainless Steel Trays and Cylinder Protectors - With Spinner
Power	kW 0.75
Power supply	Three-phase V400/3/50Hz

GENERAL INFORMATION
The F3C/F4C 600 LUX moulding machine & a machine capable of forming multiple types of wrapped bread in various sizes & with the ability to cylinder the dough thanks to the upper belt locking mechanism
E equipped with a chute for the return of the pieces to \| the operator or to the tray located at the back of the machine
The machine & constructed of sheet steel of considerable strength & all moving parts are mounted on watertight bearings, the protection of the cylinders & made of 304 stainless steel & when lifted, a device intervenes to block the machine
I cylinders are ground & chrome plated to thickness, have a useful width of 600 mm & are protected by scrapers

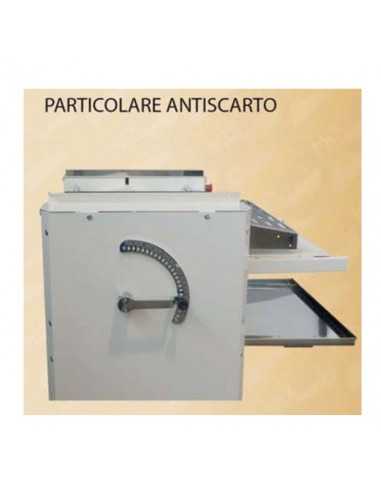

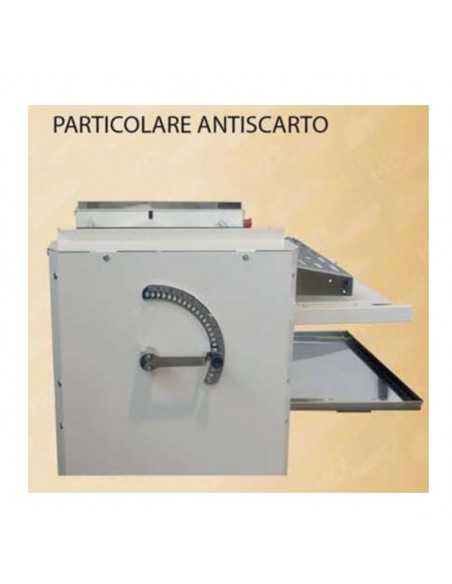

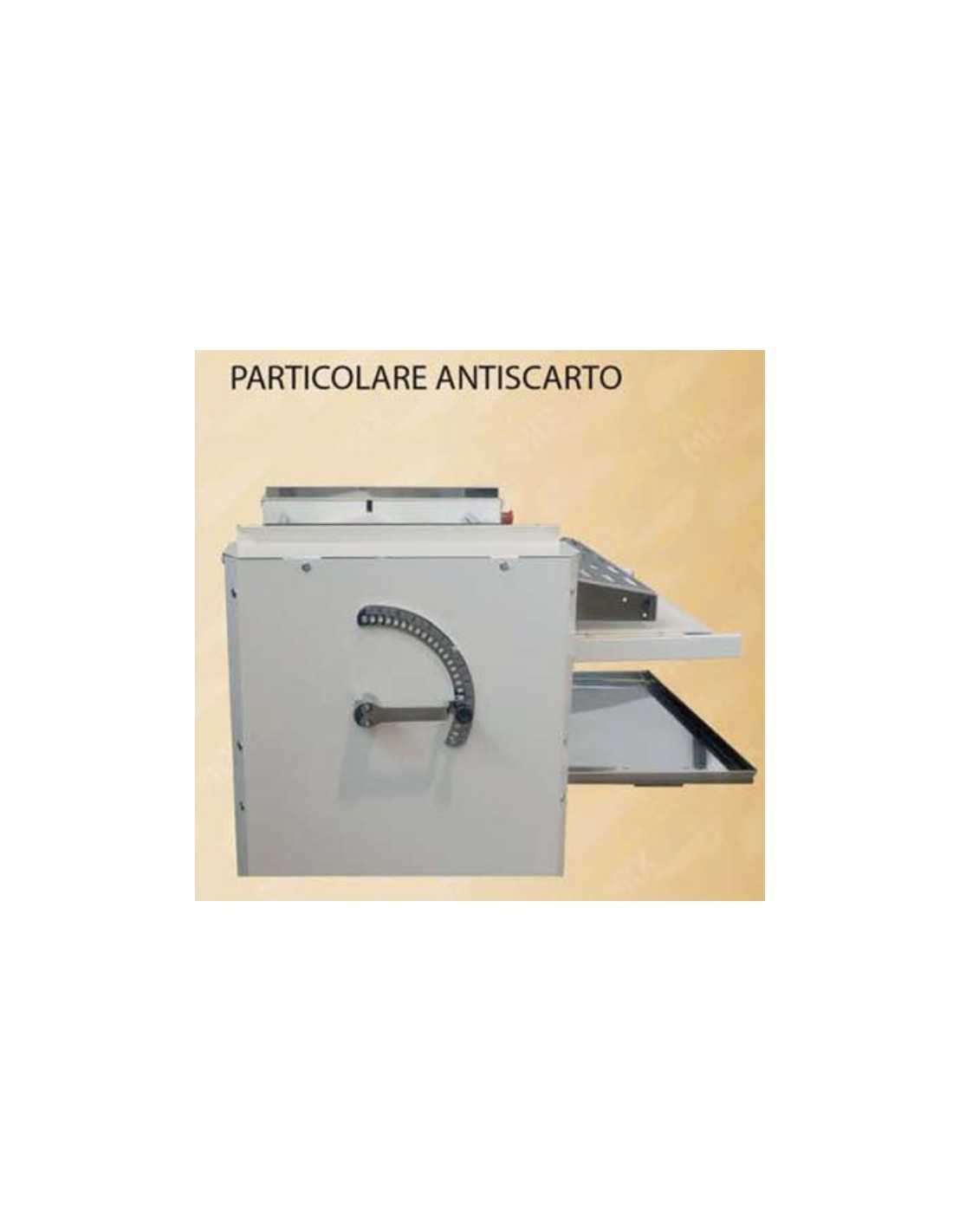

The machine & also equipped with a quickly adjustable anti-scrap device for soft and increased dough rolling
The molding machine is equipped with 2 fixed and 2 swivel wheels for easy movement and equipped with brakes to stop the machine during processing

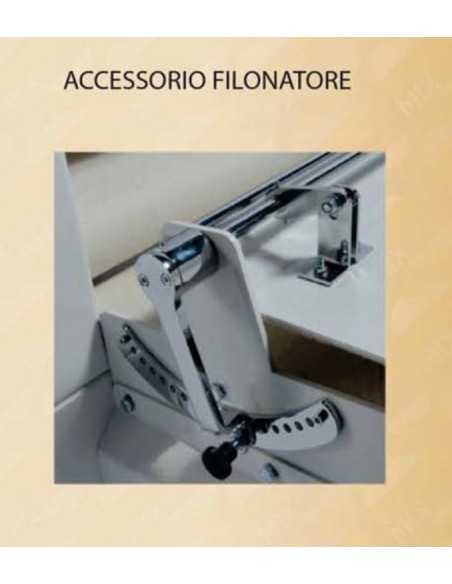

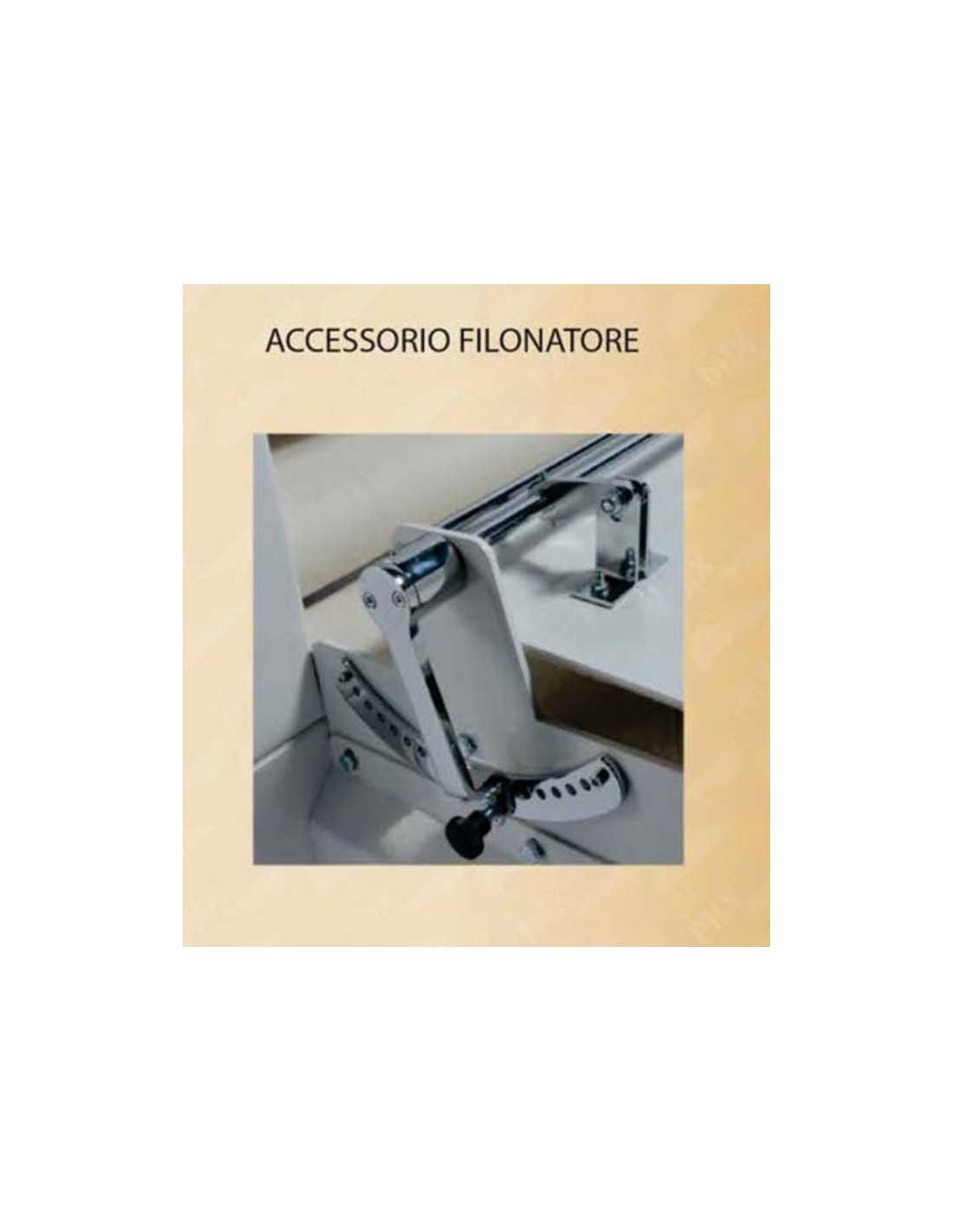

The F3C/F4C 600 LUX & prearranged for \| the installation of a filonatore (FIL optional), this allows to production of filoncini or to further stretch the dough, in this case there are no trays in the machine
The machine meets current machine safety regulations, as well as compliance with hygienic standards on food contact materials

In stock 100 Items
