Vertical hydraulic sausage stuffer 55 litre - Single phase
F-NA-012213
F-NA-012213
€4,931.20
€5,360.00
-8%
€4,931.20 Senza tasse
€6,016.06 Con tasse
€5,360.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

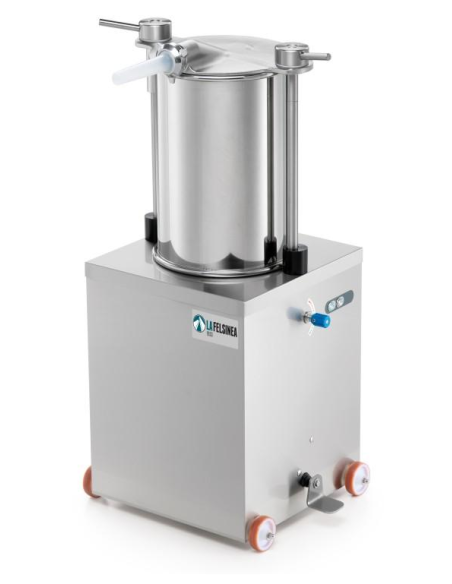

Vertical hydraulic sausage stuffer - Model IS50 VARIA - Cylinder capacity Lt 55 - Cylinder diameter cm Ø 38 - Cylinder length cm 52 - Power Watt/Hp 520/0.7 - Single-phase power supply V230/50Hz - Dimensions cm 73x55x125h
Options
+ ACCESSORIES
| Hydraulic sausage stuffer | IS50VARIA-MON |
| Product size | cm 73x55x125h |
| Packaging dimensions | cm 76 x 64 x 148 h |
| Weight | kg 145 - kg 160 |
| TECHNICAL DATA | |
|---|---|
| Capacity | 55 lt |
| Power supply | monophase V230/50Hz |
| Power | Watt/hp 520/07 |
| Cylinder length | 52 cm |
| Cylinder Diament | cm ø 38 |
| Piston stroke | cm 44 |
| Minimum emptying speed | Six |
| Maximum emptying speed | 75" |
| Piston return speed | 32" |
| GENERAL FEATURES | |
|---|---|
| Robust structure made of AISI 304 stainless steel | |
| Airtight protection on hydraulic piston | |

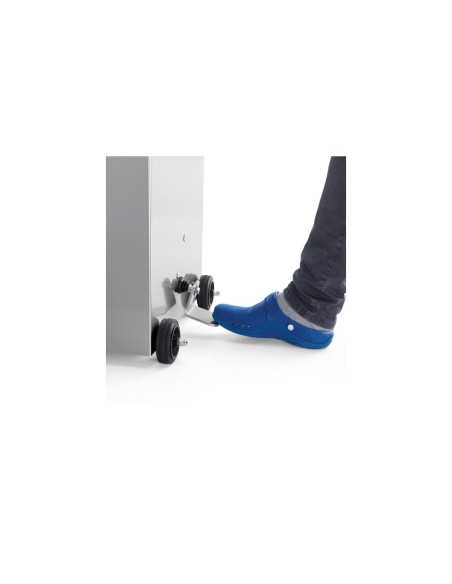

| 4 external rubber wheels facilitate movement on each floor (optional model 15) | |
| AISI 304 stainless steel cylinder polished, with rounded edges | |
| Automatic piston return with motor self-offering | |

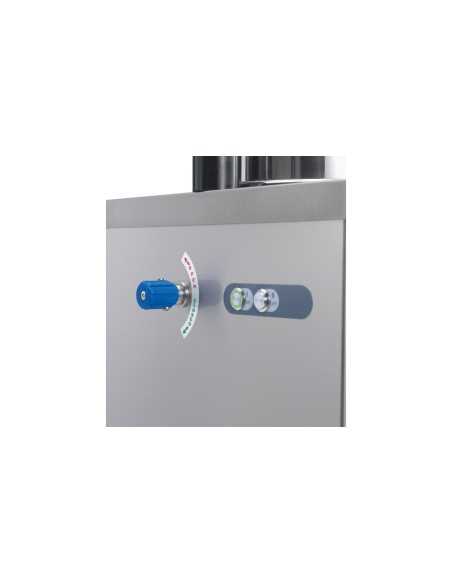

| Controls 24 Volt IP54 and hydraulic flow regulator | |
| Operated piston engine only | |
| Fully stainless steel cover and pad | |
| Highly airtight lid closure thanks to the insertion of the same inside the cylinder | |
| Long life of the cover seals thanks to the exclusive internal locking system of the cylinder | |
| Elevator cover for easier opening (only 24 and 35) | |
| Complete with polyethylene funnels of three different sizes: Ø 10-18-25 mm | |
| Available with cam ejectors for cylinder removal | |
| Norma CE | |
| Warranty 12 months |
