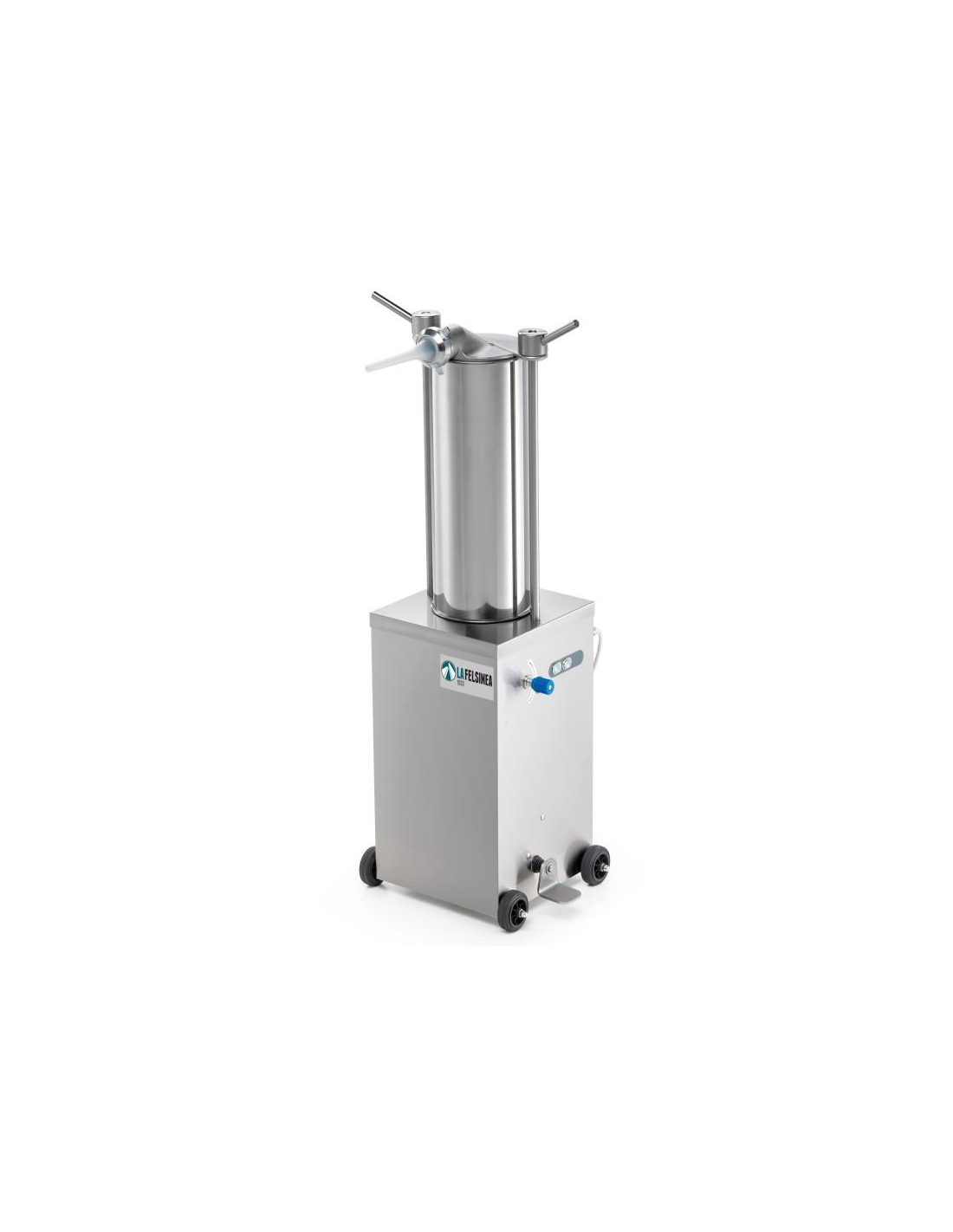

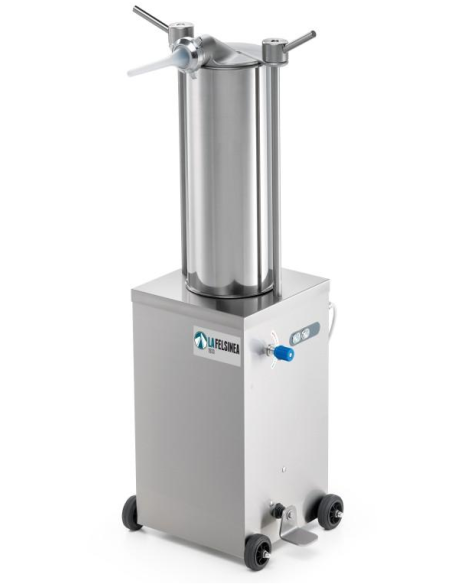

Vertical hydraulic sausage stuffer 15 liters - Three-phase
F-NA-011930
F-NA-011930
€2,116.00
€2,300.00
-8%
€2,116.00 Senza tasse
€2,581.52 Con tasse
€2,300.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days
Vertical hydraulic sausage stuffer - Model IS15VARIA - Cylinder capacity Lt 15 - Cylinder diameter cm Ø 20 - Cylinder length cm 49.5 - Three-phase power supply V400/50/3Hz - Dimensions cm 49 x 37 x 120 h
Options
+ ACCESSORIES
| Sausage stuffer | IS15VARIA |
| Product size | cm 49 x 37 x 120 h |
| Packaging dimensions | cm 75 x 58 x 140 h |
| Weight | kg 53 - kg 63 |
| TECHNICAL DATA | |
|---|---|
| Capacity | 15 lt |
| Power supply | Triphase V400/50/3Hz |
| Power | Watt/hp 520/07 |
| Cylinder length | cm 49.5 |
| Cylinder Diament | cm ø 20 |
| Piston stroke | cm 43 |
| Minimum emptying speed | 2' 11' |
| Maximum emptying speed | 59" |
| Piston return speed | 35" |
| GENERAL FEATURES | |
|---|---|
| Robust structure made of AISI 304 stainless steel | |
| Airtight protection on hydraulic piston | |
| 4 external rubber wheels facilitate movement on each floor (optional model 15) | |
| AISI 304 stainless steel cylinder polished, with rounded edges | |
| Automatic piston return with motor self-offering | |

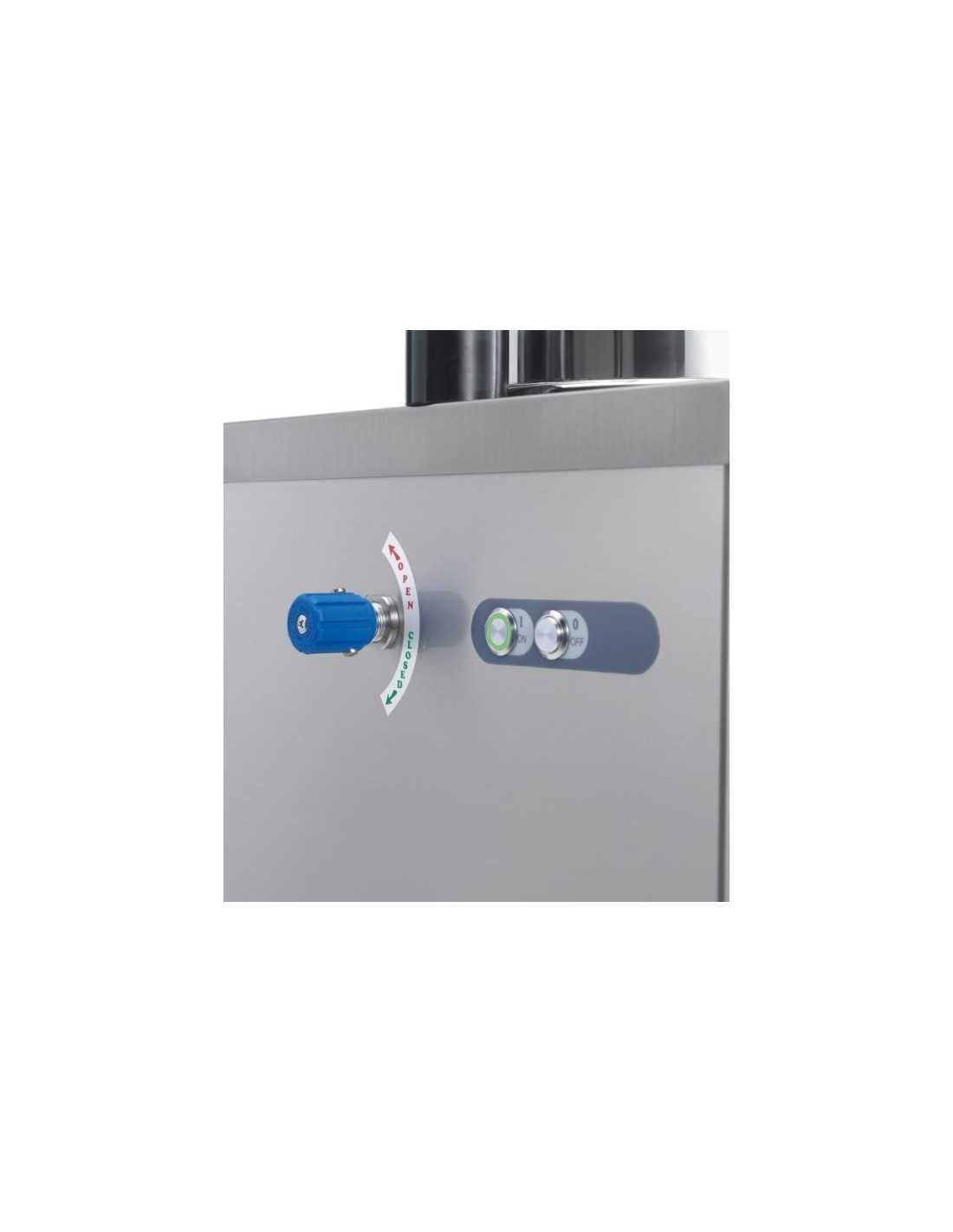

| Controls 24 Volt IP54 and hydraulic flow regulator | |
| Operated piston engine only | |
| Fully stainless steel cover and pad | |

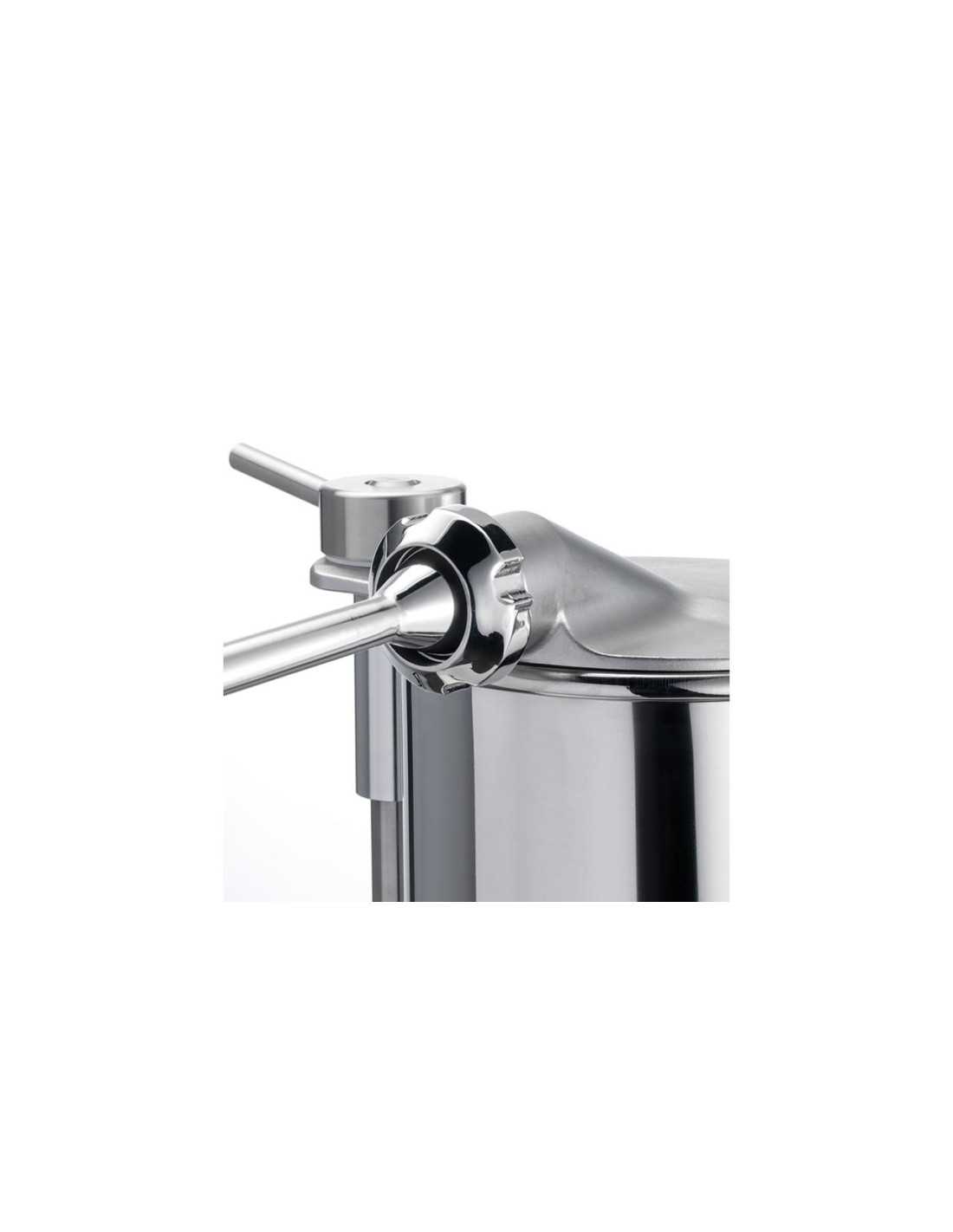

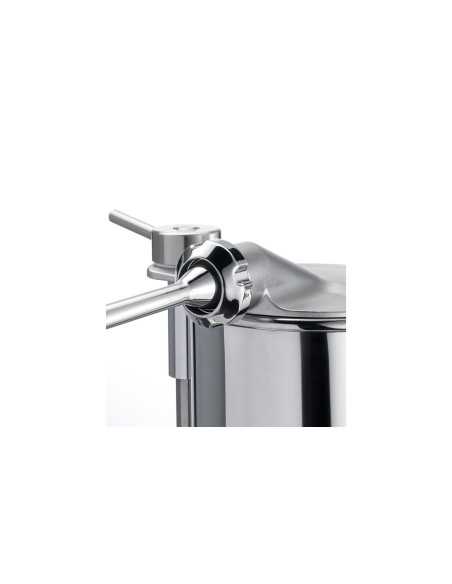

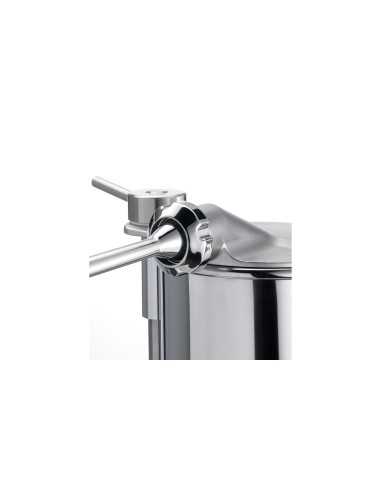

| Highly airtight lid closure thanks to the insertion of the same inside the cylinder | |
| Long life of the cover seals thanks to the exclusive internal locking system of the cylinder | |
| Elevator cover for easier opening (only 24 and 35) | |
| Complete with polyethylene funnels of three different sizes: Ø 10-18-25 mm | |
| Available with cam ejectors for cylinder removal | |
| Norma CE | |
| Warranty 12 months |
