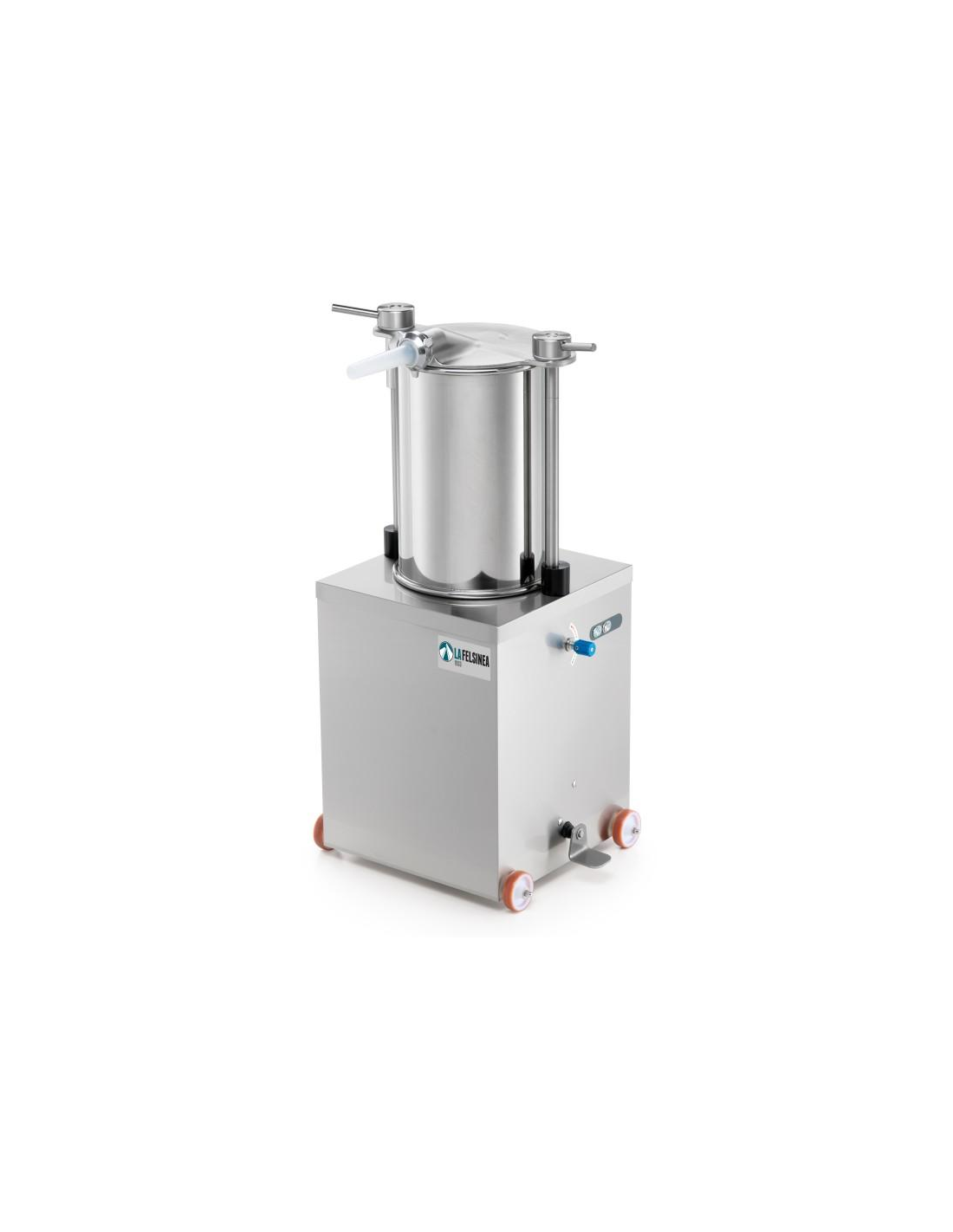

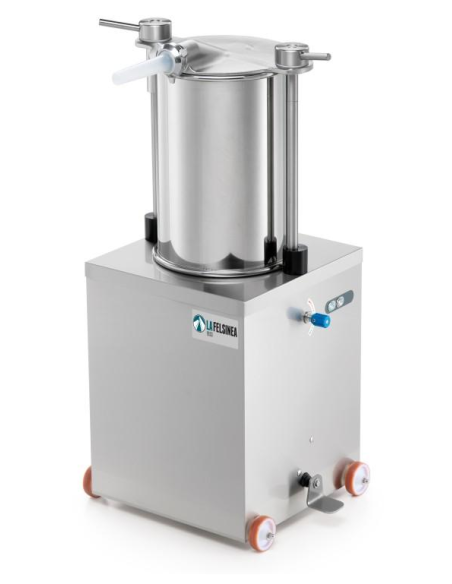

Vertical hydraulic sausage stuffer 25 liters - Single phase
F-NA-012013
F-NA-012013
€2,907.20
€3,160.00
-8%
€2,907.20 Senza tasse
€3,546.78 Con tasse
€3,160.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days
Vertical hydraulic sausage stuffer - Model IS24 VARIA - Cylinder capacity Lt 25 - Cylinder diameter cm Ø 26 - Cylinder length cm 46 - Power Watt/Hp 520/0.7 - Single-phase power supply V230/50Hz - Dimensions cm 56.5 x 45 x 116 h
Options
+ ACCESSORIES
| Hydraulic sausage stuffer | IS24VARIA-MON |
| Product size | cm 56.5 x 45 x 116 h |
| Packaging dimensions | cm 75 x 58 x 140 h |
| Weight | kg 91 - kg 103 |
| TECHNICAL DATA | |
|---|---|
| Capacity | 25 lt |
| Power supply | monophase V230/50Hz |
| Power | Watt/hp 520/07 |
| Cylinder length | cm 46 |
| Cylinder Diament | cm ø 26 |
| Piston stroke | cm 38 |
| Minimum emptying speed | 2' 02' |
| Maximum emptying speed | 51 |
| Piston return speed | 33" |
| GENERAL FEATURES | |
|---|---|
| Robust structure made of AISI 304 stainless steel | |
| Airtight protection on hydraulic piston | |
| 4 external rubber wheels facilitate movement on each floor (optional model 15) | |
| AISI 304 stainless steel cylinder polished, with rounded edges | |
| Automatic piston return with motor self-offering | |

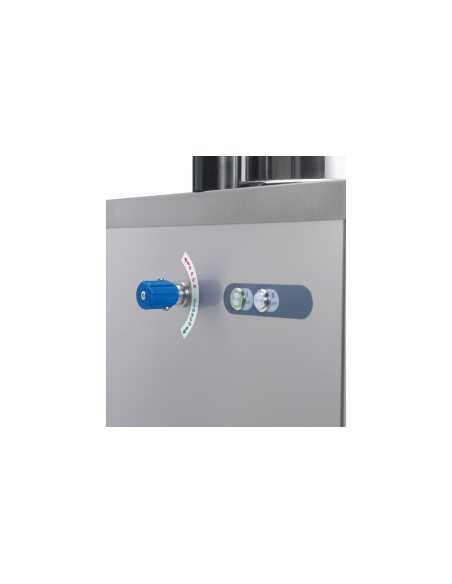

| Controls 24 Volt IP54 and hydraulic flow regulator | |
| Operated piston engine only | |
| Fully stainless steel cover and pad | |
| Highly airtight lid closure thanks to the insertion of the same inside the cylinder | |
| Long life of the cover seals thanks to the exclusive internal locking system of the cylinder | |
| Elevator cover for easier opening (only 24 and 35) | |
| Complete with polyethylene funnels of three different sizes: Ø 10-18-25 mm | |
| Available with cam ejectors for cylinder removal | |
| Norma CE | |
| Warranty 12 months |
