Rigid washing machine - Capacity 18 kg - Basket cm 73 - cm 97 x 106 x 146 h
  • -10%
%product-name%
Rigid washing machine - Capacity 18 kg - Basket...

Rigid washing machine - Capacity 18 kg - Basket cm 73 - cm 97 x 106 x 146 h

DL-GR-LVR18
DL-GR-LVR18
€8,640.00 €9,600.00 -10%
€8,640.00 Senza tasse €10,540.80 Con tasse €9,600.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

Rigid washing machine - Capacity 18 kg - Basket diameter cm 73 - Dimensions cm 97 x 106 x 146 h

HEATING TYPE
Request information

Options

+ ACCESSORIES

icon_image_1679324863.png Shipments

icon_image_1734099125.png Information on electrical components



icon_image_1695971686.png Tytes of Payments

icon_image_1695971505.png Video
icon_image_1696600654.png Production Times

icon_image_1696602441.png How to contact us

icon_image_1788510258.png Chef Costantino

x
PRENOTA UNA VIDEOCHIAMATA

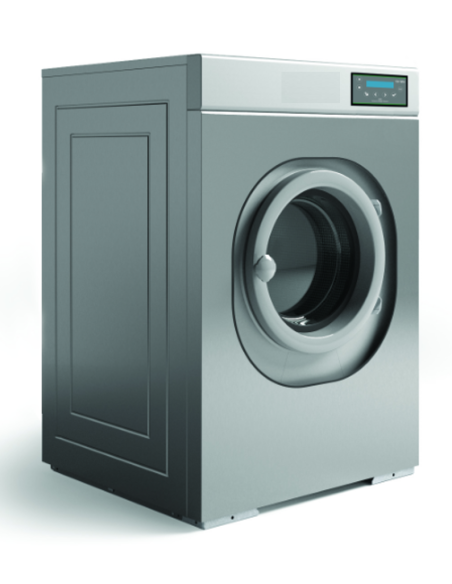

Rigid washing machine LVR18
Dimensions product cm 97 x 106 x 146 h
Dimensions packaging 107 x 120 x 156 cm h
Net weight / Gross Kg 255/270
Warranty 12 months
Standard CE
Origin Italy
TECHNICAL DATA
Capacity loading ratio Kg 10-20(1/9) - kg 9-18 (1/10)
Washing speed/centrifuge rpm 20÷60 / 490 max
Factor G 100
Dynamic floor load kN 2.7 ± 3.60
Heating Electric or Direct steam or Indirect steam
Basket diameter mm 730
Basket depth mm 450
Porthole diameter mm 460
Basket volume dm3 180
WATER CONSUMPTION DATA (based on ISO9398)
Total cycle 60°C 154 lt
of which hot water 38.5 lt
of which fresh water 38.5 lt
of which hard water 77 lt
Drop discharge inch 3
ELECTRICAL DATA
Power supply Standard Three-phase V380-415/3N/50-60Hz (special voltages on request)
Basket motor kW 0.75
Variable speed drive Inverter standard
Speed rpm freely settable
Electric heating data Electric power std kW 18 (A380-415V) 27.5 - Power consumption std kW/h 5,168
Direct steam heating data Steam pressure bar 1-6 - Steam connection inch 3/4"
Indirect steam heating data Steam pressure bar 3-6 - Steam connection/condensate inch 3/4" - 3/4"
GENERAL CHARACTERISTICS
Electronically controlled motor speed (inverter) with stationary basket condition check
Certified redundant safety system
Machine frame allows anchoring to the ground without having to move the machine

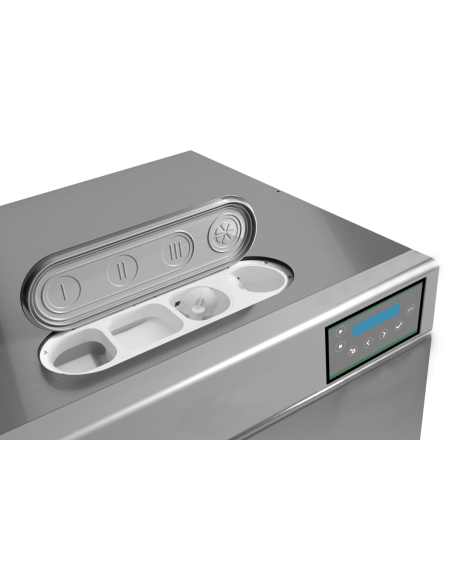

Provision for 7 liquid detergent inputs, dispenser in ergonomic position with 4 compartments
Porthole can be opened 180° ease of loading and unloading by pulling the trolley alongside the machine
Easy and quick maintenance due to positioning of internal components
Patented DWS weighing system that automatically weighs and adjusts actual resource consumption
Standard G4-Wiz control, 20 programs and storage of all usage data
Hot, cold, hard and soft water inputs as standard
Water inputs automatically managed and mixed by G4-Wiz control
3 " drain pipe with 90 bend° and 3 water inlet pipes 3/4" supplied
