Rigid washing machine - Capacity 11 kg - Basket cm 62 - cm 79.5 x 78 x 124.5 h
Rigid washing machine - Capacity 11 kg - Basket cm 62 - cm 79.5 x 78 x 124.5 h
Rigid washing machine - Capacity 11 kg - Basket cm 62 - cm 79.5 x 78 x 124.5 h

  • -5%
Rigid washing machine - Capacity 11 kg - Basket...
Rigid washing machine - Capacity 11 kg - Basket...
Rigid washing machine - Capacity 11 kg - Basket...

Rigid washing machine - Capacity 11 kg - Basket cm 62 - cm 79.5 x 78 x 124.5 h

G-PT-GWM11
G-PT-GWM11
€5,513.80 €5,804.00 -5%
€5,513.80 Senza tasse €6,726.84 Con tasse €5,804.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

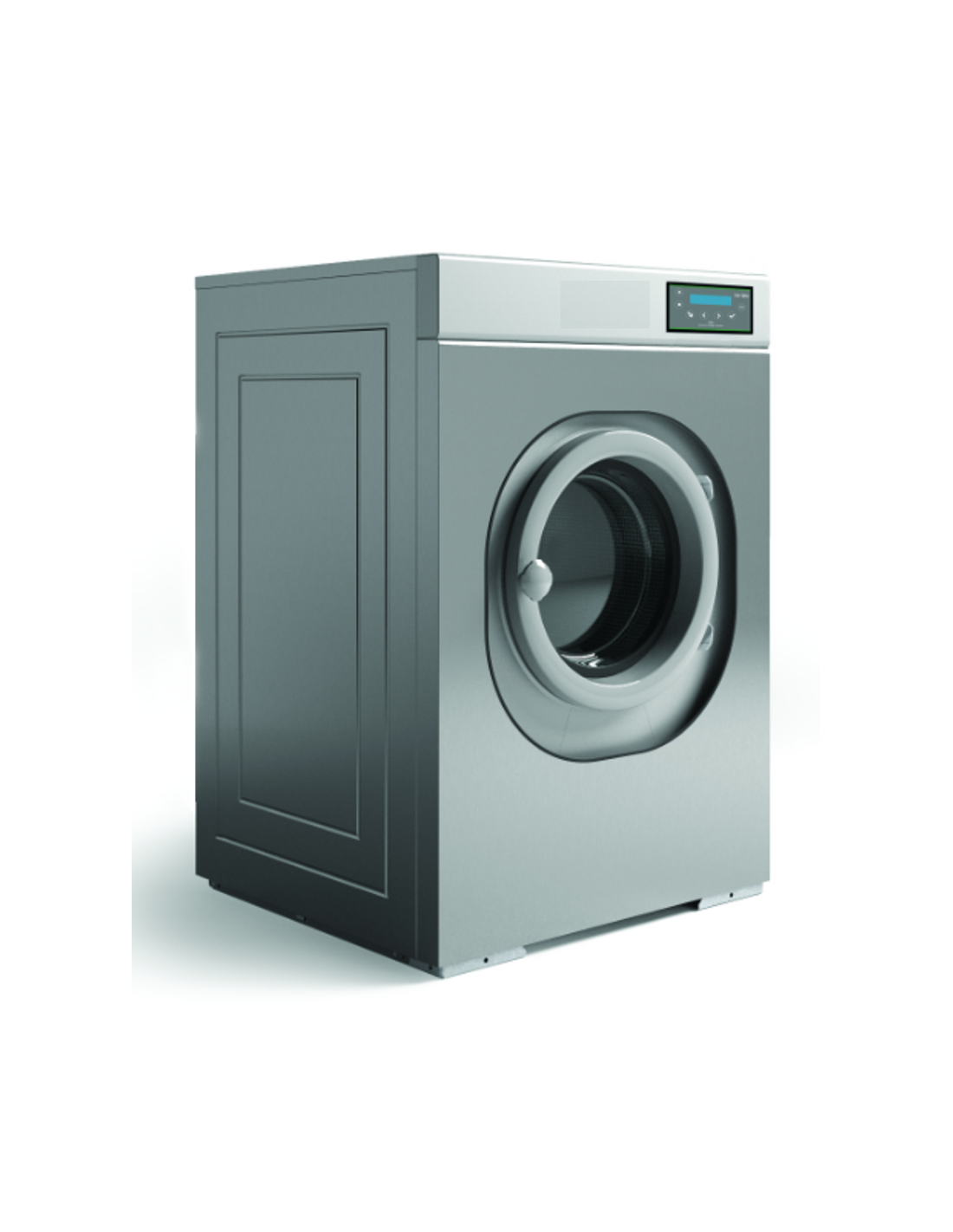

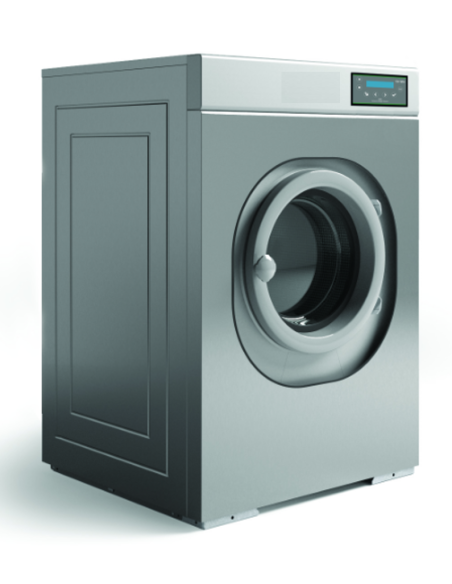

Rigid washing machine - Model GWM - Capacity 11 kg - Diameter basket cm 62 - Dimensions cm 79.5 x 78 x 124.5 h

HEATING TYPE

Options

+ ACCESSORIES


Hard whitewashing GWM
Dimensions product cm 79.5 x 78 x 124.5 h
Dimensions packaging C 90 x 88 x 135 h
Net weight / Lord Kg 135/145
Warranty 12 months
Norma CE
Origin Italy
TECHNICAL DATA
Capacity load ratio KG 5.8-11.7(1/9) - kg 5.2 - 10.50 (1/10)
Washing speed/centrifugal rpm 20 ÷ 60/760 max
Factor G 200
Dynamic load on the ground kN 1.9 ± 4.0
Heating Electric or Direct steam or indirect vapor
Diameter basket mm 620
Depth basket mm 350 mm
Diameter oblue 410 mm
Volume basket dm3 105
IDRICAL CONSUMER DATA (based on ISO9398)
Total cycle 60°C 86 lt
of which hot water 21.5 lt
of which fresh water 21.5 lt
of which hard water 43 lt
Fall discharge inch 3
ELECTRICAL DATA
Power supply Standard Three-phase V380-415/3N/50-60Hz (on request special voltages)
Motor basket 0.75 kW
Speed changer Standard inverter
Speed rpm freely set
Electric heating data Electric power std kW 9 (A380-415V) 14.2 - Power consumption std kW/h 2.332
Direct steam heating data Steam pressure bar 1-6 - Steam connection inch 3/4"
Indirect steam heating data Steam pressure bar 3-6 - Steam connection/condensation inch 3/4" - 3/4"
GENERAL FEATURES
Electronicly controlled motor speed (inverter) with check-in condition
Redundant certified security system
The frame of the machine allows anchoring on the ground without having to move the machine

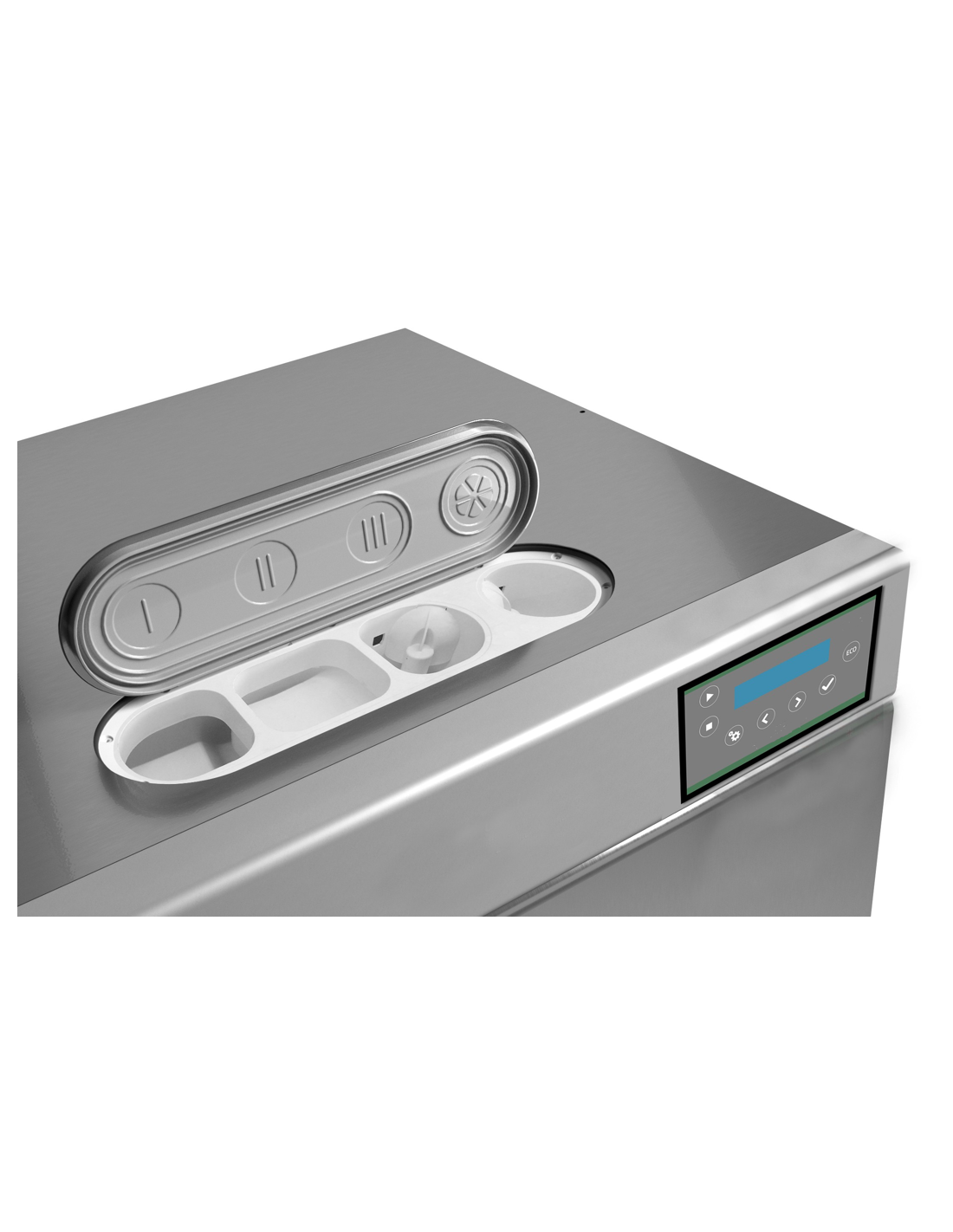

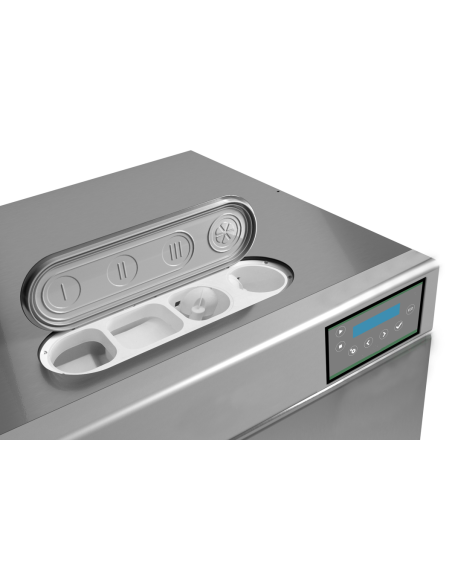

Set for 7 inputs of liquid detergents, ergonomic dispenser with 4 compartments
180 openable block° easy loading and unloading by pulling the cart to the machine
Easy and fast maintenance thanks to the positioning of the internal components
DWS patented weighing system that automatically weighs and regulates the actual consumption of resources
G4-Wiz series control, 20 programs and storage of all usage data
Hot, cold, hard and sweet series water inputs
Automatically managed and mixed water inputs from G4-Wiz control
3" exhaust pipe with 90 curve° and 3 water load pipes 3/4" included
