Rigid washing machine - Capacity 8 kg - Basket cm 52 - cm 79.5 x 78 x 124.5 h

  • -8%
%product-name%
Rigid washing machine - Capacity 8 kg - Basket...

Rigid washing machine - Capacity 8 kg - Basket cm 52 - cm 79.5 x 78 x 124.5 h

DL-GR-LVR8
DL-GR-LVR8
€5,290.00 €5,750.00 -8%
€5,290.00 Senza tasse €6,453.80 Con tasse €5,750.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

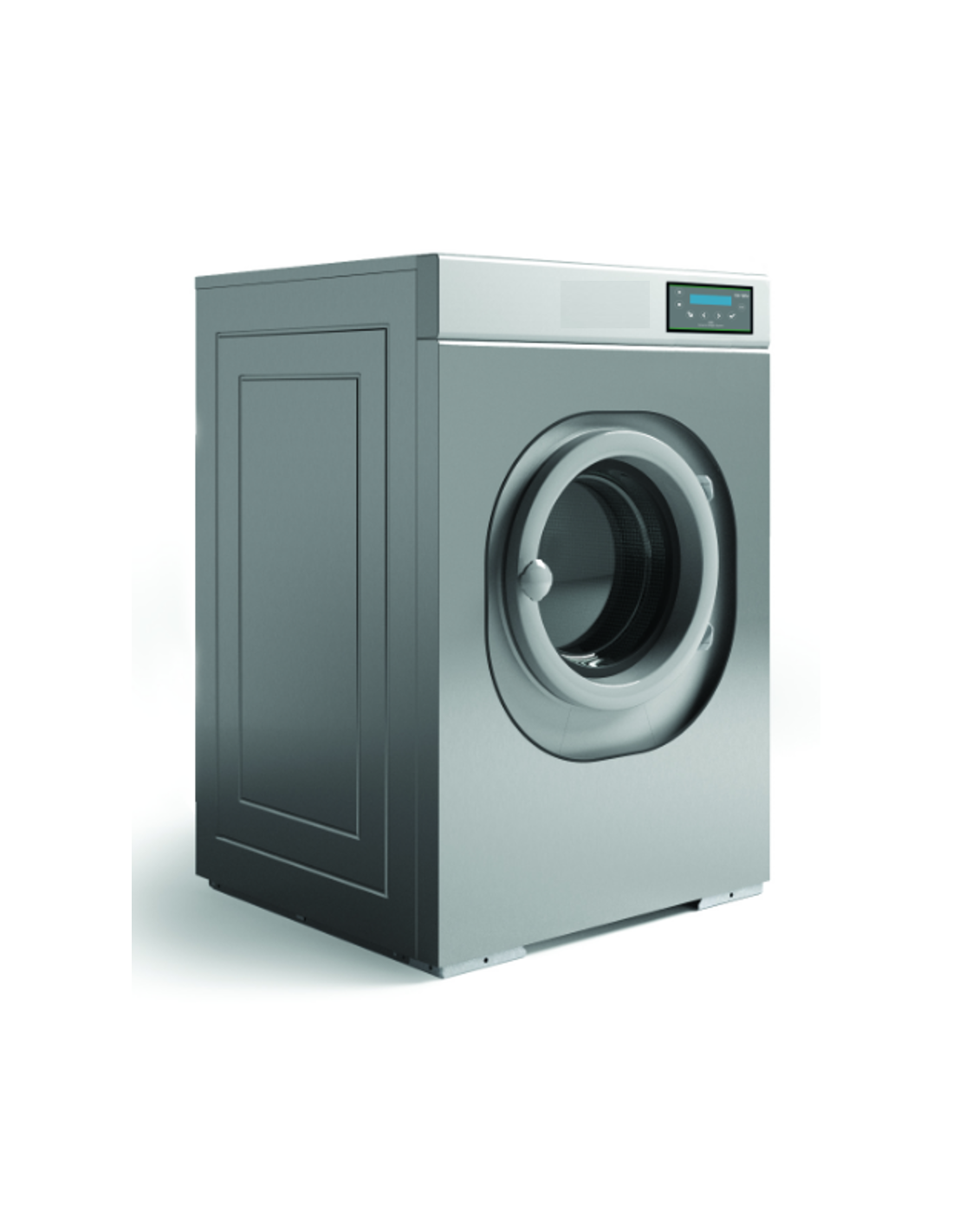

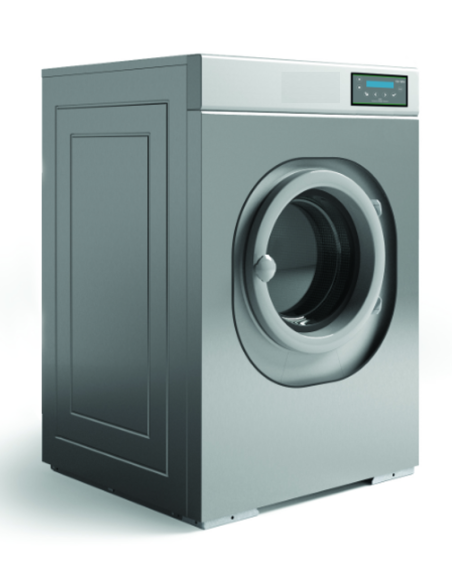

Rigid washing machine - Model LVR80 - Capacity 8 kg - Basket diameter cm 52 - Dimensions cm 79.5 x 78 x 124.5 h

HEATING TYPE

Options

+ ACCESSORIES


Rigid washing machine Model: LVR8
Dimensions product cm 79.5 x 78 x 124.5 h
Dimensions packaging 90 x 88 x 135 cm h
Net weight / Gross Kg 135/145
Warranty 12 months
Standard CE
Origin Italy
TECHNICAL DATA
Capacity loading ratio Kg 4.1-8.3 (1/9) - kg 3.75-7.5 (1/10)
Washing speed/centrifuge rpm 20÷60 / 820 max
Factor G 200
Dynamic floor load kN 1.6 ± 2.4
Heating Electric or Direct steam or Indirect steam
Basket diameter mm 520
Basket depth mm 350
Porthole diameter mm 330
Basket volume dm3 75
WATER CONSUMPTION DATA (based on ISO9398)
Total cycle 60°C 73.2 lt
of which hot water 17.8 lt
of which fresh water 17.8 lt
of which hard water 37.6 lt
Drop discharge inch 3
ELECTRICAL DATA
Power supply Standard Three-phase V380-415/3N/50-60Hz (special voltages on request)
Basket motor kW 0.55
Variable speed drive Inverter standard
Speed rpm freely settable
Electric heating data Electric power std kW 6 (A380-415V) 9.4 - Power consumption std kW/h 1,563
Direct steam heating data Steam pressure bar 1-6 - Steam connection inch 3/4"
Indirect steam heating data Steam pressure bar 3-6 - Steam connection/condensate inch 3/4" - 3/4"
GENERAL CHARACTERISTICS
Electronically controlled motor speed (inverter) with stationary basket condition check
Certified redundant safety system
Machine frame allows anchoring to the ground without having to move the machine

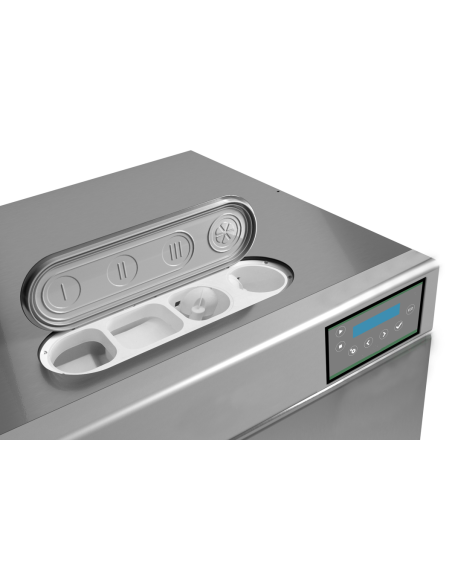

Provision for 7 liquid detergent inputs, dispenser in ergonomic position with 4 compartments
Porthole can be opened 180° ease of loading and unloading by pulling the trolley alongside the machine
Easy and quick maintenance due to positioning of internal components
Patented DWS weighing system that automatically weighs and adjusts actual resource consumption
Standard G4-Wiz control, 20 programs and storage of all usage data
Hot, cold, hard and soft water inputs as standard
Water inputs automatically managed and mixed by G4-Wiz control
3 " drain pipe with 90 bend° and 3 water inlet pipes 3/4" supplied
*WASHING MACHINES
*Load capacity kg 8*
