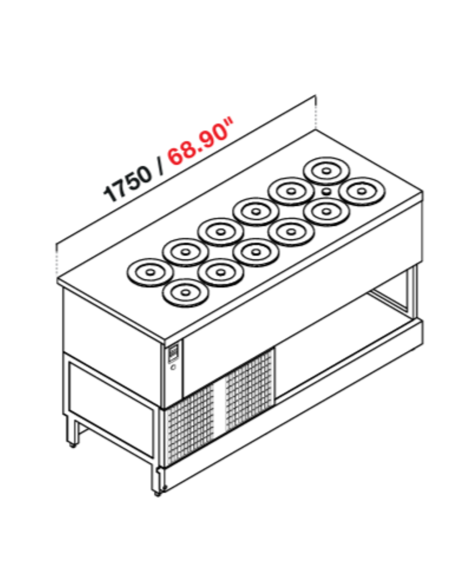

Recessed well - A glycol - N. 12 wells - cm 175 x 68.8 x 95.1 h
IF-F-EY128224
IF-F-EY128224
€7,177.06
€7,801.15
-8%
€7,177.06 Senza tasse
€8,756.01 Con tasse
€7,801.15 Senza tasse
Tax excluded
Recessed well - Stainless steel - A glycol - N. 12 wells - Without reserve - Dimensions cm 175 x 68.8 x 95.1 h
Options
+ ACCESSORIES
| Recessed well | MANUFACTURE FROM MATERIALS OF ANY HEADING |
| Dimensions product | cm 175 x 68.8 x 95.1 h |
| Capacity | N. 12 wells |
| Surrendered | 755 w/h -30°C |
| Climate class | 7 - 35°C/75%U.R. |
| Operating capacity | 26.15 cm3 |
| Power absorbed | 775 W |
| Power supply | 230V-1-50Hz |
| Refrigerant | R452A |
| Norma | CE |
| Warranty | 12 months |
| GENERAL FEATURES | |
|---|---|
| Stainless steel tin containers AISI 304 18/10 for containment of carapines | |
| Exterior tank side operator covered in polished stainless steel with inserted control panel | |
| Interior stainless steel tank 18/10 aisi 304 with sealed welding for the containment of coolant | |
| The tank is equipped with a hole too full to ensure that the glycol levels are higher than that of the carapina | |
| Expansion valve | |
| Ice cream service level is 150/200 mm from the work surface as it must be kept under the coolant level | |
| Inside stainless steel tank and carapine stalks circulates the coolant: a mixture of food glycol and water | |
| Insulating between carapina and tin container | |
| Foam structure with density polyurethane 40kg/mc with thickness 60 mm complete of coiled copper tube and expansion valve | |
| Exterior tub coated in galvanized sheet on all 4 sides plus the bottom for containment of the weight relative to the liquid coolant mass | |
| In the tank without external reserve operator side covered in polished stainless steel with control panel inserted |
- *COLD LINE REFRIGERATION
- * Glycol *
- *LENGTH
- cm 175
- *ICE CREAM CAPACITY
- *N° 12 pozzetti*
