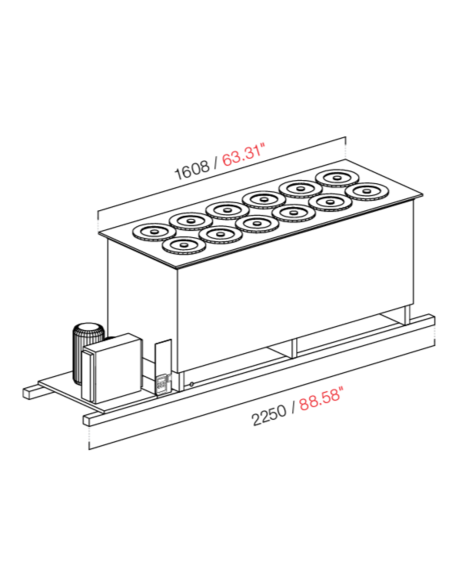

Recessed cockpit - Ventilate - N. 12 wells - cm 225 x 68.8 x 95.1 h
IF-F-EY127714
IF-F-EY127714
€5,580.95
€6,066.25
-8%
€5,580.95 Senza tasse
€6,808.76 Con tasse
€6,066.25 Senza tasse
Tax excluded
Recessed well - Stainless steel - Ventilate - N. 12 wells - With reserve - Dimensions cm 225 x 68.8 x 95.1 h
Options
+ ACCESSORIES
| Recessed well | MANUFACTURE FROM MATERIALS OF ANY HEADING |
| Dimensions product | cm 225 x 68.8 x 95.1 h |
| Capacity | N. 12 wells |
| Surrendered | 755 W/h -30°C |
| Climate class | 7 - 35°C - 75% |
| Operating capacity | 26.15 cm3 |
| Power absorbed | W 775 |
| Power supply | 230V-1-50Hz |
| Refrigerant | R452A |
| Norma | CE |
| Warranty | 12 months |
| GENERAL FEATURES | |
|---|---|
| Foam structure with density polyurethane 40 kg/mc with a thickness of 50 mm complete with coiled copper tube and expansion valve | |
| Exhaust valve equipped with closing cap and connected to the exhaust with anti-flow valve | |
| Exterior tub covered in polyonda | |
| Expansion valve | |
| Double row of carapines with anti rotation system | |
| Ice cream service level is only 50 mm from the worktop | |
| Interior stainless steel tank 18/10 AISI 304 | |
| Exterior tank side operator covered in polished stainless steel with inserted control panel | |
| Internal fans to shake the air and uniform the temperature resulting in reduction of the thermal delta between high wall and bottom tub | |
| The ice cream contained in reserve carapines is immediately ready to use | |
| In static wells the fans are not installed | |
| Stainless steel internal divider to properly place the carapines inside the tub |
- *COLD LINE REFRIGERATION
- * Ventilated *
- *LENGTH
- *220 cm*
- *ICE CREAM CAPACITY
- *N° 12 pozzetti*
