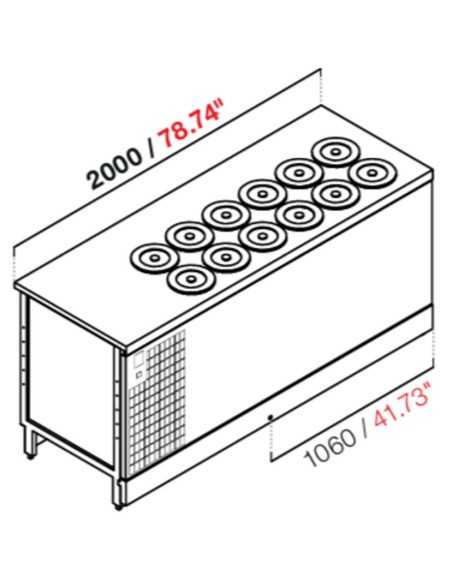

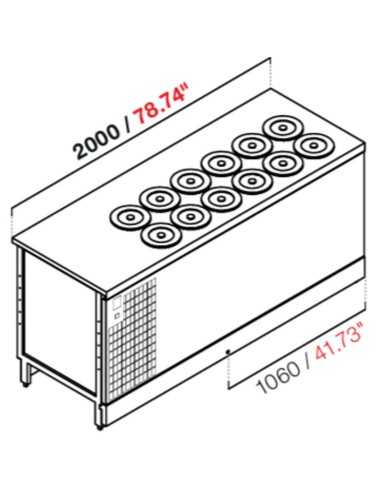

Recessed sump - A glycol - N. 12 sumps - With reserve - cm 200 x 68.8 x 95.1 h

-10%

Recessed sump - A glycol - N. 12 sumps - With reserve - cm 200 x 68.8 x 95.1 h

Name: Recessed sump - A glycol - N. 12 sumps - With reserve - cm 200 x 68.8 x 95.1 h
Brand: IFI
SKU: IF-F-EY105911
Price: 9743.19 EUR
Availability: InStock

IF-F-EY105911

Reference IF-F-EY105911

€9,743.19 €10,825.77 -10%

€9,743.19 Senza tasse €11,886.70 Con tasse €10,825.77 Senza tasse

Tax excluded

Recessed sump - Stainless top - A glycol - N. 12 sumps - With reserve - Dimensions cm 200 x 68.8 x 95.1 h

Request information

Ask a Quote

Options

ACCESSORIES

	Stainless steel Carapine with anti-rotation system H 25 - Ø 20 cm (7) lt)	Stainless steel Carapine with anti-rotation system H 25 - Ø 20 cm (7) lt) €53.91
	Carapine in white polyethylene with anti-rotation system H 24.7 - Ø 20 cm (6) lt)	Carapine in white polyethylene with anti-rotation system H 24.7 - Ø 20 cm (6) lt) €28.35
	Stainless steel gym with white handle H 20 cm	Stainless steel gym with white handle H 20 cm €7.43
	Internal temperature detection thermometer	Internal temperature detection thermometer €41.40

Shipments

Information on electrical components

Tytes of Payments

Video


Production Times

How to contact us

Chef Costantino

Description
Product Details

Recessed sump	EY105911
Dimensions product	cm 200 x 68.8 x 95.1 h
Capacity	N. 12 manholes
Yield	611 w/h -30°C
Climate class	4 - 35°C/ 60%U.R.
Power absorbed	537 W
Power supply	230V-1-50Hz
Refrigerant	R452A
Standard	CE
Warranty	12 months

GENERAL FEATURES
Stainless steel watertight containers AISI 304 18/10 for holding carapins
Operator-side tank exterior lined in polished stainless steel finish with inserted control panel
Inner tank stainless steel 18/10 aisi 304 watertight welded for coolant containment
The tank is equipped with an overflow hole to ensure that glycol levels are higher than carapine levels
Expansion valve
The ice cream service level is 150/200 mm from the work surface as it must be kept below the coolant level
Coolant circulates between inner stainless steel tank and carapine stagli containers: a mixture of food grade glycol and water
Insulation between carapine and watertight container
Structure foamed with 40kg density polyurethane/mc with 60mm thickness complete with drowned copper pipe coil and expansion valve
Tank exterior lined with galvanized sheet metal on all 4 sides plus the bottom to contain the weight related to the liquid refrigerant mass
Double row of carapins with anti-rotation system

*COLD LINE REFRIGERATION: * Glycol *
*LENGTH: *200 cm*
*ICE CREAM CAPACITY: *N° 12 pozzetti*

In stock 100 Items
