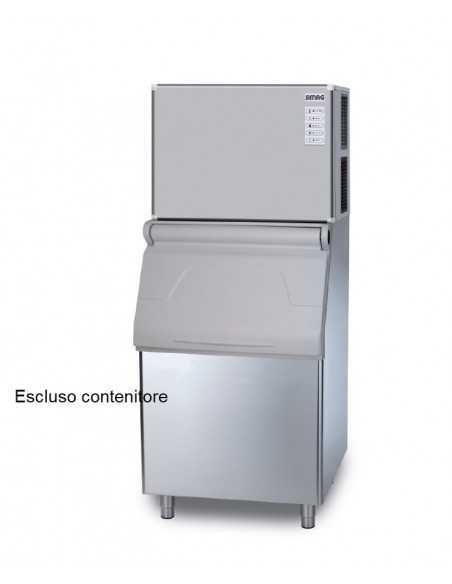

Full Cube Ice Maker - Air/Water 220 kg/24h
S-MGG-SVH203AS
S-MGG-SVH203AS
€2,465.60
€2,680.00
-8%
€2,465.60 Senza tasse
€3,008.03 Con tasse
€2,680.00 Senza tasse
Tax excluded
Full cube ice maker - Mod. SVH203AS - Production with air motor kg 215/24h - Production with water motor kg 200/24 h - Dimensions cm 76 x 62 x 57.5 h
Options
+ ACCESSORIES
| Ice Maker | model SVH203AS |
| Cube type | says |

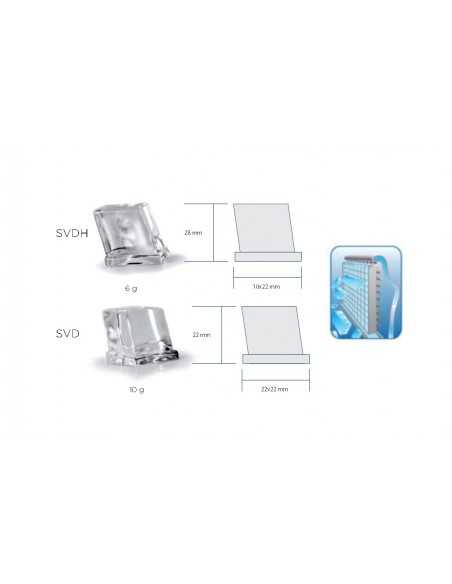

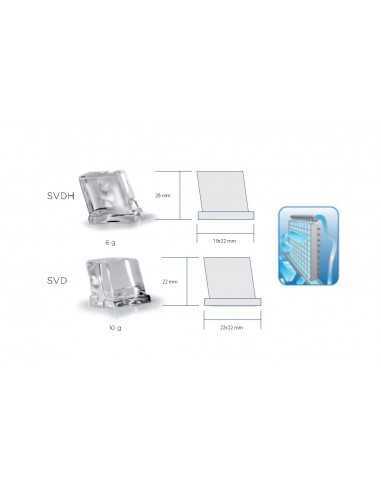

| Dimensions cube | mm 22 x 22 x 22 h |
| Cube grams | 10 g |
| Production kg - 24 h air condensation | Kg 220 |
| Production kg - 24 h condensing water | Kg 220 |
| External bin | Optional (to be chosen) |
| Condensation | Air - Water (please indicate when ordering) |
| Warranty | 12 months |
| Standard | CE |
| Origin | Italy |

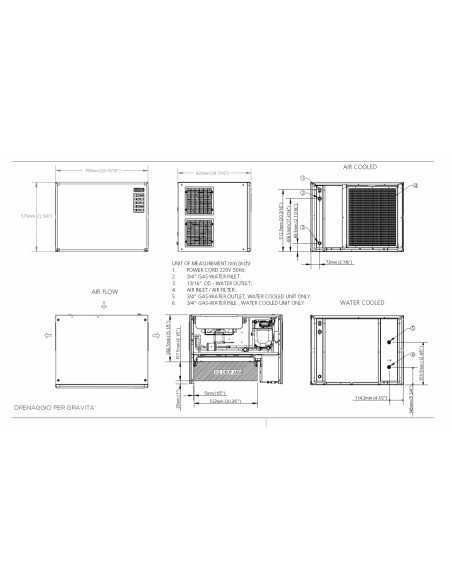

| PRODUCT DIMENSIONS | |
|---|---|
| Dimensions machines | Cm 76 x 62 x 57.5 h |
| Dimensions packaging | Cm 83 x 69 x 72 h |
| Net weight - Gross weight | Kg 69 - 85 |
| Volume | M³ 0.41 |
| VOLTAGE E CONSUMPTION | |
|---|---|
| Power supply | Monophase V230-50-1 Hz |
| Available on request | V 220-60-1 |
| Air consumption | W 1000 |
| Water absorption | W 1000 |
| Water consumption - Air | Lt-h 11.2 |
| Water consumption - Water | Lt-h 84.3 |
| LIMITS OF USE | |
|---|---|
| Temperature air | Minimum 10°C - Maximum 40°C |
| Temperature water | Minimum 5°C - Maximum 35°C |
| Water pressure | Minimum 1 bar - Maximum 5 bar |
| Electrical voltage | Minimum -10% Maximum +10% |
| GENERAL CHARACTERISTICS | |
|---|---|
| High-efficiency vertical evaporator | |
| Stainless steel construction | |
| Revealed water and electric savings | |
| Self-diagnostic system with led indicators | |
| Easily removable condenser filter | |
| Front access to evaporator: immediate access to evaporator for quick cleaning operations | |
| Modular maker: requires a separate container to collect the ice produced | |
| Refrigerant GAS R 290 |
| RECOMMENDED CONTAINERS | |
|---|---|
| R150 | 182 kg |
| R190 | Kg 243 |
| CONTAINERS REQUIRING LIDS | |
|---|---|
| R300 | Kg 406 |
- *HOURLY PRODUCTION
- *fino a 300 kg/ 24 h*
- *ICE CONTAINER
- *Prepared for external container*
