- -8%
Ice Maker - Production Kg/h 400 - cm 49.5 x 58.8 x 70.5 h
NFT-SPLIT750
NFT-SPLIT750
€4,710.40
€5,120.00
-8%
€4,710.40 Senza tasse
€5,746.69 Con tasse
€5,120.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

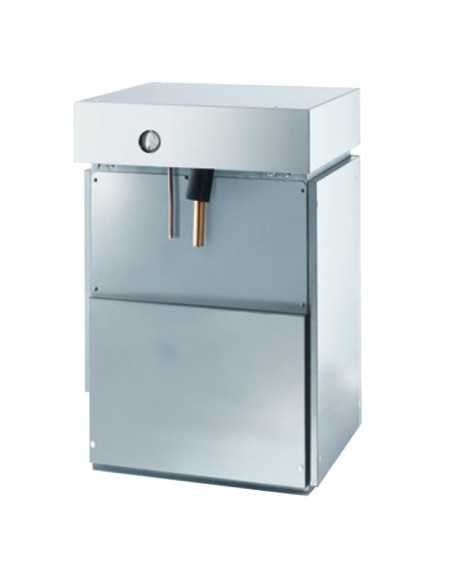

Subcooled flat flake ice maker - Model SPLIT750 - Production up to Kg/h 400 - Power W 180 - Dimensions cm 49.5 x 58.8 x 70.5 h
Options
+ ACCESSORIES
| Ice Maker | SPLIT750 |
| System | A subcooled flakes |
| Dimensions product | Cm 49.5 x 58.8 x 70.5 h |
| Dimensions packaging | Cm 55 x 65.5 x 90 h |
| Net weight / Gross | Kg 66/82 |
| Warranty | 24 months |
| Standard | CE |
| Origin | Italy |
| TECHNICAL DATA | |
|---|---|
| Production in 24 h | 400 kg |
| Prearranged | For external condenser |
| Power refrigeration | W 2200 ( evap. temp. -23°C) |
| Power supply | Monophase V230/1/50Hz |
| CONDITIONS D'INSTALLATION | |
|---|---|
| Installation | Indoor |
| Temperature environment | Min +10°C / Max +43°C |
| Temperature water | Min +3°C / Max +32°C |
| Inlet water pres | Mix 1bar (14 psi) / 6bar (84 psi) |
| TECHNICAL FEATURES | |
|---|---|
| Subcooled flakes ( -5° to -10°C ) | |
| Low consumption (1 lt water / 1 kg ice) | |
| External structure AISI 304, scotch Brite finish | |
| Anticorodal alloy evaporator, equipped with rotating knife | |
| 1 m³ = 430 kg of ice | |
| ABS components FDA approved | |
| Simplified cleaning thanks to rounded surfaces | |
| Inspectable limestone filter | |
| RoHS directive compliance | |
| Automatic water loading | |
| Tropical Class +43 model°C |
| COMBINABLE BIN CONTAINERS: | |
|---|---|
| Container model BINT830 = Capacity kg 350 - Stainless steel frame AISI 304 - Feet 100-160 mm - Dimensions cm 125 x 81.5 x 100 - Dimensions packing Cm 130 x 85 x 118 h - Net weight / gross kg 102/120.5 | |
| Containermodel 1200DD = Capacity container kg 550 - Water discharge ø mm 24 - Dimensions cm 111 x 106 x191.5 h - Foot cm 3 - Net weight kg 163 | |
| Container model RB280 = Capacity cart up kg 108 x 2 - Capacity reserve kg 50 - Dimensions cm 156 x 106 x 148.4 h - Dimensions packing cm 162.5 x 112.5 x 165.5 h - Net weight / gross 135/170 kg |
| INFORMATION: | |
|---|---|
| Flat flake ice under cooled, has a temperature of about -5°C. 100% ice , ranging in thickness from 1.5 to 2 mm. Easy to store, handle and dose, it is ideal for the fish industry, meat processing, transportation and food preservation. Ideal for: fish markets, supermarkets, industry, etc |
- *HOURLY PRODUCTION
- *fino a 400 kg/ 24 h*
- *ICE CONTAINER
- *Prepared for external container*
100 Items
