Ice maker - Kg production/h 1500 - cm 60.4 x 70 x 97 h
NFT-SPLIT3300
NFT-SPLIT3300
€9,887.24
€10,747.00
-8%
€9,887.24 Senza tasse
€12,062.43 Con tasse
€10,747.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

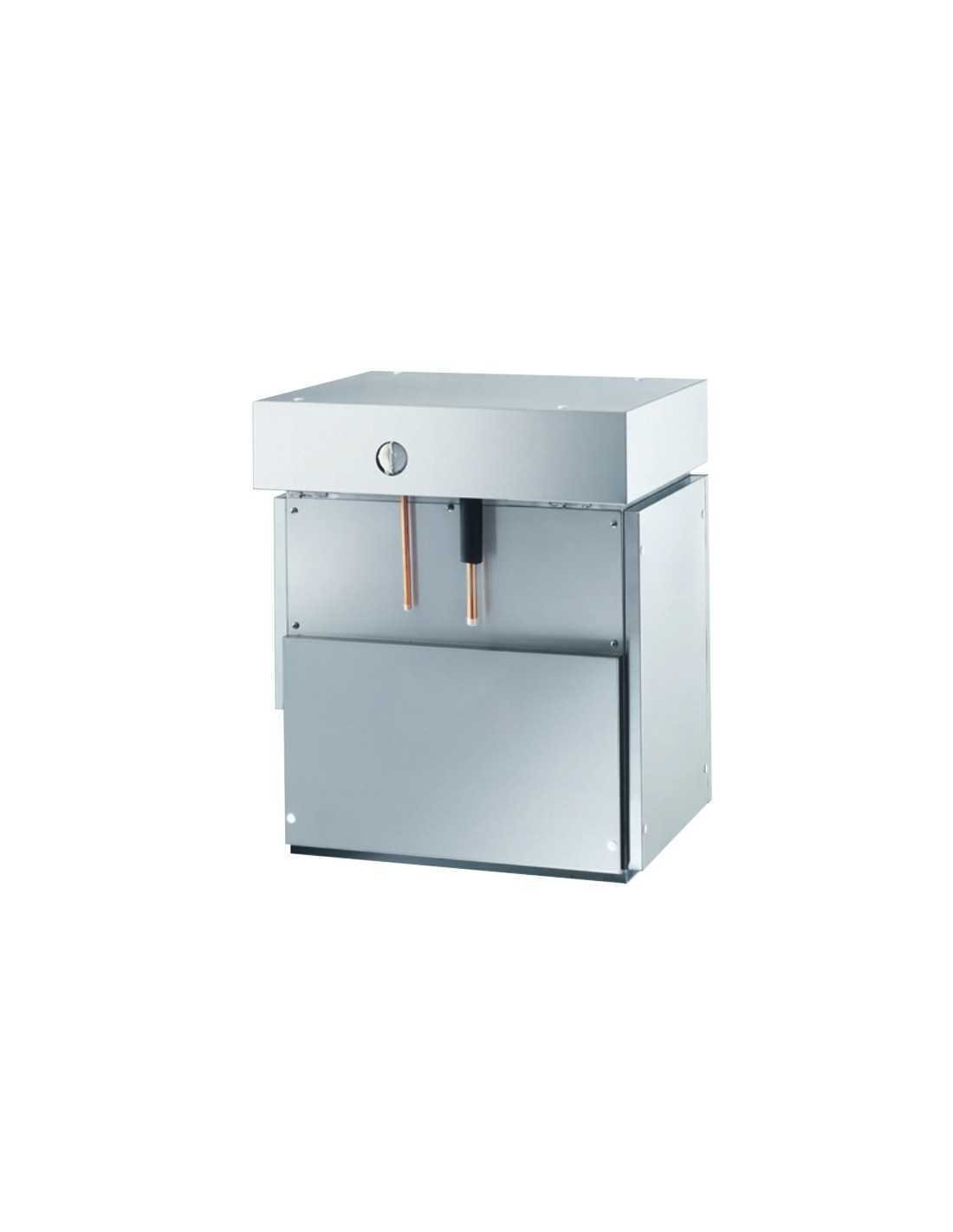

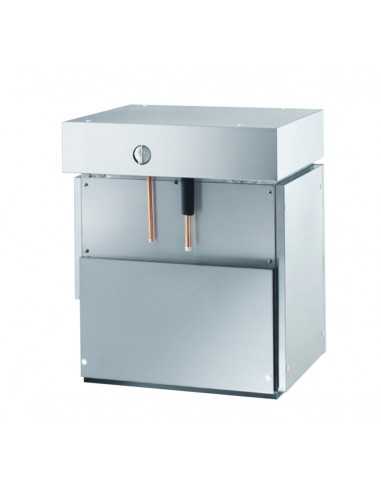

Ice maker with undercooled flat scales - Model SPLIT3300 - Production up to Kg/h 1500 - Power W 180 - Matchable containers: 1200DD/DRB1100 - Dimensions cm 60.4 x 70 x 97 h
Options
+ ACCESSORIES
| PRODUCT INFORMATION | |
|---|---|
| Ice maker | SPLIT3300 |
| System | Underwater scales |
| Product size | C 60.4 x 70 x 97 h |
| Packaging dimensions | C 65.5 x 78.5 x 145.5 h |
| Net weight / Lord | Kg 144/60 |
| Warranty | 24 months |
| Norma | CE |
| Origin | Italy |
| TECHNICAL DATA | |
|---|---|
| Production in 24 h | Kg 1500 |
| Required | For external capacitor |
| Power fridge | W 8550 ( temp. evap. -24°C) |
| Power supply | Monophase V230/1/50Hz |
| INSTALLATION CONDITIONS | |
|---|---|
| Installation | Interior |
| Ambient temperature | Min +10°C / Max +43°C |
| Water temperature | Min +3°C / Max +32°C |
| Pres. inlet water | Mix 1bar (14 psi) / 6bar (84 psi) |
| TECHNICAL FEATURES | |
|---|---|
| Subcooled ankles (from -5° to -10°C) | |
| Reduced consumption (1 lt water / 1 kg ice) | |
| AISI 304 exterior structure, Brite scotch finish | |
| Anticorodal alloy evaporator, equipped with rotating knife | |
| 1 m3 = 430 kg ice | |
| FDA Approved ABS components | |
| Simplified cleaning thanks to rounded surfaces | |
| Filter antiscale inspectable | |
| Compliance RoHS Directive | |
| Automatic water charge | |
| Tropical Class Model +43°C |
| CONTENTS BIN ABBINABILI: | |
|---|---|
| Container model 1200DD = Container capacity kg 550 - Water discharge ø mm 24 - Dimensions cm 111 x 106 x191.5 h - Folding cm 3 - Net weight kg 163 | |
| Container model DRB1100 = Container capacity kg 300 - Water discharge ø mm 24 - Dimensions cm 111 x 106 x191.5 h - Dimensions packaging cm 163 x 120 x 114.5 (x2) mm - Net / gross weight Kg 204/307 |
| INFORMATION: | |
|---|---|
| Ice under cooled flat scales, has a temperature of about -5°C. 100% ice, of a thickness varying from 1.5 to 2 mm. Easy to store, handle and dose, it is ideal for the fish industry, for meat processing, transport and food preservation. Ideal for: fish markets, supermarkets, industry, etc |
- *HOURLY PRODUCTION
- *fino a 1500 kg / 24 h*
- *ICE CONTAINER
- *Prepared for external container*
