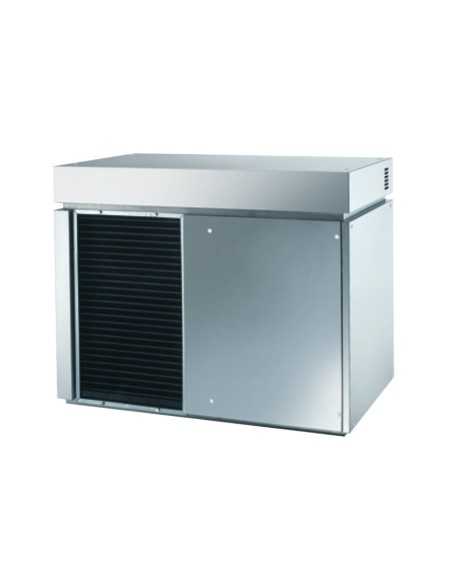

Ice Maker - Production Kg/h 620 - cm 90 x 58.8 x 70.5 h
Ice Maker - Production Kg/h 620 - cm 90 x 58.8 x 70.5 h
Ice Maker - Production Kg/h 620 - cm 90 x 58.8 x 70.5 h
  • -10%
%product-name%
Ice Maker - Production Kg/h 620 - cm 90 x 58.8...
Ice Maker - Production Kg/h 620 - cm 90 x 58.8...
Ice Maker - Production Kg/h 620 - cm 90 x 58.8...

Ice Maker - Production Kg/h 620 - cm 90 x 58.8 x 70.5 h

NFT-SM1300AW
NFT-SM1300AW
€7,204.50 €8,005.00 -10%
€7,204.50 Senza tasse €8,789.49 Con tasse €8,005.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

Subcooled flat flake ice maker - Model SM1300 - Production up to Kg/h 620 - Power W 3000 - Matching containers:T830/1200DD/RB280/DRB1100/DRB2500 - Dimensions cm 90 x 58.8 x 70.5 h

Option to choose
Request information

Options

+ ACCESSORIES

icon_image_1679324863.png Shipments

icon_image_1734099125.png Information on electrical components



icon_image_1695971686.png Tytes of Payments

icon_image_1695971505.png Video
icon_image_1696600654.png Production Times

icon_image_1696602441.png How to contact us

icon_image_1788510258.png Chef Costantino

x
PRENOTA UNA VIDEOCHIAMATA

Ice maker SM 1300
System A subcooled flakes
Dimensions product Cm 90 x 58.8 x 70.5 h
Dimensions packaging Cm 96.5 x 65.5 x 88 h
Net weight / Gross Kg 151/166
Warranty 24 months
Standard CE
Origin Italy
TECHNICAL DATA

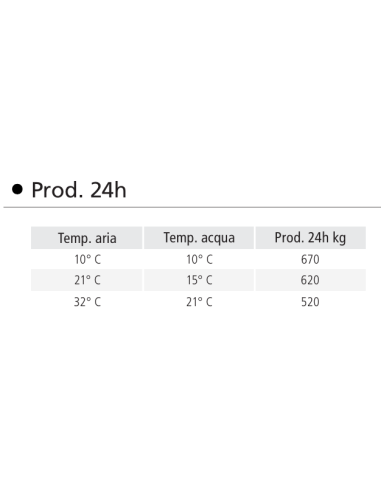

Production in 24 h Kg 620
Matching containers (optional) T830/1200DD/RB280/DRB1100/DRB2500
Condensation Air or Water ( to be chosen when ordering)
Refrigerant gas R 404A - R452A
Power supply Three-phase V400/3/50Hz
Power W 3000
Water consumption (air condensation) 1 l/kg
Water consumption (water condensation) 7.4 l/kg
Fuse 16A
CONDITIONS D'INSTALLATION
Installation Indoor
Temperature environment Min +10°C / Max +43°C
Temperature water Min +3°C / Max +32°C
Inlet water pres Mix 1bar (14 psi) / 6bar (84 psi)
TECHNICAL FEATURES
Subcooled flakes ( -5° to -10°C )
Low consumption (1 lt water / 1 kg ice)
Electromechanical operating system
External structure AISI 304, scotch Brite finish
Stainless steel frame
Anticorodal alloy evaporator, equipped with rotating knife
1 m³ = 430 kg of ice
ABS components FDA approved
Simplified cleaning thanks to rounded surfaces
Inspectable limestone filter
RoHS directive compliance
Automatic water loading
Tropical Class +43 model°C
COMBINABLE BIN CONTAINERS:
Container model BINT830 = Capacity kg 350 - Stainless steel frame AISI 304 - Feet 100-160 mm - Dimensions cm 125 x 81.5 x 100 - Dimensions packing Cm 130 x 85 x 118 h - Net weight / gross kg 102/120.5

Containermodel 1200DD = Capacity container kg 550 - Water discharge ø mm 24 - Dimensions cm 111 x 106 x191.5 h - Foot cm 3 - Net weight kg 163

Container model RB280 = Capacity cart up kg 108 x 2 - Capacity reserve kg 50 - Dimensions cm 156 x 106 x 148.4 h - Dimensions packing cm 162.5 x 112.5 x 165.5 h - Net weight / gross 135/170 kg

Containermodel DRB1100 = Capacity container kg 300 - Water discharge ø mm 24 - Dimensions cm 111 x 106 x191.5 h- Dimensions packing cm 163 x 120 x 114.5 (x2) mm - Net weight / gross Kg 204/307

Containermodel DRB2500 = Capacity container kg 1000 - Water discharge ø mm 24 - Dimensions cm 156 x 133 x 246 h - Dimensions packing cm 163 x 120 x 114.5 (x3) mm - Net weight / gross Kg 251/404
INFORMATION:
Flat flake ice under cooled, has a temperature of about -5°C. 100% ice , ranging in thickness from 1.5 to 2 mm. Easy to store, handle and dose, it is ideal for the fish industry, meat processing, transportation and food preservation. Ideal for: fish markets, supermarkets, industry, etc
*HOURLY PRODUCTION
*fino a 620 kg / 24 h*
*ICE CONTAINER
*Prepared for external container*
