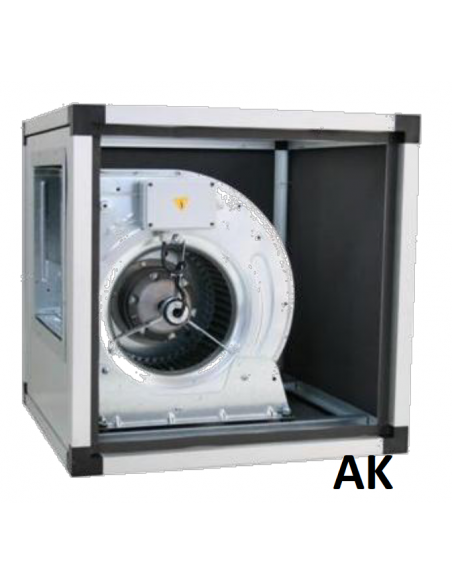

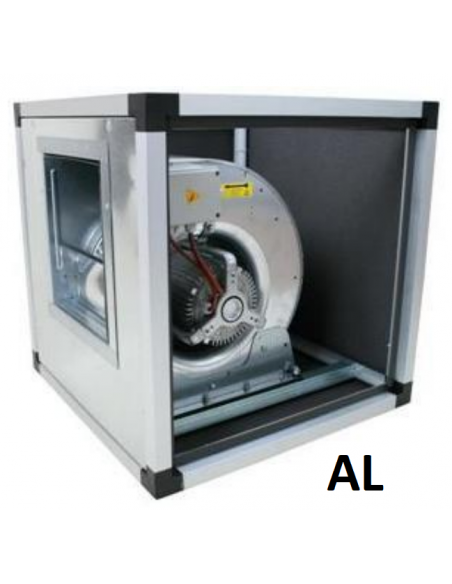

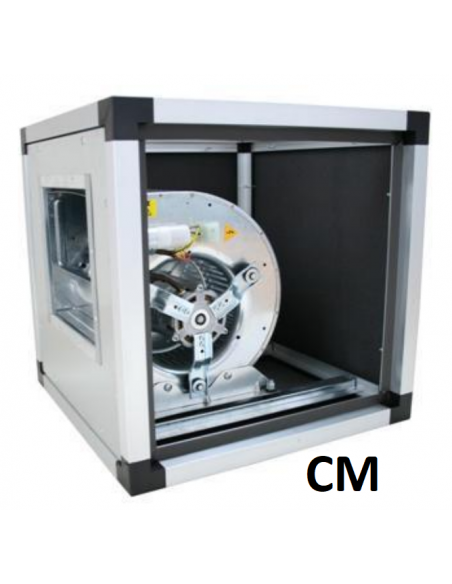

Double Suction Centrifugal Fan - Motor directly coupled
A-RF-ACC-CM/AL/AK















                    A-RF-ACC-CM/AL/AK









                                                                                      €545.10



                            €592.50

                                                    -8%








												€545.10  Senza tasse
													€665.02  Con tasse


																				€592.50  Senza tasse



                                    Tax excluded




                                                                                        Shipping times: from 3 days to 15 working days


            Double Suction Centrifugal Fan - Motor directly coupled
Options
+ ACCESSORIES
| PRODUCT INFORMATION | |
|---|---|
| Centrifugal Fan | ACC-CM |
| Dimensions | various (to choose) |
| Norma | CE |
| Origins | Italy |
| Warranty | 12 months |
| INFORMATION | |
|---|---|
| Double suction centrifugal fan, with motor directly coupled to the impeller | |
| The case consists of a structure of extruded profiles of oxidized aluminum P30 and nylon corners loaded with fiberglass. Sheet panels Zn 8/10 thickness 10 mm, double panel “SANDWICH” Zn/Zn thickness 23 mm, with internal insulation self-extinguishing sound absorbers. Inspection door with openable lock only with tools | |
| The double suction centrifugal fan is built with sturdy hot galvanized sheet. The fan of the blade type facing forward, is balanced statically and dynamically | |
| The electric motor directly coupled to the impeller is equipped with electric connection terminal. The fan is mounted on rubber-absorbed feet, and between the cassone panel and the fan's mouth is placed an antivibrating seal of 10 mm, in order to avoid transmission of vibrations | |
| Sound pressure value measured in free field at a distance of 1.5 meters | |
| The effect of obstruction to the airflow is not included | |
| ON REQUEST Execution of the panelling: aISI 304 stainless steel satin - aluminium - plasticized sheet of beige color Coibentation: bugnate - mineral wool nominal density 100 kg/m3 |
