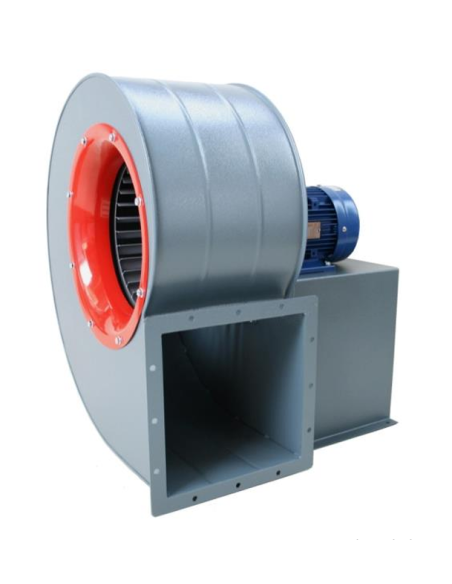

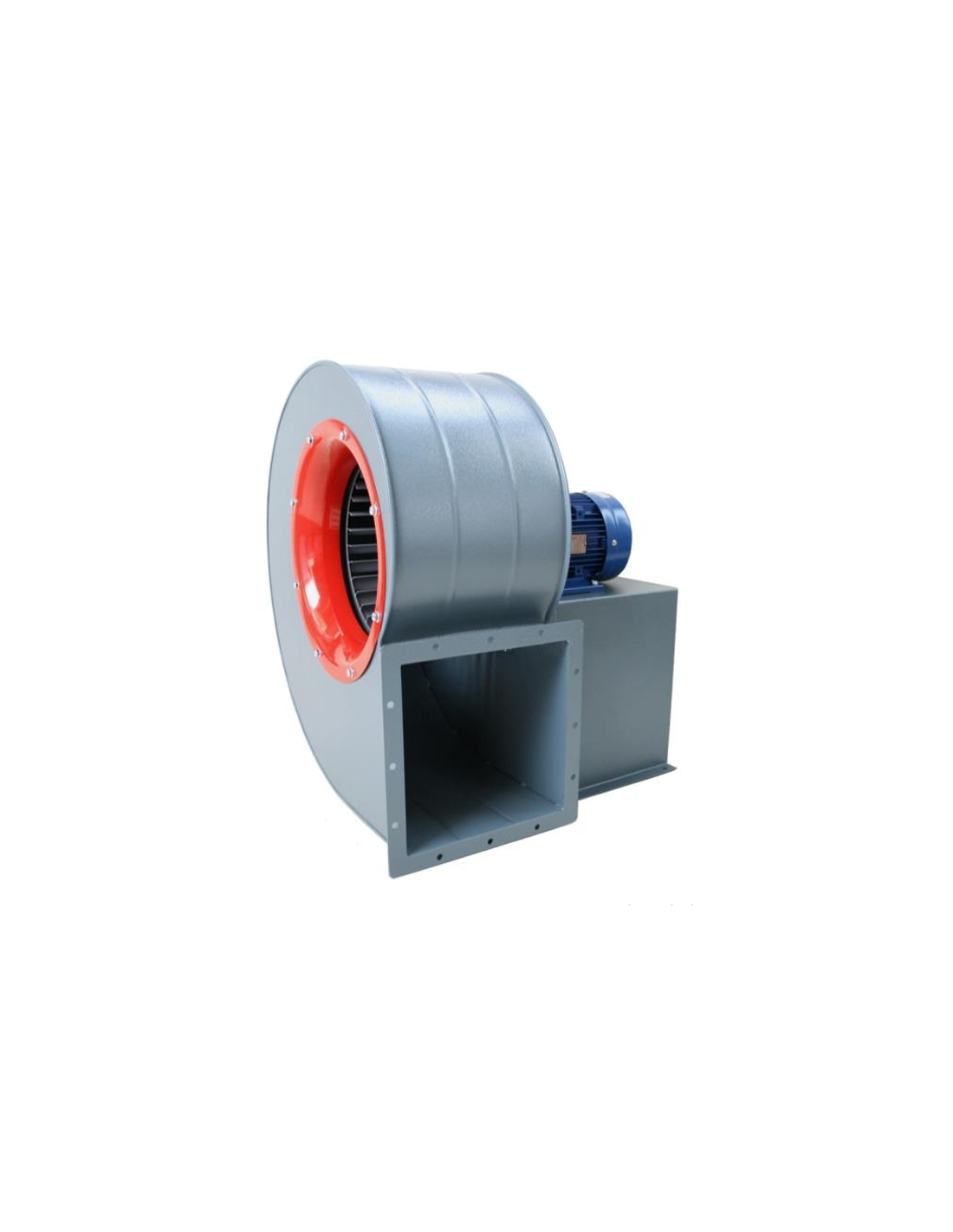

Centrifugal fan - Motor directly coupled to the impeller and with seat base - Stainless steel aisi 304 welded
A-RF-ACB-25-4
A-RF-ACB-25-4
€880.00
€880.00 Senza tasse
€1,073.60 Con tasse
Tax excluded
Shipping times: from 3 days to 15 working days
Centrifugal fan - Motor directly coupled to impeller with seat base - High temperature version - Stainless steel aisi 304 welded - Dimensions: ACB150-25/4KW0.55 - m³/h 1,500 - Hst 40 - kW 0.55 - rpm 1,400 - dB(A)70 - kg 26 / 28
| Centrifugal fan | ACB |
| Standard | CE |
| Origins | Italy |
| Warranty | 12 months |
| INFORMATION | |
|---|---|
| Range of single inlet centrifugal fans with motor directly coupled to the impeller and with seat base | |
| Constructed of TIG-welded aisi 304 stainless steel with a thickness of 20/10 | |
| Suitable for treating low and medium amounts of humid air, is to be installed with motor upward on apposite bracket, minimum distance 1.5 meters for proper operation | |
| Watertight monoblock case with expulsion condensate drain. | |
| Die-cast aluminum asynchronous motor - IP55 - UNEL/MEC | |
| Fans made of 304 stainless steel, with backward blades, dynamically balanced. Sound power value measured in free field at a distance of 2 meters. | |
| L'Effect of obstruction in air flow is not included |
