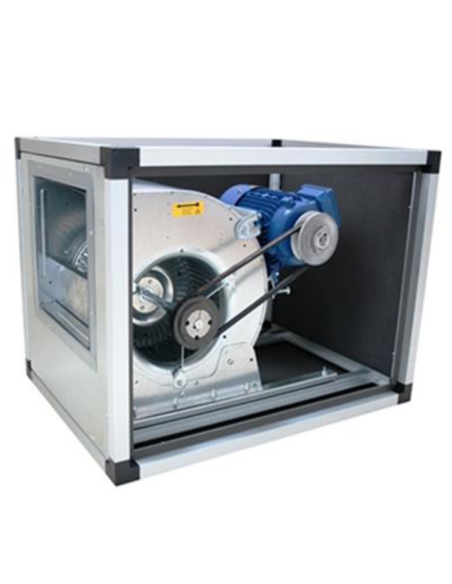

Cased centrifugal fan with gear drive - Single-speed - Three-phase 400/3/50 Hz
ARRF-ATC
ARRF-ATC
€752.56
€818.00
-8%
€752.56 Senza tasse
€918.12 Con tasse
€818.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days
Cased centrifugal fan with direct drive - Single-speed - Three-phase 400/3/50 Hz - Various sizes
| Enclosed centrifugal fan with drive | ATC |
| Dimensions | Various options to choose from |
| Standard | CE |
| Origins | Italy |
| Warranty | 12 months |
| INFORMATION | |
|---|---|
| Double-inlet, enclosed, forward-curved centrifugal fan with gear drive | |
| The housing consists of a structure made of P30 or P40 anodized extruded aluminum profiles and glass-fiber-reinforced nylon corners | |
| Sheet metal panels: Zn 8/10 or 10/10, 10 mm thick | |
| The fan assembly, consisting of the fan and motor, is mounted on rubber mounts, and a 10-mm anti-vibration gasket is inserted between the structure and the fan inlet to prevent the transmission of vibrations | |
| Inspection door with a lock that can only be opened with tools | |
| The double-inlet centrifugal fan is constructed of sturdy hot-dip galvanized sheet metal. | |
| The three-phase UNEL-type electric motor (/,MEC, B3) is connected to the impeller via V-belts | |
| Sound pressure level measured in a free field at a distance of 1.5 meters | |
| LThe obstruction effect on the airflow is not included, nor is the power dissipated in the transmission |
