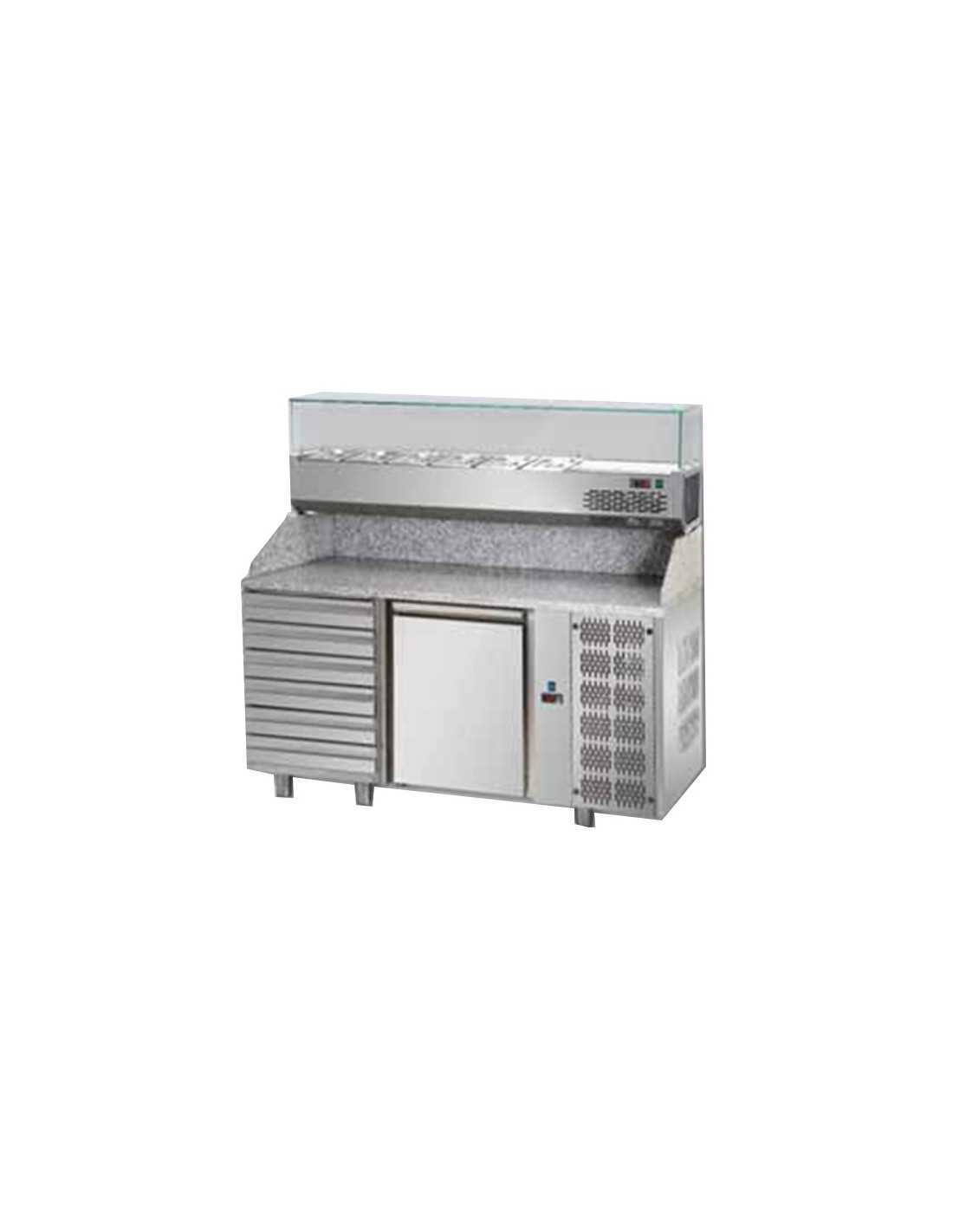

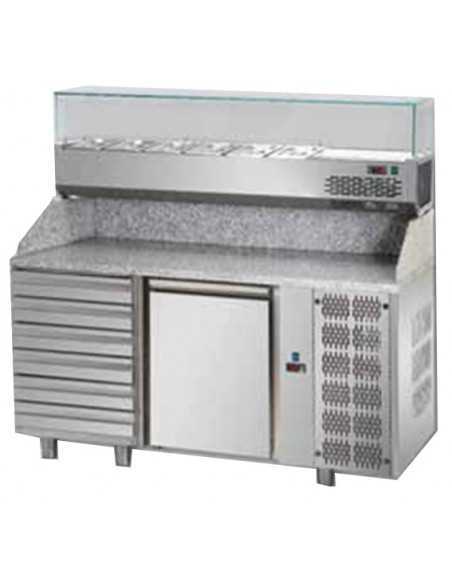

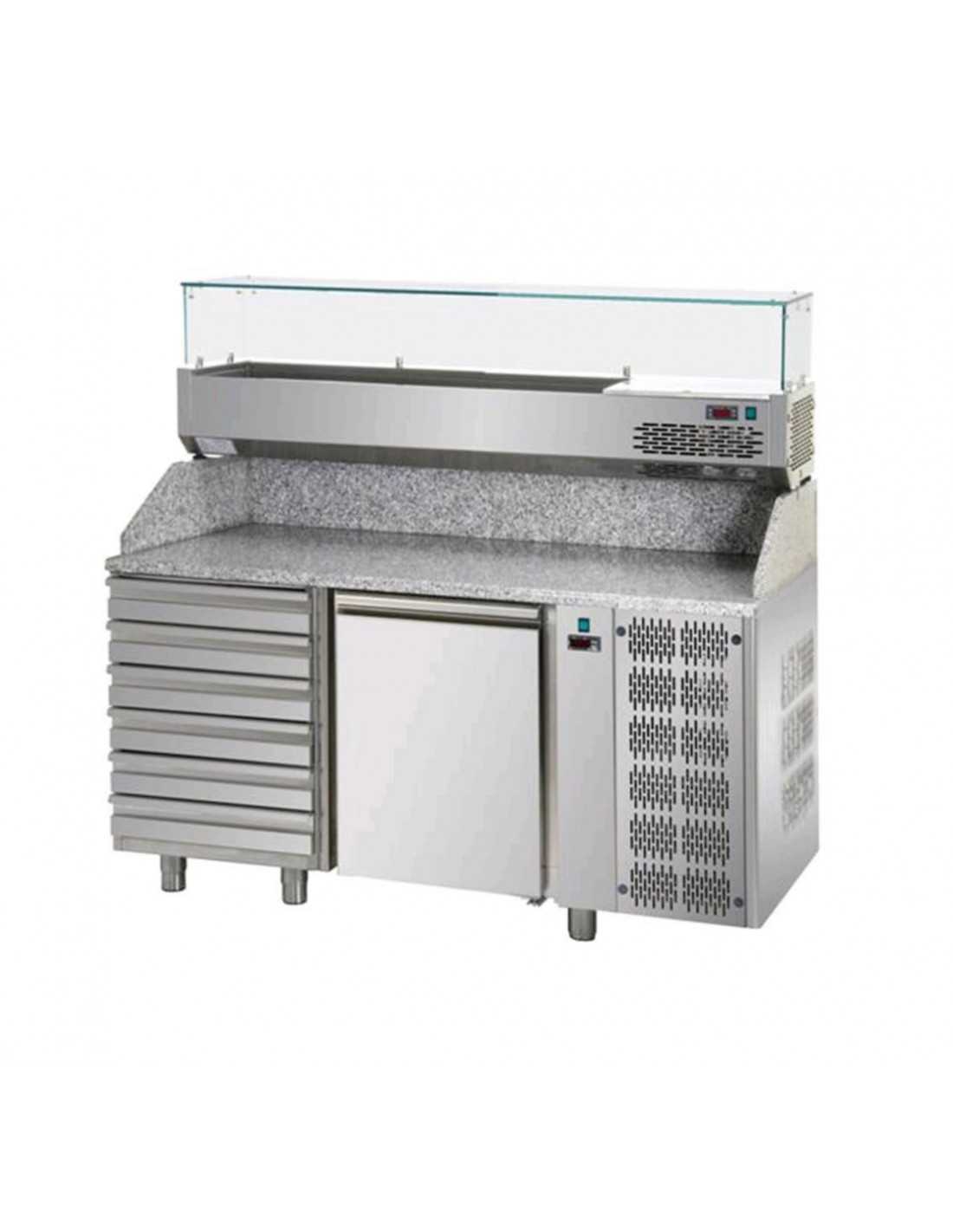

| Refrigerated pizza counter with 1 door, 6 neutral drawers, granite top and display for 6 GN 1/4 pans |
PZ02EKOC6SX + VR4150VDSX |
| Ideal for |
Pizzerias, restaurants and professional pizza preparation kitchens |
| Calculated overall dimensions |
cm 152 x 75 x 148.7/155.7 (LxPxh), adding the counter height and the display height |
| Counter dimensions |
cm 152 x 75 x 103/110 (LxPxh) |
| Display dimensions |
cm 150 x 32.9 x 45.7 (LxPxh) |
| Conformity |
CE |
| Warranty |
12 months |
| Origin |
Italy |
| COUNTER TECHNICAL DATA |
| Configuration |
1 GN 1/1 refrigerated door and a unit with 6 neutral drawers |
| Refrigeration unit |
Built-in monoblock unit on the left |
| Operating temperature |
+2°C / +8°C in the refrigerated compartment |
| Refrigeration |
Fan assisted |
| Internal volume |
149 litres, excluding the neutral drawer unit |
| Usable volume |
105 litres, excluding the neutral drawer unit |
| Internal format |
GN 1/1 |
| Shelf |
1 plastic-coated GN 1/1 wire shelf |
| Internal runners |
1 pair of stainless steel L-shaped runners for the compartment with a door |
| Drawer unit |
6 neutral, non-refrigerated drawers |
| Drawer containers |
6 polypropylene containers cm 60 x 40 x 7 (LxPxh) |
| Usable drawer clearance |
10.5 cm |
| Worktop |
3 cm thick granite with 20 cm splashbacks and insulating underlay |
| Materials |
Stainless steel interior and exterior, galvanised steel external base |
| Insulation |
High-pressure injected CFC-free polyurethane, 5 cm thick, density 40 kg/m³ |
| Temperature control |
Front electronic control panel with NTC probe |
| Door |
Self-closing with magnetic gasket |
| Evaporator |
With anti-corrosion cataphoresis treatment |
| Defrosting |
Automatic |
| Condensate evaporation |
Automatic |
| Feet |
4 stainless steel feet, height adjustable from 11 to 18 cm |
| Starting electrical input |
450 W / 2.8 A |
| Running electrical input |
400 W / 2.4 A |
| DISPLAY TECHNICAL DATA |
| Type |
Refrigerated ingredient display with straight tempered glass |
| Refrigeration unit |
Built-in unit on the left, independent of the counter unit |
| Operating temperature |
+3°C / +5°C |
| Pan capacity |
6 GN 1/4 pans |
| Pans and lids |
Not included |
| Construction |
Stainless steel with straight tempered glass |
| Starting electrical input |
260 W / 1.52 A |
| Running electrical input |
220 W / 1.40 A |
| POWER SUPPLY AND SHARED SPECIFICATIONS |
| Total running power |
620 W, the sum of the counter and display running inputs |
| Power supply |
Single-phase for both appliances |
| Voltage |
220-240 V |
| Frequency |
50 Hz; 60 Hz on request |
| Refrigerant |
R452A / R455A; R290 on request |
| Climate class |
4 |
| Test conditions |
Ambient temperature +30°C and relative humidity 60% |
| GENERAL FEATURES |
| Professional workstation comprising a pizza counter with 1 GN 1/1 refrigerated door and 6 neutral drawers, and a refrigerated display with straight tempered glass designed to accommodate 6 GN 1/4 pans. Both appliances have built-in refrigeration units on the left. |
| The granite worktop and splashbacks with insulating underlay provide a dedicated pizza preparation surface. The refrigerated compartment includes one plastic-coated GN 1/1 wire shelf and one pair of stainless steel runners. |
| The drawer unit comprises 6 neutral drawers with polypropylene containers measuring 60 x 40 x 7 cm. The drawers are not refrigerated and their volume is excluded from the refrigerated compartment capacity figures. |
| The stainless steel display allows pizza toppings to be organised above the worktop. The counter and display have independent refrigeration units, with operating temperatures of +2°C/+8°C for the counter and +3°C/+5°C for the display. |
| The counter features rounded internal corners, a self-closing door with magnetic gasket and a front electronic control panel with an NTC probe. The CFC-free polyurethane insulation is 5 cm thick. |
| The evaporator has anti-corrosion cataphoresis protection. Defrosting and condensate evaporation are automatic. |
| INCLUDED EQUIPMENT |
| Pizza counter with 1 GN 1/1 refrigerated door, a unit with 6 neutral drawers and a left-hand refrigeration unit. |
| Granite worktop and splashbacks with insulating underlay. |
| 1 plastic-coated GN 1/1 wire shelf and 1 pair of stainless steel L-shaped runners. |
| 6 polypropylene containers measuring 60 x 40 x 7 cm for the neutral drawers. |
| 4 height-adjustable stainless steel feet. |
| Refrigerated ingredient display for 6 GN 1/4 pans, with a left-hand refrigeration unit and straight tempered glass. |
| Standard counter packaging with pallet and cardboard; cardboard packaging for the display. |
| PROFESSIONAL APPLICATIONS |
| Suitable for pizzerias, restaurants and preparation kitchens requiring a granite preparation surface, a GN 1/1 refrigerated compartment, neutral drawers and a refrigerated topping display in one workstation. |
| EXCLUDED ACCESSORIES AND OPTIONS ON REQUEST |
| GN 1/4 display pans and lids are not included. |
| R290 refrigerant and 60 Hz power supply frequency available on request. |
