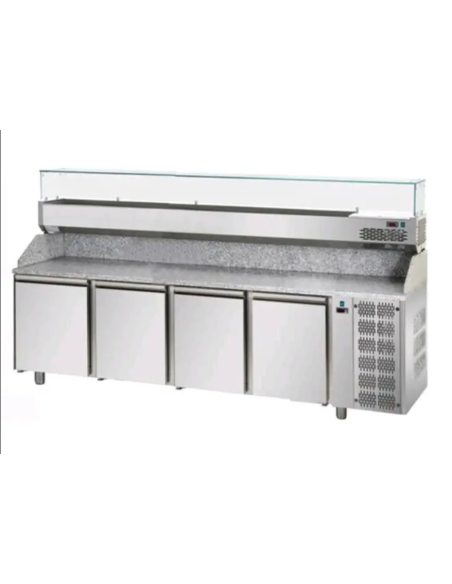

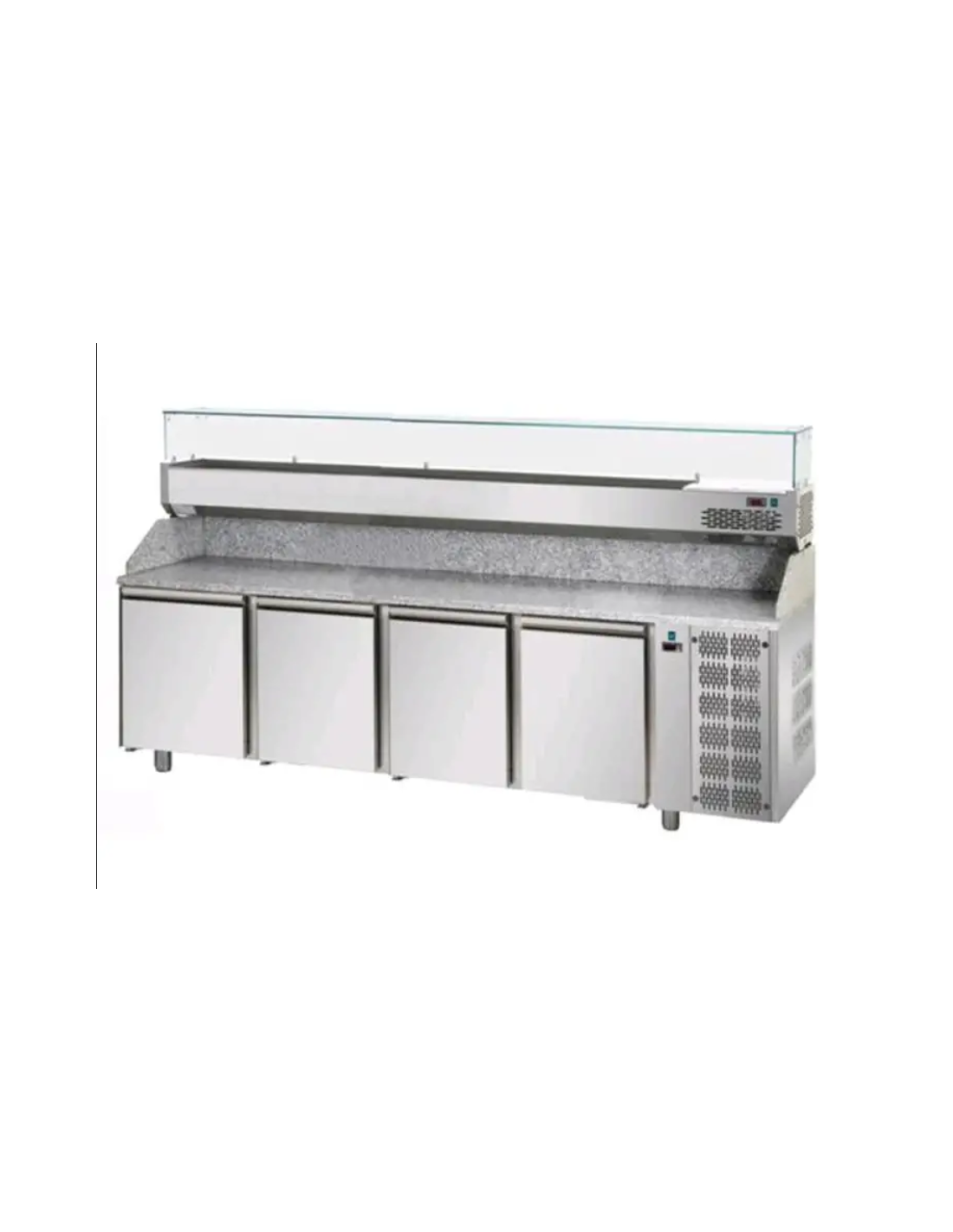

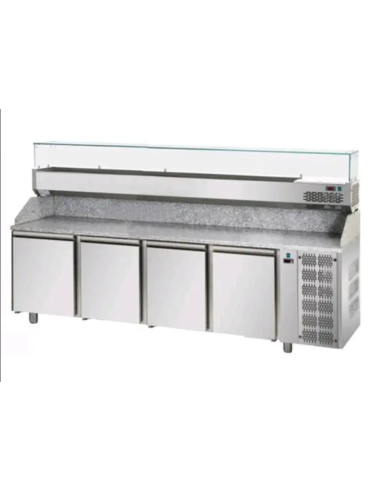

Refrigerated pizza counter 4 doors with granite top and display for 13 GN 1/4 pans - cm 271 x 80 x 148.7/155.7 h
  • -10%
%product-name%
Refrigerated pizza counter 4 doors with granite...

Refrigerated pizza counter 4 doors with granite top and display for 13 GN 1/4 pans - cm 271 x 80 x 148.7/155.7 h

TDIM-PZ04MID80+VR4270VD
TDIM-PZ04MID80+VR4270VD
€3,591.00 €3,990.00 -10%
€3,591.00 Senza tasse €4,381.02 Con tasse €3,990.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

Granite top, 4 refrigerated doors, display for 13 GN 1/4 pans. Counter +2/+8°C, display +3/+5°C. Total power 620 W. Overall dimensions cm 271 x 80 x 148.7/155.7 (LxPxh).

Request information

Options

+ ACCESSORIES

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


icon_image_1679324863.png Shipments

icon_image_1734099125.png Information on electrical components



icon_image_1695971686.png Tytes of Payments

icon_image_1695971505.png Video
icon_image_1696600654.png Production Times

icon_image_1696602441.png How to contact us

icon_image_1788510258.png Chef Costantino

x
PRENOTA UNA VIDEOCHIAMATA

Refrigerated pizza counter with 4 doors, granite top and display for 13 GN 1/4 pans PZ04MID80 + VR4270VD
Ideal for Pizzerias, restaurants and professional pizza preparation kitchens
Calculated overall dimensions cm 271 x 80 x 148.7/155.7 (LxPxh), adding the counter height and the display height
Counter dimensions cm 271 x 80 x 103/110 (LxPxh)
Display dimensions cm 270 x 32.9 x 45.7 (LxPxh)
Conformity CE
Warranty 12 months
Origin Italy
COUNTER TECHNICAL DATA
Configuration 4 refrigerated doors
Refrigeration unit Built-in monoblock unit on the right
Operating temperature +2°C / +8°C
Refrigeration Fan assisted
Internal volume 883 litres
Usable volume 544 litres
Compatible trays Stainless steel trays cm 60 x 40 x 1.2 (LxPxh)
Internal runners 5 pairs of stainless steel L-shaped runners per door, 20 pairs in total
Worktop 3 cm thick granite with 20 cm splashbacks and insulating underlay
Materials Stainless steel interior and exterior, galvanised steel external base
Insulation High-pressure injected CFC-free polyurethane, 4 cm thick, density 40 kg/m³
Temperature control Front electronic control panel with NTC probe
Doors Self-closing with magnetic gaskets
Evaporator With anti-corrosion cataphoresis treatment
Defrosting Automatic
Condensate evaporation Automatic
Feet 4 stainless steel feet, height adjustable from 11 to 18 cm
Starting electrical input 450 W / 2.8 A
Running electrical input 400 W / 2.4 A
DISPLAY TECHNICAL DATA
Type Refrigerated ingredient display with straight tempered glass
Refrigeration unit Built-in unit on the right, independent of the counter unit
Operating temperature +3°C / +5°C
Pan capacity 13 GN 1/4 pans
Pans and lids Not included
Construction Stainless steel with straight tempered glass
Starting electrical input 260 W / 1.52 A
Running electrical input 220 W / 1.40 A
POWER SUPPLY AND SHARED SPECIFICATIONS
Total running power 620 W, the sum of the counter and display running inputs
Power supply Single-phase for both appliances
Voltage 220-240 V
Frequency 50 Hz; 60 Hz on request
Refrigerant R452A / R455A; R290 on request
Climate class 4
Test conditions Ambient temperature +30°C and relative humidity 60%
GENERAL FEATURES
Professional workstation comprising a refrigerated pizza counter with 4 doors and a refrigerated ingredient display with straight tempered glass, designed to accommodate 13 GN 1/4 pans. Both appliances have built-in refrigeration units on the right.
The granite worktop and splashbacks with insulating underlay provide a dedicated pizza preparation surface. The refrigerated compartments below accommodate 60 x 40 cm trays and feature 20 pairs of stainless steel runners in total.
The stainless steel display allows pizza toppings to be organised above the worktop. Straight tempered glass completes the display structure.
The counter and display have independent refrigeration units, with operating temperatures of +2°C/+8°C for the counter and +3°C/+5°C for the display.
The counter features rounded internal corners, self-closing doors with magnetic gaskets and a front electronic control panel with an NTC probe. The evaporator has anti-corrosion cataphoresis protection; defrosting and condensate evaporation are automatic.
INCLUDED EQUIPMENT
Refrigerated pizza counter with 4 doors, right-hand refrigeration unit, granite worktop and splashbacks, and insulating underlay.
20 pairs of stainless steel L-shaped runners, 5 pairs per door, and 4 height-adjustable stainless steel feet.
Refrigerated ingredient display for 13 GN 1/4 pans, with a right-hand refrigeration unit and straight tempered glass.
Standard counter packaging with pallet and cardboard; cardboard packaging for the display.
PROFESSIONAL APPLICATIONS
Suitable for pizzerias, restaurants and preparation kitchens requiring a granite preparation surface, refrigerated tray compartments and a refrigerated topping display in one workstation.
EXCLUDED ACCESSORIES AND OPTIONS ON REQUEST
GN 1/4 display pans and lids are not included. The 60 x 40 cm trays do not appear in the counter's listed standard equipment.
R290 refrigerant and 60 Hz power supply frequency available on request.
