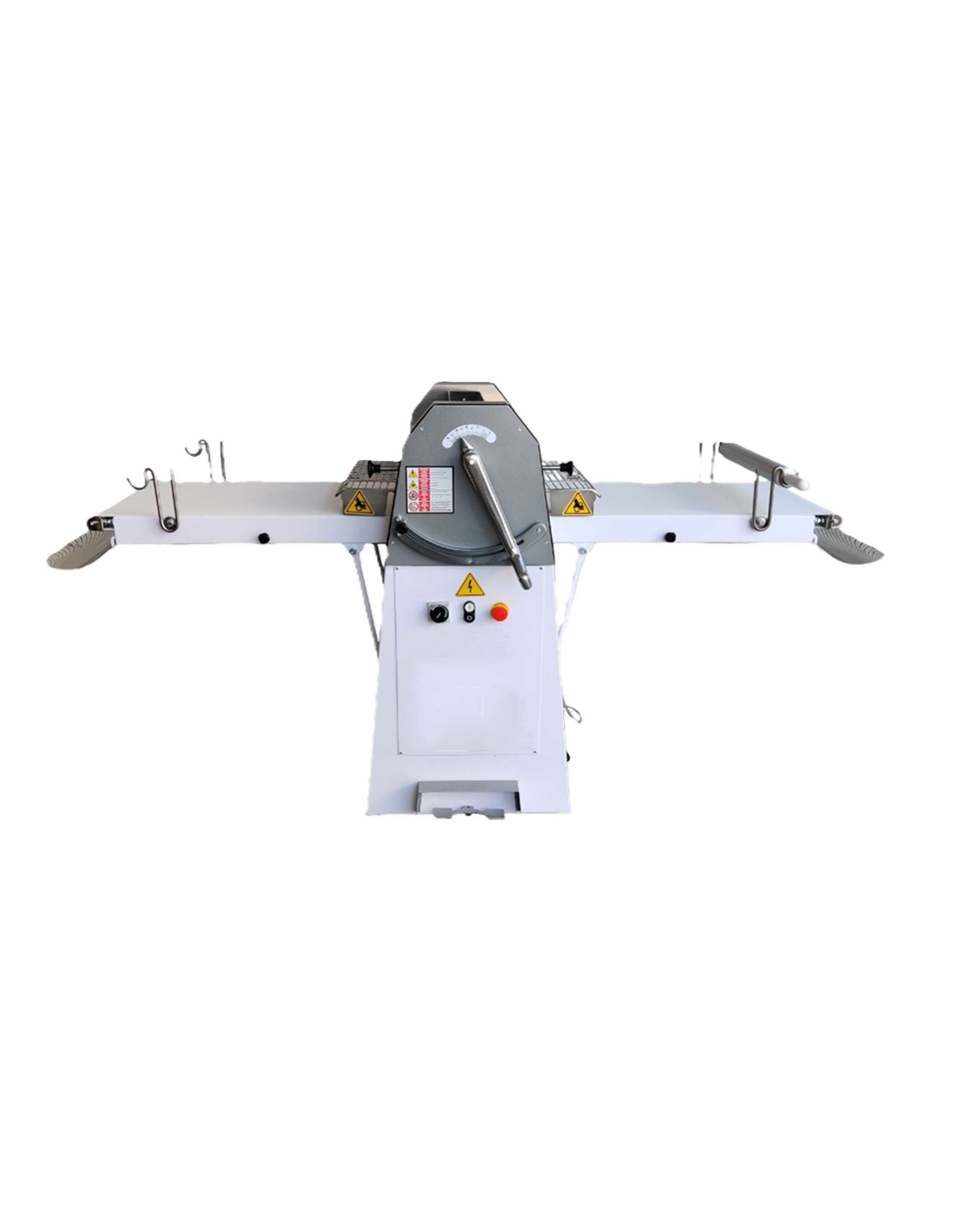

Manual Floor Sheeter with Shelves cm 72 and Cylinders cm 50 - cm 180 x 85 x 117 h
Manual Floor Sheeter with Shelves cm 72 and Cylinders cm 50 - cm 180 x 85 x 117 h
Manual Floor Sheeter with Shelves cm 72 and Cylinders cm 50 - cm 180 x 85 x 117 h
Manual Floor Sheeter with Shelves cm 72 and Cylinders cm 50 - cm 180 x 85 x 117 h
Manual Floor Sheeter with Shelves cm 72 and Cylinders cm 50 - cm 180 x 85 x 117 h
  • -8%
%product-name%
Manual Floor Sheeter with Shelves cm 72 and...
Manual Floor Sheeter with Shelves cm 72 and...
Manual Floor Sheeter with Shelves cm 72 and...
Manual Floor Sheeter with Shelves cm 72 and...
Manual Floor Sheeter with Shelves cm 72 and...

Manual Floor Sheeter with Shelves cm 72 and Cylinders cm 50 - cm 180 x 85 x 117 h

GMXX-SF500-72
GMXX-SF500-72
€3,358.00 €3,650.00 -8%
€3,358.00 Senza tasse €4,096.76 Con tasse €3,650.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

Manual Floor Sheeter - Model SF500-72 - Platen length cm 72 - Cylinder length cm 50 - Power motor kW 0.75 - Three-phase supply V400 - Dimensions in work cm 180 x 85 x 117 h

Options

+ ACCESSORIES


Manual Sheeter SF500-72
Model Floor-standing Manual
Dimensions open Cm 180 x 85 x 117 h
Dimensions closed Cm 48 x 85 x 150 h
Weight 175 kg
Warranty 12 months
Standard CE
Origin Italy
TECHNICAL DATA
Platen length mm 720
Cylinder length mm 500
Carpets Yes
Power kW 0.75
Power supply Three-phase V400/3/50Hz
Deep Shoulders aluminum

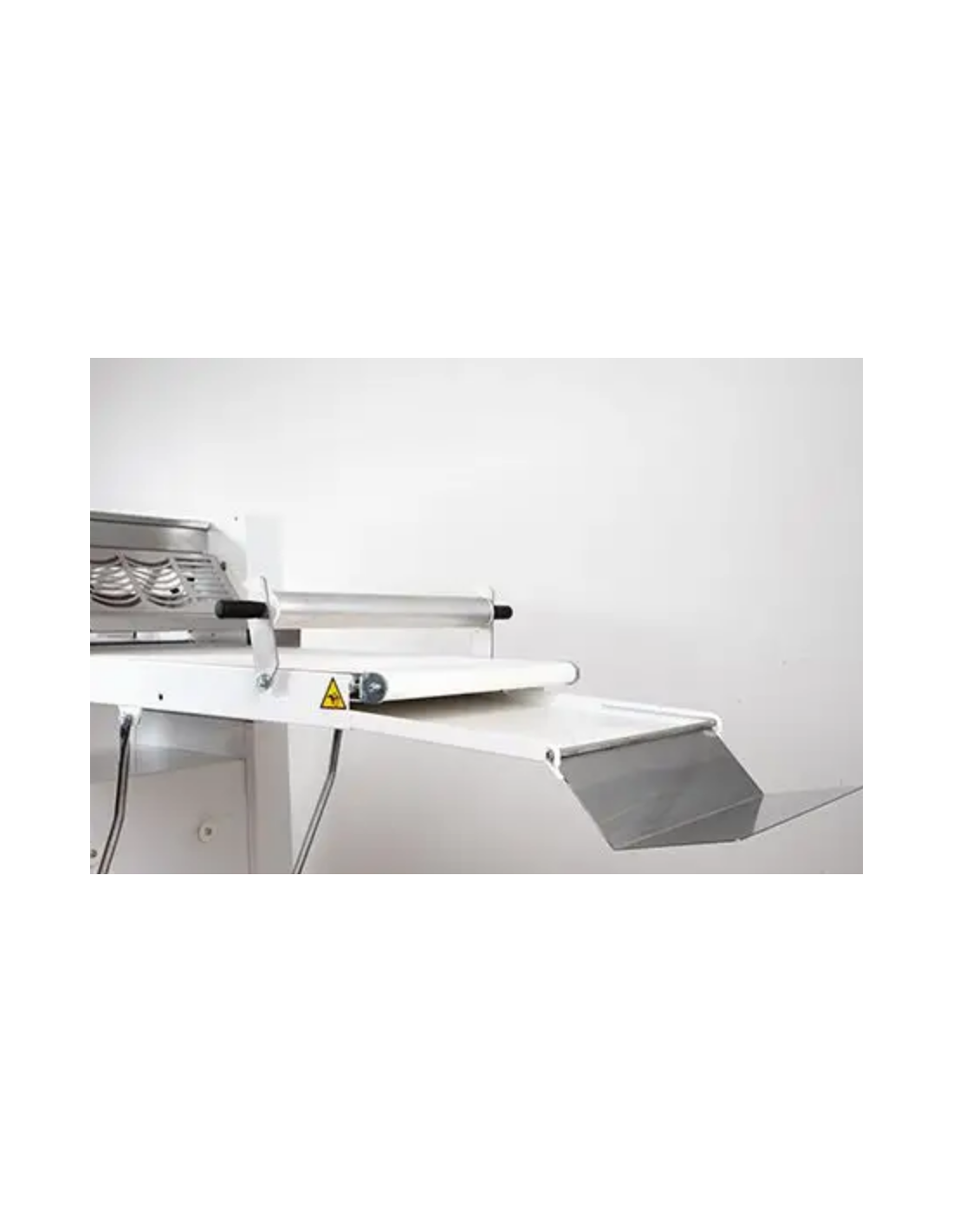

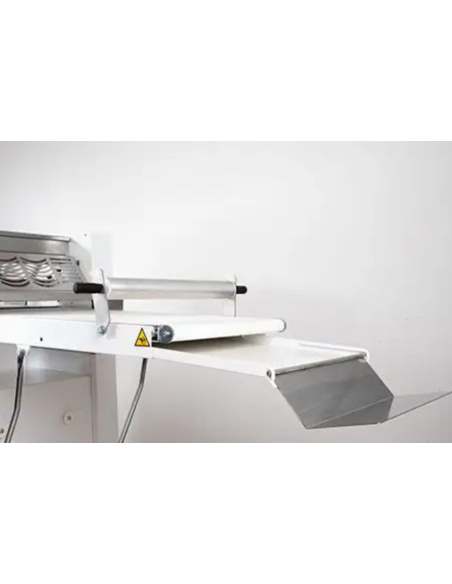

Folding Tables to reduce the machine's footprint when not in use
Electrical System low Voltage with dual controls (Hand and Foot)
Optional: Inverter (Voltage Monophase) - Joystick
GENERAL FEATURES
The SFE 500 Sheeter / 600 is a machine capable of laminating multiple types of dough and allows to obtain different thicknesses ino the thinnest, quickly and precisely
L'operation is very simple and intuitive: place I'dough to be coated on one of the conveyor belts taking care to press it so that it can pass under a protection grid
L'handle that adjusts the height of the chrome-plated and ground cylinders of sheet thickness will be positioned at the highest point, after pressing the green power button, the machine is ready to be used
Levers on both sides of the machine act on the movement of the conveyor belts, which will bring the dough towards the cylinders, the latter will spread I'dough and release it on the opposite belt
Once the entire dough & out, the motion will be reversed and it will pass back under the chrome-plated cylinders sheet thickness and ground
Acting on the handle and lowering it a bit repeat the above process several times until the desired thickness is obtained

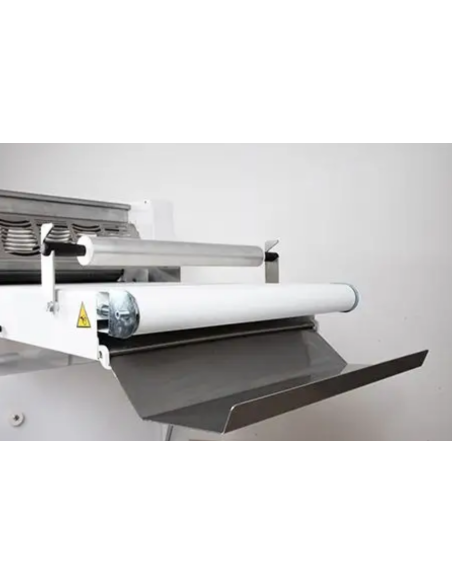

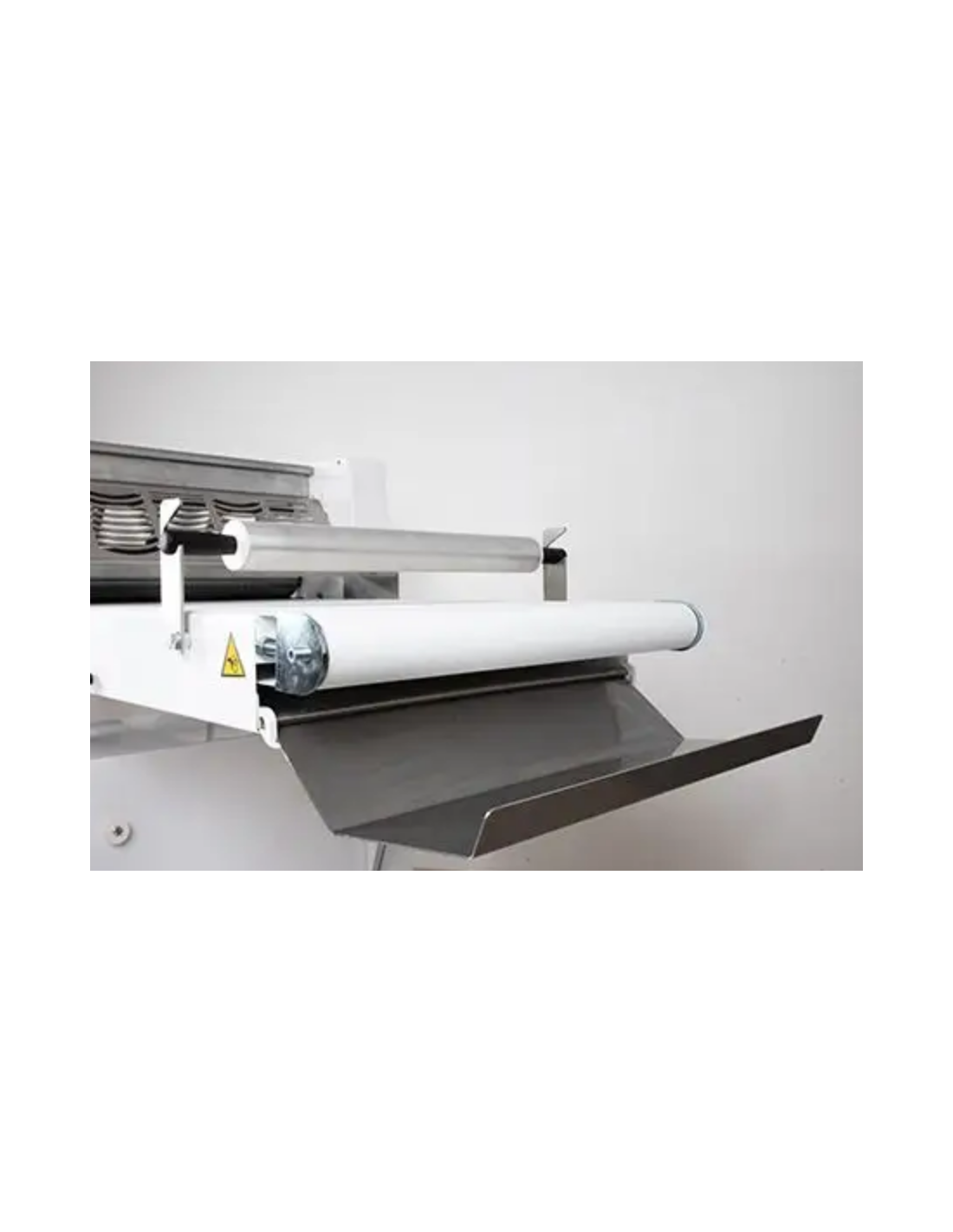

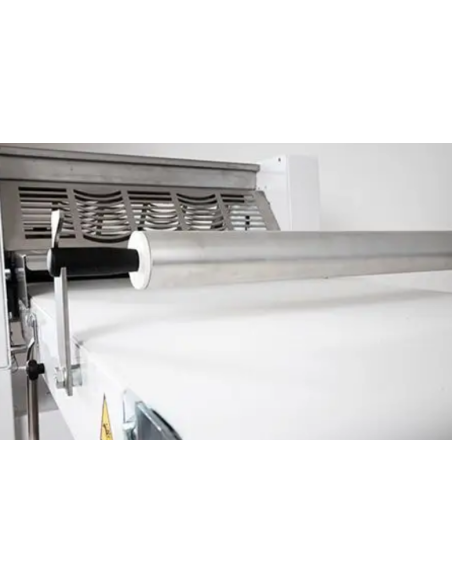

Using the movement of the conveyor belt, the dough will be rolled onto the rolling pin (supplied) to be transported to the workbench for further processing
The machine frame is made of powder-coated steel, has swivel wheels with brakes, I shelves can be raised for a smaller footprint when the machine is not in operation

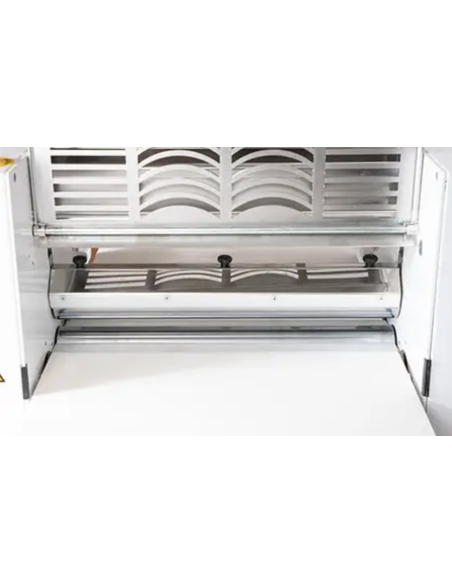

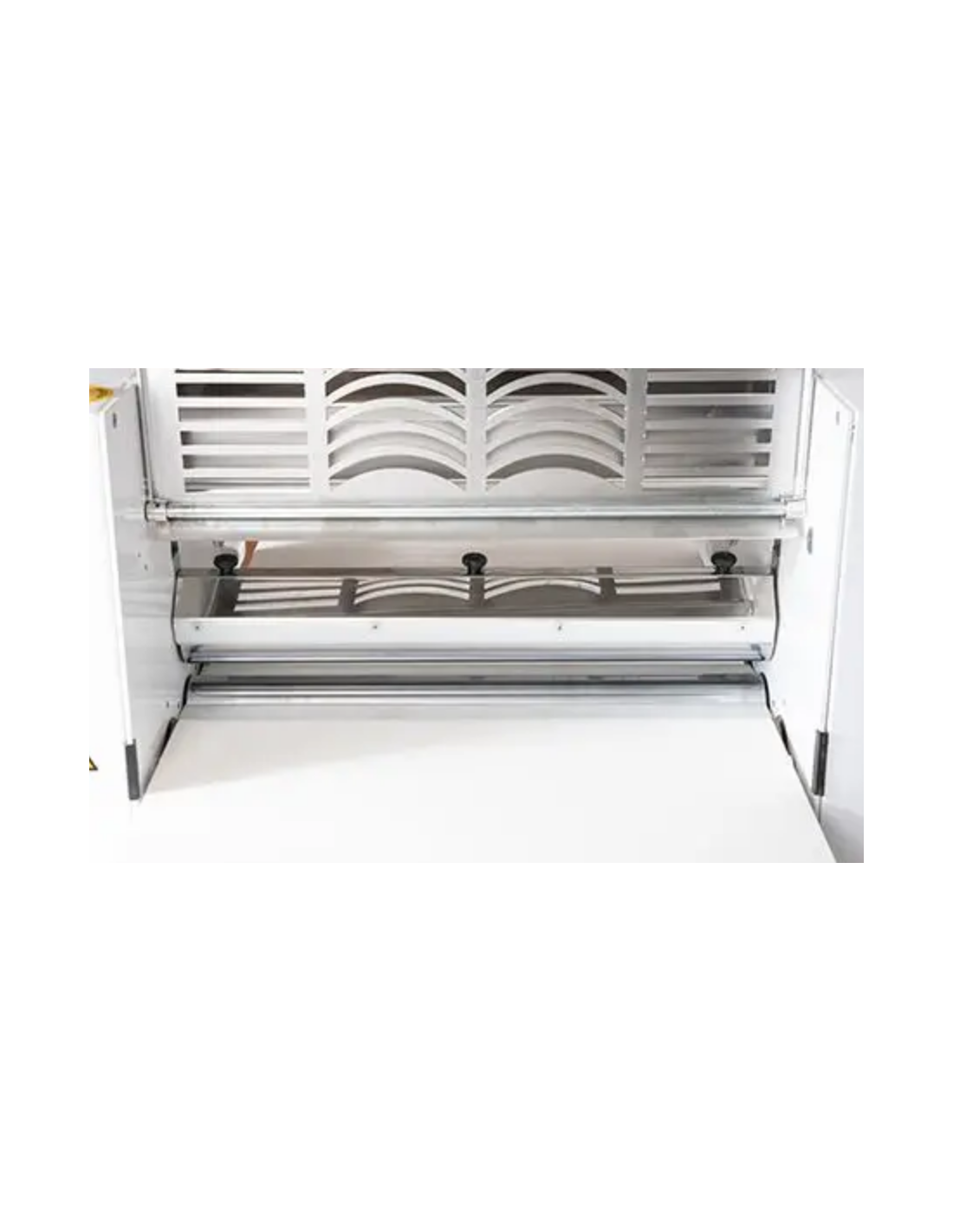

I rolling cylinders are chrome-plated thick and ground I scrapers are removable to allow for proper daily cleaning
The belt speed changes automatically to allow perfect dough flaking.The machine complies with current machinery safety and hygiene regulations for food contact materials
II low-voltage electrical control system and safety grids are equipped with a device that stops machine operation when they are raised
