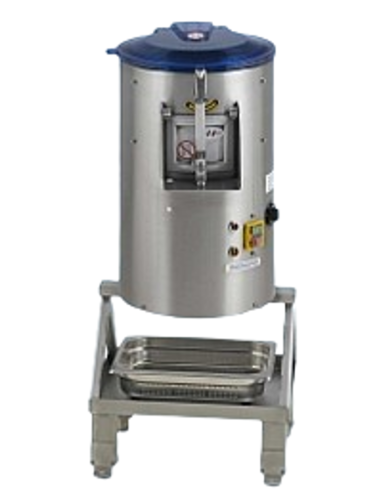

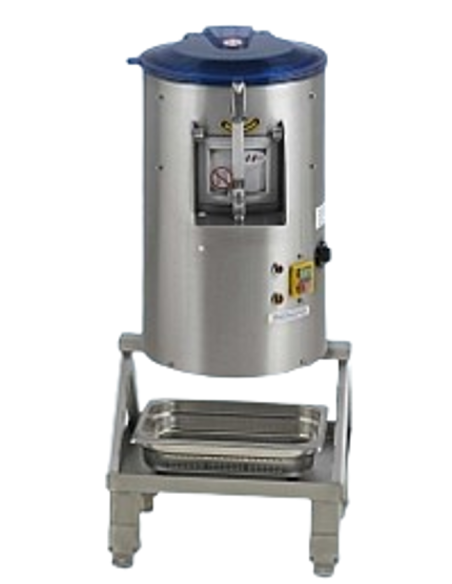

Cup washer capacity 4 kg - Hourly output kg/h 120 - Cm 32 x 42 x 56 h
RAG-LC4
RAG-LC4
Product to quote
€1,416.80
€1,540.00
-8%
€1,416.80 Senza tasse
€1,728.50 Con tasse
€1,540.00 Senza tasse
Tax excluded
Cup washer capacity 4 kg - Model LC4 - Hourly output kg/h 120 - Power kW 0.26 - Plate turns RPM 330/235 - Cm 32 x 42 x 56 h
Options
+ ACCESSORIES
| Cup washer | Model LC4 |
| Dimensions | Cm 32 x 42 x 56 h |
| Dimensions packaging | Cm 40 x 56 x 60 h |
| Net weight / gross | Kg 22/25 |
| Standard | CE |
| Origin | Italy |
| Warranty | 12 months |
| TECHNICAL DATA | |
|---|---|
| Capacity | 4 kg |
| Production | 120 kg/h |
| Motor RPM | 1400/1000 rpm |
| Plate turns | 330/235 |
| Power supply single-phase / three-phase | To be chosen when ordering ) |
| Power | 0.26 KW |
| GENERAL FEATURES | |
|---|---|
| Constructed entirely of stainless steel and are equipped with a micro safety device on the door and lid, as well as an emergency end-of-work mushroom button with lock. | |
| L'Full opening promotes rapid filling of the tank, while a removable impeller allows better cleaning of the machine. | |
| The top cover is made of transparent glass to check the working status, and the push-button panel is low-voltage electric, with an automatic discharge device. | |
| I machine feet are prepared for floor mounting, with silicon carbon plate and silicon carbide side band. | |
| The speed reducer with tracking belt transmission (multigrip) allows quiet, safe, easy adjustment processing, with 60 mm diameter water discharge. | |
| The rotation of these machines is 20% less than the peeler, and the removable plates have bristles to respect the product being processed as much as possible and avoid mussel breakage. | |
| Stainless steel construction AISI 304. | |
| Belt drive system | |
| Ventilated motors for continuous use | |
| Removable plate with brushes | |
| Abrasive wall easily replaced by the operator | |
| Automatic discharge system | |
| Stainless steel feet that can be fixed to the floor | |
| Microswitch on cover and on discharge door | |
| Recommended option: complete filter holder for collecting impurities |
- *POWER SUPPLY
- * Single phase
* Three-phase * - *PRODUCTION
- *120 kg*
- *LOAD CAPACITY
- *Kg 4*
