Senza tasse Con tasse
Automatic mincer 1000/1200 kg per hour - Mouth 4.5 cm - Tank kg 90/120
Automatic mincer 1000/1200 kg per hour - Mouth 4.5 cm - Tank kg 90/120
Automatic mincer 1000/1200 kg per hour - Mouth 4.5 cm - Tank kg 90/120
Automatic mincer 1000/1200 kg per hour - Mouth 4.5 cm - Tank kg 90/120
Automatic mincer 1000/1200 kg per hour - Mouth 4.5 cm - Tank kg 90/120
Automatic mincer 1000/1200 kg per hour - Mouth 4.5 cm - Tank kg 90/120
  • -10%
Automatic mincer 1000/1200 kg per hour - Mouth 4.5 cm - Tank kg 90/120
Automatic mincer 1000/1200 kg per hour - Mouth...
Automatic mincer 1000/1200 kg per hour - Mouth...
Automatic mincer 1000/1200 kg per hour - Mouth...
Automatic mincer 1000/1200 kg per hour - Mouth...
Automatic mincer 1000/1200 kg per hour - Mouth...

Automatic mincer 1000/1200 kg per hour - Mouth 4.5 cm - Tank kg 90/120

F-NA-096591321241
F-NA-096591321241
€7,123.50 €7,915.00 -10%
€7,123.50 Senza tasse €8,690.67 Con tasse €7,915.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

Automatic mincer - Model TCM 90VERT HP 5 - Oral production kg/h 1000/1200 - Inlet mouth Ø 4.5 cm - Bath capacity kg 90/120 - Three-phase power supply V 400/50/3 - Dimensions cm 74.6 x 80.5 x 148.9 h

Request information

icon_image_1679324863.png Shipments

icon_image_1734099125.png Information on electrical components



icon_image_1695971686.png Tytes of Payments

icon_image_1695971505.png Video
icon_image_1696600654.png Production Times

icon_image_1696602441.png How to contact us

icon_image_1788510258.png Chef Costantino

x
PRENOTA UNA VIDEOCHIAMATA

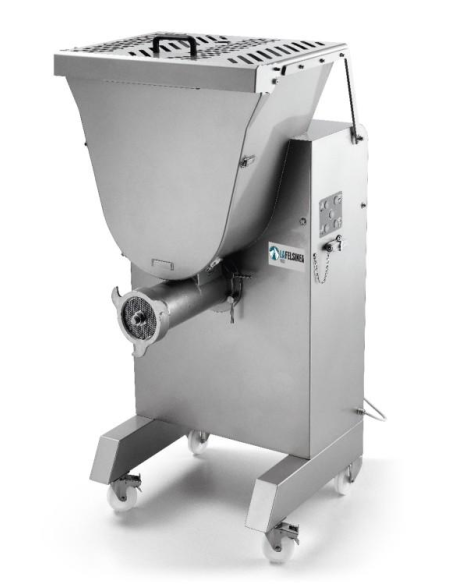

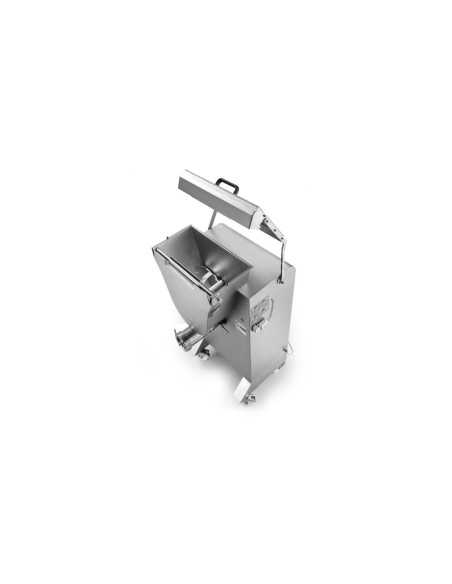

Automatic mincer TCM 90VERT HP 5
Product size cm 74.6 x 80.5 x 148.9 h
Packaging dimensions cm 105 x 95 x 205 h
Weight kg 191 - kg 216
TECHNICAL DATA
Production 1000/1200 kg
Food V400/50/3
Bocca ø cm 4.5
Power Watt/Hp 3675/5 - 1102/1.5
GENERAL FEATURES
AISI 304 stainless steel construction with water spray.
2 independent IP x5 motors for trucks and conveyors
Airtight angle reducers with oil bath.
Safety micro on tub cover

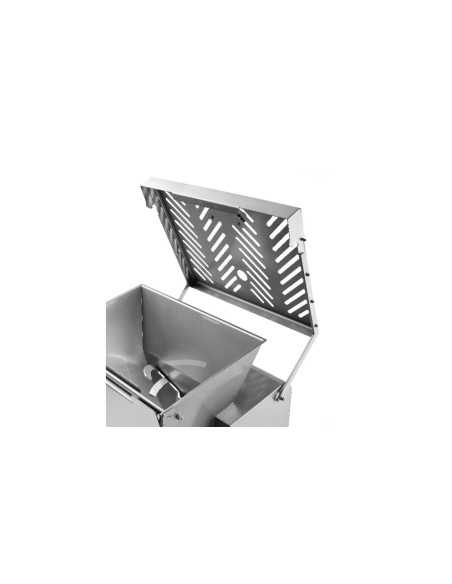

Self-opening cover managed by air pistons

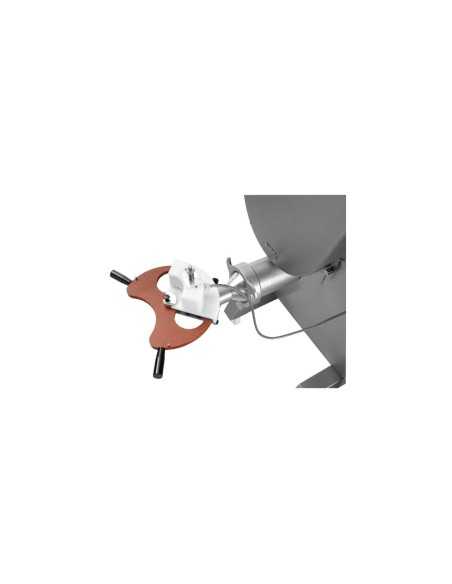

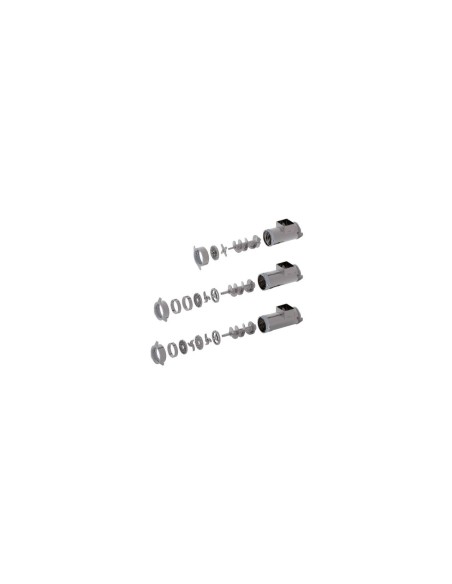

Grinding group:completely in stainless steel AISI 304 - designed for great performance - stainless steel drag pin - helix pin in tempered steel - quick disassembly mouth and blade without the use of tools - Exclusive patented control system plate and knife presence
Stainless steel knife and plate Ø 4,5
Self-supporting structure with stainless steel wheels
Wind extraction tool and plates
Norma CE
Warranty 12 months
*POWER SUPPLY
* Three-phase *
*MEAT GRINDER
*90*
*MOUTH
*Ø cm 5,2*
*HOURLY PRODUCTION
*Kg/h 1200/1300*
*MEAT GRINDER TYPE
*Industriale*
100 Items

16 other products in the same category:

Meat mincer 300-500 Kg/hour - Three-phase - Enterprise system
  • -10%
Meat mincers

Meat mincer 300-500 Kg/hour - Three-phase - Enterprise system

FIMAR
FMR-32TN-T
€1,141.20 €1,268.00 €1,141.20 Senza tasse €1,392.26 Con tasse
Meat mincer - Mod. 32TN- Carcase and stainless steel hopper - Three-phase power supply 400V/3N/50Hz - Production Kg/h 300-500 Kg/h - Dimensions cm 52 x 32 x 55 h
Meat mincer with production of 200 kg per hour - Three-phase
  • -10%
Meat mincers

Meat mincer with production of 200 kg per hour - Three-phase

FAMA
FA-MA-FTS126U
€809.10 €899.00 €809.10 Senza tasse €987.10 Con tasse
Meat mincer - Model TS 12 UNGER - Stainless steel grinding unit - Hourly production kg/h 200 - Mouth and Ø 5.2 cm - 2 plates + 1 knife - Power hp 1.50 - Three-phase supply V400/50 - Dimensions cm 46x24x51h
Meat mincer 1200 kg per hour - Bocca Enterprise - Single phase
  • -10%
Meat mincers

Meat mincer 1200 kg per hour - Bocca Enterprise - Single phase

SAP
S-PP-TC42MN
€3,483.00 €3,870.00 €3,483.00 Senza tasse €4,249.26 Con tasse
Meat mincer - Model TC 42MN - Carcass and Stainless Steel - Turnover - Equipped with electronic card 24 Volt and micron encoded - Bath capacity 45 lt - Oral production Kg/h 1200 - Bocca Enterprise - No. 1 Knife - No. 1 Plate - Size cm 40 x 73 x 93 h
Meat mincer with hourly production 300 kg - Three-phase - Bocca Enterprise
  • -10%
Meat mincers

Meat mincer with hourly production 300 kg - Three-phase - Bocca Enterprise

SAP
S-PP-TQ22
€1,137.32 €1,263.69 €1,137.32 Senza tasse €1,387.53 Con tasse
Meat mincer  - Model TQ22 - Stainless steel carcass and mouth - Oral production Kg/h 300 - Three-phase power 230-400 V - Power Kw 1.5 - HP 2 - Turnover - No. 1 Knife - No. 1 Plate - Bocca Enterprise - Size cm 45 x 28 x 46 h
Meat mincer 600Kg per hour - Bocca 32 enterprise - Single phase
  • -10%
Meat mincers

Meat mincer 600Kg per hour - Bocca 32 enterprise - Single phase

SAP
S-PP-TC32PM
€1,211.36 €1,345.96 €1,211.36 Senza tasse €1,477.86 Con tasse
Meat mincer - Model TC32P - Oral Production 600Kg/h - Bocca 32 enterprise - Power Kw 1.1 - Hp 1.5 - Carcass, stainless steel grinding group - Power supply 230V-50Hz - Dimensions Cm 70 x 28 x 43h
Meat mincer with production 400 kg/h - Mouth cm 5.2 - Three-phase
  • -10%
Meat mincers

Meat mincer with production 400 kg/h - Mouth cm 5.2 - Three-phase

FAMA
FA-MA-FTS138
€1,278.00 €1,420.00 €1,278.00 Senza tasse €1,559.16 Con tasse
Meat mincer - Model TS 32 - stainless steel grinding group - hourly production kg/h 400 - Mouth Ø cm 5,2 - power Kw 1.50 (hp 2.00) - three-phase power V400/50 - cm 50x24x51h
Meat mincer 500 Kg per hour - Three-phase
  • -10%
Meat mincers

Meat mincer 500 Kg per hour - Three-phase

FAMA
FA-MA-FTI138RS
€1,273.50 €1,415.00 €1,273.50 Senza tasse €1,553.67 Con tasse
Meat mincer - Model TI 32 RS - stainless steel grinding group - hourly production kg/h 500 - pump Ø cm 5,2 - power Kw 1,60 (Hp 2,20) - three-phase power 400/50Hz - cm 51x26x52.5h
Meat mincer with hourly production of 200 kg - Single phase
  • -10%
Meat mincers

Meat mincer with hourly production of 200 kg - Single phase

FAMA
FA-MA-FTI107U
€747.00 €830.00 €747.00 Senza tasse €911.34 Con tasse
Tritacarne - Model TI 12 UNGER - food cast iron grinding group - hourly production kg/h 200 - mouth ø cm 7 - n. 2 plates + n.1 knife - power Kw 1.10(hp 1.50) - single-phase feeding V230/50 - cm 45x22x44h
Benchtop mincer with production 300 Kg/h - Three-phase - Total unger mouth
  • -10%
Meat mincers

Benchtop mincer with production 300 Kg/h - Three-phase - Total unger mouth

SAP
S-PP-TCB22UT
€1,339.10 €1,487.89 €1,339.10 Senza tasse €1,633.70 Con tasse
Benchtop mincer - Model TCB22 - Stainless steel tank and mouth - Oral production Kg/h 300 - Three-phase power 230-400 V - Power Kw 1.5 - HP 2 - Turnover - No. 2 Knife - No. 3 Plate - Total unger Mouth - Dimensions cm 45 x 30 x 36 h
Meat mincer 300-500 Kg/hour - Three-phase - Reversing Meat mincer 300-500 Kg/hour - Three-phase - Reversing 2
  • -10%
Meat mincers

Meat mincer 300-500 Kg/hour - Three-phase - Reversing

FIMAR
FMR-32TND-T
€1,071.90 €1,191.00 €1,071.90 Senza tasse €1,307.72 Con tasse
Meat grinder - Model 32TND - Reverse gear - Stainless casing and hopper - Production 300-500kg/h - Meat inlet mouth Ø 7.6 mm - Three-phase - Dimensions cm 52 x 32 x 55 h
Careened meat mincer with production of 300 kg per hour - Three-phase
  • -10%
Meat mincers

Careened meat mincer with production of 300 kg per hour - Three-phase

FAMA
FA-MA-FTI136
€837.00 €930.00 €837.00 Senza tasse €1,021.14 Con tasse
Careened meat mincer  - Model TI 22 - stainless steel grinding group - hourly production kg/h 300 - mouth ø 5.2 - power Kw 1.10 (hp 1.50) - three-phase power V400/50 -cm 44x21.5x44h
Meat mincer 400 kg/h with fairing - 5.2 cm mouth - Three-phase
  • -10%
Meat mincers

Meat mincer 400 kg/h with fairing - 5.2 cm mouth - Three-phase

FAMA
FA-MA-FTI146
€1,264.50 €1,405.00 €1,264.50 Senza tasse €1,542.69 Con tasse
Meat mincer - Model TI 32 - Group of food cast iron - hourly production kg/h 400 - Mouth Ø cm 5,2 - power Kw 1.50 (hp 2.00) - three-phase power V400/50 - cm 50x22.5x51h
Protected mincer with hourly production of 250 kg - Three-phase
  • -10%
Meat mincers

Protected mincer with hourly production of 250 kg - Three-phase

FAMA
FA-MA-FTI106RU
€864.00 €960.00 €864.00 Senza tasse €1,054.08 Con tasse
Careened meat mincer - Model TI 12 R - Food grade cast iron grinding unit - hourly output kg/h 250 - Mouth Ø cm 5.2 - no.2 plates + no.1 knife - power Kw 1.10(hp 1.50) - three-phase power supply V400/50 - cm 40x26x49h
Tabletop mincer 600 kg per hour - Total Unger mouth - Three-phase
  • -10%
Meat mincers

Tabletop mincer 600 kg per hour - Total Unger mouth - Three-phase

SAP
S-PP-TC32UT
€1,482.02 €1,646.69 €1,482.02 Senza tasse €1,808.07 Con tasse
Tabletop mincer - Model TC32 - Stainless steel carcass and mouth - Oral production Kg/h 600 - Three-phase power 230-400 V - Power HP 3 - Gear Reversal - N° 2 Knife - N° 3 Plate - Total Unger Mouth - Size cm 47 x 30 x 45 h
Protected mincer with hourly production of 250 kg - Single phase
  • -10%
Meat mincers

Protected mincer with hourly production of 250 kg - Single phase

FAMA
FA-MA-FTI107RU
€899.10 €999.00 €899.10 Senza tasse €1,096.90 Con tasse
Protected mincer - Model TI12R - Food cast iron milling group - hourly production kg/h 250 - Mouth Ø cm 5.2 - n. 2 plates + n.1 knife - power Kw 1.10(hp 1.50) - single-phase feeding V230/50 -cm 40x26x49h
