Senza tasse Con tasse
Topping tank - Recessed - N.6 x GN 1/6 - cm 72.3 x  53.6 x 81.3 h
Topping tank - Recessed - N.6 x GN 1/6 - cm 72.3 x  53.6 x 81.3 h
Topping tank - Recessed - N.6 x GN 1/6 - cm 72.3 x  53.6 x 81.3 h
Topping tank - Recessed - N.6 x GN 1/6 - cm 72.3 x  53.6 x 81.3 h

  • -5%
Topping tank - Recessed - N.6 x GN 1/6 - cm...
Topping tank - Recessed - N.6 x GN 1/6 - cm...
Topping tank - Recessed - N.6 x GN 1/6 - cm...
Topping tank - Recessed - N.6 x GN 1/6 - cm...

Topping tank - Recessed - N.6 x GN 1/6 - cm 72.3 x 53.6 x 81.3 h

IF-F-EY131282
IF-F-EY131282
€2,732.77 €2,876.60 -5%
€2,732.77 Senza tasse €3,333.98 Con tasse €2,876.60 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

Topping tank - Recessed - N.6 x GN 1/6 - Dimensions cm 72.3 x 53.6 x 81.3 h


Topping pool
EY131282

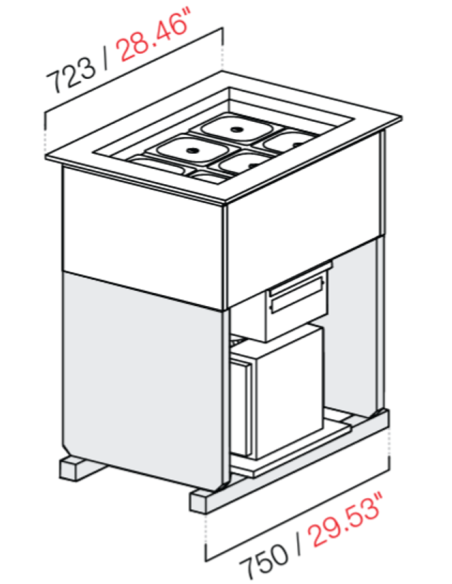

Dimensions product cm 72.3 x 53.6 x 81.3 h
Norma CE
Warranty 12 months
GENERAL FEATURES
The topping module with cold function/hot can contain alternatively seals that must be kept at +4°C/+°C and seals that must be kept up to +40°C
The module can be recessed on the working plane at a neutral compartment in which to stay the engine
The engine compartment must be properly aerated
10 mm thick perimeter frame covered in stainless steel Scotch Brite finish
Foam recessed tub with density polyurethane 40 Kg/mc with a thickness of 50 mm complete diserpentine in a drowned copper tube and expansion valve. Exterior in galvanized sheet
Adapter for Gastronorm trays from 1/6 (162x176xH100) stainless steel laser cut. 4 tanks GN from 1/6 equipped with lid.
Anti-condensed system with hot cable inserted inside a copper tube placed in contact with the perimeter frame of the tub
Stainless steel internal tank AISI 304 Scotch Brite finish with discharge fleece and condensate evaporation tank
Connected motor: static refrigeration system consisting of air-cooled compressor, condenser with copper tube and air-cooled aluminum fins with fan. Evaporator drowned in the 4 foamed walls of the tub. Electronic control panel. Acting on the relative button of the control panel sets the temperature by switching from the cold function (+4°C/+°C) to the hot function (+40°C), and vice versa. The topping module is tested at 30°C 55% U.R.
