Topping tank - Recessed - N.4 x GN 1/6 - cm 56.3 x 53.6 x 81.3 h
IF-F-EY131281
IF-F-EY131281
€2,487.68
€2,704.00
-8%
€2,487.68 Senza tasse
€3,034.97 Con tasse
€2,704.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

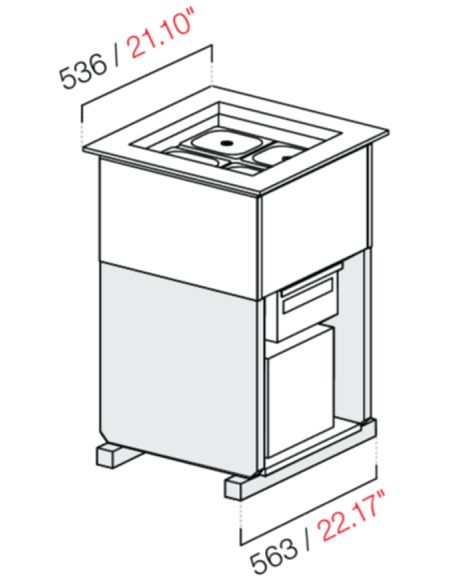

Topping tank - Recessed - N.4 x GN 1/6 - Dimensions cm 56.3 x 53.6 x 81.3 h
| Topping pool |
EY131281 OTHER |
| Dimensions product | cm 56.3 x 53.6 x 81.3 h |
| Norma | CE |
| Warranty | 12 months |
| GENERAL FEATURES | |
|---|---|
| The topping module with cold function/hot can contain alternatively seals that must be kept at +4°C/+°C and seals that must be kept up to +40°C | |
| The module can be recessed on the working plane at a neutral compartment in which to stay the engine | |
| The engine compartment must be properly aerated | |
| 10 mm thick perimeter frame covered in stainless steel Scotch Brite finish | |
| Foam recessed tub with density polyurethane 40 Kg/mc with a thickness of 50 mm complete diserpentine in a drowned copper tube and expansion valve. Exterior in galvanized sheet | |
| Adapter for Gastronorm trays from 1/6 (162x176xH100) stainless steel laser cut. 4 tanks GN from 1/6 equipped with lid. | |
| Anti-condensed system with hot cable inserted inside a copper tube placed in contact with the perimeter frame of the tub | |
| Stainless steel internal tank AISI 304 Scotch Brite finish with discharge fleece and condensate evaporation tank | |
| Connected motor: static refrigeration system consisting of air-cooled compressor, condenser with copper tube and air-cooled aluminum fins with fan. Evaporator drowned in the 4 foamed walls of the tub. Electronic control panel. Acting on the relative button of the control panel sets the temperature by switching from the cold function (+4°C/+°C) to the hot function (+40°C), and vice versa. The topping module is tested at 30°C 55% U.R. |
