Lavabiancheria - Capacity 18 kg - Basket cm 73 - cm 97 x 100 x 146 h
G-PT-GWH180
G-PT-GWH180
€11,471.06
€12,074.80
-5%
€11,471.06 Senza tasse
€13,994.69 Con tasse
€12,074.80 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

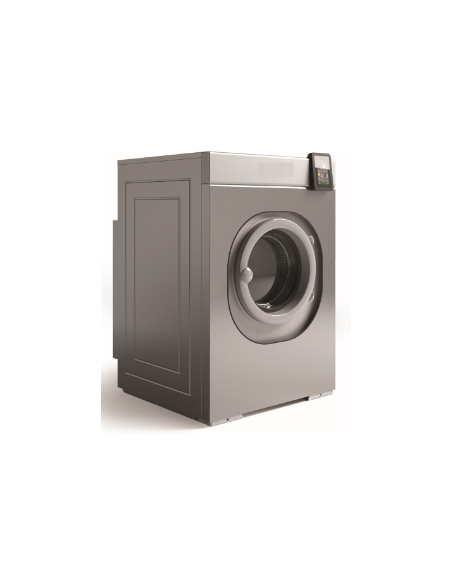

Lavabiancheria - Model GWH - Capacity 18 kg - Diameter basket cm 73 - Dimensions cm 97 x 100 x 146 h
Options
+ ACCESSORIES
Washing machines | GWH |
Dimensions product | cm 97 x 100 x 146 h |
Dimensions packaging | C 107 x 120 x 156 h |
Net weight / Lord | Kg 385/400 |
Warranty | 12 months |
Norma | CE |
Origin | Italy |
TECHNICAL DATA | |
---|---|
Capacity load ratio | Kg 10-20/9) - kg 9-18 (1/10) |
Washing speed/centrifugal | rpm 20 ÷ 60/980 max |
Factor G | 400 |
Dynamic load on the ground | kN 4.0 ± 0.7/16.3 |
Heating | Electric or Direct steam or indirect vapor |
Diameter basket | mm 730 |
Depth basket | mm 450 mm |
Door diameter | 460 mm |
Volume basket dm3 | 180 |
IDRICAL CONSUMER DATA (based on ISO9398) | |
---|---|
Total cycle 60°C | 154 lt |
of which hot water | 38.5 lt |
of which fresh water | 38.5 lt |
of which hard water | 77 lt |
Fall discharge | inch 3 |
ELECTRICAL DATA | |
---|---|
Power supply Standard | Three-phase V380-415/3N/50-60Hz (on request special voltages) |
Motor basket | kW 2.20 |
Speed changer | Standard inverter |
Speed | rpm freely set |
Electric heating data | Electric power std kW 18 (A380-415V) 31 - Power consumption std kW/h 5.168 |
Direct steam heating data | Steam pressure bar 1-6 - Steam connection inch 3/4" |
Indirect steam heating data | Steam pressure bar 3-6 - Steam connection/condensation inch 3/4" - 3/4" |
GENERAL FEATURES | |
---|---|
Electronicly controlled motor speed (inverter) with check-in condition | |
Redundant laboratory certified security system | |
The frame of the machine allows anchoring on the ground without having to move the machine | |

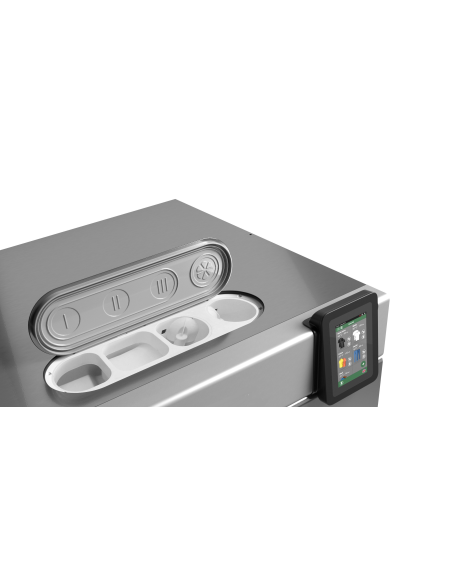

Suitable for 5 liquid detergent inputs, ergonomic dispenser with 4 compartments | |
180 openable block°: easy loading and unloading by pulling the cart to the machine | |
Easy and fast maintenance thanks to the positioning of the internal components | |
DWS patented weighing system: automatically weighs the billed linen and regulates the actual consumption of resources | |

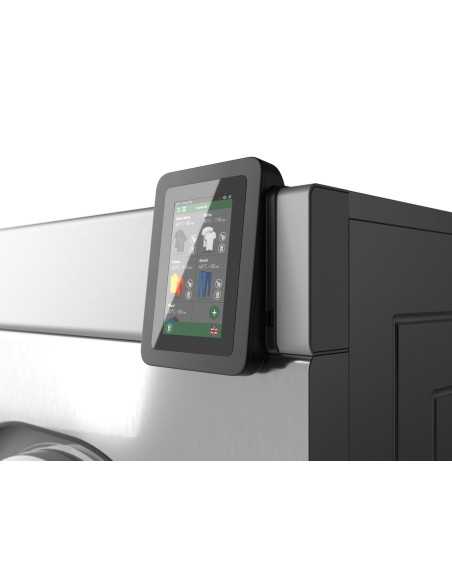

Wavy series control: the user interface that can be set according to use, unlimited possibilities for creating and customizing programs. Storage of all usage data. 36 supported languages. Wi-Fi connection | |
Hot, cold, hard and sweet series water inputs | |
Automatically managed and mixed water inputs from Wavy control | |
3" exhaust pipe with 90 curve° and 3 water load pipes from 3/4" included |
