Lavabiancheria - Capacity 14 kg - Basket cm 62 - cm 79.5 x 93.5 x 124.5 h
Lavabiancheria - Capacity 14 kg - Basket cm 62 - cm 79.5 x 93.5 x 124.5 h
Lavabiancheria - Capacity 14 kg - Basket cm 62 - cm 79.5 x 93.5 x 124.5 h
Lavabiancheria - Capacity 14 kg - Basket cm 62 - cm 79.5 x 93.5 x 124.5 h

  • -5%
Lavabiancheria - Capacity 14 kg - Basket cm 62...
Lavabiancheria - Capacity 14 kg - Basket cm 62...
Lavabiancheria - Capacity 14 kg - Basket cm 62...
Lavabiancheria - Capacity 14 kg - Basket cm 62...

Lavabiancheria - Capacity 14 kg - Basket cm 62 - cm 79.5 x 93.5 x 124.5 h

G-PT-GWH135
G-PT-GWH135
€9,473.95 €9,972.58 -5%
€9,473.95 Senza tasse €11,558.22 Con tasse €9,972.58 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

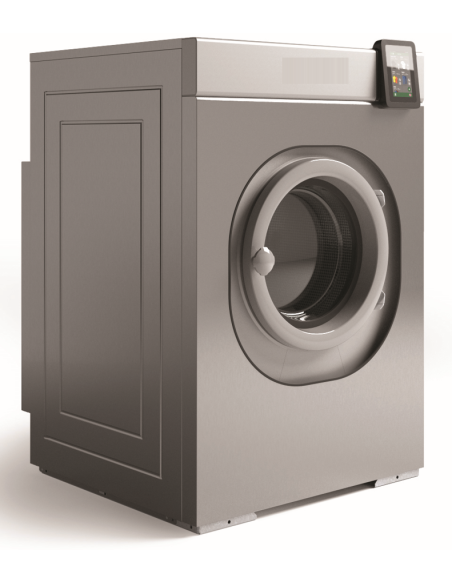

Lavabiancheria - Model GWH - Capacity 14 kg - Diameter basket cm 62 - Dimensions cm 79.5 x 93.5 x 124.5 h

HEATING TYPE

Options

+ ACCESSORIES


Washing machines GWH
Dimensions product cm 79.5 x 93.5 x 124.5 h
Dimensions packaging C 107 x 104 x 135 h
Net weight / Lord KG 260/280
Warranty 12 months
Norma CE
Origin Italy
TECHNICAL DATA
Capacity load ratio Kg 7.5 - 15 (1/9) - kg 6.75 - 13.5 (1/10)
Washing speed/centrifugal rpm 20 ÷ 60/1075 max
Factor G 400
Dynamic load on the ground kN 2.7 ± 0.5/17.9
Heating Electric or Direct steam or indirect vapor
Diameter basket mm 620
Depth basket mm 450 mm
Door diameter 410 mm
Volume basket dm3 135
IDRICAL CONSUMER DATA (based on ISO9398)
Total cycle 60°C 116 lt
of which hot water 29 lt
of which fresh water 29 lt
of which hard water 58 lt
Fall discharge inch 3
ELECTRICAL DATA
Power supply Standard Three-phase V380-415/3N/50-60Hz (on request special voltages)
Motor basket kW 1.50
Speed changer Standard inverter
Speed rpm freely set
Electric heating data Electric power std kW 12 (A380-415V) 20.8 - Power consumption std kW/h 3.125
Direct steam heating data Steam pressure bar 1-6 - Steam connection inch 3/4"
Indirect steam heating data Steam pressure bar 3-6 - Steam connection/condensation inch 3/4" - 3/4"
GENERAL FEATURES
Electronicly controlled motor speed (inverter) with check-in condition
Redundant laboratory certified security system
The frame of the machine allows anchoring on the ground without having to move the machine

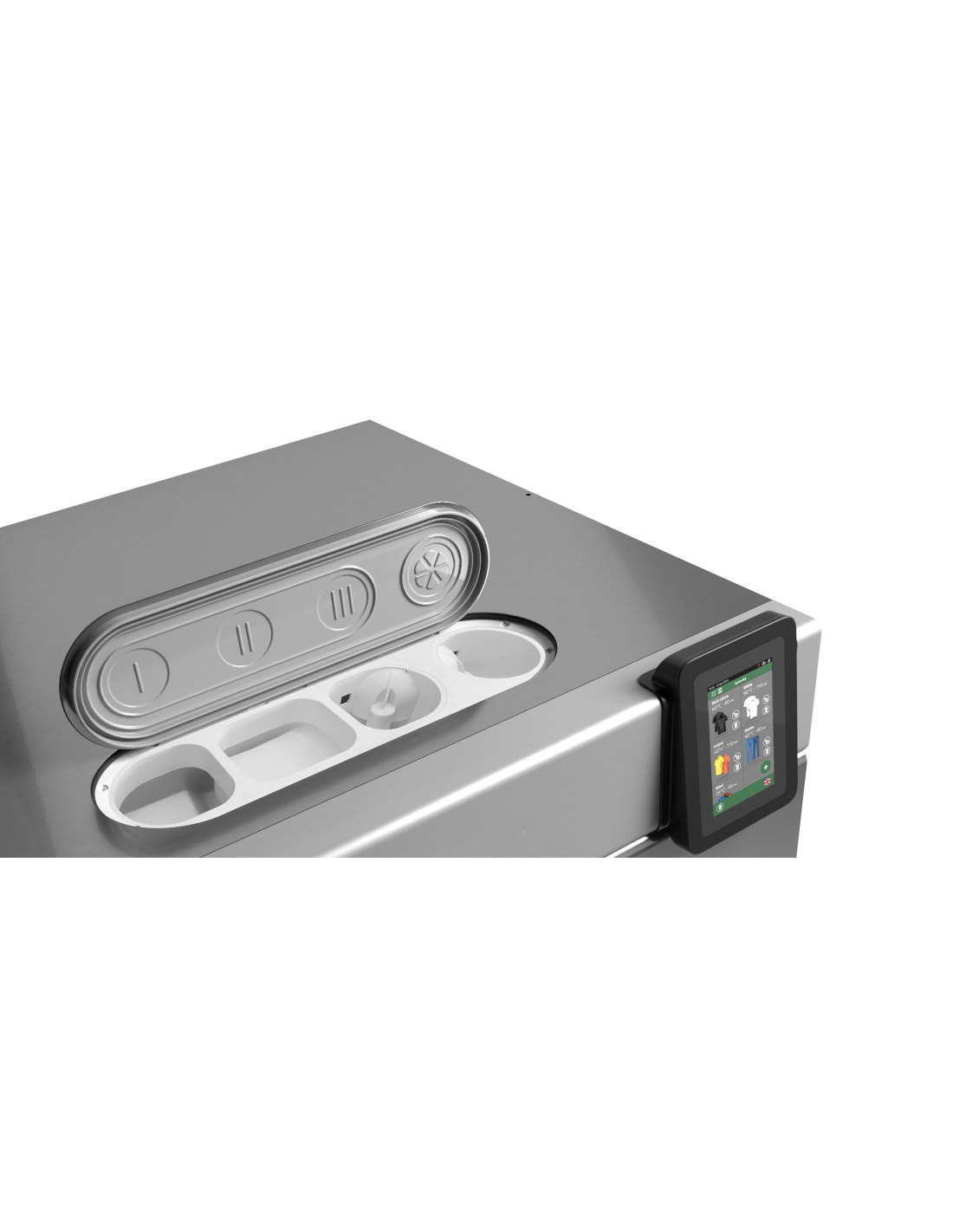

Suitable for 5 liquid detergent inputs, ergonomic dispenser with 4 compartments
180 openable block°: easy loading and unloading by pulling the cart to the machine
Easy and fast maintenance thanks to the positioning of the internal components
DWS patented weighing system: automatically weighs the billed linen and regulates the actual consumption of resources

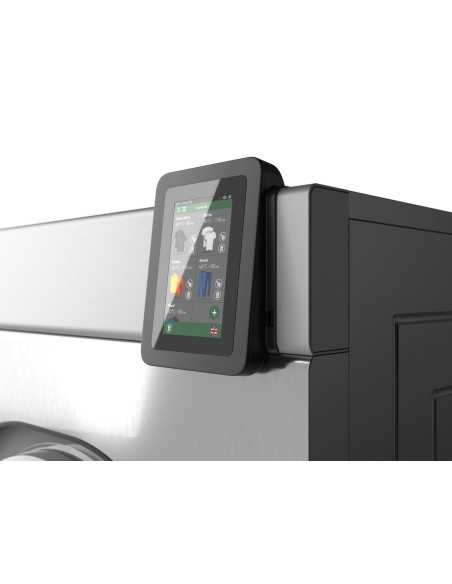

Wavy series control: the user interface that can be set according to use, unlimited possibilities for creating and customizing programs. Storage of all usage data. 36 supported languages. Wi-Fi connection
Hot, cold, hard and sweet series water inputs
Automatically managed and mixed water inputs from Wavy control
3" exhaust pipe with 90 curve° and 3 water load pipes from 3/4" included
*WASHING MACHINES
*Capacità di carico kg 14
