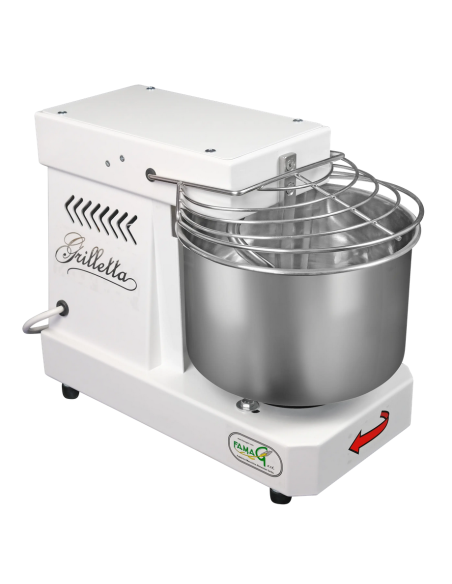

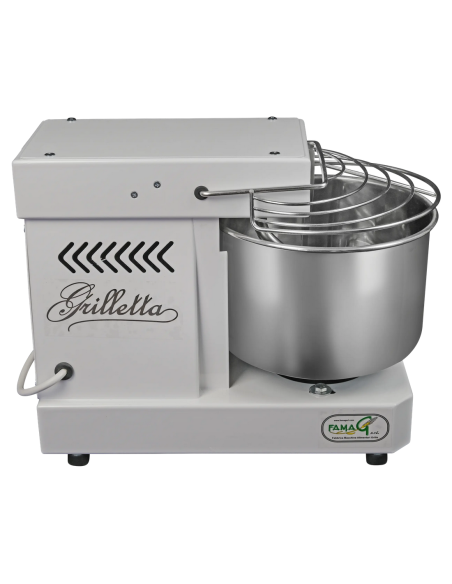

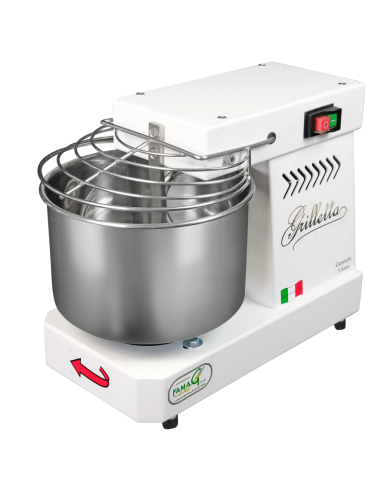

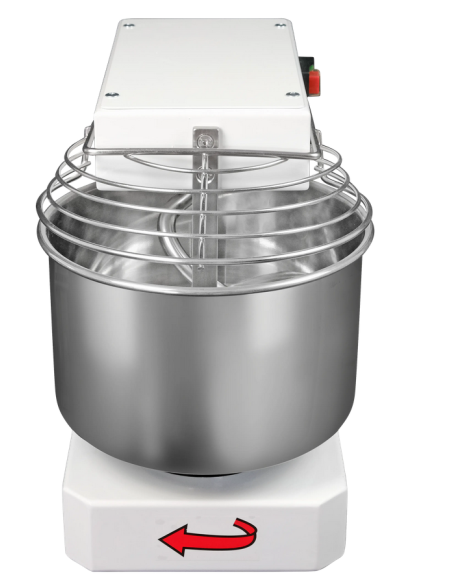

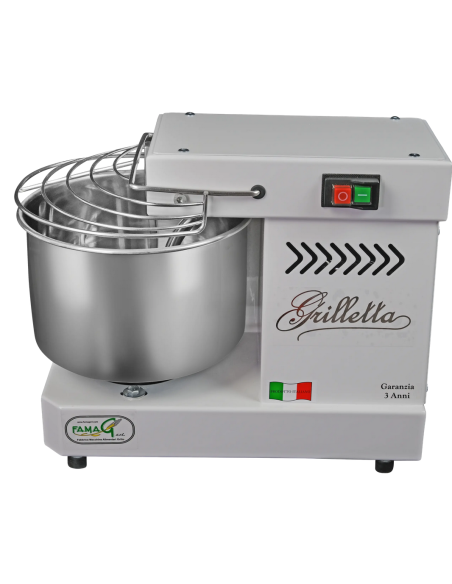

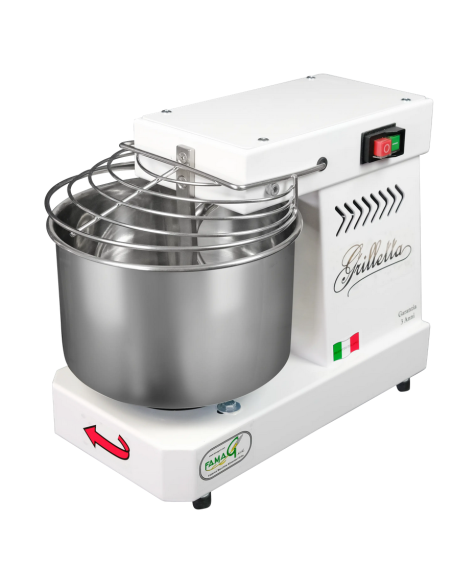

Spiral mixer capacity: 5 kg - fixed head - 5 kg of dough per cycle
FMG-IM5-230
FMG-IM5-230
€533.60
€580.00
-8%
€533.60 Senza tasse
€650.99 Con tasse
€580.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days
Fixed head spiral mixer - Model: GRILLETTA IM5-230 - Batch capacity: 5 kg - Hourly output: 18 kg - Monophase V 230 - Dimensions cm 45 x 25 x 43 h
| Dough Mixer | IM5-230 GRILLETTA |
| Type | Fixed bowl |
| Dimensions Bowl | ø 24 x 16 cm |
| Dimensions | 45 x 25 x 35 mm h |
| Weight | 23 kg |
| Warranty | 36 months |
| Standard | CE |
| Country of Origin | Italy |
| DOUGH INFORMATION | |
|---|---|
| Capacity Flour | 3 kg |
| Capacity water | Litres2 |
| Capacity s of maximum dough | 5 kg (flour + water) |
| Capacity minimum dough weight | 1 kg (flour + water) |
| Dough processing time | /h 18 kg |
| Guaranteed minimum dough | 0.3 kg |
| VOLTAGE | |
|---|---|
| Power supply | Monophase V230/50/1 Hz |
| Power | W 350 |
| Speed | N. 1 |
| Spiral revolutions | RPM 100 |
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Construction | Made of heavy-gauge steel |
| Coating | With non-toxic epoxy powder coatings suitable for food contact |
| Tank, spiral, wave-breaker bar | Stainless steel |
| Drive | A chain |
| GENERAL FEATURES | |
|---|---|
| A machine for making various types of dough, particularly suitable for hard or soft doughs such as bread, pizza, cookies, piadina, etc. | |
| Designed and built like large dough mixers, the IM5 is suitable for both home and professional use. | |
| Thanks to its meticulously engineered and reliable mechanics, the machine operates quietly, with low energy consumption, and requires no maintenance. | |
| This mixer can produce, with excellent results, any type of dough, such as bread, fresh or egg pasta, pizza, focaccia, cookies, panettone, sugar paste, and all types of dough—whether firm, soft, elastic, sweet, or savory. |
- *MODEL
- *1 Velocità
- * TANK CAPACITY
- *da Lt. 1 a 25*
- *MIXING MACHINE TYPE
- *Testa fissa*
- *CAPACITY KG
- *kg 5
