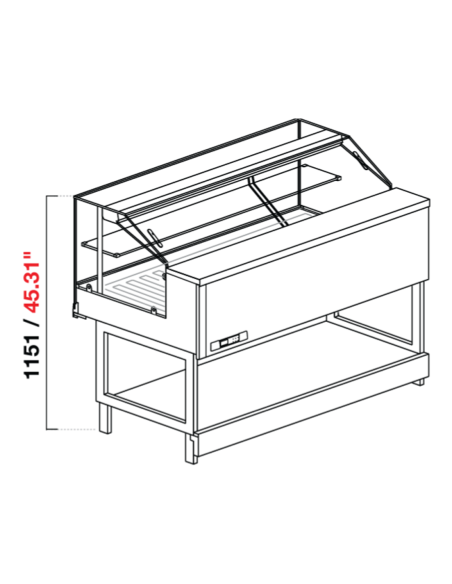

Veterina snack - Straight glass low - Hot dry - cm 125 x 68.8 x 115.1 h

-10%

Veterina snack - Straight glass low - Hot dry - cm 125 x 68.8 x 115.1 h

Name: Veterina snack - Straight glass low - Hot dry - cm 125 x 68.8 x 115.1 h
Brand: IFI
SKU: IF-F-EY134930
Price: 3159.5 EUR
Availability: InStock

IF-F-EY134930

Reference IF-F-EY134930

€3,159.50 €3,510.56 -10%

€3,159.50 Senza tasse €3,854.59 Con tasse €3,510.56 Senza tasse

Tax excluded

Veterina snack - Model MIX - Straight glass low - Dry heat - Dimensions cm 125 x 68.8 x 115.1 h

Request information

Ask a Quote

Options

ACCESSORIES

	Kit channeling	Kit channeling €688.50
	Tipper Rear Plan L 40 x 20	Tipper Rear Plan L 40 x 20 €99.23
	Drilled plate	Drilled plate €90.00
	Glass shelf	Glass shelf €117.00

You can purchase this product in installments with Sella Personal Credit. Click here for more information.

Shipments

Information on electrical components

Tytes of Payments

Video


Production Times

How to contact us

Chef Costantino

Description
Product Details

Veterina snack	EY134930
Dimensions product	cm 125 x 68.8 x 115.1 h
Power absorbed	W 825 - A 3.59
Temperature	+80°C
Norma	CE
Warranty	12 months

GENERAL FEATURES
Lower supporting structure in painted steel tubular with 180 oven epoxy powders°C with stiffening elements and adjustable feet
Single block shell with a minimum thickness of 50 mm foam with low density injected polyurethane (40 Kg/m3)
Stainless steel single block
AISI 304 Scotch-Brite finish: the tank is made in a single piece with smooth interior corners seamlessly between the exhibition floor, dripper and external edges, in order to avoid the annihilation of the dirt
An aluminum pipe drowned in polyurethane foam and placed in contact with the perimeter edge of the tub houses a hot cable that acts as a heat cut to avoid condensation formation on the glasses that are in direct support on the edge of the stainless steel tank
Worktop deep operator side 193 mm stainless steel AISI 304 Scotch-Brite finish
Rear wall operator side and side sides of stainless steel tank AISI 304 Scotch-Brite finish
White tempered glass display with resistive silkscreen to perform dry heat function
Front glass is tempered and openable with tipping system to the customer side. Anti-condensity front glass placed directly on the edge of the tub.
Intermediate shelves are slightly shorter than the showcase leaving a slot of 15 mm per side to facilitate cleaning operations
Rear closure with plexiglas slides with recessed transparent polycarbonate handle, guaranteeing a hygienic closure.
The special aluminium cable hose positioned to the left (operator side) of the showcase is unique for the cables of the eventual hot shelf and for the ceiling lamp
4000K led lighting ceiling under glass roof
Automatic defrosting with electrical resistance on the evaporator, condensate evaporation tank with too full level
I evaporator tubes and motor connection cables are placed in the operator side wall and under the working plane.
The capacitor is placed on the operator side and is accessible by disassembling the protection grid
Electronic control panel inserted in the rear structure operator side with customer view temperature repeater
Complete glass top frame, glass sides, without aesthetic finishes, without front panel, without hoof, without lower sides.

*LENGTH: *125 cm*
*GLASS TYPE: *Straight ahead*
*FORMAT: *Linear*
*SHOWCASE TYPE: Hot

In stock 100 Items
