Stopping cabinet - N. 20 x cm 60 x 80 or 40 x cm 60 x 40
M-AT-FLZ900
M-AT-FLZ900
€3,278.88
€3,564.00
-8%
€3,278.88 Senza tasse
€4,000.23 Con tasse
€3,564.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

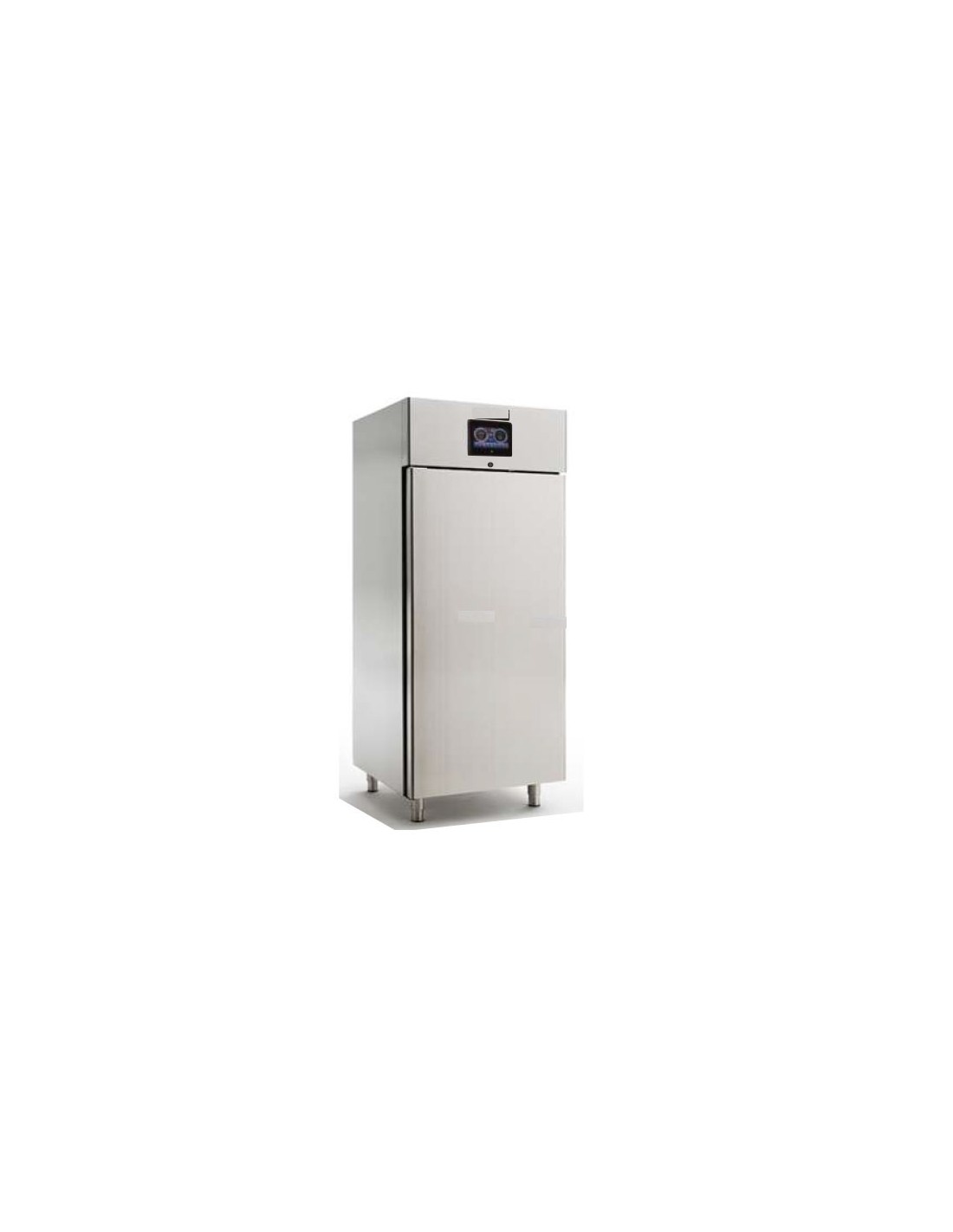

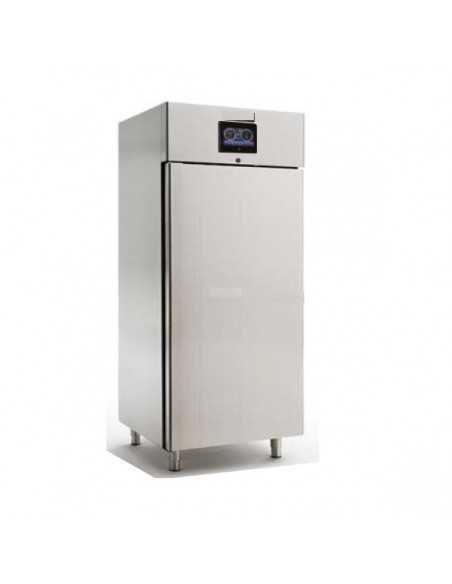

Freezing cabinet - Model FLZ900 - Temperature operating -20°/ +35°C - Capacity liters 890 - Prepared for no. 20 trays cm 60 x 80 or 40 trays cm 60 x 40 - Relative humidity % RH 55 ÷ 95 - Power W 1400 - Power supply single-phase V230/1/50Hz - Dimensions cm 80 x 101 x 212 h
Options
+ ACCESSORIES
Life stop cabinet | FLZ900 |
Dimensions product | Cm 80 x 101 x 212 h |
Dimensions internal vacuum | Cm 65 x 83 x 150 h |
Dimensions packaging cm | Cm 85 x 105 x 230 h |
Net weight / Gross | Kg 168/205 |
Warranty | 12 months |
Origins | Italy |
Standard | CE |
TECHNICAL DATA | |
---|---|
Doors | N. 1 |
Temperature | -20°/ +35°C |
Capacity | Litres890 |
Relative humidity % RH | 55 ÷ 95 |
Water connection for RH % | Ø inches H20 3/8 → 3/4F |
Refrigerant gas | R290 |
Capacity refrigeration | W 1192 |
Power supply | Monophase V230/1/50Hz |
Electrical consumption | W 1400 -A 8.2 |
Standard internal equipment | N. 10 guide pairs |
Arrangement ( trays) (optional) | no. 40 cm 60 x 40 or 20 trays cm 600 x 80 |
Pitch between guide pairs | mm 7.5 |
Positions | N. 19 |
GENERAL FEATURES | |
---|---|
Freezing cabinet | |
Cabinet frame is stainless steel AISI 304 18/10 (Scotch-Brite exterior) with electro-galvanized steel bottom back and exterior roof. | |
Interior is 304 stainless steel 18/10 fully radiused | |
Insulation thickness of 60 mm made of HCFC-free polyurethane foam with density 42-45 kg/m3 | |
Equipped with a copper evaporating coil with aluminum fins protected against corrosion with non-toxic paint | |
Copper aluminum condensing coil for easy cleaning | |
Anti-condensation heater mounted under the removable and interchangeable pvc profile | |
Self-closing door with lock on opening 110° | |
Stainless steel feet adjustable from 110-180 mm | |
Door with self-closing torsion spring | |
Resistance on replaceable frame | |
Full-height handle | |
Interchangeable and removable door gasket | |
Stainless steel evaporator cover | |
Steel conveyor AISI 304 to equalize ventilation | |
Stainless steel feet 110-180 mm |

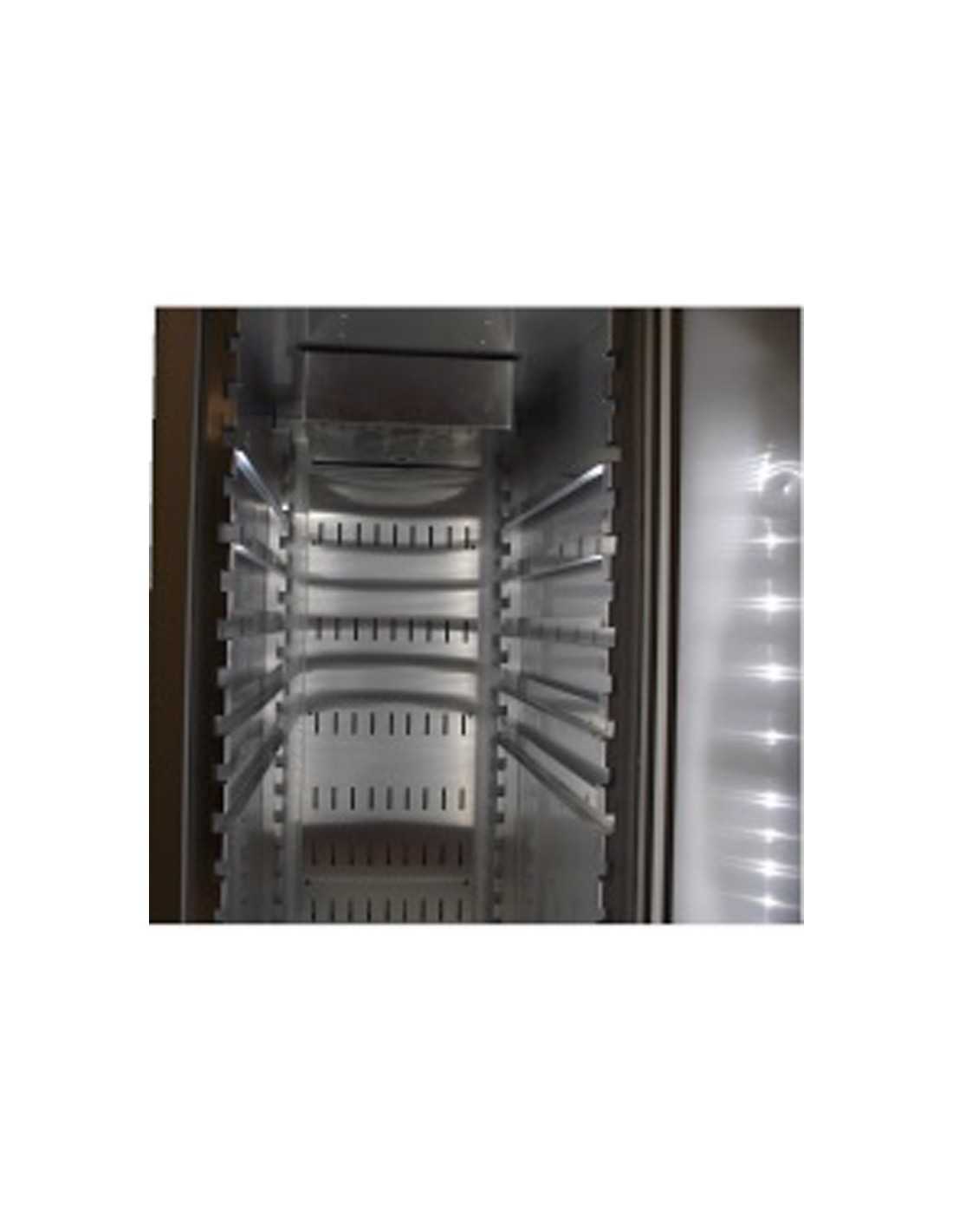

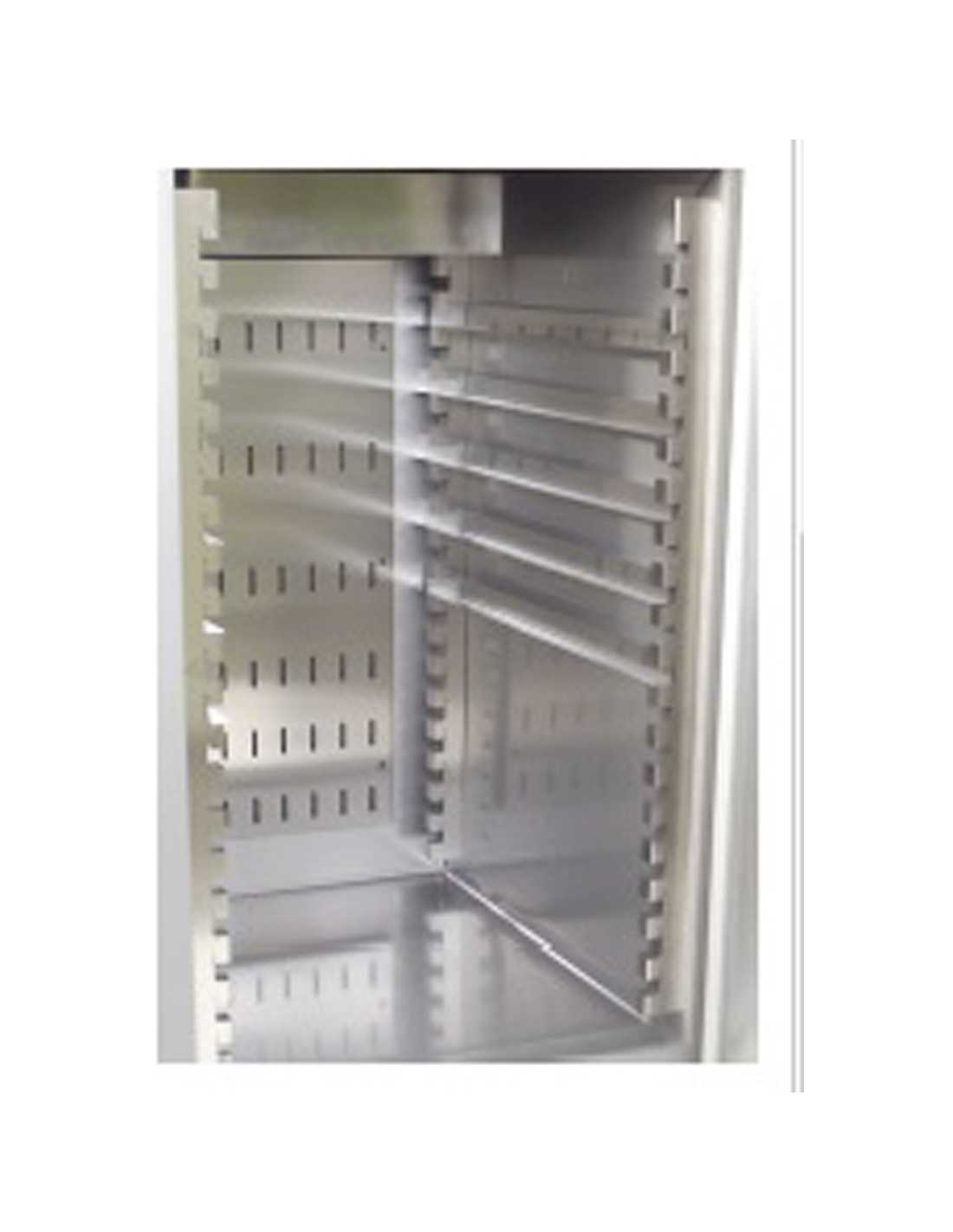

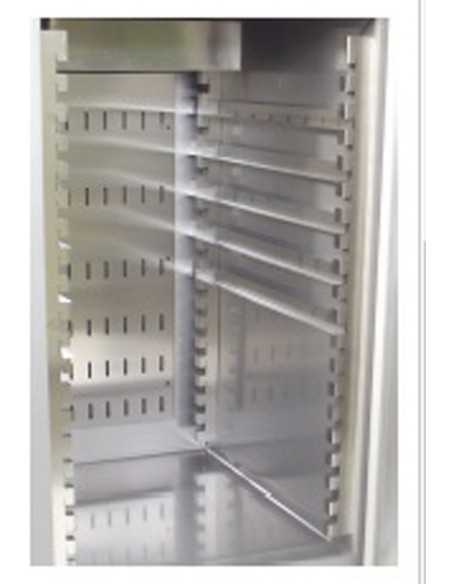

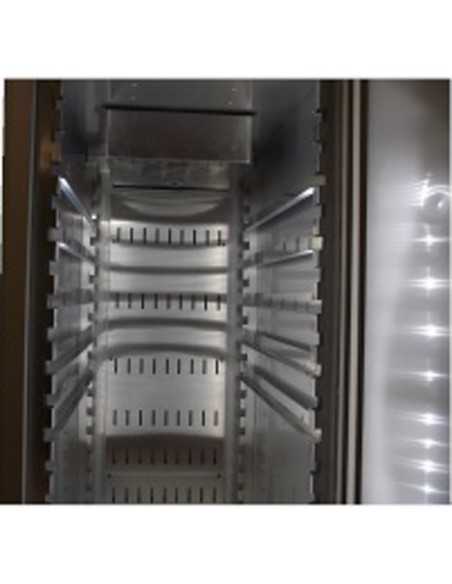

INTERIOR FITTINGS | |
---|---|
Tool-free removable uprights for easy cleaning in stainless steel AISI 304 18/10 | |
Guides at "L" for use of both 60 x 40 and 60 x 80 pans cm (mod. 900lt) |
HUMIDITY REGULATION | |
---|---|
For humidity regulation, the humidity value is obtained with a humidifier if it is required or with post-heating |

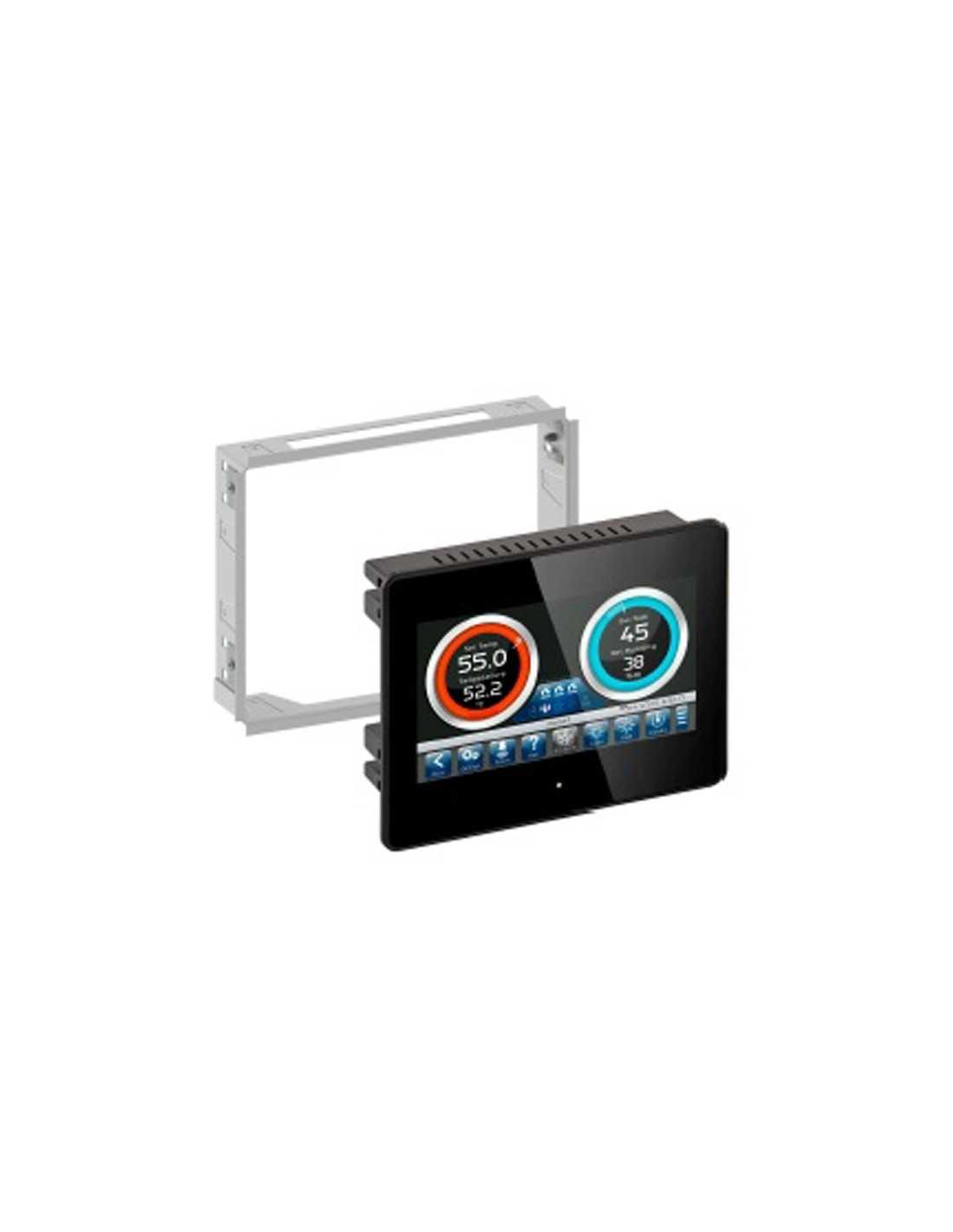

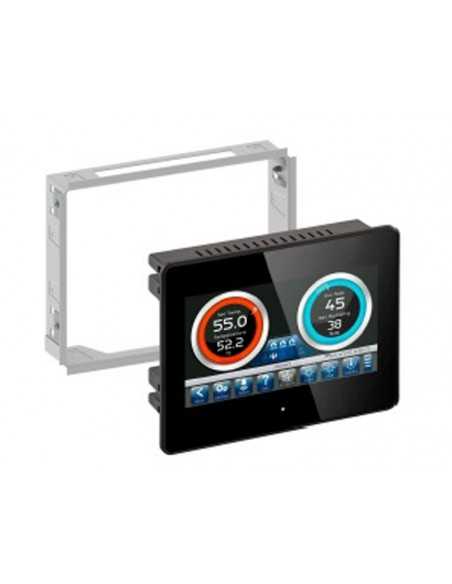

ELECTRONIC CAPACITIVE TOUCH CONTROL | |
---|---|
The Leavening Stop Cabinets mount a dedicated CAPACITIVE TOUCH Electronic Control for leavening stop cells. | |
It features an elegant 7″ TFT display with capacitive touch screen coupled with highly advanced software and an extremely intuitive user interface for easy operation. | |
Key features: | |
Manual operation for hot (rising); | |
Manual operation for cold (accumulation); | |
Management of customizable automatic leavening stop programs consisting of up to 9 settable phases (2 accumulation phases, 3 storage phases, 3 leavening phases and 1 rest phase); specifically for each phase it is possible to: -Enable its operation (except for Preservation phase 3 which is always present); -Set the functions to be enabled in the phase (Cold, Hot, Humidify, Dehumidify); -Set the phase duration, temperature setpoint and humidity setpoint; -Select the speed of the evaporator fans and enable fan forcing in continuous run; -Enable the temperature threshold below which to inhibit humidity management; -Enable defrosting for the accumulation and storage phases (a defrost is launched at the beginning of the rising phase, if enabled, and then in the rising and resting phases defrosting is always uninhibited); -Enable progressive attainment of the temperature setpoint (only for the rising phases); |
|
Ability to enable a warning at the end of the program and the oven advance control contact; | |
Storage of up to 12 programs in full memory and possibility of exporting and importing them to USB or microSD media; and | |
Diagram of current program with display of progress status (phases already executed, phase in progress and phases to be executed) and graph representation of all set values and remaining times | |
Adjustment range Temperature -45.0°C/ +99.0°C; | |
Humidity adjustment range 0-100 R.H.%; | |
EasySteam humidifier remote control and management |
