Canopy tool washer - Basket from cm 70 x 70 - Cm 85 x 85 x 196 h

-10%

Canopy tool washer - Basket from cm 70 x 70 - Cm 85 x 85 x 196 h

Name: Canopy tool washer - Basket from cm 70 x 70 - Cm 85 x 85 x 196 h
Brand: D.L. SERVICE
SKU: ADE-AP4
Price: 7387.2 EUR
Availability: InStock

ADE-AP4

Reference ADE-AP4

€7,387.20 €8,208.00 -10%

€7,387.20 Senza tasse €9,012.38 Con tasse €8,208.00 Senza tasse

Tax excluded

Shipping times: from 3 days to 15 working days

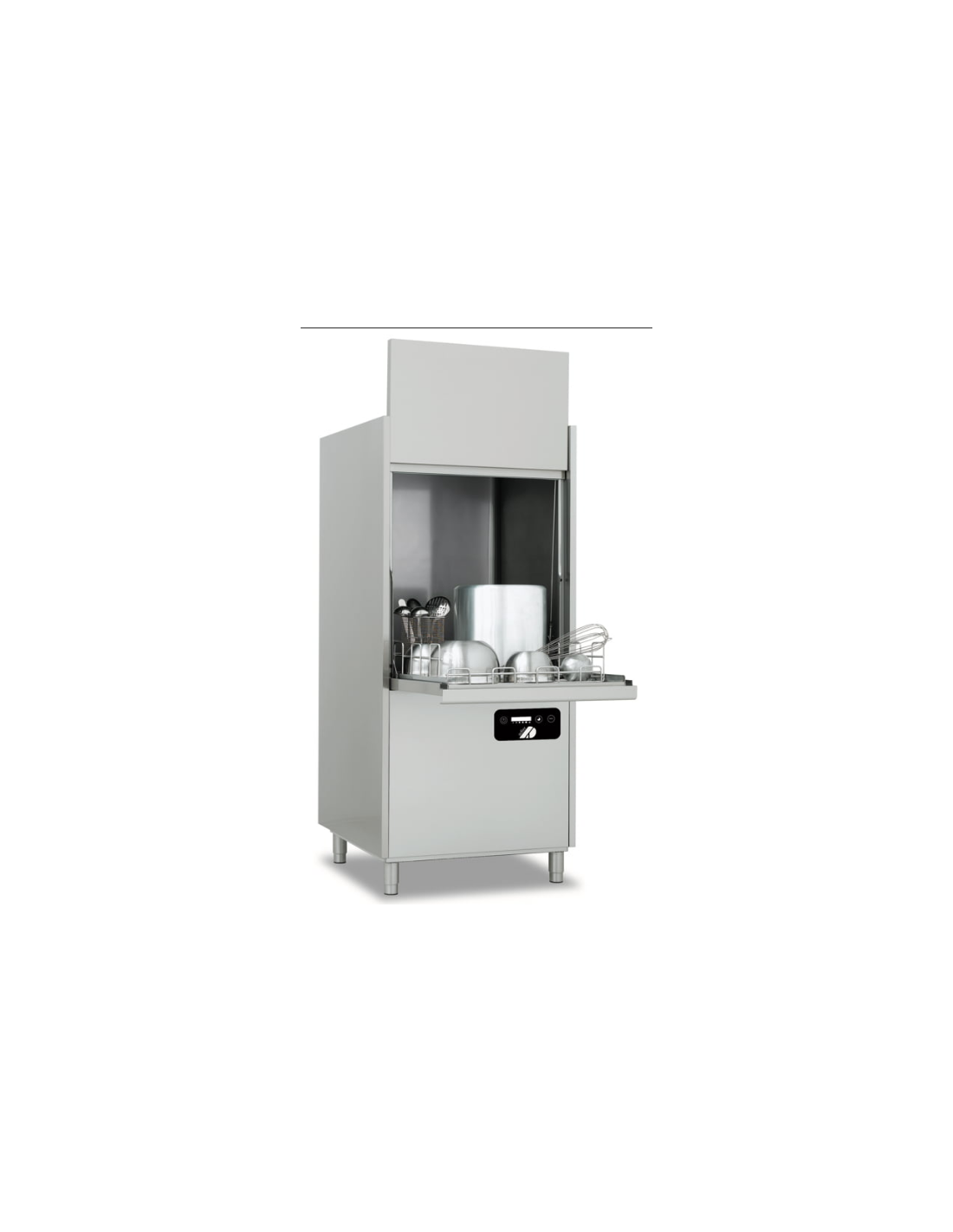

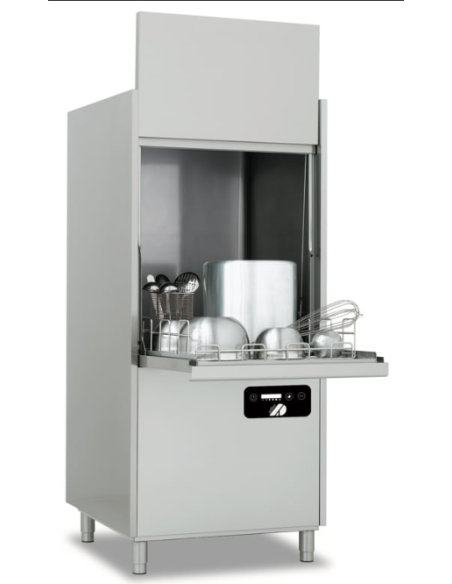

Capote tool washer with square basket cm 70 x 70 - Model AP4 - Digital Controls - Power supply Three-phase - Cm 85 x 85 x 196 h - Various use programs - Dimensions washing chamber cm 70 x 70 x 85 h

Request information

Ask a Quote

Options

ACCESSORIES

	Kit. electronic level sensor (no.1 unit)	Kit. electronic level sensor (no.1 unit) €38.70
	INOX basket for (model AP4) - Dimensions Outer cm 70 x 70 - Dimensions Inner cm 67 x 67	INOX basket for (model AP4) €140.40

Shipments

Information on electrical components

Tytes of Payments

Video

tab_file_1745310084.pdf

Production Times

How to contact us

Chef Costantino

Description
Product Details

Tool washer	Model AP4

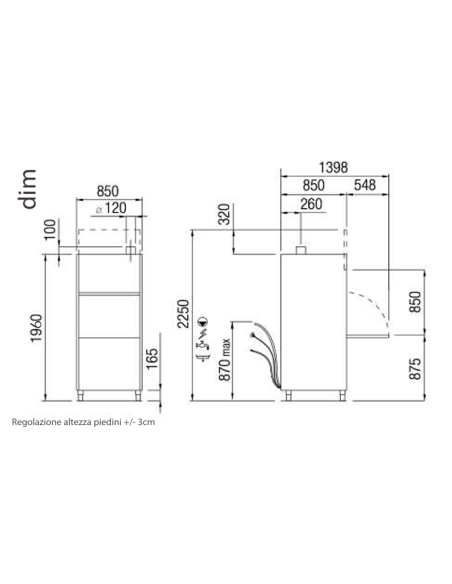

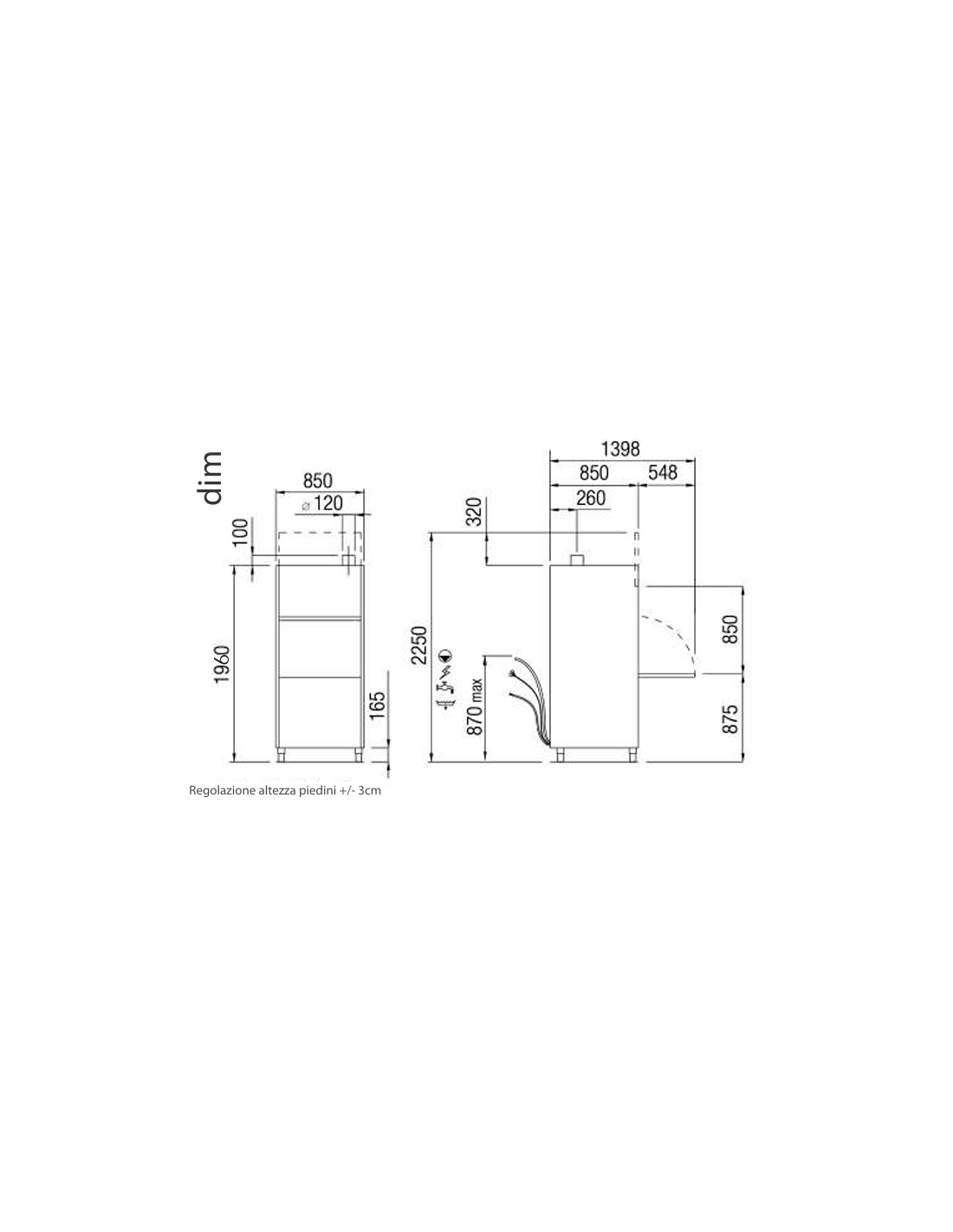

Dimensions	Cm 85 x 85 x 196 h
Dimensions washing chamber	Cm 70 x 70 x 85 h
Control panel	Digital
Power supply Three-phase	400V-3-50-60Hz
Energy consumption Three-phase	18.7 Kw
Max Absorption	Amp 32
Warranty	12 months
Standard	CE
Origin	Italy

TECHNICAL DATA
Inox basket	outside cm 70 x 70 - inside cm 67 x 67
Inlet water pressure	1 - 6 bar
Basket production-h	30
Temperature inlet water	15-60°C
Power discharge pump	40 W
Boiler heater	8 Kw
Capacity Boiler	12 L
Capacity tank	68 L
Resistance Tank	8 Kw
Power rinse pump	200 W
Power wash pump	2700 W
Detergent or rinse aid dispenser kit	Supplied

GENERAL FEATURES
LED backlit button interface
Large multifunction display
Double-wall constructed structure with insulated and counterbalanced door.
Tub molded and equipped with stainless steel surface filters that reduce the accumulation of dirt and obstruction inside the hydraulic part
Basket guides are molded with rounded corners
The wash chamber is free of internal piping and areas where dirt can accumulate
L'control interface consists of a 4-character LED display and two vertical indicators combined with four soft touch buttons.
The combination of colors, symbols, and text provides a simple and clear readout of the progress status of the wash cycle.
The display also provides information on wash and rinse temperature, remaining time, and machine self-diagnostics.
Temperature and chemical adjustment is made through the interface to optimize and achieve the best results according to the characteristics of the installation area.
Tool washer with stainless steel structure
Tool washer with included basket of: ext. dim. cm 56 x 63 - int. dim. cm 54 x 60.5
It is easy to use and very reliable over time thanks to the large backlit LED digital buttons, multifunction display and electronic control.
Utensil washer also suitable for pots and pans - and any kind of utensil that fits in it
Also features dfilter technology with dual filtration that ensures high-quality water filtration to preserve all components and ensure excellent washing results
All components are easy to remove, for daily cleaning operation, and placed at the front of the machine, for service maintenance
I various optional extras as accessories make this machine a perfect companion for any type of installation and use.

*BASKET: *Square basket*
*BASKET DIMENSIONS: *Cm 70 x 70
*DRAIN PUMP: *With drain pump*
*COMMANDS: *Electronic controls*

In stock 100 Items
