Roller Grinder - Length cm 140 - Ø cm 25 - cm 161 x 39.5 x 107 h
D-LLG-STR1425
D-LLG-STR1425
€3,876.59
€4,213.69
-8%
€3,876.59 Senza tasse
€4,729.45 Con tasse
€4,213.69 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

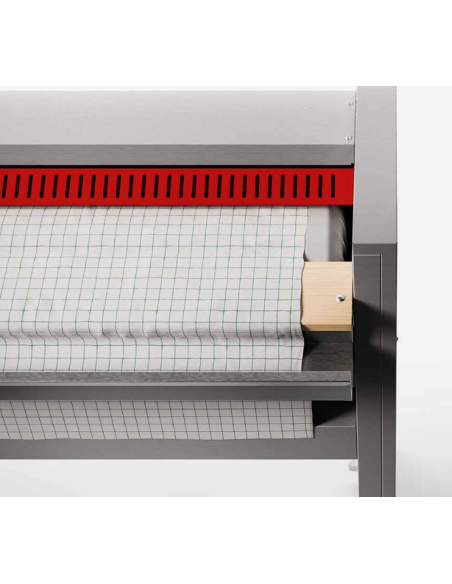

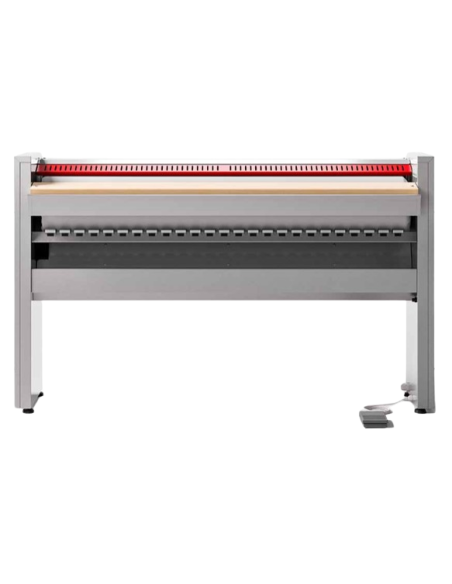

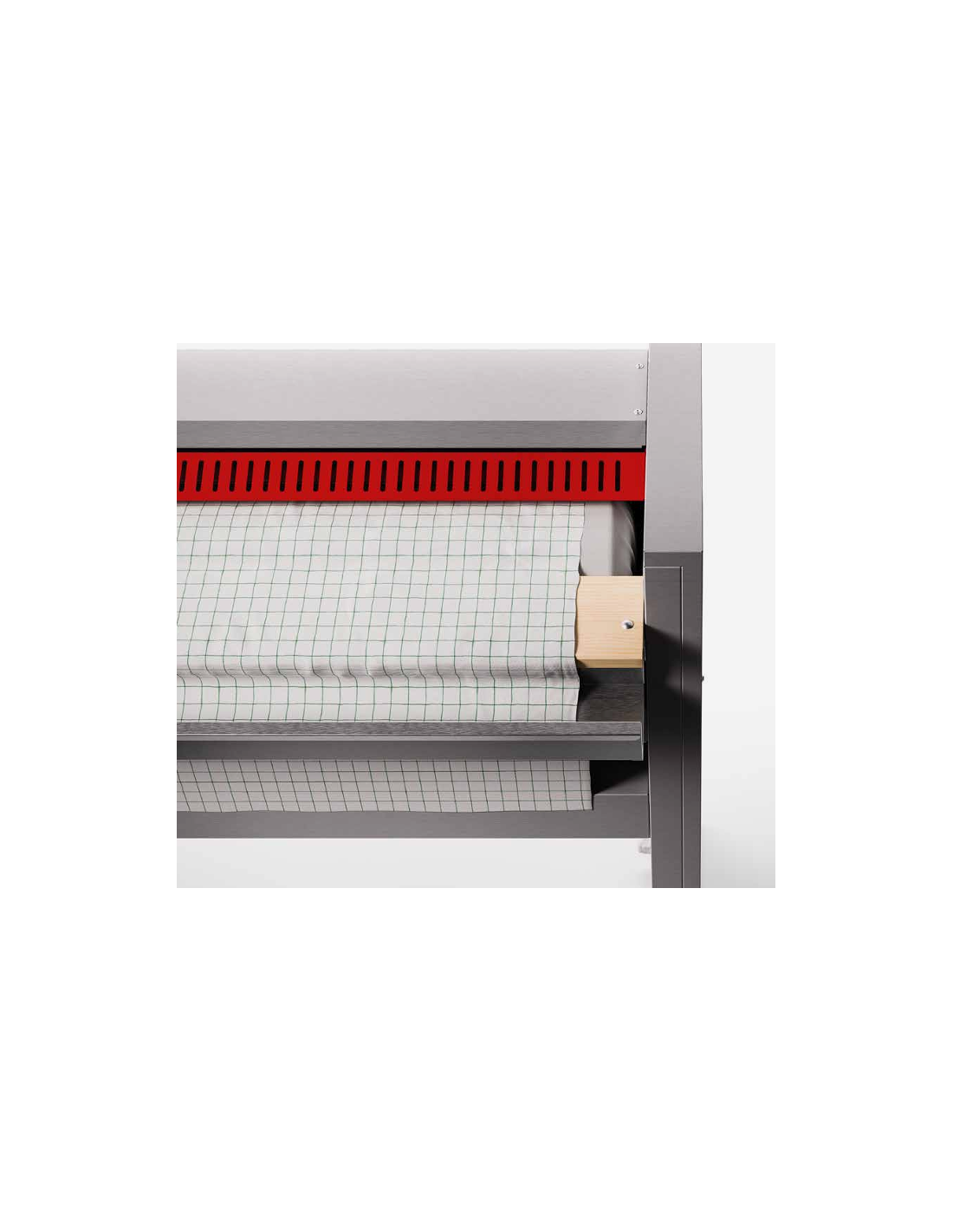

Roller Grinder - Model GI1425 - Automatic conca movement - Productivity kg 41 - Length cm 140 - Diameter cm 25 - Three-phase - Dimensions cm 161 x 39.5 x 107 h
| Stress | GI1425 |
| Dimensions product | cm 161 x 39.5 x 107 h |
| Dimensions packaging | C 172 x 53 x 131 h |
| Net weight / Lord | KG 99/119 |
| Warranty | 12 months |
| Norma | CE |
| Origin | Italy |
| TECHNICAL DATA | |
|---|---|
| Diameter of roller | mm 250 mm |
| Length of roll | mm 1400 |
| Productivity kg/h with UR% 10÷15% | 41 |
| Internal coating | Steel wool |
| External coating | Cotton cloth |
| Contact surface | 0.308 m2 |
| Conca Movement | Automatic |
| ELECTRICAL DATA | |
|---|---|
| Power supply | Three-phase V380-415/3/50H |
| Fuses | A 25-32 |
| Power engine roller | kW 0.03 |
| Power motor conca | Kw 0.05 |
| Power total | Kw 7.28 |
| Rumours | <60 dB |
| GENERAL FEATURES | |
|---|---|
| Self-supporting structure made of grey plastic plate with small side shoulders for the advantage of the roller width useful for ironing operations | |
| Automatic conca movement through new patented system free from maintenance and self-regulating | |

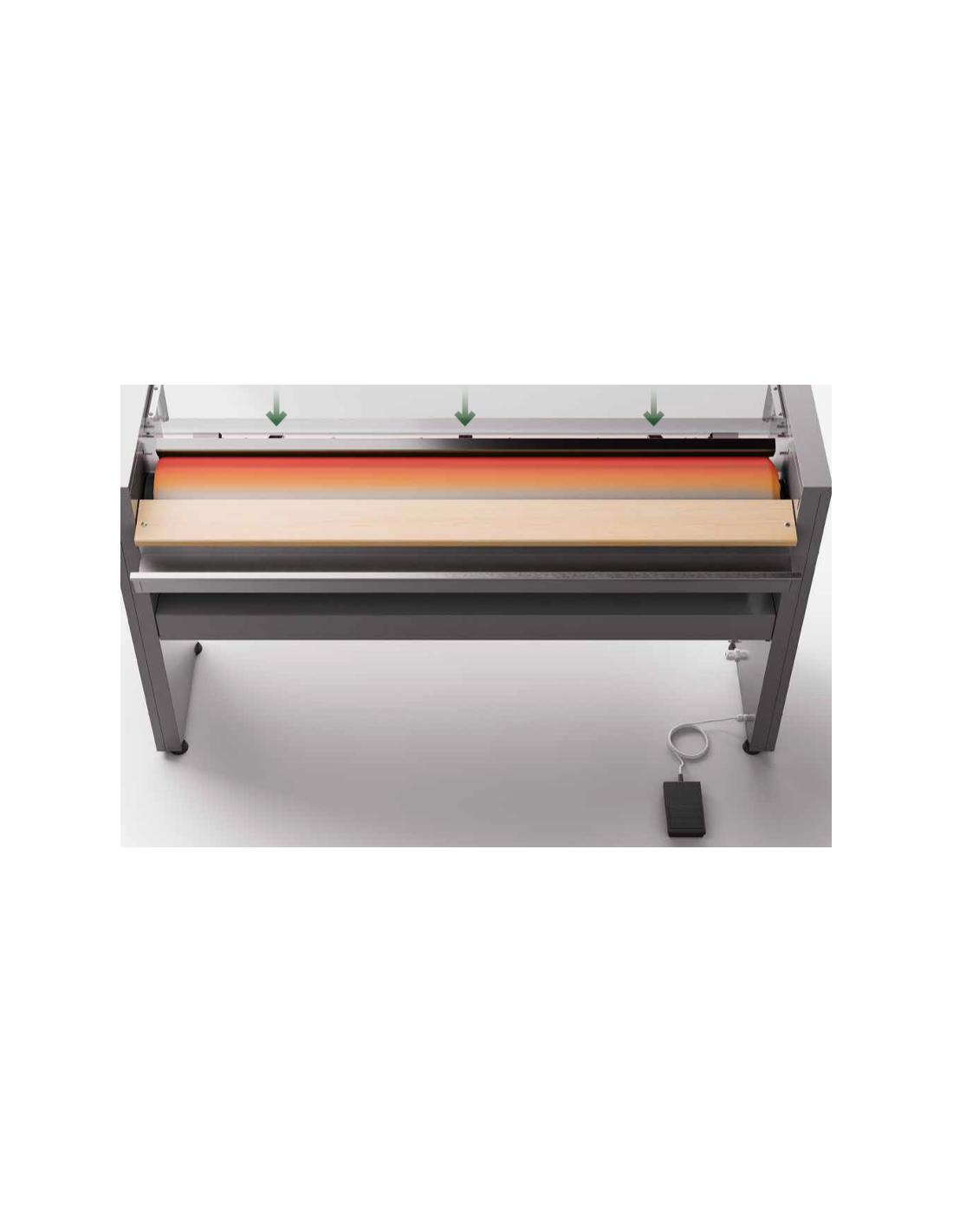

| 3 push elements placed behind the conca for uniformity of ironing quality throughout the roller | |
| Aluminum conca treated with deep anodising guarantee of long life and energy saving | |

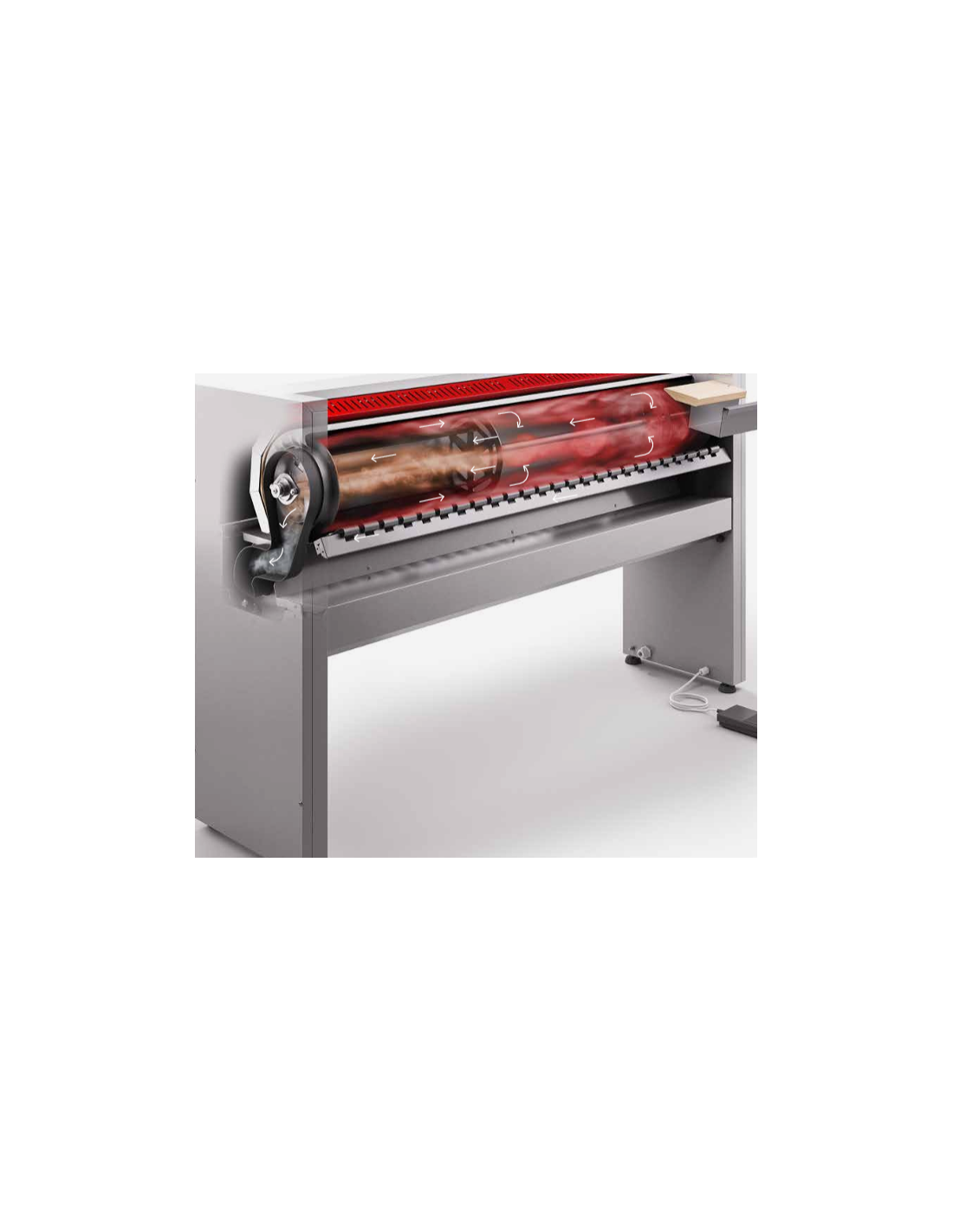

| Heating elements positioned inside the aluminium rod for excellent heat transmission | |
| Thermal insulation with thick ceramic wool | |
| Roller supported by bearings and padded with triple layer of steel wool, cotton spring and outer cotton cloth | |
| Single-front use with possibility of pulling the wall-mounted ironing machine | |
| Wooden axis to facilitate the introduction of the linen with adjustable angle so as to adapt to the height of the operator | |
| Wide upper part of the roller available to the operator to achieve a particularly useful introduction band effect in the case of large garments | |
| Hand-saving device for operator protection in case of wrong maneuvers with forced air cooling system | |
| Fox electronic control with temperature control with electronic thermostat | |
| Control panel placed in such a way that you can easily manage the parameters with one finger and without moving from the workplace | |
| Safety thermostat to prevent undesirable overheaving of manual rearmament | |
| Mobile pedal for the control of the movement of the conca (opening/(a) where more frequent garments than standard should be introduced | |
| Automatic device for removing the conca from the roller in case of lack of electricity that secures the machine and immediately allows to remove the head that was ironing |
