TECHNICAL DATA

Power supply

230V/1N/50HZ

Refrigerant

R290

Temperature

0+30°C - 40% ÷ 95% U.R.

Capacity

lt 1365

Equipment

10 pairs of stainless steel rails + no.10 stainless steel grids GN 2/1 - cm 53 x 65

Capacity

200 kg cheeses

Display

Touch 7 "

Power

2600 W/ 14 A

GENERAL FEATURES

Glass door with stainless steel profiles

Stainless steel exterior cladding AISI 304 with finish S. Brite

Stainless steel interior trim AISI 304

Interior with rounded edges and molded bottom

75 mm insulation made of environmentally friendly polyurethane

Stainless steel grill racks and guides AISI 304

Easily replaceable one-piece refrigeration unit

Ventilated refrigeration with cataphoresis-treated evaporator

Air-cooled condensing unit in class N (max +32°C)

Automatic defrosting with electric resistance

Standard resistance humidifier unit (water connection required)

Condensate collection with removable tray

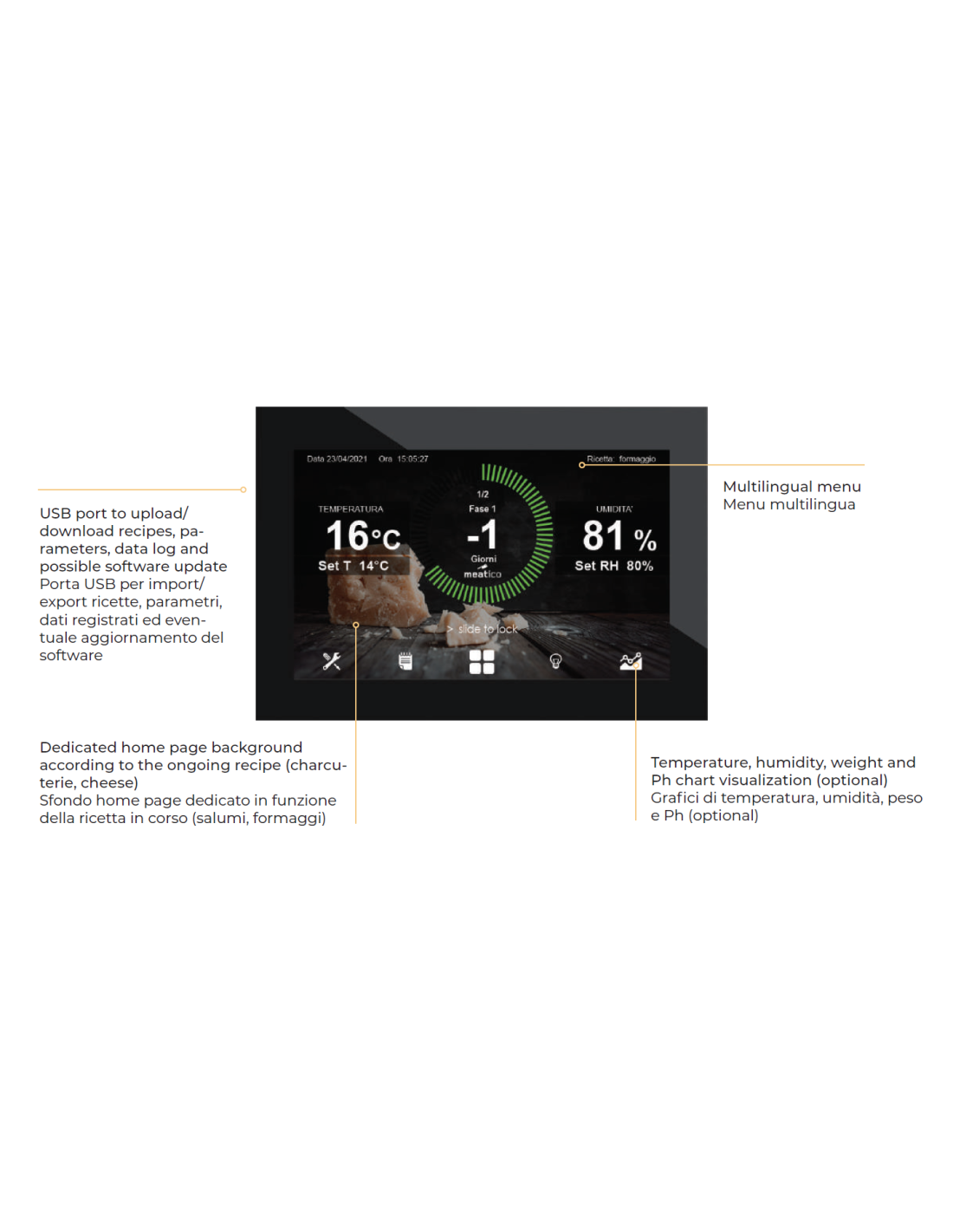

Electronic control panel with 7" touch screen display

Key lock

Self-closing doors with latch at 105°

Easily replaceable magnetic gaskets

Stainless steel feet adjustable in height (130-200 mm)

Remote connection as standard

8 preset recipes + 150 programmable recipes +20 separate steps for each recipe

Quick setting and display of temperature, humidity, ventilation speed, air changes and run-stop

Drying cabinet 700 litre capacity - No. 1 door

Drying cabinet 700 litre capacity - No. 1 door 2

-10%

Curing chambers

Drying cabinet 700 litre capacity - No. 1 door

D.L. SERVICE

I-BB-71CT

€2,884.12 €3,204.58 €2,884.12 Senza tasse €3,518.63 Con tasse

Drying cabinet - Model71CT - Stainless steel storage - Touch screen panel - No. 1 door - Operating temperature -6°/+40°C - Capacity lt 700 - Size cm 72 x 80 x 202 h

	Extra charge for wheels instead of feet	Additional wheel application €177.30
	Stainless steel tray	Stainless steel tray €144.00
	Pair of stainless steel guides for grids	Pair of stainless steel guides for grills €67.50
	Stainless steel grill cm 65 x 53	Stainless steel grill cm 65 x 53 €71.10
	Pin product Probe	Clamp product cover €180.90
	PH measurement probe with solution kit	PH measurement probe with solution kit €946.80
	Portable PH measuring instrument	Portable PH Measuring Instrument €630.90
	Transformer 115/120V-220V	Transformer 115/120V-220V €439.20
	Frequency at 60Hz mod. 1500	Frequency 60 Hz mod. 1500 €324.00
	Black feet cover on 3 sides for mod.1500	Black feet cover on 3 sides for mod.1500 €326.70

Drying cabinet	AC8C17
Dimensions product	cm 150 x 85 x 208 h
Dimensions packaging	cm 154 x 88 x 223.5h
Weight	238 kg - 265 kg
Standard	CE
Warranty	12

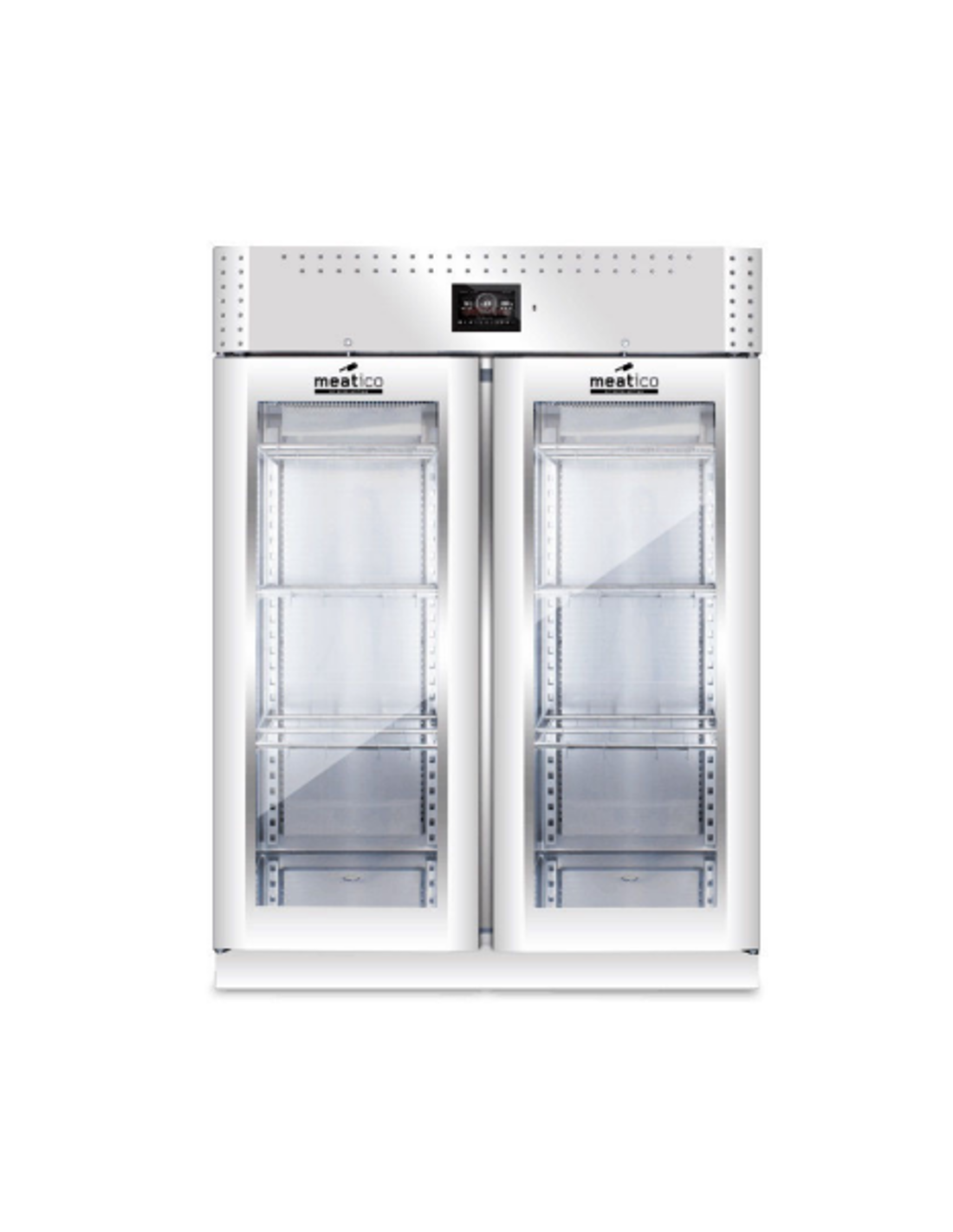

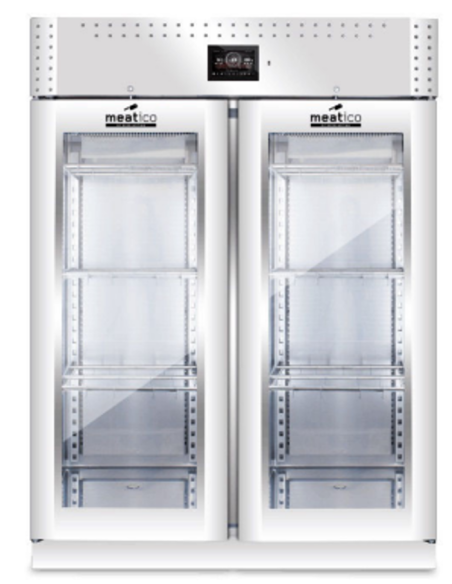

Drying cabinet cheese 1365 liter - Glass door
