%product-name%
Digital blast chiller and freezer, 10 GN 1/1 or 60 x 40 cm trays, 190 litres - cm 75 x 75 x 131/133 h
Digital blast chiller and freezer, 10 GN 1/1 or 60 x 40 cm trays, 190 litres - cm 75 x 75 x 131/133 h
Digital blast chiller and freezer, 10 GN 1/1 or 60 x 40 cm trays, 190 litres - cm 75 x 75 x 131/133 h
  • -10%
%product-name%
Digital blast chiller and freezer, 10 GN 1/1 or...
Digital blast chiller and freezer, 10 GN 1/1 or...
Digital blast chiller and freezer, 10 GN 1/1 or...

Digital blast chiller and freezer, 10 GN 1/1 or 60 x 40 cm trays, 190 litres - cm 75 x 75 x 131/133 h

TDIM-ATT10
TDIM-ATT10
€3,231.00 €3,590.00 -10%
€3,231.00 Senza tasse €3,941.82 Con tasse €3,590.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

Digital blast chiller, 10 GN 1/1 or 60 x 40 cm trays, 190 litres, built-in unit. Temperature +3/-18 °C, running input 800 W, single-phase. Cm 75 x 75 x 131/133 (LxPxh).

Request information

Options

+ ACCESSORIES

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


icon_image_1679324863.png Shipments

icon_image_1734099125.png Information on electrical components



icon_image_1695971686.png Tytes of Payments

icon_image_1695971505.png Video
icon_image_1696600654.png Production Times

icon_image_1696602441.png How to contact us

icon_image_1788510258.png Chef Costantino

x
PRENOTA UNA VIDEOCHIAMATA

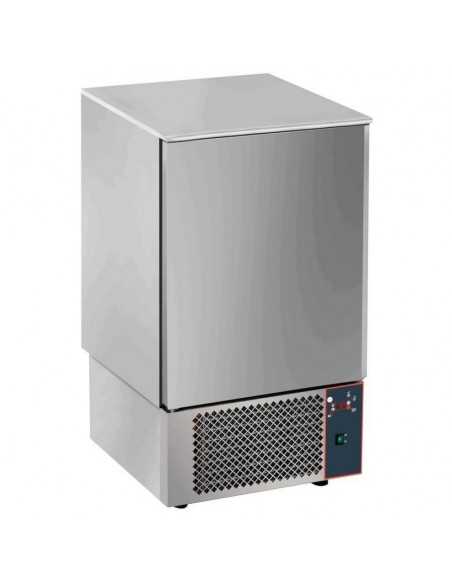

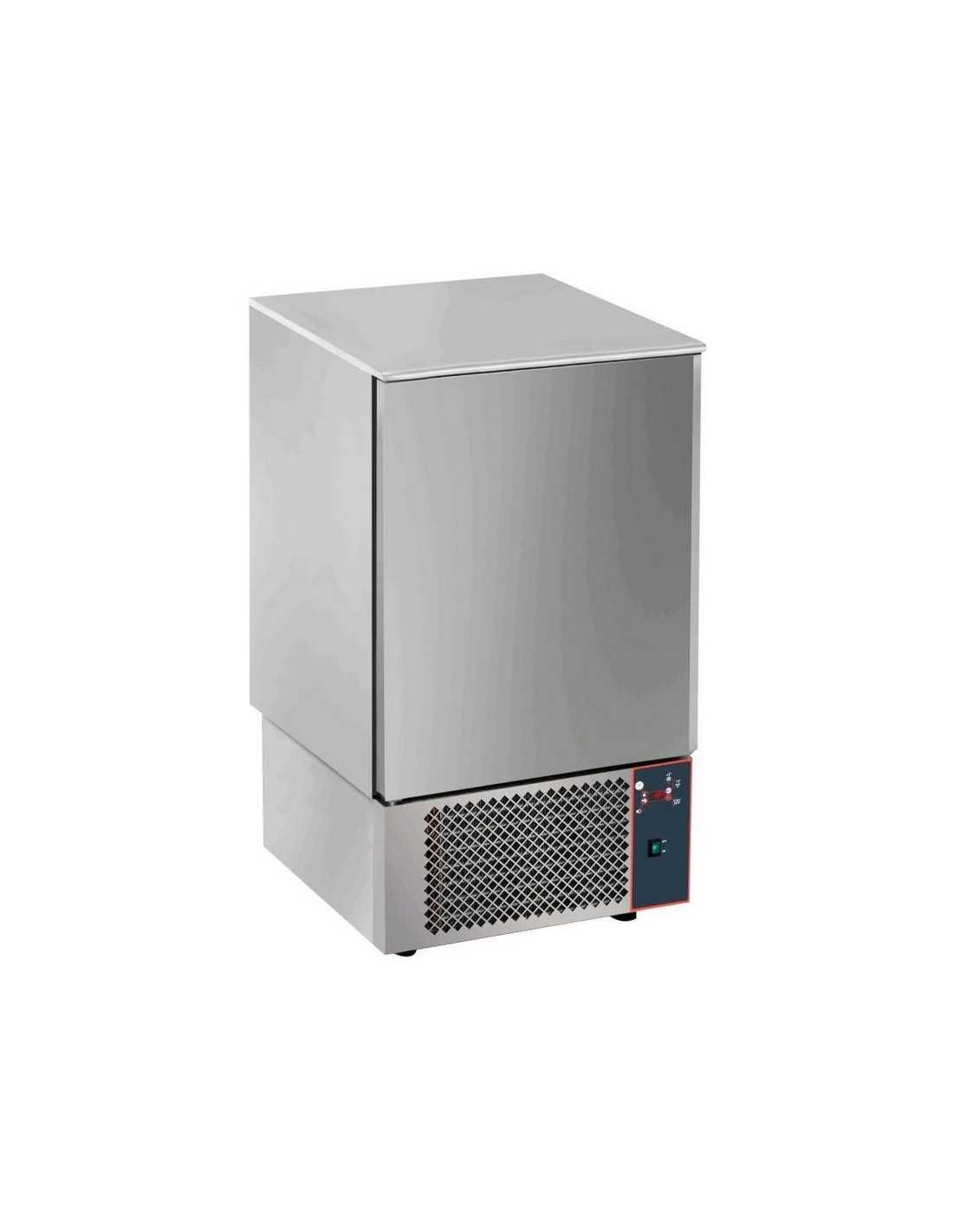

Digital blast chiller and freezer for 10 trays ATT10
Ideal for Restaurants, delicatessens, pastry shops, food production facilities and professional kitchens.
Product dimensions cm 75 x 75 x 131/133 (LxPxh)
Compliance CE
Warranty 12 months
Origin Italy
TECHNICAL DATA
Type Blast chiller and freezer with digital electronic control.
Capacity 10 GN 1/1 trays or trays measuring 60 x 40 cm.
Internal volume 190 litres.
Chamber dimensions cm 61 x 43 x 76 (LxPxh)
Guide spacing 7 cm
Blast chilling yield at +3 °C 25 kg of food.
Freezing yield at -18 °C 15 kg of food.
Cycles Two selectable cycles with core probe: +3 °C and -18 °C.
Refrigeration Fan-assisted, with built-in condensing unit.
Refrigerant R452A / R455A; R290 on request.
Running electrical input 800 W / 5.4 A.
Starting electrical input 1300 W / 7.8 A.
Power supply Single-phase.
Voltage 220 / 240 V, 1P.
Frequency 50 Hz; 60 Hz on request.
Climate class and testing conditions Class 4; ambient temperature +30 °C and relative humidity 60%.
Materials Stainless steel interior and exterior, except for the external base in galvanised steel.
Insulation High-pressure injected CFC-free polyurethane, density 40 kg/m³. Thickness 6 cm.
Door 5 cm thick, self-closing, with left-hand hinges and magnetic gasket.
Evaporator With anti-corrosion cataphoresis treatment.
Defrosting With the door open, without heaters or hot gas.
Condensate collection Removable plastic tray.
Feet 4 stainless steel feet, adjustable in height from 6 to 8 cm.
Standard packaging Pallet and cardboard.
GENERAL FEATURES

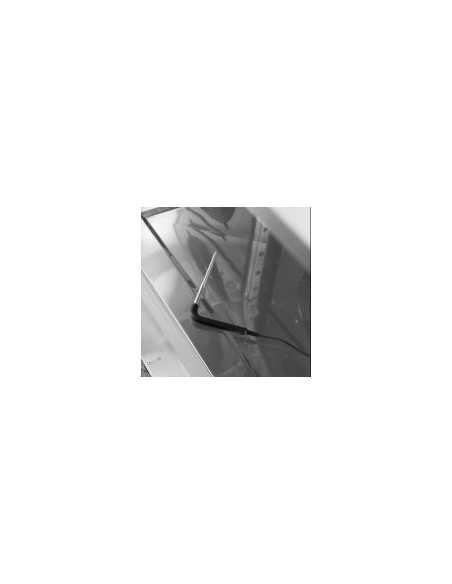

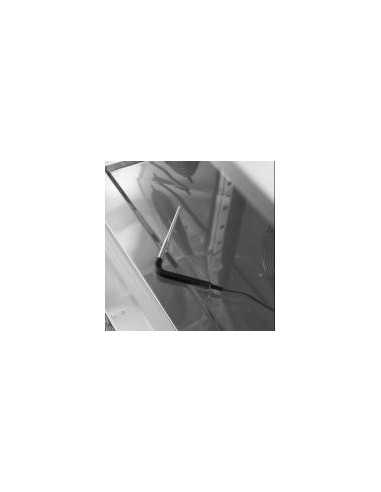

Professional blast chiller with built-in condensing unit and a front panel with digital electronic control. Two cycles can be selected using the core probe: blast chilling to +3 °C and freezing to -18 °C.

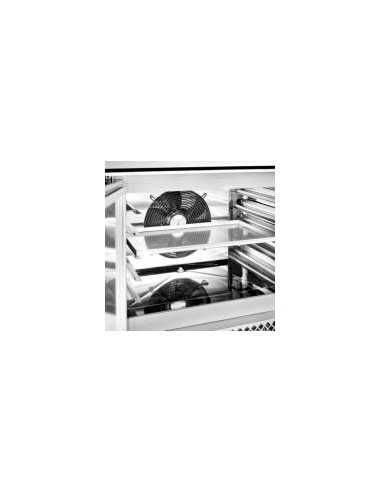

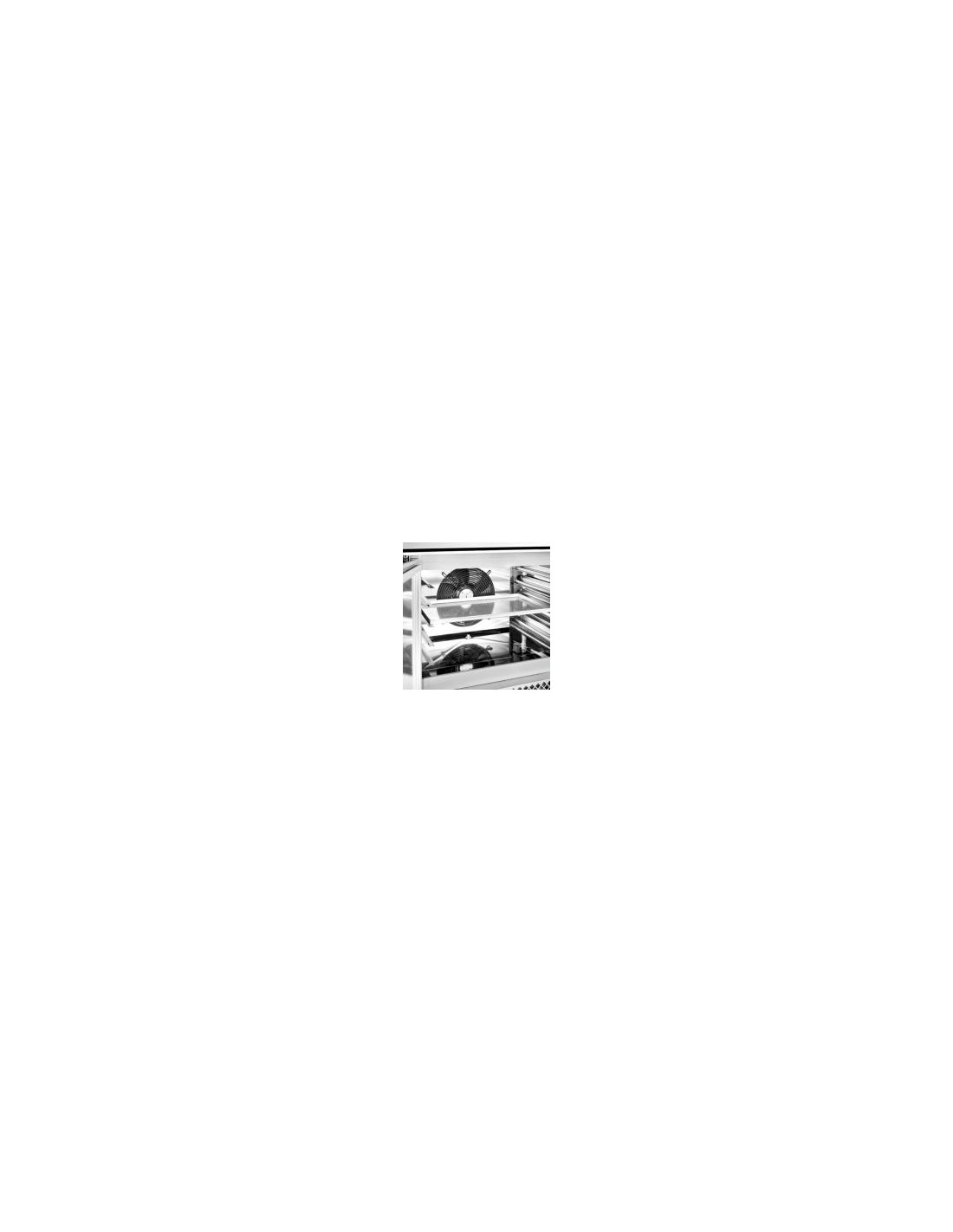

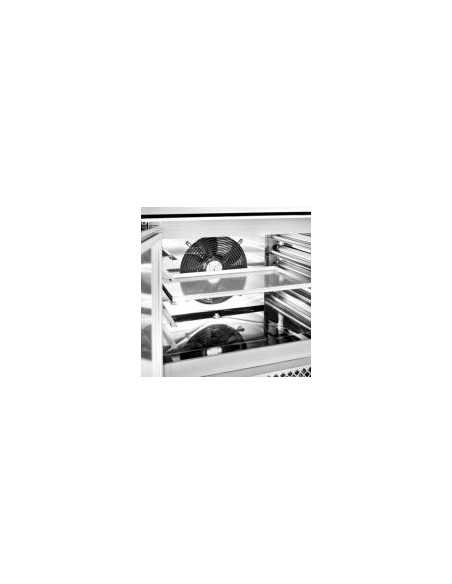

The 190-litre chamber has 10 pairs of universal stainless steel guides compatible with GN 1/1 and 60 x 40 cm trays. Rounded internal corners facilitate cleaning.
The CFC-free polyurethane-insulated structure features a self-closing door with magnetic gasket and left-hand hinges. The evaporator has an anti-corrosion cataphoresis coating.

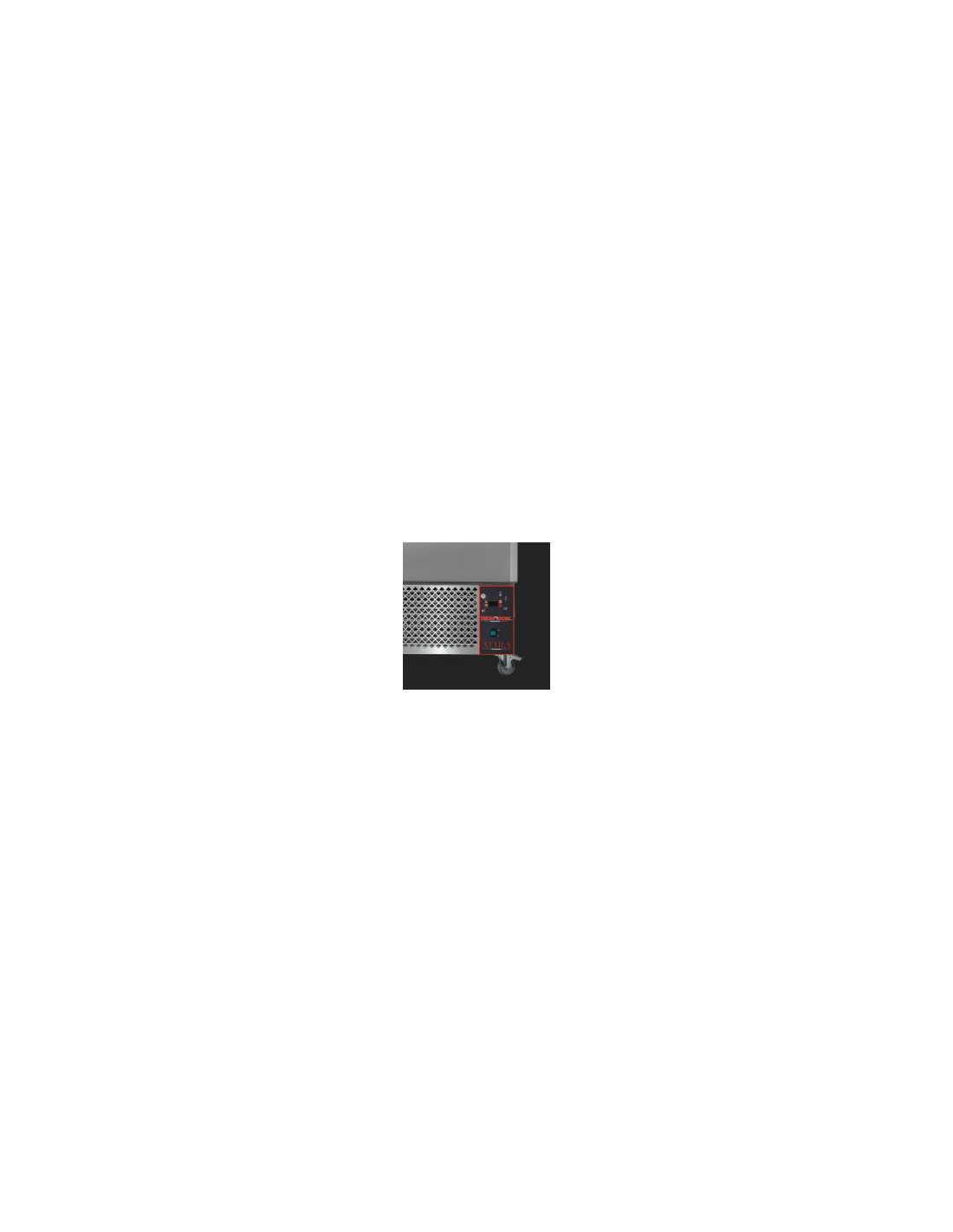

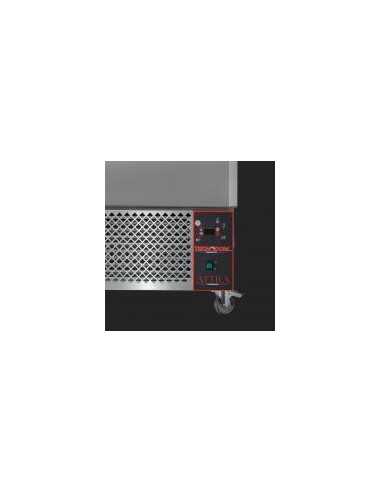

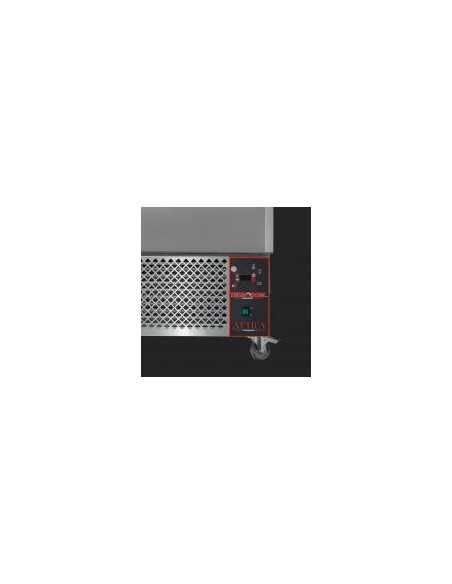

The condensing unit's front grille opens for access during cleaning and maintenance. The electrical compartment, on the right when viewed from the front, is accessible for inspection.
INCLUDED EQUIPMENT
Built-in condensing unit, digital control, chamber probe, core probe, 10 pairs of universal stainless steel guides for GN 1/1 and 60 x 40 cm trays, left-hinged door, 4 adjustable feet and removable condensate tray. Trays and grids are not included.
PROFESSIONAL APPLICATIONS
Designed for blast chilling and freezing food in catering businesses and food production facilities, with temperature monitoring using a core probe.
CLEANING AND MAINTENANCE
Rounded internal corners, a removable condensate tray and an opening front grille facilitate cleaning and access to the condensing unit. Defrosting takes place with the door open, without heaters or hot gas.
OPTIONAL ACCESSORIES AND CONFIGURATIONS
Kit of 4 castors, 2 braked and 2 unbraked, height 8 cm. Dimensions with castors: cm 75 x 75 x 136 (LxPxh). R290 refrigerant, 60 Hz frequency and an operating temperature setting down to -32 °C are available on request.
Separately available accessories: pairs of universal stainless steel guides; plastic-coated GN 1/1 grids measuring 53 x 32.5 cm and pastry grids measuring 60 x 40 cm; stainless steel GN 1/1 trays measuring cm 53 x 32.5 x 1.2 and pastry trays measuring cm 60 x 40 x 1.2; stainless steel perforated shelves in the same formats.
Also available: stainless steel GN 1/1 pan measuring cm 53 x 32.5 x 15, stainless steel GN 1/1 lid measuring cm 53 x 32.5 x 1.2, and transparent polypropylene fish container with false bottom measuring cm 53 x 32.5 x 15. Three-part dimensions follow the LxPxh order. Fumigation-treated packaging is available at an additional charge.
*BLAST CHILLER CAPACITY
*Teglie 10
*PAN DIMENSIONS
*Cm 60 x 40
*GN 1/1 (cm 53 x 32.5)
