Dryer - tumble dryer with a load capacity of 40 kg
Dryer - tumble dryer with a load capacity of 40 kg
Dryer - tumble dryer with a load capacity of 40 kg
  • -8%
%product-name%
Dryer - tumble dryer with a load capacity of 40 kg
Dryer - tumble dryer with a load capacity of 40 kg
Dryer - tumble dryer with a load capacity of 40 kg

Dryer - tumble dryer with a load capacity of 40 kg

DL-GR-ES800
DL-GR-ES800
€11,776.00 €12,800.00 -8%
€11,776.00 Senza tasse €14,366.72 Con tasse €12,800.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

Dryer - dryer with loading capacity 40 kg - porthole diameter cm 61.2 - stainless steel basket - three-phase power supply - dimensions cm 114 x 159 x 195 h

HEATING TYPE

Options

+ ACCESSORIES

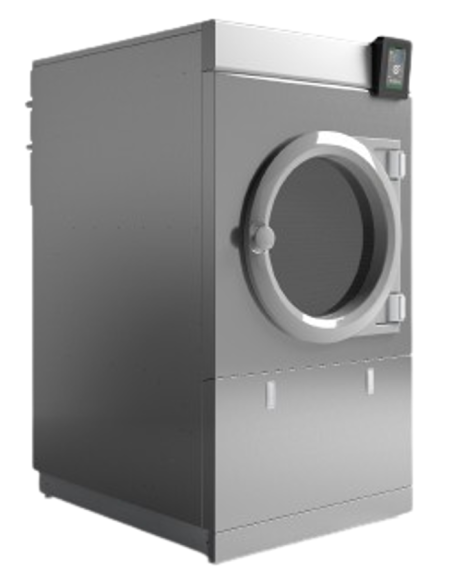

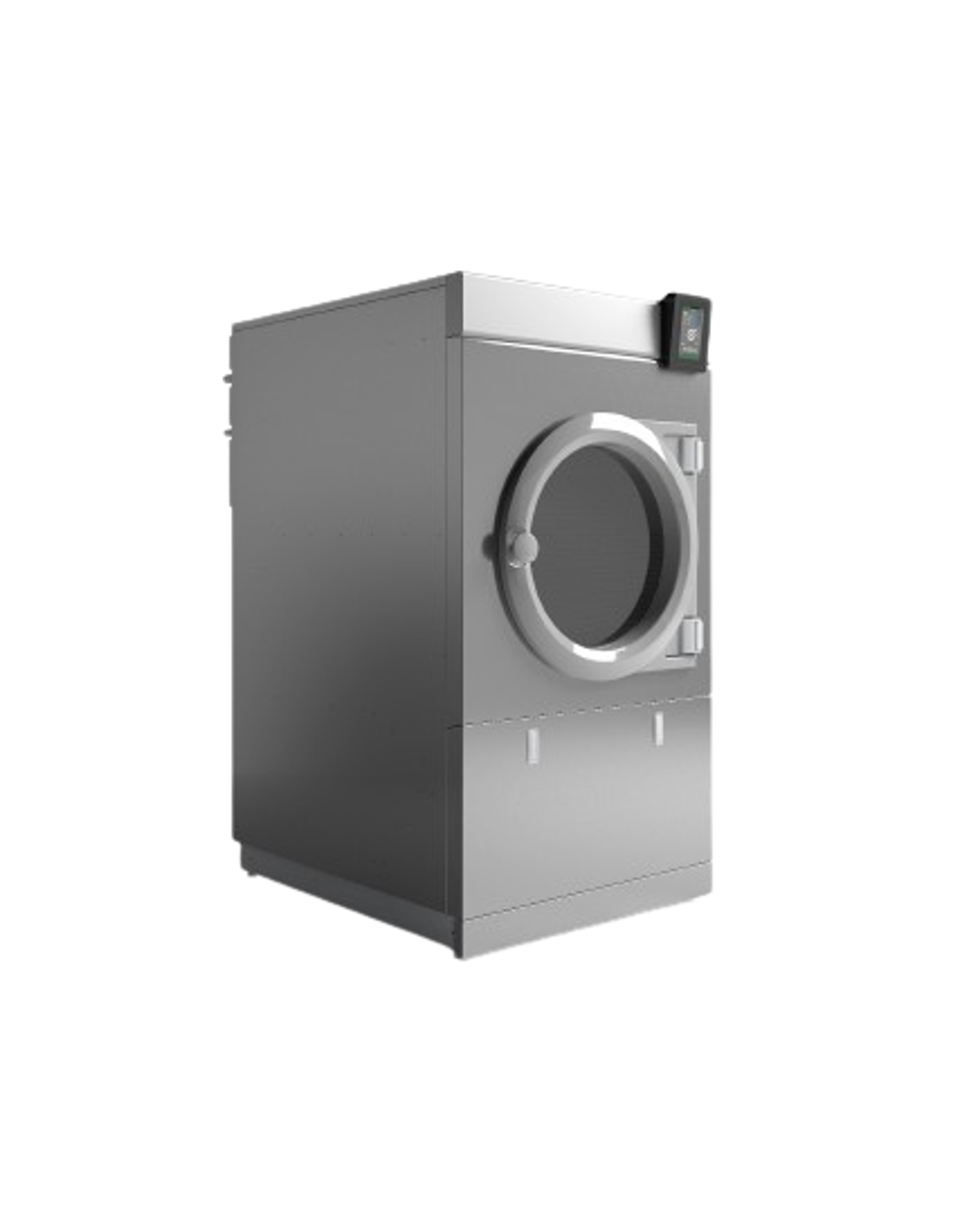

Dryer - professional dryer Model: ES800
Dimensions product cm 114 x 159 x 195 h
Dimensions packaging cm 135 x 178 x 200 h
Net weight / Gross Kg 435 - 455
Warranty 12 months
Standard CE
Origin Italy
TECHNICAL DATA
External structure Skin Plate ( optional stainless steel )
Standard basket Stainless steel
Capacity ratio kg 32 (1:25) - kg 40 (1:20) - kg 44 (1:18)
Basket volume 800 dm3
Basket diameter cm 61.2
Basket rotation speed 40 rpm - (20-60 optional)
ELECTRICAL DATA
Power supply 380V - 415V - 3N - 50/60 Hz
Power Direct drive motor kW 1.10 (suction) - 1.10 (basket)
Exhaust Diameter mm 250
Transmission with gear motor
Noise level dB < 60
Power Electric Kw 42
Power thermal Gas Kw 34 / 52 linear regulation
Power thermal Steam Kw 56
Steam consumption Kg/h 96
Steam Pressure kPa-bar 600-6
GENERAL FEATURES
Verification of effective rotation of aluminized sheet metal basket by sensors
Redundant safety systems: porthole opening, filter door, temperature management

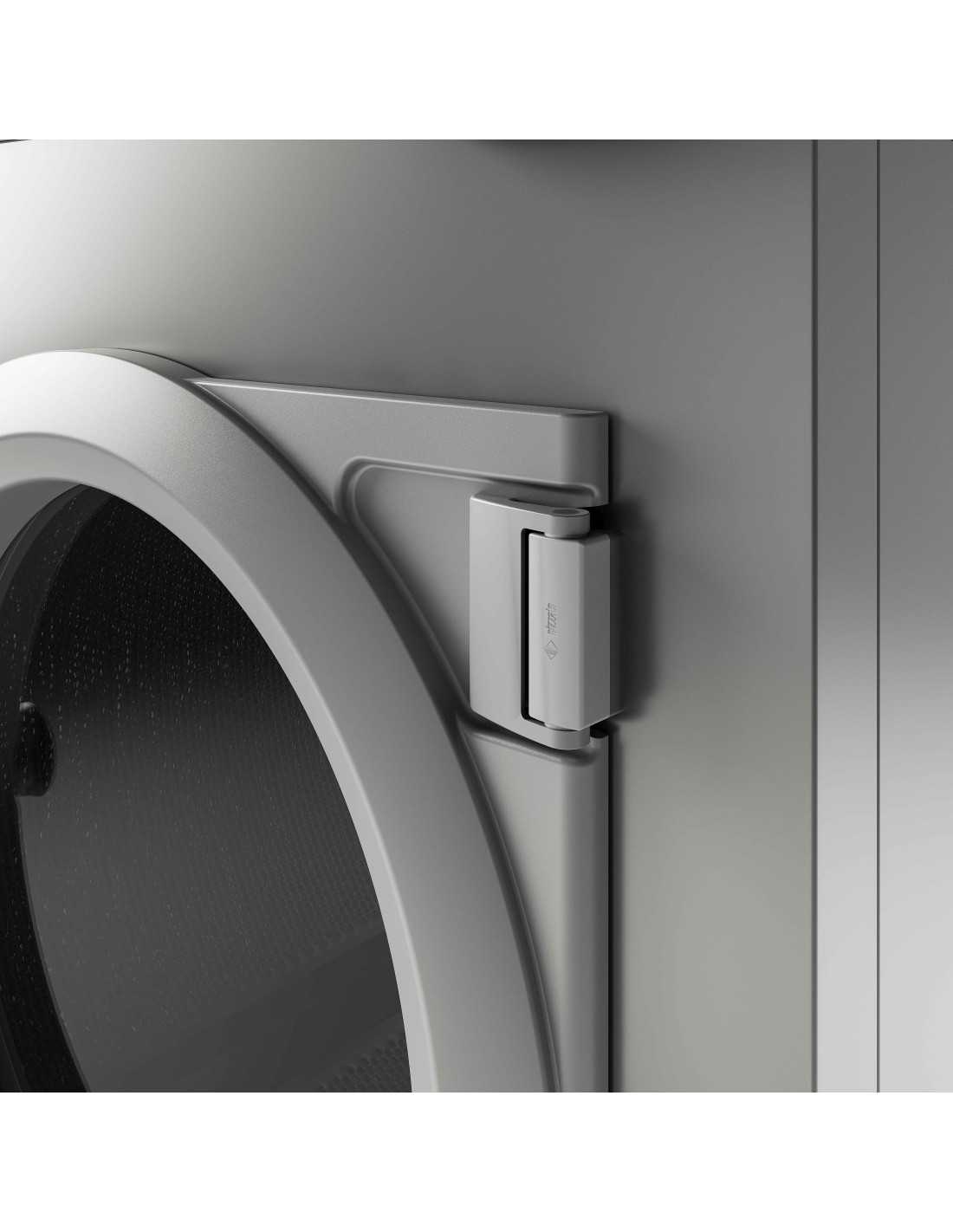

Porthole that can be opened 180° ease of loading and unloading laundry by pulling the trolley directly up to the front of the machine
Easy and fast maintenance thanks to the positioning and compartmentalization of internal components
Unlimited manually programmable drying diagrams to optimize effective resource consumption

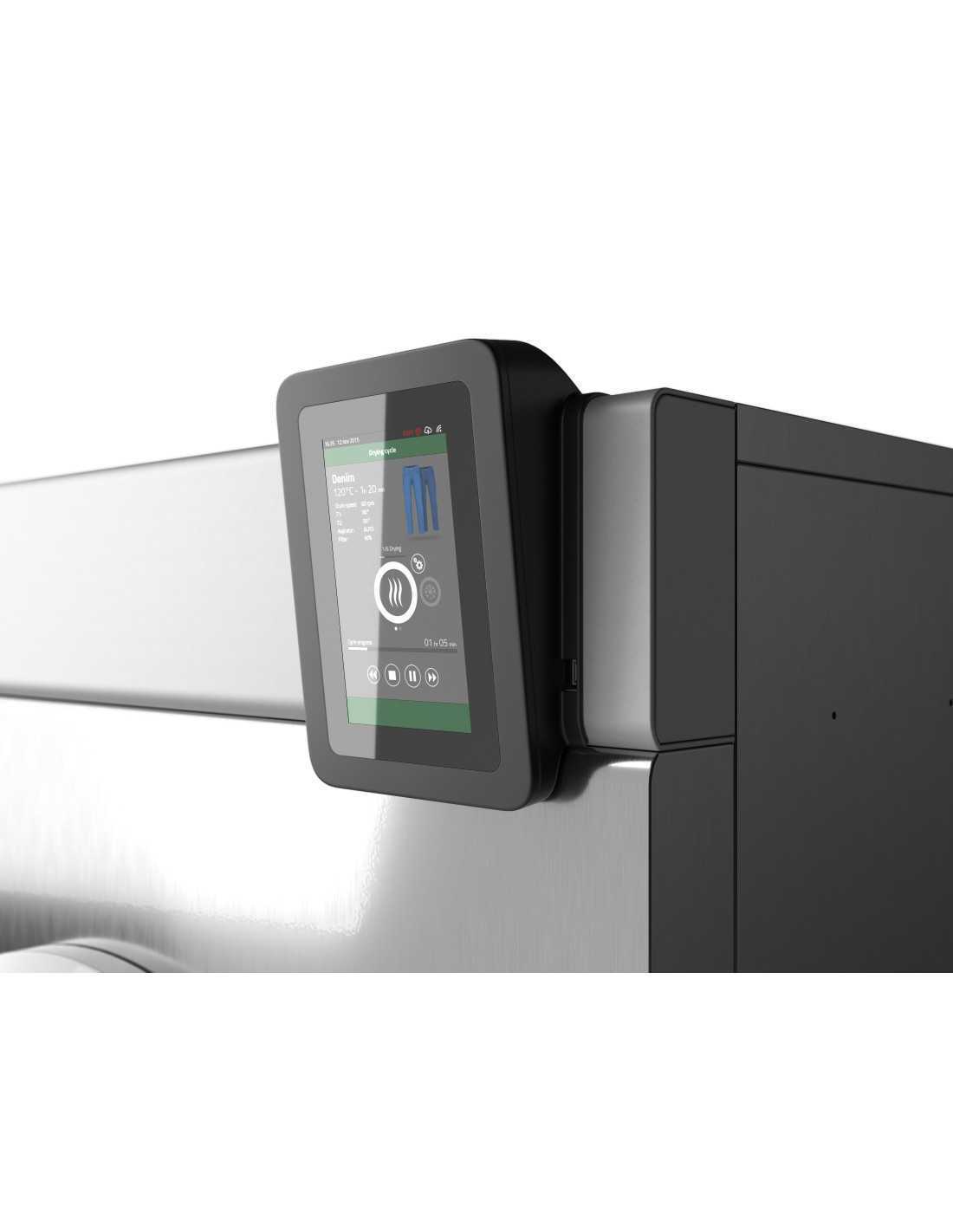

Wavy control as standard: the user interface that can be set according to usage, unlimited possibilities to create and customize programs.
Storage of all usage data
Large volume of air displaced at extreme smoothness of operation.
L'Outlet air is filtered by a stainless steel filter.
T2 probe at exhaust in standard execution, metal scroll
Thermal insulation: 25 mm ceramic fiber allows low heating power and low exhaust air temperatures
Direct-drive beltless transmission system and freely programmable basket rotation speed between 28 rpm and 43 rpm
OPTIONAL:
Humidity probe at the exhaust
Left-hand door opening
Stainless steel front panels
Stainless steel side panels
Fire suppression system
Adjustment of extractor fan power to adapt the instalment to the most difficult chimney conditions


*DRYER TYPE
*Room superimposed on a closed circuit*
