Bar counter and back counter - Cm L 250 x P 232.5 x h 95.1

-10%

Bar counter and back counter - Cm L 250 x P...

Bar counter and back counter - Cm L 250 x P 232.5 x h 95.1

Name: Bar counter and back counter - Cm L 250 x P 232.5 x h 95.1
Brand: IFI SPA
SKU: I-FFI-L2500/951
Price: 8189.96 EUR
Availability: InStock

I-FFI-L2500/951

Reference I-FFI-L2500/951

€8,189.96 €9,099.96 -10%

€8,189.96 Senza tasse €9,991.76 Con tasse €9,099.96 Senza tasse

Tax excluded

Bar counter and back counter - N. 3 refrigerated cells - Coffee machine station - Sink ø 42 cm and mixer - Ventilated refrigeration - Motor on board - Power supply single-phase V230/1/50Hz - Dimensions Cm L 250 x P 232.5 x h 95.1

StartUp line color variant

Request information

Ask a Quote

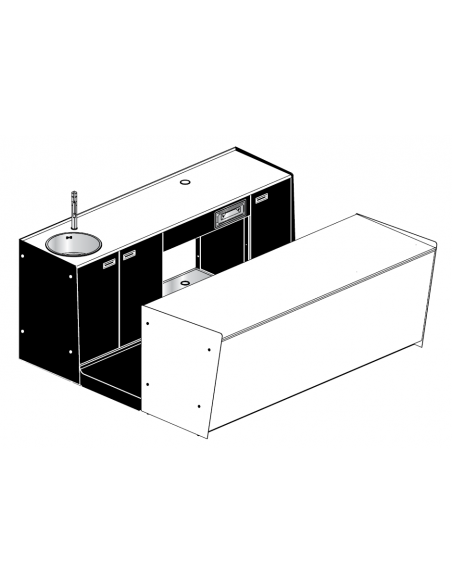

Bar counter and back counter

Shipments

Information on electrical components

Tytes of Payments

Video


Production Times

How to contact us

Chef Costantino

Description
Product Details

STAR UP BAR COUNTER

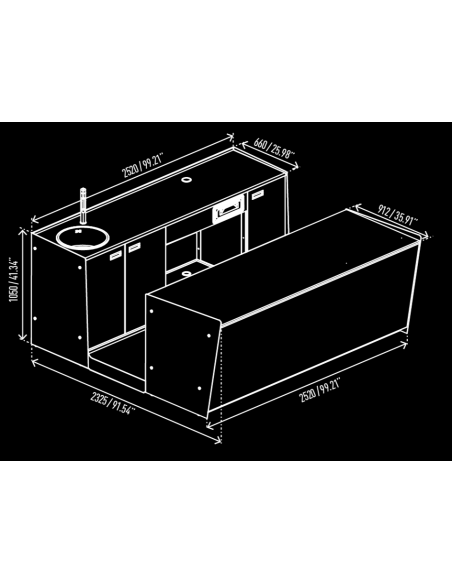

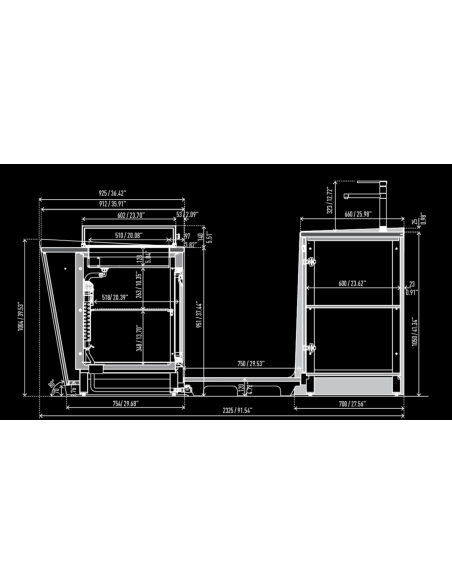

Dimensions	Cm 250 x 232.5 x 95.1 h
Refrigerated Cells	N. 3
Sink with Tap	ø 42
Power supply	Monophase - 230V-1Ph-50Hz
Origin	Made in Italy
Standard	CE
Warranty	12 Months

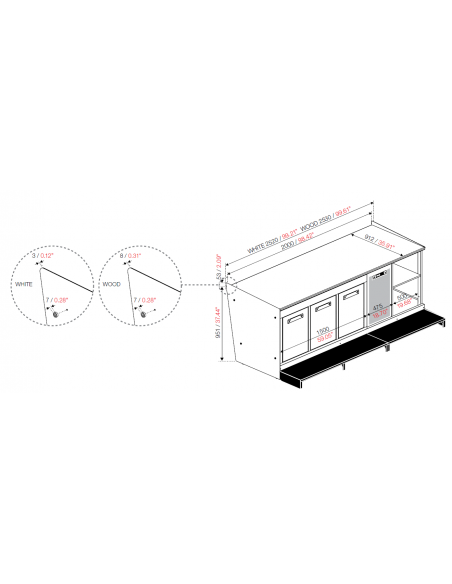

BENCH FEATURES (FRONT)
Bearing STRUCTURE made of tubular steel painted white in an oven at 180°C with epoxy powders, guaranteeing durability, with stiffening elements and adjustable feet for perfect levelling of the furniture.
CELL with ventilated refrigeration, to ensure higher performance and temperature uniformity inside the refrigerated compartment. External cell cladding, including doors and drawers (optional), in white prepainted sheet metal. Temperature operating +4°C/ +8°C. Test at 32°C with 60% U.R.
MOTOR on board placed in the special technical compartment protected by ventilation grill in white prepainted sheet metal. L'Refrigeration system consists of hermetic compressor, air-cooled condenser with copper tube and aluminum fins with fan, capillary-fed evaporator with copper tube and aluminum fins. Ventilated refrigeration with uniform air distribution through special conveyor located above the evaporator.
REFRIGERATED TANK for the display of food & beverage recessed in the cell whose refrigeration it exploits, made of stainless steel with Scotch-Brite finish, available in 1000 and 1400 mm modules. The tank is equipped with drainage for cleaning and liquid evacuation. Temperature operating +4°C/ +8°C. Test at 25°C with 60% U.R.
ELECTRONIC CONTROL PANEL with general button for managing the cell refrigeration system, and second button for managing the tank refrigeration.
WORKTOP made of water-repellent postforming with low formaldehyde emission, white color
FIANCO in metal, 3 mm thick, painted white in oven at 180°C with epoxy powders, or RAL lacquered according to sample. SIDE in plywood, 8 mm thick, available in "Aged Oak" finish. The side is fixed with n° 4 screws inserted inside stainless steel bushings, diameter 20 mm, thickness 7 mm
Transparent tempered glass, 6 mm thick, to protect the refrigerated tank.
AVAILABLE FINISHES: F1 = metal sides painted white and front panel in FULL COLOR laminate F2 = metal sides painted white and front panel in TEXTURE, LINOLEUM and FENIX white and black laminate F3 = metal sides lacquered as per sample; front panel lacquered as per sample or in FENIX gold, silver or acc. hamilton laminate F4 = metal sides lacquered in anodized color; front panel lacquered in anodized color or in 100% recycled paper

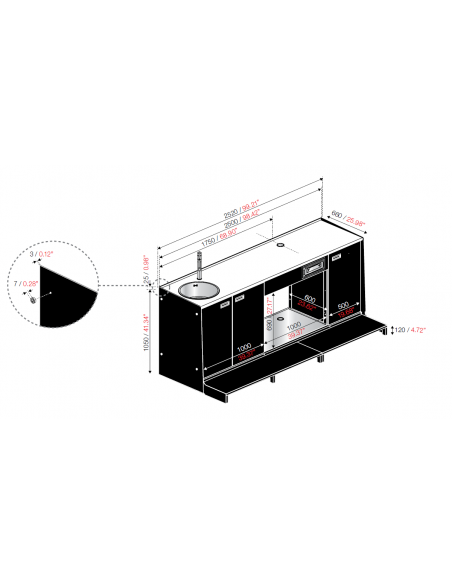

COUNTER FEATURES (BACK)
SUPPORTING STRUCTURE made of tubular steel painted black in an oven at 180°C with epoxy powders, guaranteeing durability, with stiffening elements and adjustable feet for perfect levelling of the furniture.
BACKS in white prepainted sheet metal
DOORS in black-colored melamine with low formaldehyde emission.
WORKTOP in water-repellent postforming with low formaldehyde emission.
HOLE for COFFEE MACHINE with stainless steel protective collar.

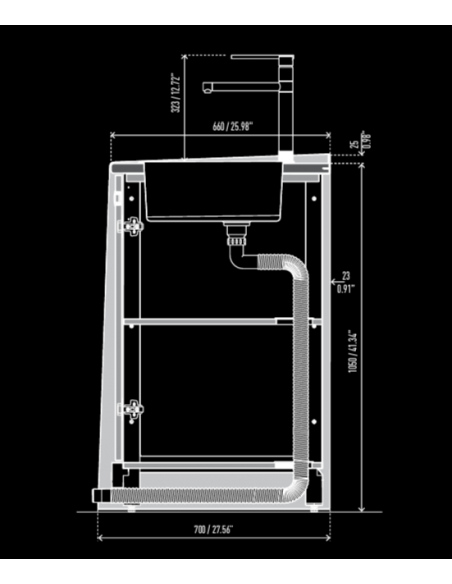

SINK in polished stainless steel 420 mm diameter.
MIXER with water-saving double-flow lever
PROFILE in extruded aluminum painted black in an oven at 180°C with epoxy powders
COMPARTMENT A DAY L 1000 - H 690 - P 600 mm for insertion of cup washer with aluminum bottom protection tank.
FILTER TRAY in polished stainless steel finish.
Metal SIDE, 3 mm thick, painted black in oven at 180°C with epoxy powders, fixed with n° 4 screws inserted inside stainless steel bushings diameter 20 mm, thickness 7 mm.
PEDESTAL with water-repellent backing and black plastic covering.
Metal end FIANCHES, 3 mm thick, painted black in an oven at 180°C with epoxy powders.
