Retro base refrigerated - Temperature positive - cm 100 x 63.2 x 100 h

IF-F-EY130501-531-513
IF-F-EY130501-531-513
€2,067.77 €2,176.60 -5%
€2,067.77 Senza tasse €2,522.68 Con tasse €2,176.60 Senza tasse
Tax excluded

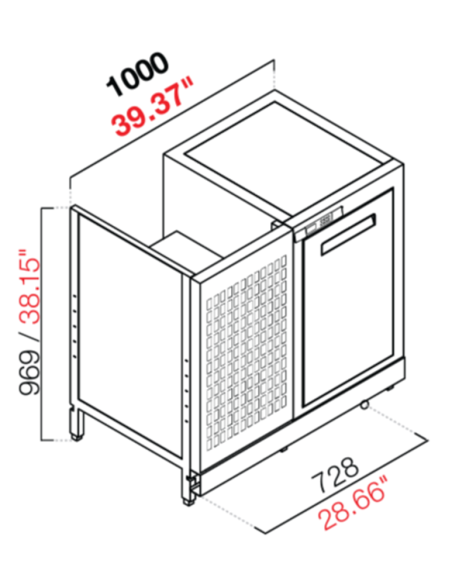

Retro base refrigerated - Temperature positive - Dimensions cm 100 x 63.2 x 100 h

Refrigeration

Options

+ ACCESSORIES


Refrigerated base rear MANUFACTURE FROM MATERIALS OF ANY HEADING
Dimensions product cm 100 x 63.2 x 100 h
Norma CE
Warranty 12 months
GENERAL FEATURES
180 oven polyester powder painted steel tubular base°C with stiffening elements and adjustable feet.
Pedana tin canopy made of grey polyester powder. In the absence of platform it is necessary to add the lower closing band in polyester powder coated sheet (accessory on request).
Insulated monobloc hood with low GWP HFO Solstice® LBA foam; inner walls and stainless steel bottom AISI 304 18/10 2B finish, rounded inner corners to facilitate cleaning operations.
Series door with 180 opening° stainless steel AISI 304 18/10 glossy BA finish and magnetic closure
The door, often 55 mm, is isolated with polyurethane and has been tested in climate room at 35°C of room temperature with 60% relative humidity and 20°C ambient temperature with 75% relative humidity
As a standard, an intermediate grille in grey plastified wire for each compartment can be placed on 3 different levels by means of stainless steel printed hygienic rack AISI 304 18/10 with 2B finish
Stainless steel top
REFRIGERATION
EVAPORATORYE-VEN): Refrigeration system consisting of air compressor, condenser with copper tube and air cooled aluminium fins with fan; evaporator with copper tube and aluminum fins fed to capillary in case of capacitor unit on board, valve in case of remote capacitor unit. Ventilated refrigeration with uniform air distribution through a special conveyor located above the evaporator. Evaporator place to ceiling in the cell L.544, wall in all other modules. Automatic defrosting. The condensation discharge is housed in a special funnel on the bottom of the tank to avoid water leaks; optional condensation evacuation system via condensate evaporation tank with electrical resistance. The system is tested at 35°C / 60% U.R. environment.
EVAPORATORYE-STA Refrigeration system consisting of air compressor, condenser with copper tube and air cooled aluminium fins with fan; evaporator with copper tube and aluminum fins fed to capillary in case of capacitor unit on board, valve in case of remote capacitor unit. Static Refrigeration. Automatic defrosting. The condensation discharge is housed in a special funnel on the bottom of the tank to avoid water leaks; optional condensation evacuation system via condensate evaporation tank with electrical resistance. The system is tested at 35°C / 60% U.R.
EVAPORARY A SCOMPARSAE-SCO Refrigeration system consisting of air compressor, condenser with copper pipe and air cooled aluminium fins with fan; evaporator with copper pipe drowned in polyurethane foam and placed in contact with the inner walls of the cell fed to capillary in case of capacitor unit on board, valve in case of remote capacitor unit. The cell has always supplied the bottom grids in PST; condensation discharge also has water discharge function. On request ventilation kit, mandatory in case of glass doors. The system is tested at 35°C / 60%U.R. grid bottom cell in PST.

*LENGTH
*100 cm*
*BACK COUNTER DEPTH
63.2 cm
