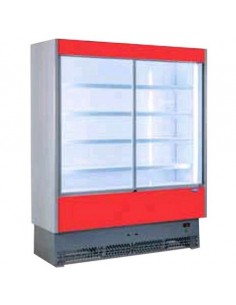

| Refrigerated display for pre-packed meat |
VS80200CA |
| Ideal for |
Butcher shops selling pre-packed meat, grocery stores, convenience stores and supermarkets. |
| Product dimensions |

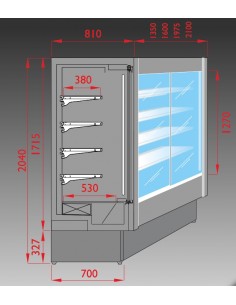

210 x 76.5 x 203 cm (LxPxh), including end panels. |
| Compliance |
CE |
| Warranty |
12 months |
| Country of origin |
Italy |
| TECHNICAL DATA |
| Operating temperature |
0/+2 °C |
| Refrigeration |
Fan-assisted, with built-in condensing unit and valve-controlled refrigeration system. |
| Defrosting |
Electric. |
| Display area |
4.04 m² |
| Shelves |
4 height-adjustable shelves in non-toxic painted sheet metal, with price holders. |
| Front closure |
Double-glazed sliding doors. |
| Controls |
Electronic control panel. |
| Running electrical input |
1705 W / 8.90 A |
| Starting electrical input |
1910 W / 10.80 A |
| Electrical input during defrosting |
1660 W / 7.54 A |
| Power supply |
220–240 V, single-phase, 50 Hz. |
| Lighting |
Two lateral pink LED lights, 13 W each; total lighting power 26 W. |
| Refrigerant |
R452A / R455A; R290 on request. |
| Climate class |
3: ambient temperature +25 °C and relative humidity 60%. |
| End panels |
Solid insulated grey painted sheet metal panels, each 5 cm thick, with integrated LED lighting. |
| Standard front finish colours |
RAL 1018, 1028, 2008, 3020, 5013, 5024, 6019, 6026, 9005 and 9010. |
| GENERAL FEATURES |
| Painted refrigerated display designed for displaying and storing pre-packed meat at 0/+2 °C. Double-glazed sliding doors provide access to products without projecting into the aisle. |
| Fan-assisted refrigeration, electronic control and electric defrost manage cabinet operation. Four height-adjustable shelves allow the display to be arranged to suit the products, while price holders facilitate product identification. |
| Two lateral pink LED lights illuminate the displayed products. Compact construction with a large display area, a tank manufactured without CFCs and easy installation. The cabinet cannot be multiplexed. |
| INCLUDED EQUIPMENT |
| Four height-adjustable shelves in non-toxic painted sheet metal with price holders; double-glazed sliding doors; solid insulated end panels with two integrated pink LED lights; electronic control panel, built-in condensing unit and electric defrost. Standard packaging on a pallet with nylon protection. |
| PROFESSIONAL APPLICATIONS |
| Suitable for the refrigerated display of pre-packed meat in butcher shops, grocery stores and small, medium and large food retail outlets. |
| CLEANING AND MAINTENANCE |
| The construction is designed to facilitate cleaning. |
| OPTIONAL ACCESSORIES AND FEATURES |
| Additional white painted sheet metal shelf with brackets and price holder; white shelf risers, 8 cm high, supplied as two 97.96 cm sections; white tank divider measuring 45 x 15 cm and white shelf divider measuring 37 x 15 cm, both in plastic-coated wire; white or pink LED shelf lighting. |
| Kit of four wheels: overall dimensions with wheels 210 x 76.5 x 213 cm (LxPxh). Tropicalized configuration for climate class 4, with ambient temperature +30 °C and relative humidity 60%. |
| 230 V single-phase 60 Hz power supply, non-standard plug, additional PTC heater and stainless steel condensate collection tank with accessories, also available with an ON/OFF switch. |
| Black RAL 9005 painted interior and base, with the end panels remaining RAL 9016. |
| Optional wooden crate packaging measuring 219 x 88 x 221 cm (LxPxh); fumigation treatment for the packaging on request. |
