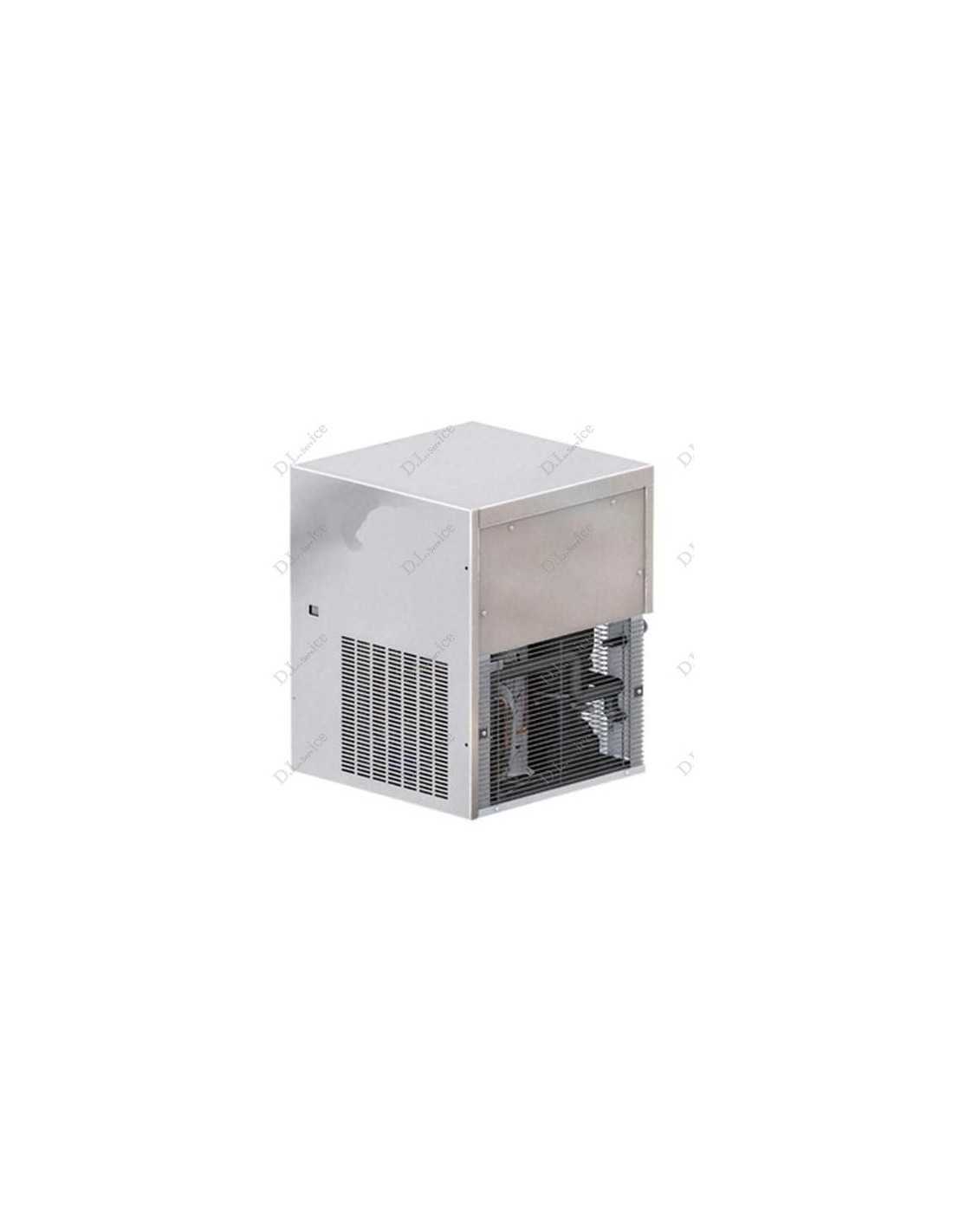

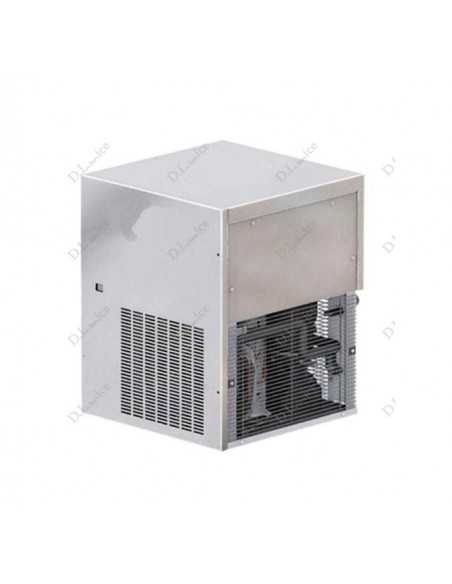

Ice maker - Production kg 250/24 h - cm 56 x 56.9 x 69.5 h
Pressed granule ice maker - Model MTG560 - Drawing system - Production kg 250/24 h - Matching containers: PE530/T250// T420 T830/1200DD/RB140/RB280 - Dimensions indicative ice mm 8 x 16 x 7 - Refrigerant gas R290 - Power W 1050 - Dimensions cm 56 x 56.9 x 69.5 h
Options
+ ACCESSORIES
| Ice Maker | MGT560 |
| System | A die |
| Dimensions product | Cm 56 x 56.9 x 69.5 h |
| Dimensions packaging | Cm 64.5 x 64.5 x 91 h |
| Net weight / Gross | Kg 83 / 93 |
| Warranty | 24 months |
| Standard | CE |
| Origin | Italy |
| TECHNICAL DATA | |
|---|---|

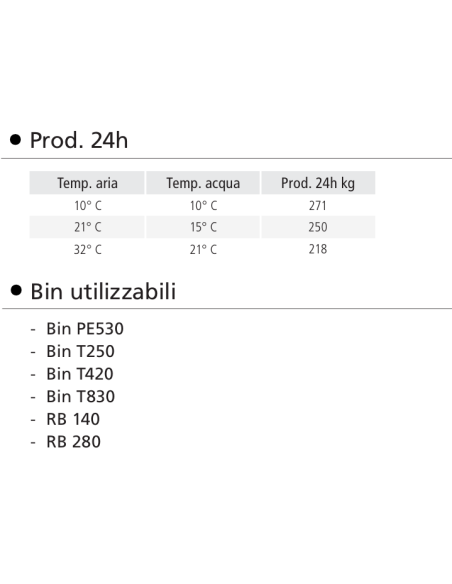

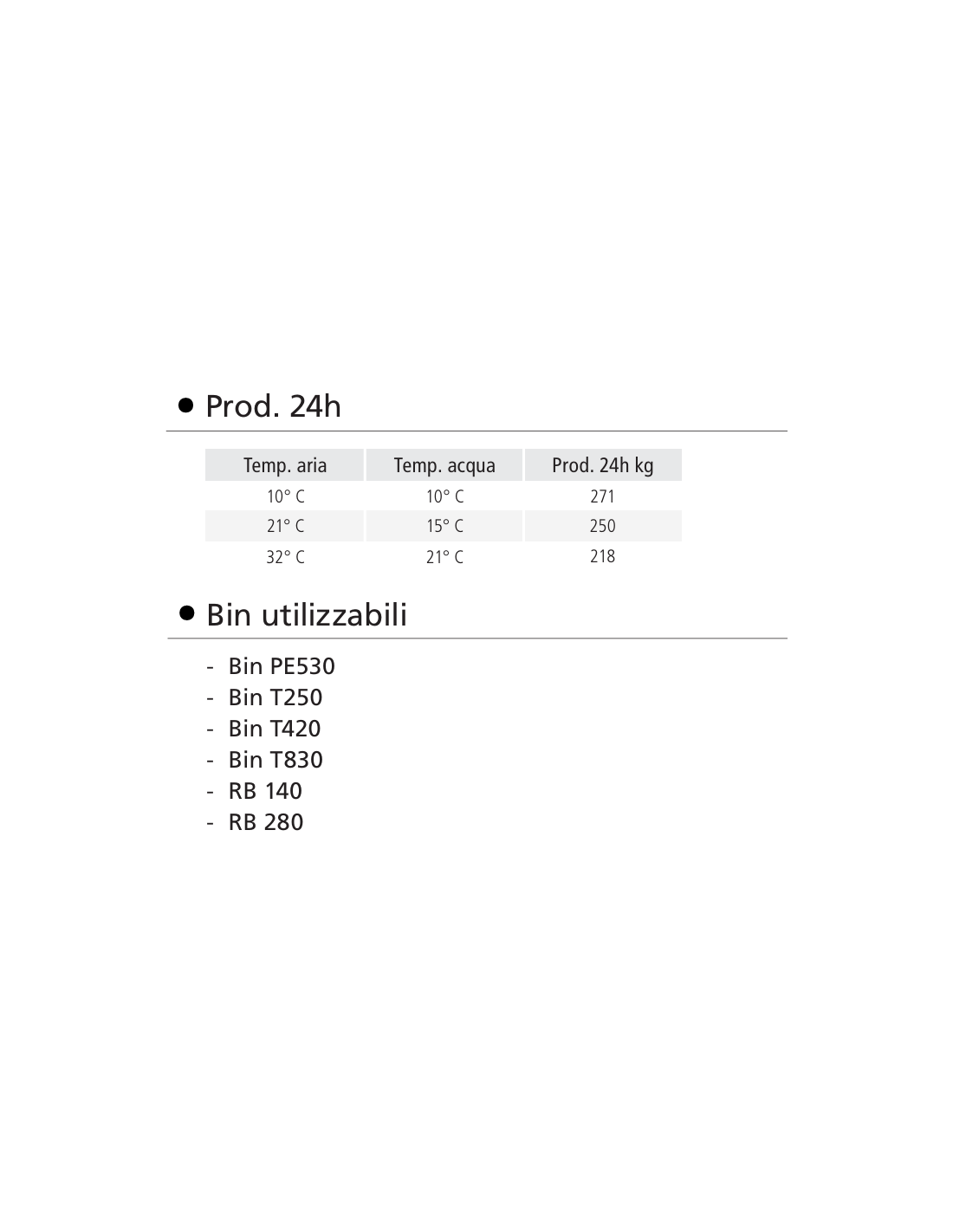

| Production in 24 h | 250 kg |
| Compatible containers (excluding) | PE530/T250/T420/T830/1200DD/RB140/RB280 |
| Condensation | Air or Water ( to be chosen when ordering) |

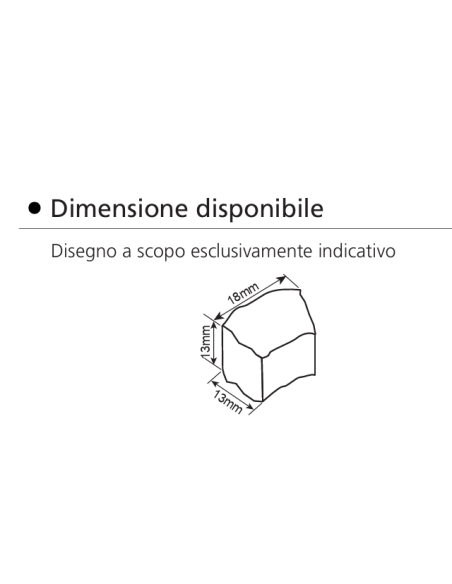

| Ice type | mm 8 x 16 x 7 |
| Refrigerant gas | R290 |
| Power supply | Monophase V220-240 - 50Hz |
| Power | W 1050 |
| Water consumption (air condensation) | 1 l/kg |
| Water consumption (condensing ) | 5.2 l/kg |
| Fuse | 10A |
| CONDITIONS D'INSTALLATION | |
|---|---|
| Installation | Indoor |
| Temperature environment | Min +10°C / Max +43°C |
| Temperature water | Min +3°C / Max +32°C |
| Inlet water pres | Mix 1bar (14 psi) / 6bar 84 psi) |
| TECHNICAL CHARACTERISTICS | |
|---|---|
| Drawn ice, compact and durable | |
| Low consumption (1 lt water / 1 kg ice) - air vers | |
| Electromechanical operating system | |
| ON switch/OFF | |
| External structure AISI 304, Scoth Brite finish | |
| Evaporator AISI 304, auger AISI 303 | |
| HCFC-free inner container insulation | |
| RoHS Directive Compliance | |
| Water basin, dustproof system | |
| Tropicalized Class +43 model°C | |
| Simplified cleaning due to rounded surfaces | |
| External protective, removable, easy-to-clean filter | |
| Automatic water loading |
| MATCHING BIN CONTAINERS: | |
|---|---|
| Container model PE530 = Capacity kg 190 - Polyethylene finish - Feet 100-160 mm - Dimensions cm 94.2 x 79.5 x 105.3 h - Dimensions packing Cm 103.5 x 88.5 x 127.5 h - Net weight / gross 61/92 kg Containermodel T250 = Capacity container kg 100 - Dimensions cm 56 x 81.5 x 100 h - Dimensions packing cm 62 x 88 x 117.5 h - Net weight / gross 53/65 kg Container model T420 = Capacity kg 200 - Stainless steel frame AISI 18/10 - Feet 100-160 mm - Dimensions cm 87 x 81.5 x 100 h - Dimensions packing Cm 92 x 85 x 117.5 h - Net weight / gross 63/78 kg Containermodel RB140 = Ice container - Capacity container kg 108 - Reserve kg 17- Water discharge ø mm 24 - Dimensions cm 79.5 x 106 x 128.4 h - Net weight kg 64 Container model T830 = Capacity kg 350 - Stainless steel frame AISI 304 - Feet 100-160 mm - Dimensions cm 125 x 81.5 x 100 - Dimensions packing Cm 130 x 85 x 118 h - Net weight / gross kg 102/120.5 Container model RB280 = Capacity cart up kg 108 x 2 - Capacity reserve kg 50 - Dimensions cm 156 x 106 x 148.4 h - Dimensions packing cm 162.5 x 112.5 x 165.5 h - Net weight / gross 135/170 kg |
| INFORMATION | |
|---|---|
| This type of ice is characterized by the ability to provide excellent durability and fully meets all requirements for the preparation of cocktails. |
- *HOURLY PRODUCTION
- *fino a 300 kg/ 24 h*
- *ICE CONTAINER
- *Prepared for external container*
