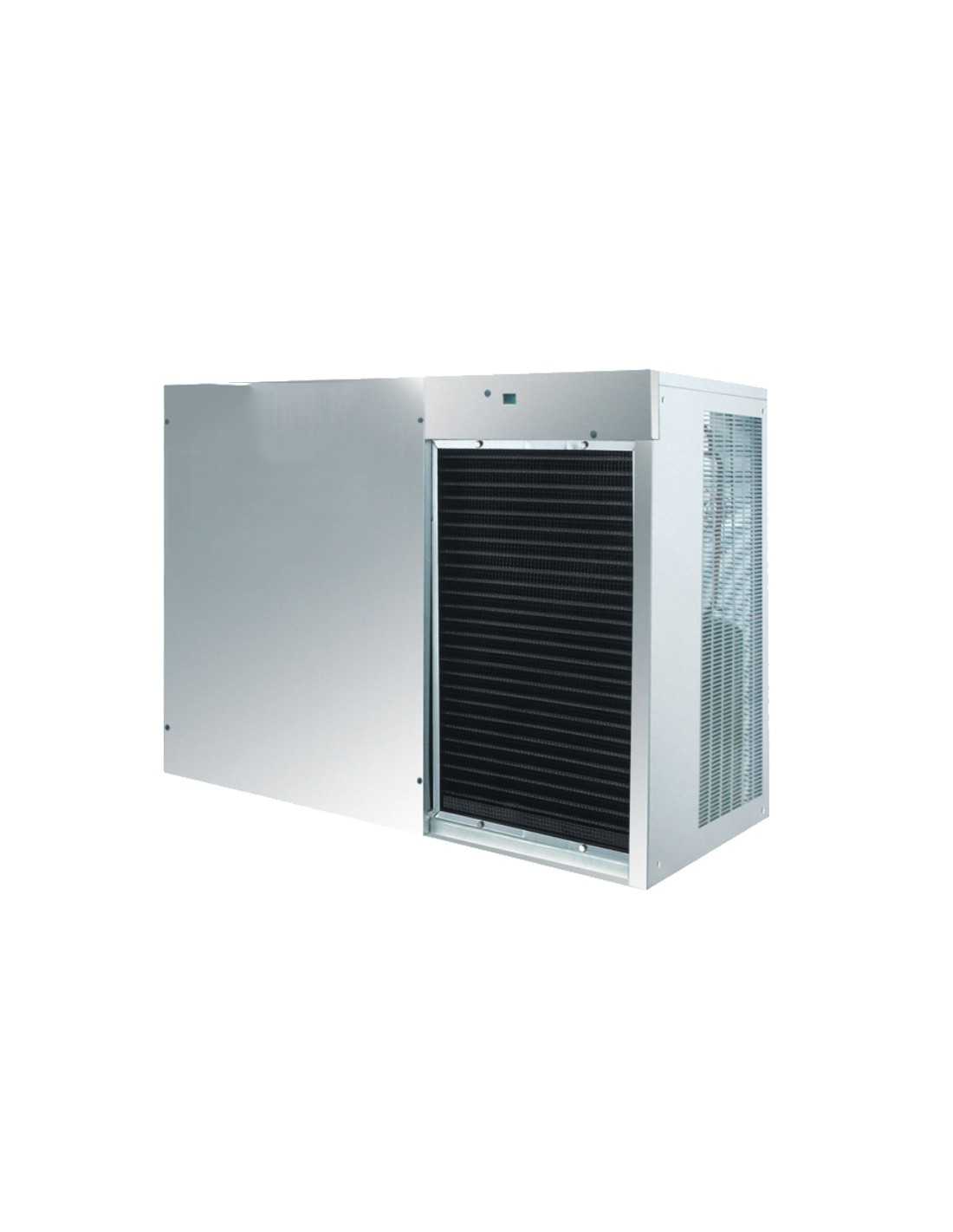

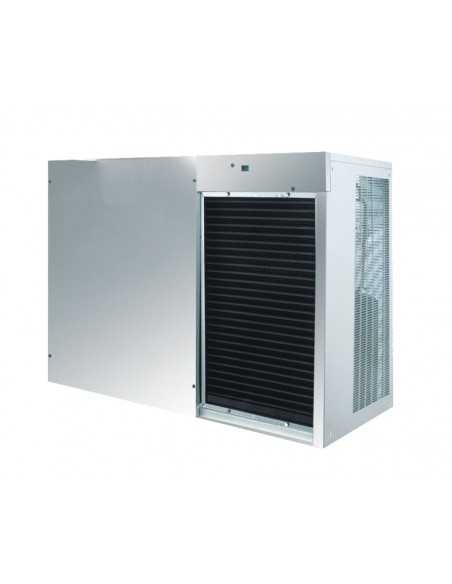

Ice maker - Production kg 770/24 h - cm 125 x 64.5 x 95 h
N-FT-CV1650A
N-FT-CV1650A
€7,130.00
€7,750.00
-8%
€7,130.00 Senza tasse
€8,698.60 Con tasse
€7,750.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days
Flat cube ice maker - Model CV1650 - Vertical evaporator system - Production kg 770/24 h - BINT830 matching container - Cube type gr. 7 - Refrigerant gas R 404A - R452A - Power W 4300 - Dimensions cm 125 x 64.5 x 95 h
Options
+ ACCESSORIES
| Ice maker | CV1650 |
| Ideal for: | Bars, Restaurants, Fast food, Hotels, Discos |
| System | With vertical evaporator |
| Dimensions product | Cm 125 x 64.5 x 95 h |
| Dimensions packaging | Cm 135 x 74.5 x 115 h |
| Net weight / Gross | Kg 186 / 242 |
| Warranty | 24 months |
| Standard | CE |
| Origin | Italy |
| TECHNICAL DATA | |
|---|---|
| Production in 24 h | Kg 770 |
| Compatible container (excluding) | BIN830 |
| Condensation | Air |

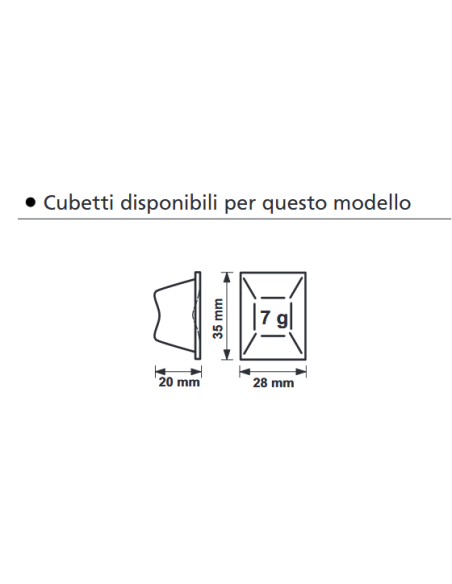

| Cube type | Standard 7 g |
| Refrigerant gas | R 404A - R452A |
| Power supply | Three-phase V400/3/50 Hz |
| Power | W 4300 |
| Water consumption (air condensation) | 1.4 l/kg |
| Fuse | 32A |
| CONDITIONS D'INSTALLATION | |
|---|---|
| Installation | Indoor |
| Temperature environment | Min +10°C / Max +43°C |
| Temperature water | Min +3°C / Max +32°C |
| Inlet water pres | Mix 1bar (14 psi) / 6bar (84 psi) |
| TECHNICAL CHARACTERISTICS | |
|---|---|
| Crystalline and compact 7 gr flat cube | |
| Vertical evaporator guarantees separate cubes | |
| External structure AISI 304, Scotch Brite finish | |
| Electromechanical operating system | |
| ON-OFF switch | |
| Removable air filter for easy cleaning | |
| Washing system | |
| RoHS Directive Compliance | |
| Simplified cleaning thanks to rounded surfaces | |
| Tropical Class +43 model°C |
| BIN CONTAINER MATCHABLE | |
|---|---|
| Container bin model BINT830 - Capacity kg 350 | |
| Stainless steel frame AISI 304 | |
| Feet 100-160 mm | |
| Dimensions cm 125 x 81.5 x 100 | |
| Dimensions packaging Cm 130 x 85 x 118 h | |
| Net weight / gross kg 102/120.5 |
- *HOURLY PRODUCTION
- *fino a 900 kg / 24 h*
- *ICE CONTAINER
- *Prepared for external container*
