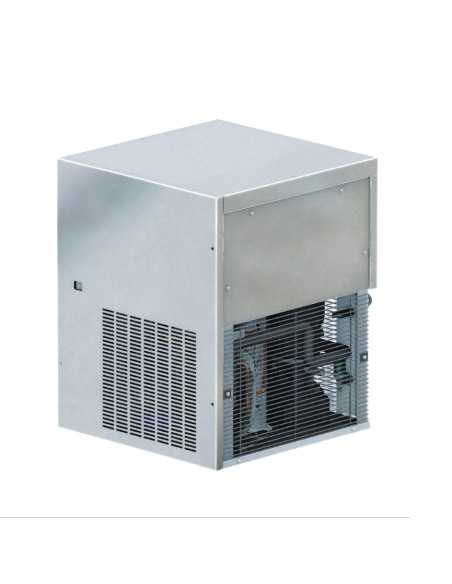

Ice maker - Production kg 160/24 h - cm 56 x 56.9 x 60 h
Dimensions Granular flake ice maker - Model GM360 - Production kg 160/24 h - Matching containers: PE530/T250/T420/RB140 - Refrigerant gas R290 - Power W 650 - cm 56 x 56.9 x 60 h
Options
+ ACCESSORIES
| Ice Maker | GM650 |
| System | Granular |
| Dimensions product | Cm 56 x 56.9 x 60 h |
| Dimensions packaging | Cm 64.5 x 64.5 x 81 h |
| Net weight / Gross | Kg 63/74 |
| Warranty | 24 months |
| Standard | CE |
| Origin | Italy |
| TECHNICAL DATA | |
|---|---|
| Production in 24 h | 160 kg |
| Compatible containers (excluding) | PE530/T250/T420/RB140 |
| Condensation | Air or Water ( to be chosen when ordering) |
| Type of cube | Granular |
| Refrigerant gas | R290 |
| Power supply | Monophase V230/1/50Hz |
| Power | W 650 |
| Water Consumption (Air Condensation) | 1 l/kg |
| Water consumption (Water condensation) | 5.5 l/kg |
| Fuse | A10 |
| CONDITIONS D'INSTALLATION | |
|---|---|
| Installation | Indoor |
| Temperature environment | Min +10°C / Max +43°C |
| Temperature water | Min +3°C / Max +32°C |
| Inlet water pres | Mix 1bar (14 psi) / 6bar (84 psi) |
| TECHNICAL CHARACTERISTICS | |
|---|---|
| Granular ice | |
| 1m³ = 550kg of ice | |
| Low consumption ( 1lt water/1kg ice) - air ver | |
| Electromechanical operating system | |
| Steel frame AISI 304, Scotch Brite finish | |
| Switch ON / OFF | |
| Water basin, dustproof system | |
| Rotation sensor on auger | |
| RoHS Directive Compliance | |
| Automatic water loading | |
| Tropical Class +43 model°C | |
| One-piece stainless steel frame | |
| Evaporator AISI 304, auger AISI 303 | |
| Simplified cleaning due to rounded surfaces | |
| Removable and cleanable air filter |
| MATCHABLE BIN CONTAINERS: | |
|---|---|
|
Container model PE530 = Capacity kg 190 - Polyethylene finish - Feet 100-160 mm - Dimensions cm 94.2 x 79.5 x 105.3 h - Dimensions packing Cm 103.5 x 88.5 x 127.5 h - Net weight / gross 61/92 kg Containermodel T250 = Capacity container kg 100 - Dimensions cm 56 x 81.5 x 100 h - Dimensions packing cm 62 x 88 x 117.5 h - Net weight / gross 53/65 kg Container model T420 = Capacity kg 200 - Stainless steel frame AISI 18/10 - Feet 100-160 mm - Dimensions cm 87 x 81.5 x 100 h - Dimensions packing Cm 92 x 85 x 117.5 h - Net weight / gross 63/78 kg Containermodel RB140 = Ice container - Capacity container kg 108 - Reserve kg 17- Water discharge ø mm 24 - Dimensions cm 79.5 x 106 x 128.4 h - Net weight kg 64 |
| INFORMATION | |
|---|---|
| Granular flake ice. This type of ice transmits its icy character quickly and operatively. Its weight and volume make this variety of ice ideal for storage and transportation. It is easy to dose. Perfect for displaying food products, such as fish, it is also ideal for use in the chemical and pharmaceutical industries. |
- *HOURLY PRODUCTION
- *fino a 160 kg/ 24 h*
- *ICE CONTAINER
- *Prepared for external container*
